M83723/75W20286: DescriptionMIL Series Connector, 28 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Plug,; CategoryThe connector The connector; File Size173KB，1 Pages; ManufacturerAero-Electric Connector; Websitehttps://www.aero-electric.com/index.html

Download Datasheet Parametric View All

M83723/75W20286 Overview

MIL Series Connector, 28 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Plug,

M83723/75W20286 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Aero-Electric Connector
Reach Compliance Code	compliant
Other features	STANDARD: MIL-DTL-83723 SERIES III, COMPATIBLE CONTACT: M39029/5-115, M39029/5-118
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION/ENVIRONMENT/FLUID/IMMERSION RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	OLIVE DRAB CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	20
Termination type	CRIMP
Total number of contacts	28

Preview

Download Datasheet

View All

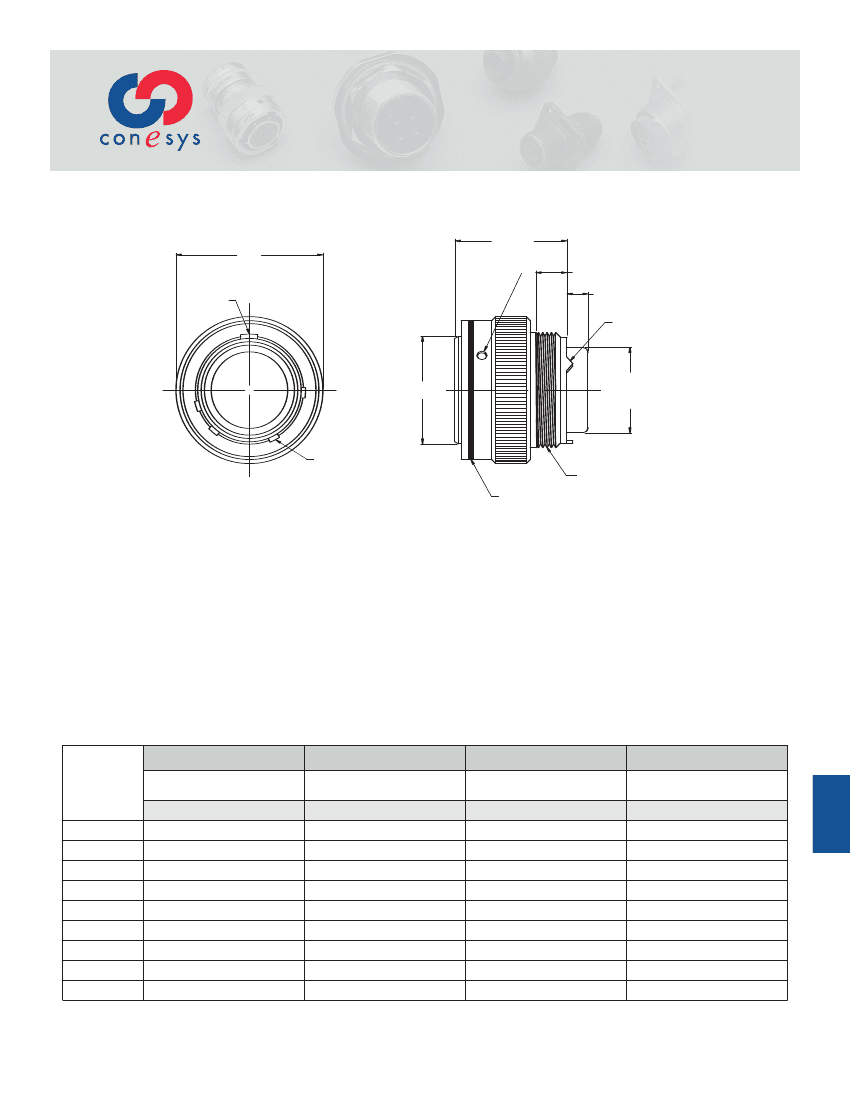

M83723/75, 76

Straight Plug

AE83375, 76

Bayonet Coupling, Crimp Removable, Rear Release

1.230(31.24)

MAX

3x BAYONET HOLES

EQUALLY SPACED

.290(7.37) MIN FULL THREAD

.190(4.83) GROMMET

.130(3.30) EXTENSION

3 ACCESSORY TEETH

EQUALLY SPACED

F

MAX

COUPLING

NUT

MASTER KEY

G

E

MAX

GROMMET

4 MINOR KEYS

H

ACCESSORY THREAD

BLUE COLOR BAND

Page 88

Page 104

Pages 107 108

,

Page 87

Page 106

Page 102

Completed Part Number

Contacts, Sealing Plugs and Tools

Insert Arrangements

Performance Speciﬁcations

Insert Availability and Contact Information

Polarization

MIL–DTL–

83723 S III

E

Shell

Size

8

10

12

14

16

18

20

22

24

Maximum

inch

.305

.405

.531

.665

.790

.869

.994

1.119

1.244

mm

7.75

10.29

13.49

16.89

20.07

22.07

25.25

28.42

31.60

inch

.776

.906

1.078

1.141

1.266

1.375

1.510

1.625

1.760

F

Maximum

mm

19.71

23.01

27.38

28.98

32.16

34.93

38.35

41.28

44.70

+.005

-.004

inch

.419

.521

.691

.760

.887

.993

1.118

1.243

1.368

G

+.13

-.10

mm

10.64

13.23

17.55

19.30

22.53

25.22

28.40

31.57

34.75

H

Accessory Thread

Class 2A

1/2-20UNF

5/8-24UNEF

3/4-20UNEF

7/8-20UNEF

1-20UNEF

1-1/16-18UNEF

1-3/16-18UNEF

1-5/16-18UNEF

1-7/16-18UNEF

www.conesys.com

– 91 –

sales

@

aero-electric.com

Recommended Resources
