DSO49SJ-FREQ1-STBY2-OUT24 datasheet, PDF

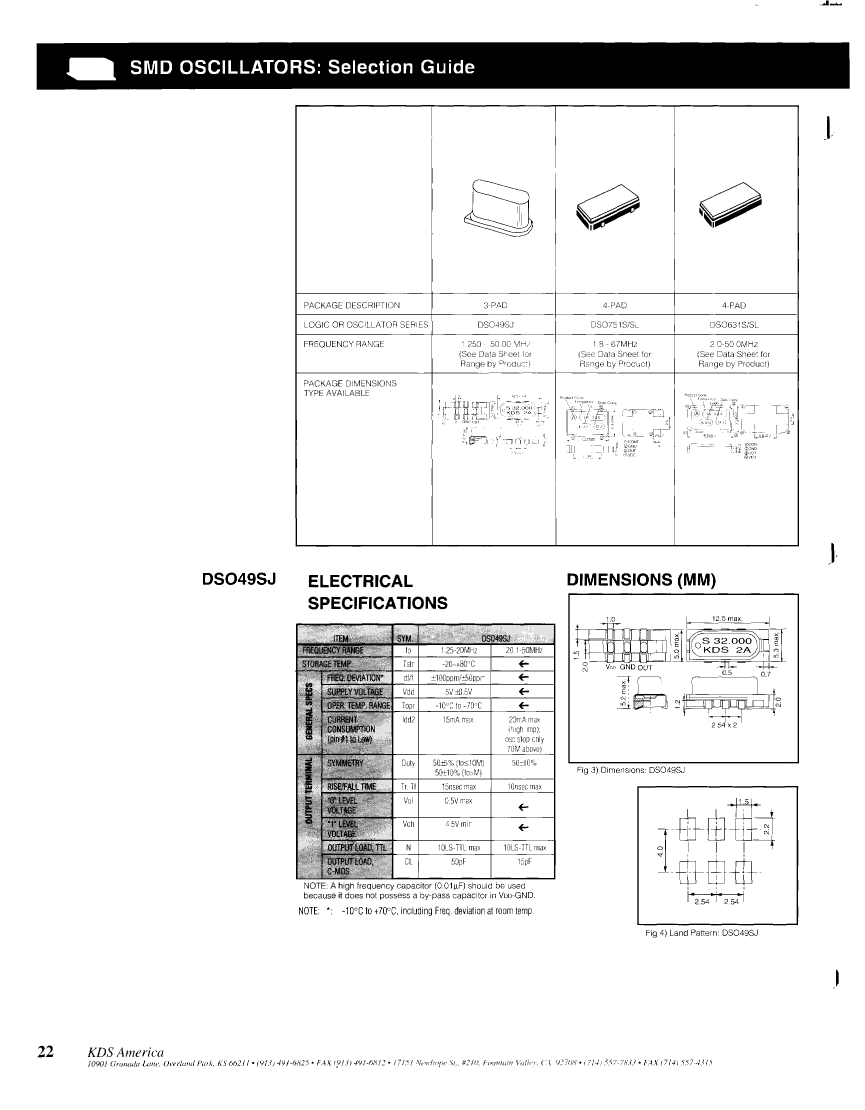

DSO49SJ-FREQ1-STBY2-OUT24: DescriptionCMOS/LSTTL Output Clock Oscillator, 1.25MHz Min, 10MHz Max,; CategoryPassive components oscillator; File Size88KB，1 Pages; ManufacturerDaishinku Corp.; Websitehttp://www.kds.info/

Download Datasheet Parametric Compare View All

DSO49SJ-FREQ1-STBY2-OUT24 Overview

CMOS/LSTTL Output Clock Oscillator, 1.25MHz Min, 10MHz Max,

Parameter Name	Attribute value
Maker	Daishinku Corp.
Reach Compliance Code	unknown
maximum descent time	15 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Manufacturer's serial number	DSO49SJ
Installation features	SURFACE MOUNT
Maximum operating frequency	10 MHz
Minimum operating frequency	1.25 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS/LSTTL
Output load	10 LS TTL, 50 pF
physical size	12.5mm x 5.3mm x 5.2mm
longest rise time	15 ns
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	52.5/47.5 %

	DSO49SJ-FREQ1-STBY2-OUT24	DSO49SJ-FREQ3-STBY2-OUT24	DSO49SJ-FREQ2-STBY1-OUT24
Description	CMOS/LSTTL Output Clock Oscillator, 1.25MHz Min, 10MHz Max,	CMOS/LSTTL Output Clock Oscillator, 20.1MHz Min, 50MHz Max,	CMOS/LSTTL Output Clock Oscillator, 10MHz Min, 20MHz Max,
Reach Compliance Code	unknown	unknown	unknown
maximum descent time	15 ns	10 ns	15 ns
Frequency Adjustment - Mechanical	NO	NO	NO
frequency stability	50%	50%	100%
Manufacturer's serial number	DSO49SJ	DSO49SJ	DSO49SJ
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	10 MHz	50 MHz	20 MHz
Minimum operating frequency	1.25 MHz	20.1 MHz	10 MHz
Maximum operating temperature	70 °C	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C
Oscillator type	CMOS/LSTTL	CMOS/LSTTL	CMOS/LSTTL
Output load	10 LS TTL, 50 pF	10 LS TTL, 15 pF	10 LS TTL, 50 pF
physical size	12.5mm x 5.3mm x 5.2mm	12.5mm x 5.3mm x 5.2mm	12.5mm x 5.3mm x 5.2mm
longest rise time	15 ns	10 ns	15 ns
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	YES	YES
maximum symmetry	52.5/47.5 %	55/45 %	55/45 %
Base Number Matches	-	1	1
