UM-5J-FREQ-3OT-STBY3-CL4: DescriptionParallel - 3Rd Overtone Quartz Crystal, 30MHz Min, 100MHz Max,; CategoryPassive components Crystal/resonator; File Size49KB，1 Pages; ManufacturerDaishinku Corp.; Websitehttp://www.kds.info/; Environmental Compliance

Download Datasheet Parametric View All

UM-5J-FREQ-3OT-STBY3-CL4 Overview

Parallel - 3Rd Overtone Quartz Crystal, 30MHz Min, 100MHz Max,

UM-5J-FREQ-3OT-STBY3-CL4 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Daishinku Corp.
Reach Compliance Code	unknown
Other features	AT CUT CRYSTAL
Crystal/Resonator Type	PARALLEL - 3RD OVERTONE
Drive level	10 µW
frequency stability	0.0015%
frequency tolerance	10 ppm
JESD-609 code	e4
load capacitance	32 pF
Manufacturer's serial number	UM-5J
Installation features	SURFACE MOUNT
Maximum operating frequency	100 MHz
Minimum operating frequency	30 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L5.75XB7.7XH3.4 (mm)
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

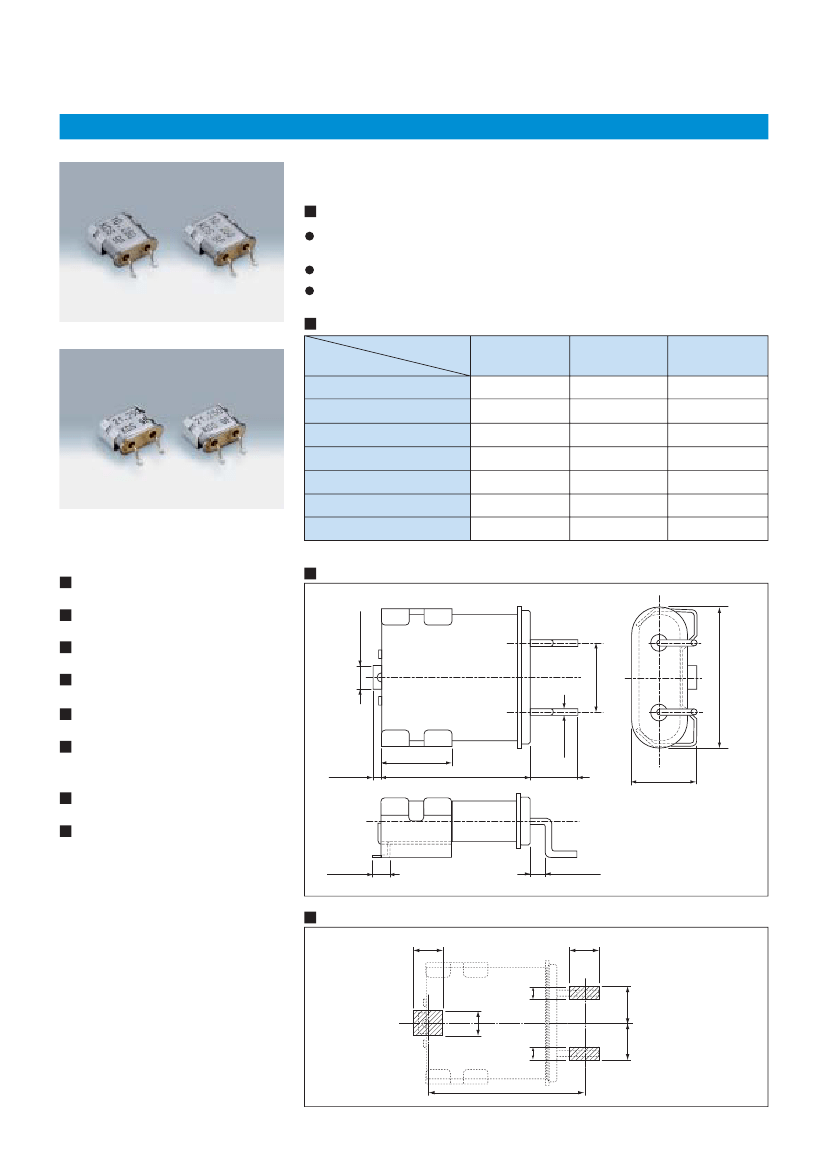

SMD Type Crystal Resonators [Jacket Type]

UM-1J, UM-4J, UM-5J

A surface-mount resonator 3.4 mm in height, consisting of a UM-type

resonator and jacket.

Features

Surface mount type of UM-1,4 and 5 crystal resonators

with metal jacket.

Higher precision and reliability.

Good for automatic mounting and reflow soldering.

UM−1J

Series Resistance

Type

Frequency

10∼15MHz

15∼30MHz

30∼75MH½

75∼100MH½

100∼125MH½

125∼150MHz

Vibration

Mode

Fund.

3rd

5th

7th

UM-1J

UM-5J

50Ωmax.

70Ωmax.

80Ωmax.

100Ωmax.

120Ωmax.

UM-4J

50Ωmax.

70Ωmax.

80Ωmax.

100Ωmax.

−

UM−5J

150∼200MH½

Consult our sales representative for other specifications or special specifications.

Frequency Range

10∼200MHz

Vibration Mode

Thickness-shear mode（AT cut）

Drive Level

10μW

Load Capacitance

Series, 16pF，20pF，30pF，32pF

Frequency Tolerance（at 25℃）

±10×10

-6

Frequency Tolerance over

Temperature（Ref. to 25℃）

±5×10

-6

, ±10×10

-6

, ±15×10

-6

Operating Temperature Range

−10∼＋60℃

Storage Temperature Range

−30∼＋80℃

Dimensions[mm]

1.27±0.25

3.8

0.5±0.1

※

2.5±0.25

φ0.35

3.4

+ 0.1

−0.5

※ UM-1J : 7.75±0.25

※ UM-5J : 5.75±0.25

1±0.25

1.10±0.25

※ UM-4J : 4.25±0.25

7.7±0.25

3.75

Recommended Land Pattern

1.6

[mm]

0.75

1.7

0.75

1.875

※ UM-1J : 9.5

※ UM-5J : 7.8

※ UM-4J : 6.4

※

24

Recommended Resources

Positive peak detection circuit diagram

"Three to seven" music color changing light circuit

New refrigeration equipment protector

Temperature measurement circuit

Thermal relay overload protection circuit

Switching power supply feedback design type
