BL-R4138B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BL-R4138B

BL-R4138B: DescriptionSingle Color LED, Orange, Diffused, 5.4mm, L-098, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size242KB，2 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BL-R4138B Overview

Single Color LED, Orange, Diffused, 5.4mm, L-098, 2 PIN

BL-R4138B Parametric

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	L-098, 2 PIN
Reach Compliance Code	unknown
color	ORANGE
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	DIFFUSED
Nominal luminous intensity	6.5 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	9 mm
method of packing	BULK
peak wavelength	635 nm
shape	RECTANGULAR
size	5.4 mm
surface mount	NO
Terminal pitch	2.54 mm
perspective	125 deg

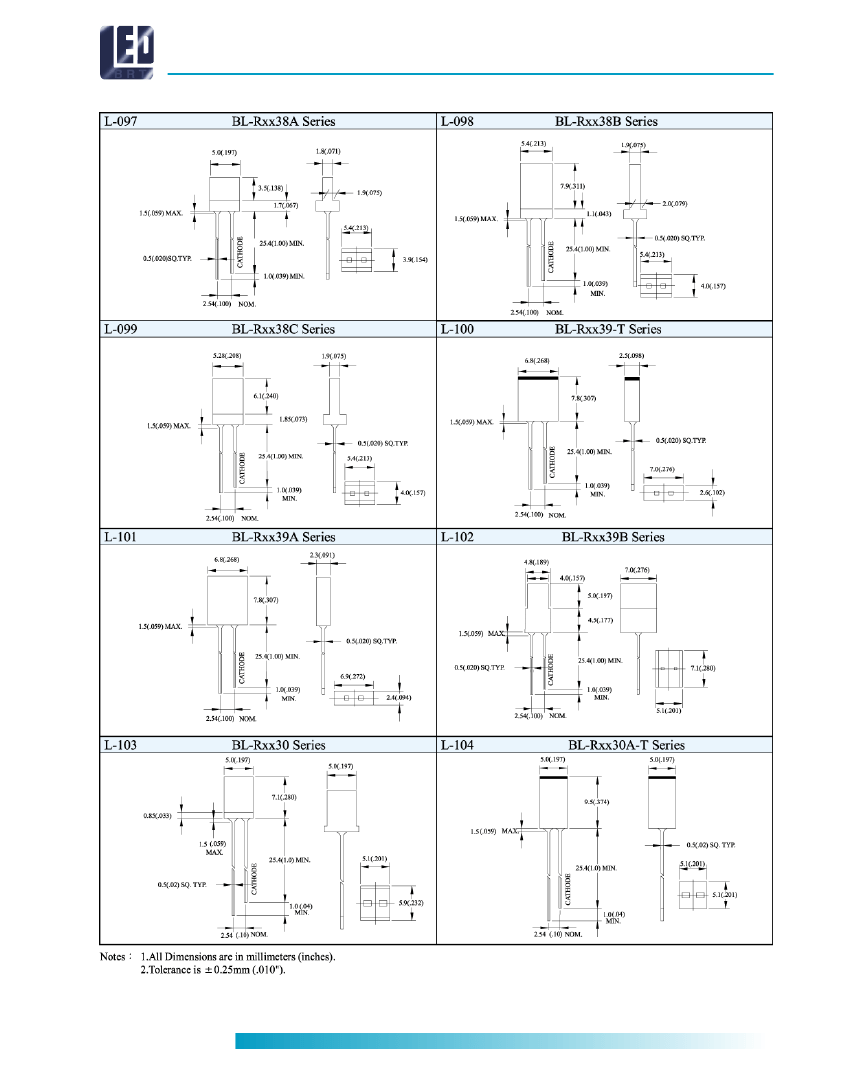

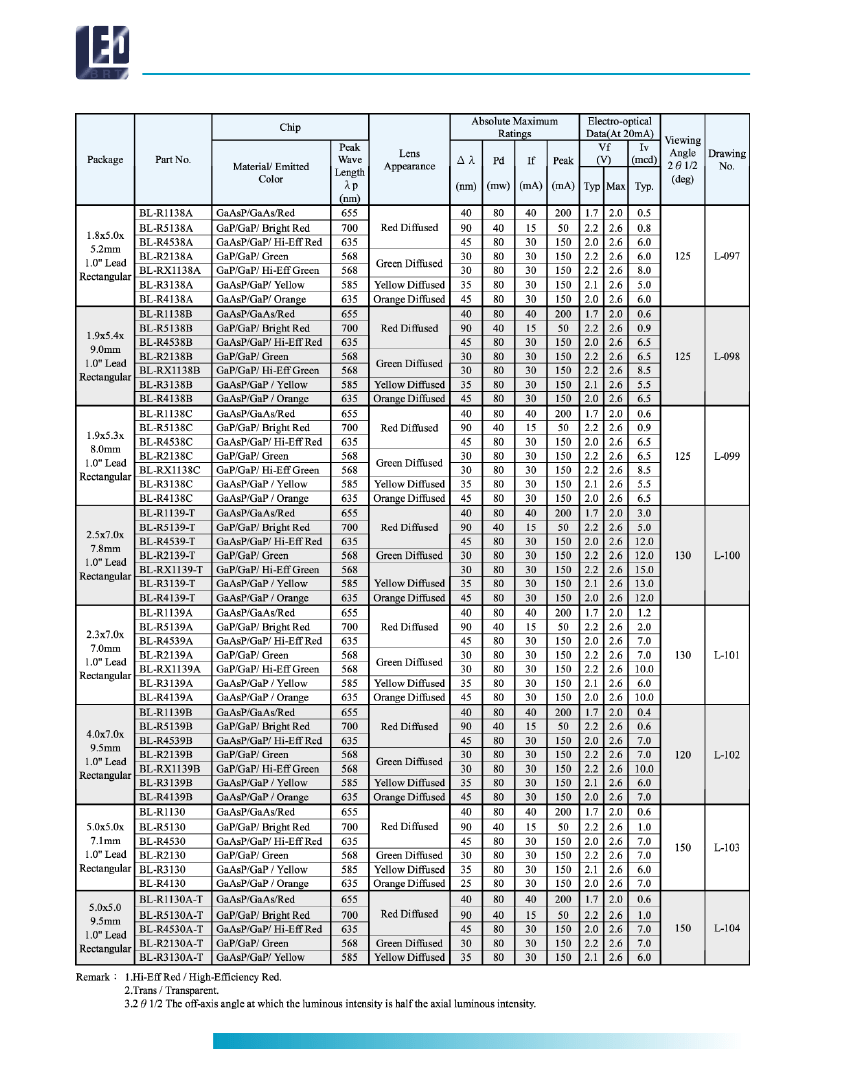

Preview

Download Datasheet

View All

Standard LED Lamps

BL-R Series

Rectangular Types

AMERICAN BRIGHT

w w w. a m e r i c a n b r i g h t l e d . c o m

BL-R4138B Related Products

	BL-R4138B	BL-R5139B	BL-R4538A	BL-R3138A	BL-R5138A	BL-R1138C	BL-R4139B	BL-R4138A	BL-R2130A-T	BL-R4130
Description	Single Color LED, Orange, Diffused, 5.4mm, L-098, 2 PIN	Single Color LED, Bright Red, Diffused Red, 7mm, L-102, 2 PIN	Single Color LED, High Efficiency Red, Diffused Red, 5mm, L-097, 2 PIN	Single Color LED, Yellow, Diffused, 5mm, L-097, 2 PIN	Single Color LED, Bright Red, Diffused Red, 5mm, L-097, 2 PIN	Single Color LED, Red, Diffused, 5.28mm, L-099, 2 PIN	Single Color LED, Orange, Diffused, 7mm, L-102, 2 PIN	Single Color LED, Orange, Diffused, 5mm, L-097, 2 PIN	Single Color LED, Green, Diffused, 5mm, L-104, 2 PIN	Single Color LED, Orange, Diffused, 5mm, L-103, 2 PIN
package instruction	L-098, 2 PIN	L-102, 2 PIN	L-097, 2 PIN	L-097, 2 PIN	L-097, 2 PIN	L-099, 2 PIN	L-102, 2 PIN	L-097, 2 PIN	L-104, 2 PIN	L-103, 2 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
color	ORANGE	BRIGHT RED	HIGH EFFICIENCY RED	YELLOW	BRIGHT RED	RED	ORANGE	ORANGE	GREEN	ORANGE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.015 A	0.03 A	0.03 A	0.015 A	0.04 A	0.03 A	0.03 A	0.03 A	0.03 A
Lens type	DIFFUSED	DIFFUSED RED	DIFFUSED RED	DIFFUSED	DIFFUSED RED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED
Nominal luminous intensity	6.5 mcd	0.6 mcd	6.0 mcd	5.0 mcd	0.8 mcd	0.6 mcd	7.0 mcd	6.0 mcd	7.0 mcd	7.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	9 mm	9.5 mm	5.2 mm	5.2 mm	5.2 mm	7.95 mm	9.5 mm	5.2 mm	9.5 mm	7.1 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	635 nm	700 nm	635 nm	585 nm	700 nm	655 nm	635 nm	635 nm	568 nm	635 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE
size	5.4 mm	7 mm	5 mm	5 mm	5 mm	5.28 mm	7 mm	5 mm	5 mm	5 mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	125 deg	120 deg	125 deg	125 deg	125 deg	125 deg	120 deg	125 deg	150 deg	150 deg
Maker	BRIGHT	BRIGHT	BRIGHT	BRIGHT	BRIGHT	BRIGHT	-	BRIGHT	BRIGHT	BRIGHT
Base Number Matches	-	1	1	1	1	1	1	-	-	-
