DAC702LL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> DAC702LL

DAC702LL: DescriptionD/A Converter, 16-Bit, 1 Func, Bipolar, CQCC28,; CategoryAnalog mixed-signal IC converter; File Size909KB，13 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric Compare View All

DAC702LL Overview

D/A Converter, 16-Bit, 1 Func, Bipolar, CQCC28,

DAC702LL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Burr-Brown
Reach Compliance Code	unknown
Converter type	D/A CONVERTER
Enter bit code	COMPLEMENTARY OFFSET BINARY
JESD-30 code	S-XQCC-N28
JESD-609 code	e0
Maximum linear error (EL)	0.0015%
Number of digits	16
Number of functions	1
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC28,.45SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5,+-15 V
Certification status	Not Qualified
Maximum stabilization time	3 µs
Maximum slew rate	58 mA
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD

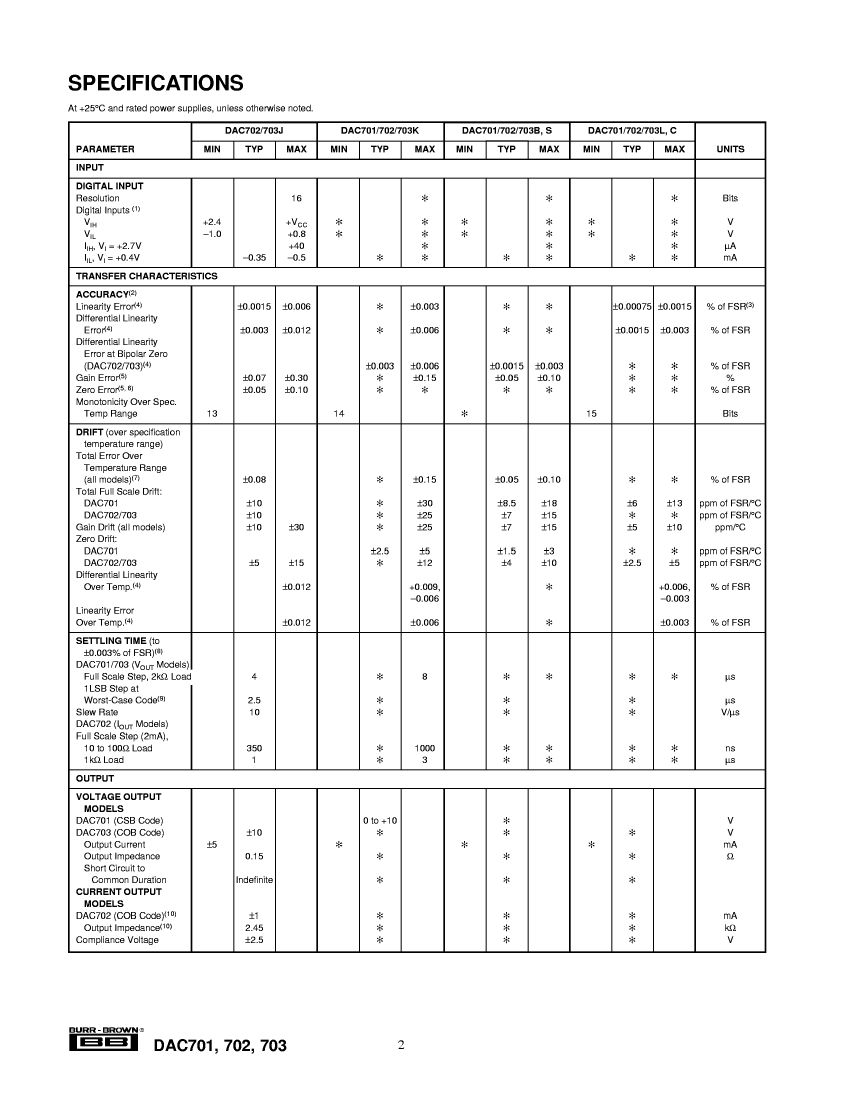

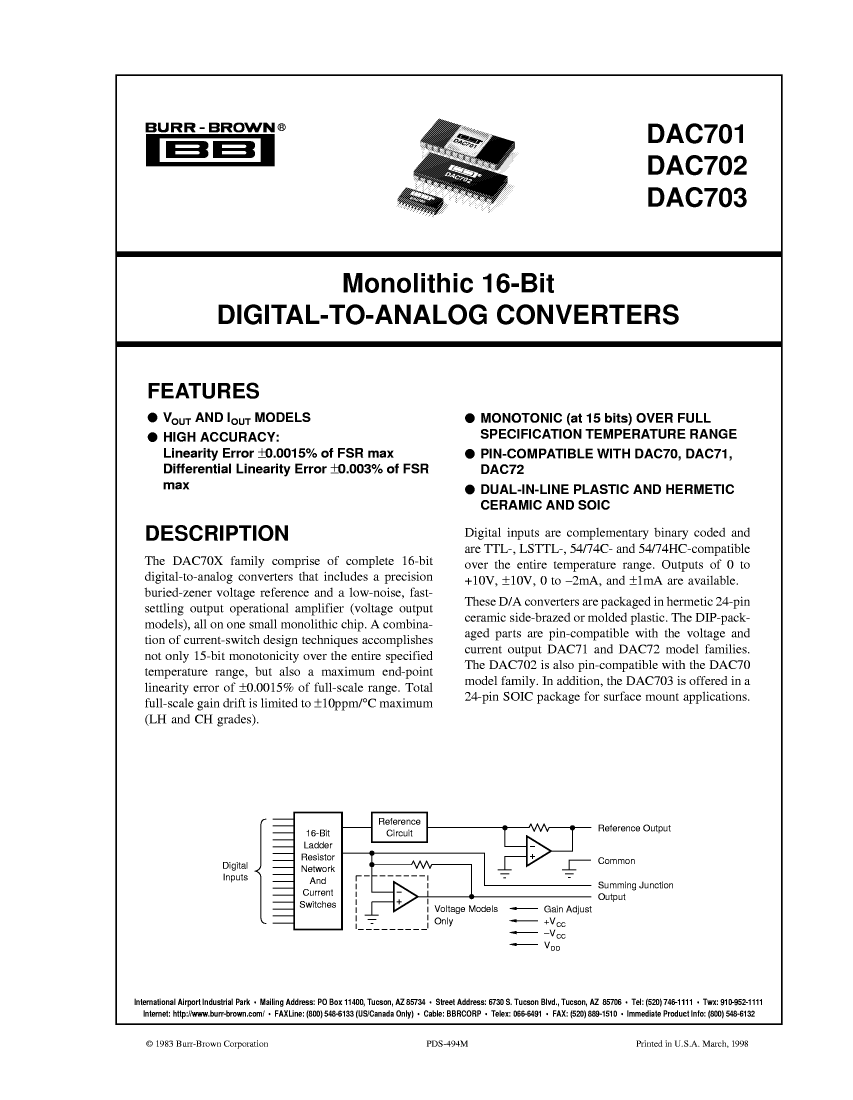

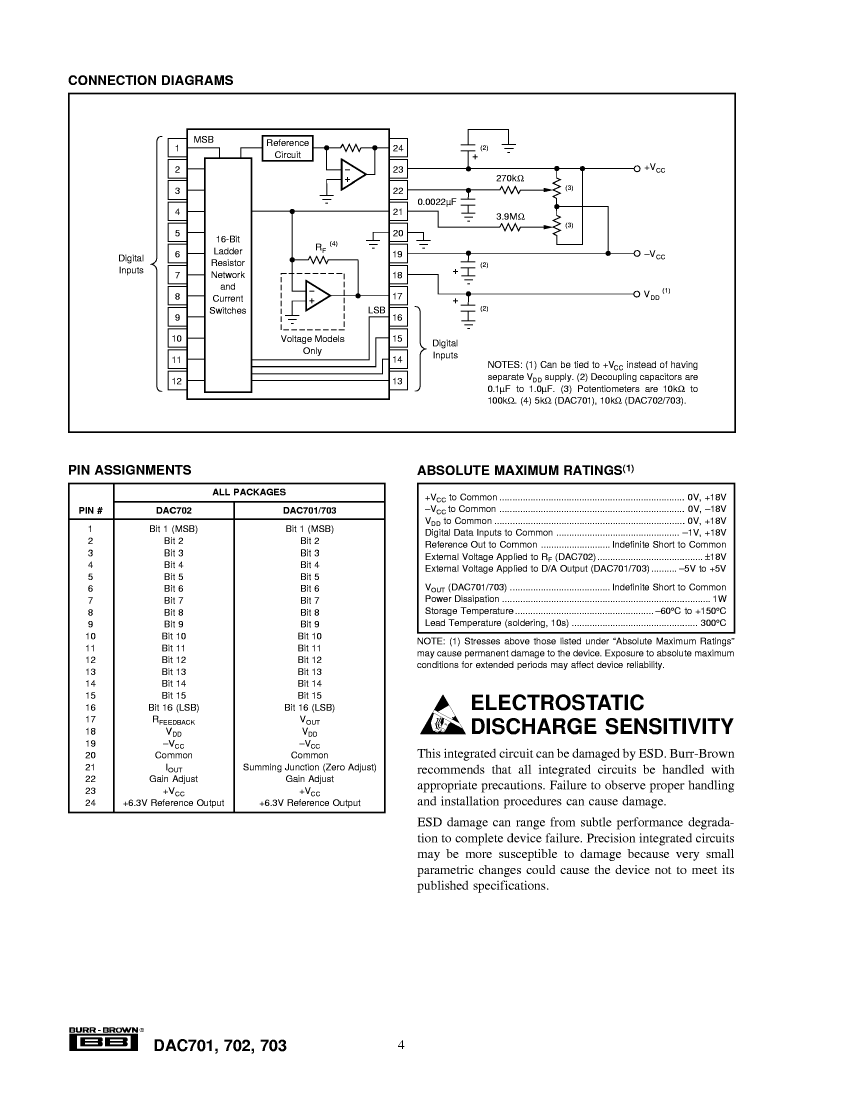

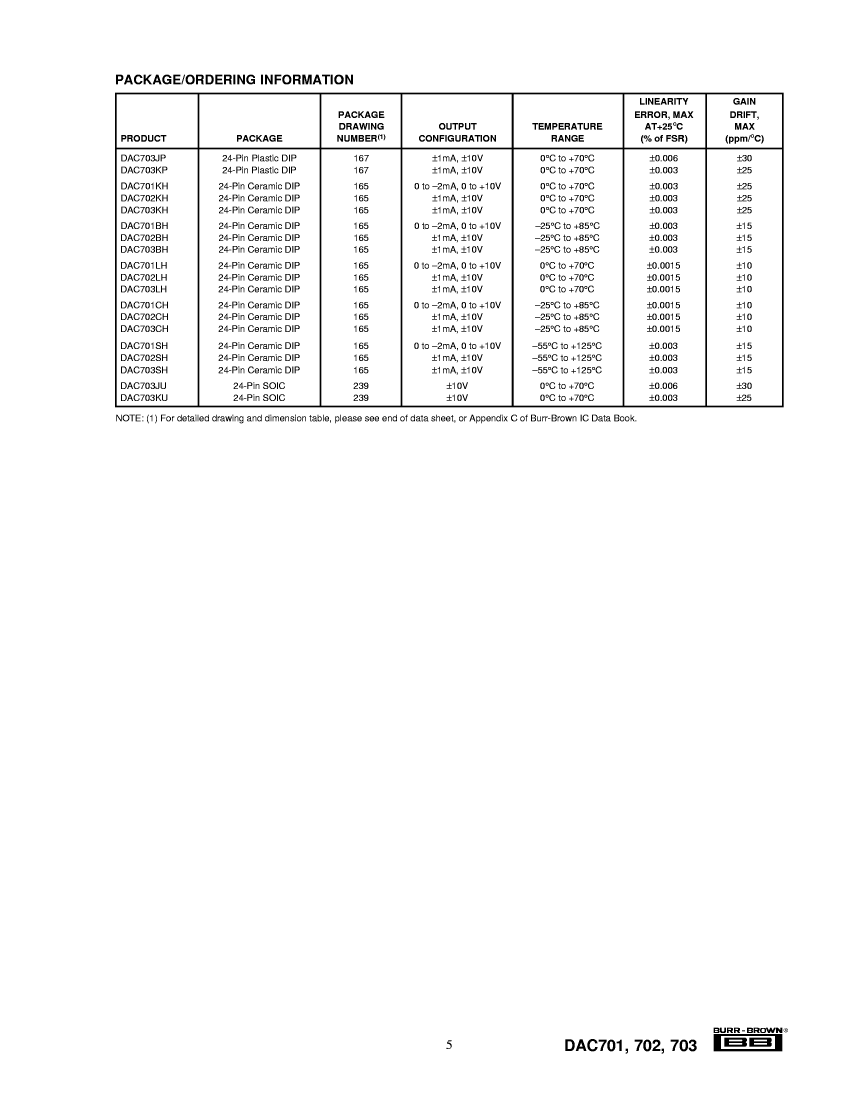

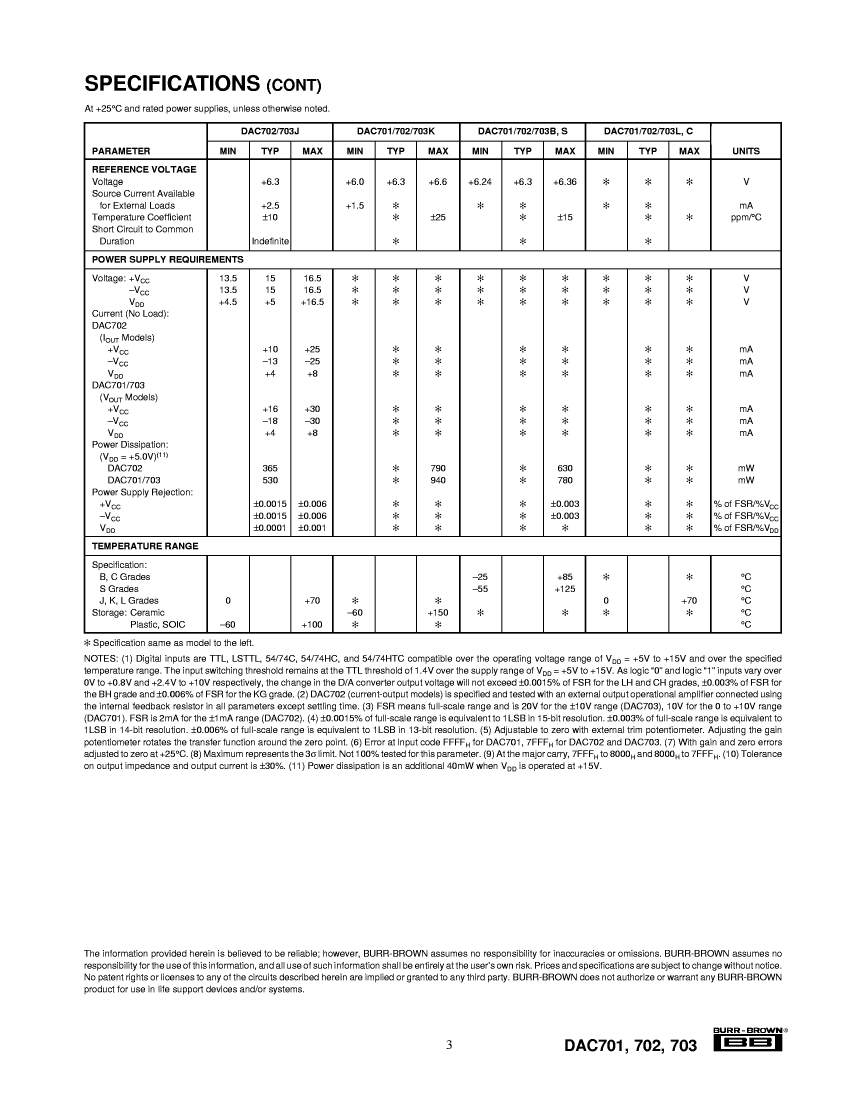

Preview

Download Datasheet

View All

DAC702LL Related Products

	DAC702LL	DAC703SH-BSS2	DAC702SL	DAC702SL/QM	DAC702BL/QM	DAC701SL	DAC701SL/QM	DAC702BL	DAC703SL-BSS2
Description	D/A Converter, 16-Bit, 1 Func, Bipolar, CQCC28,	D/A Converter, 16-Bit, 1 Func, Hybrid, CDIP24,	D/A Converter, 16-Bit, 1 Func, Bipolar, CQCC28,	D/A Converter, 16-Bit, 1 Func, Bipolar, CQCC28,	D/A Converter, 16-Bit, 1 Func, Bipolar, CQCC28,	D/A Converter, 16-Bit, 1 Func, Bipolar, CQCC28,	D/A Converter, 16-Bit, 1 Func, Bipolar, CQCC28,	D/A Converter, 16-Bit, 1 Func, Bipolar, CQCC28,	D/A Converter, 16-Bit, 1 Func, Hybrid, CQCC28,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY	COMPLEMENTARY BINARY	COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY OFFSET BINARY
JESD-30 code	S-XQCC-N28	R-XDIP-T24	S-XQCC-N28	S-XQCC-N28	S-XQCC-N28	S-XQCC-N28	S-XQCC-N28	S-XQCC-N28	S-XQCC-N28
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
Maximum linear error (EL)	0.0015%	0.003%	0.003%	0.003%	0.003%	0.003%	0.003%	0.003%	0.003%
Number of digits	16	16	16	16	16	16	16	16	16
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	28	24	28	28	28	28	28	28	28
Maximum operating temperature	70 °C	125 °C	125 °C	125 °C	85 °C	125 °C	125 °C	85 °C	125 °C
Minimum operating temperature	-	-55 °C	-55 °C	-55 °C	-25 °C	-55 °C	-55 °C	-25 °C	-55 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	QCCN	DIP	QCCN	QCCN	QCCN	QCCN	QCCN	QCCN	QCCN
Encapsulate equivalent code	LCC28,.45SQ	DIP24,.6	LCC28,.45SQ	LCC28,.45SQ	LCC28,.45SQ	LCC28,.45SQ	LCC28,.45SQ	LCC28,.45SQ	LCC28,.45SQ
Package shape	SQUARE	RECTANGULAR	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	IN-LINE	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
power supply	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum stabilization time	3 µs	8 µs	3 µs	3 µs	3 µs	8 µs	8 µs	3 µs	8 µs
Maximum slew rate	58 mA	68 mA	58 mA	58 mA	58 mA	68 mA	68 mA	58 mA	68 mA
surface mount	YES	NO	YES	YES	YES	YES	YES	YES	YES
technology	BIPOLAR	HYBRID	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	HYBRID
Temperature level	COMMERCIAL	MILITARY	MILITARY	MILITARY	OTHER	MILITARY	MILITARY	OTHER	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	THROUGH-HOLE	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	DUAL	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
Maker	Burr-Brown	Burr-Brown	-	-	-	Burr-Brown	Burr-Brown	Burr-Brown	Burr-Brown
Filter level	-	BS9000 Level S2	-	MIL-STD-883 Class B (Modified)	MIL-STD-883 Class B (Modified)	-	MIL-STD-883 Class B (Modified)	-	BS9000 Level S2
