DAC729JH-BI datasheet, PDF - EEWORLD Datasheet

DAC729JH-BI: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, 5us Settling Time, CDIP40,; CategoryAnalog mixed-signal IC converter; File Size1010KB，10 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric View All

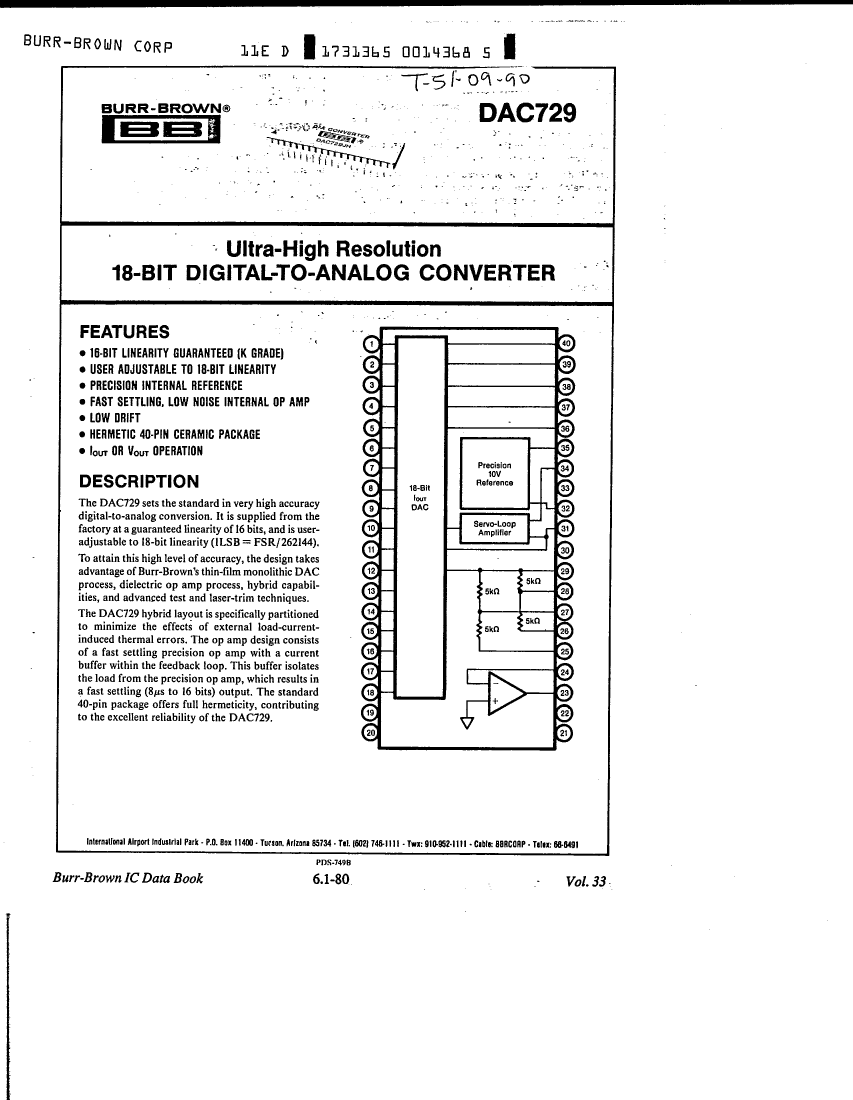

DAC729JH-BI Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, 5us Settling Time, CDIP40,

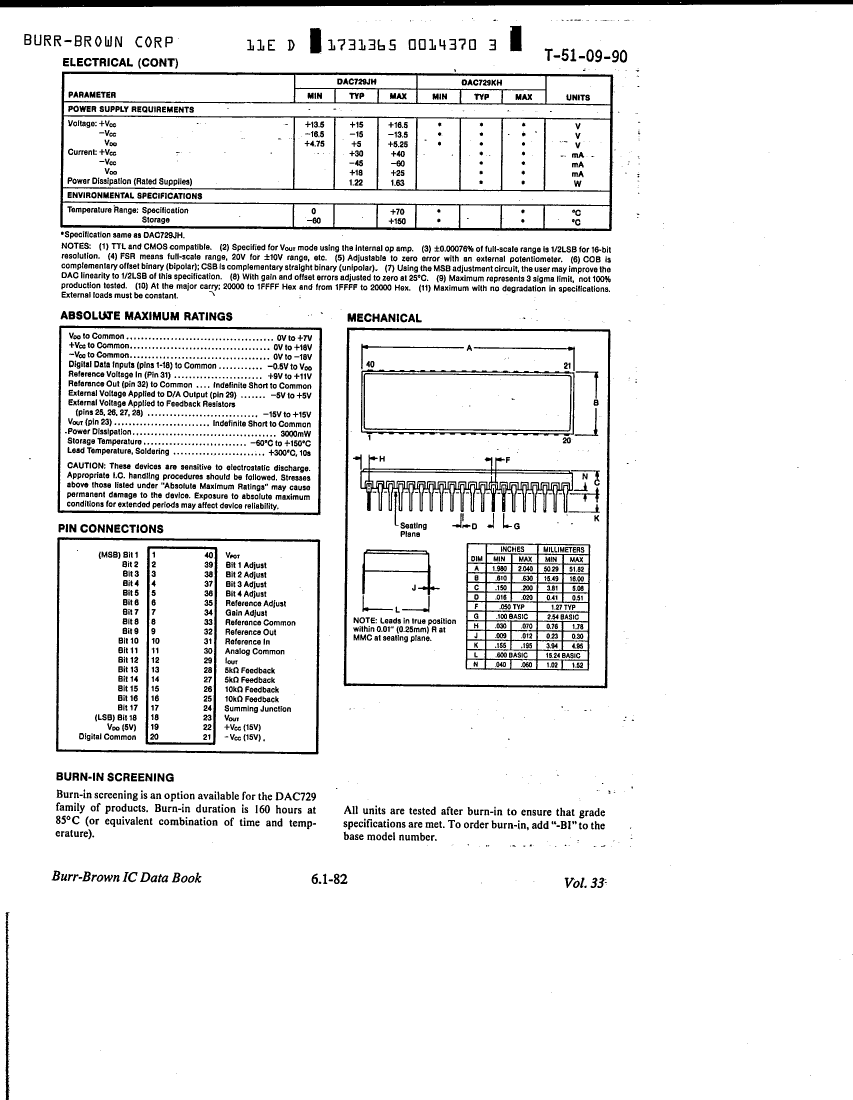

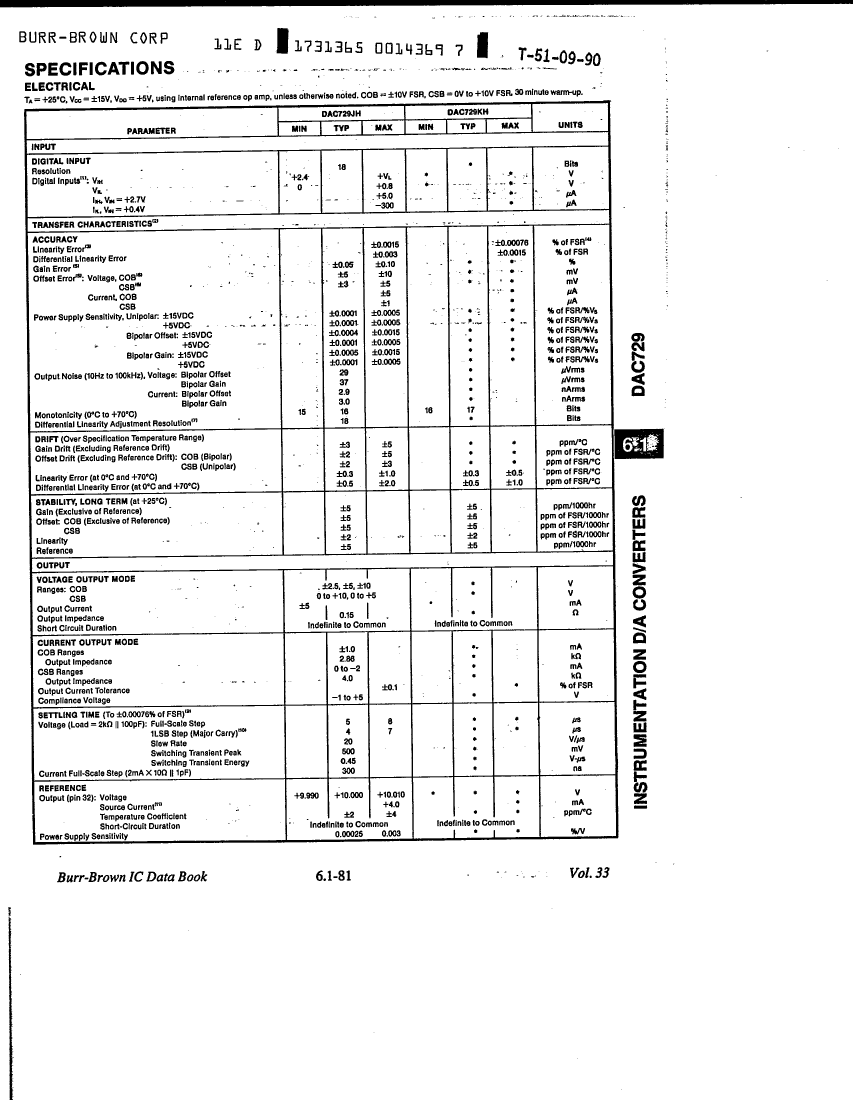

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Burr-Brown
Reach Compliance Code	unknown
Maximum analog output voltage	10 V
Minimum analog output voltage	-10 V
Converter type	D/A CONVERTER
Enter bit code	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-CDIP-T40
JESD-609 code	e0
Maximum linear error (EL)	0.0015%
Nominal negative supply voltage	-15 V
Number of digits	18
Number of functions	1
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5,+-15 V
Certification status	Not Qualified
Maximum stabilization time	8 µs
Nominal settling time (tstl)	5 µs
Maximum slew rate	60 mA
Nominal supply voltage	15 V
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
