DAC80KD-I datasheet, PDF - EEWORLD Datasheet

DAC80KD-I: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, 1us Settling Time,; CategoryAnalog mixed-signal IC converter; File Size454KB，9 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric Compare View All

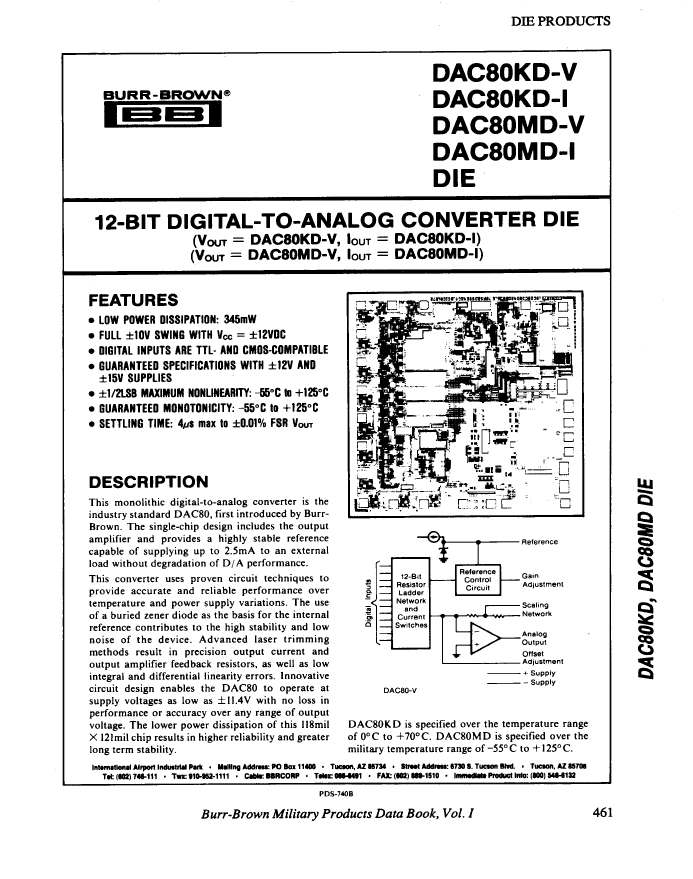

DAC80KD-I Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, 1us Settling Time,

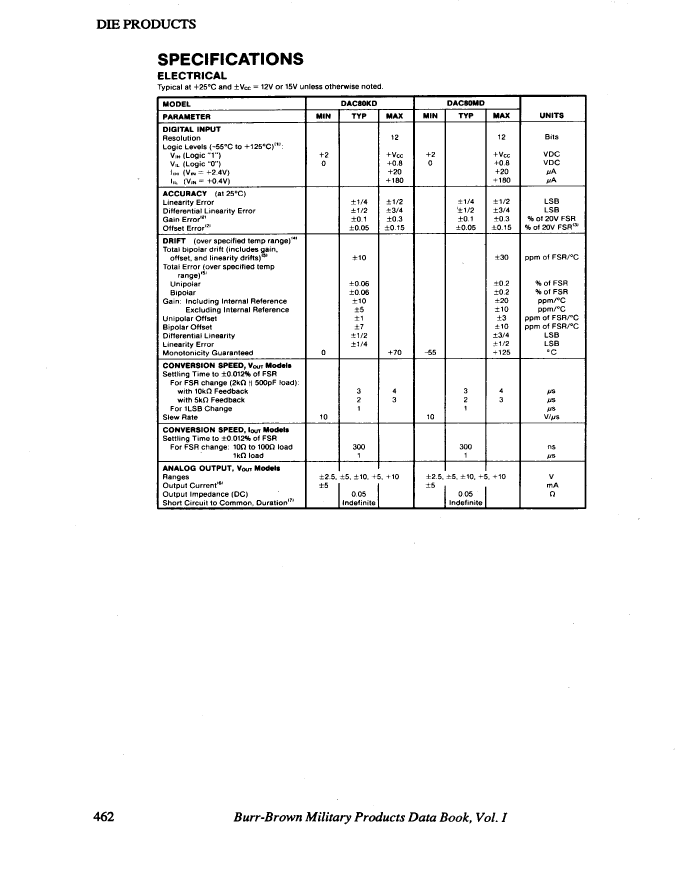

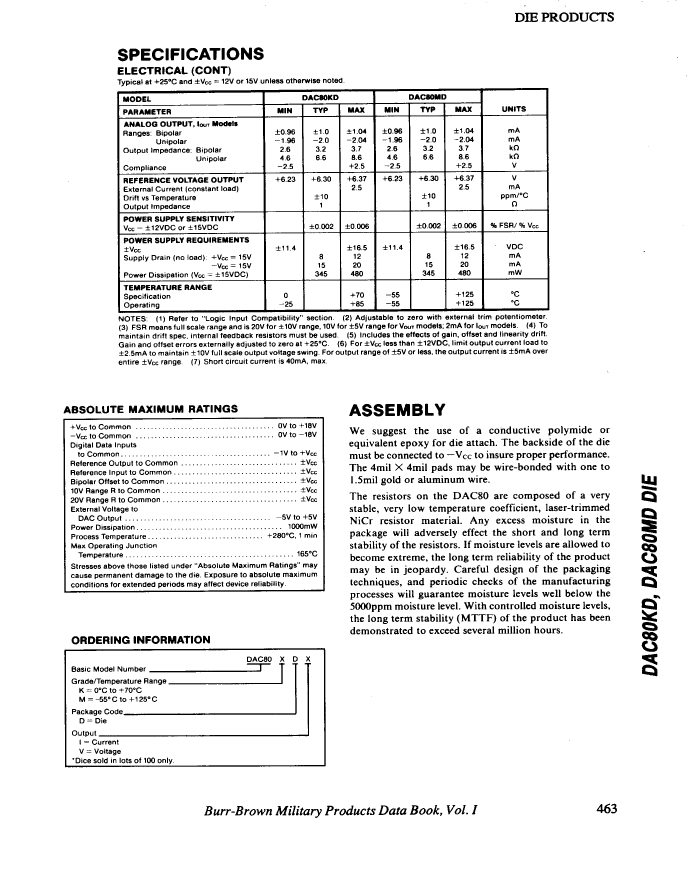

Parameter Name	Attribute value
Maker	Burr-Brown
package instruction	DIE, DIE OR CHIP
Reach Compliance Code	unknown
Converter type	D/A CONVERTER

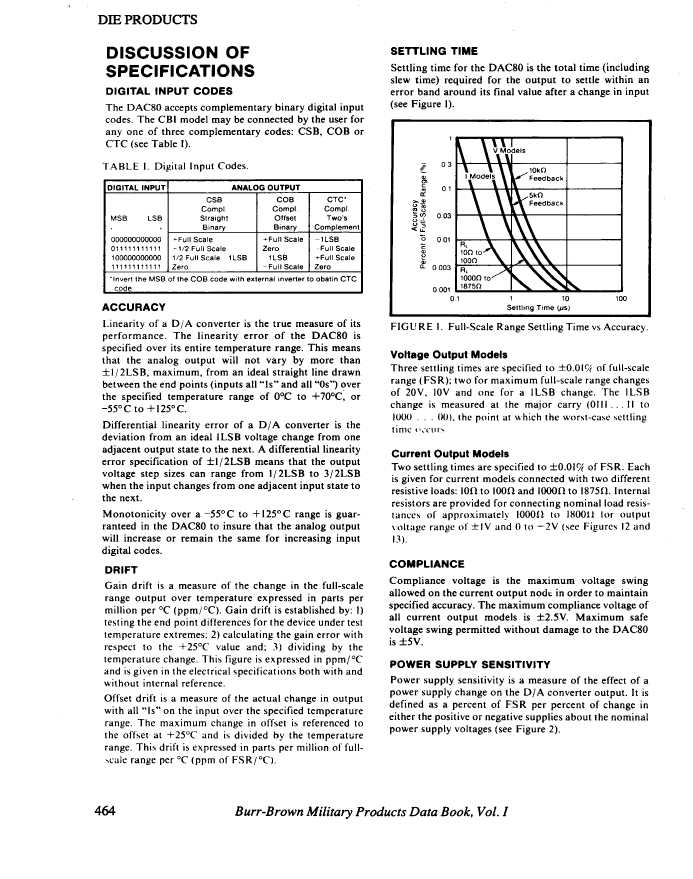

Enter bit code	COMPLEMENTARY 2\'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY, COMPLEMENTRY BINARY
Input format	PARALLEL, WORD
JESD-30 code	X-XUUC-N27
Maximum linear error (EL)	0.012%
Nominal negative supply voltage	-12 V
Number of digits	12
Number of functions	1
Number of terminals	27
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package body material	UNSPECIFIED
encapsulated code	DIE
Encapsulate equivalent code	DIE OR CHIP
Package shape	UNSPECIFIED
Package form	UNCASED CHIP

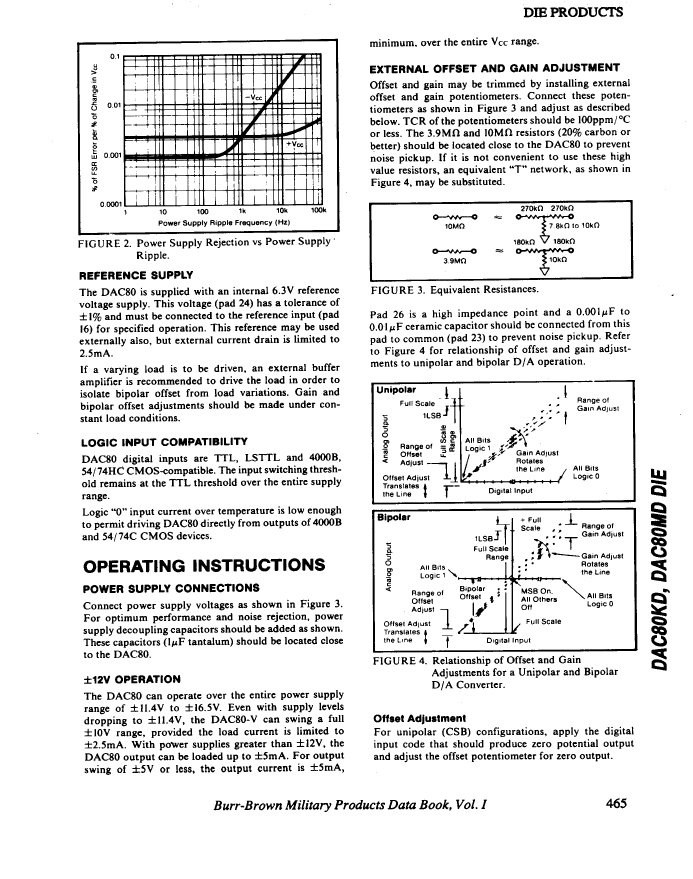

power supply	+-12/+-15 V
Certification status	Not Qualified
Maximum stabilization time	4 µs
Nominal settling time (tstl)	1 µs
Maximum slew rate	20 mA
Nominal supply voltage	12 V
surface mount	YES
technology	BIPOLAR
Temperature level	OTHER
Terminal form	NO LEAD
Terminal location	UPPER

This Material Copyrighted By Its Respective Manufacturer

	DAC80KD-I	DAC80KD-V
Description	D/A Converter, 1 Func, Parallel, Word Input Loading, 1us Settling Time,	D/A Converter, 1 Func, Parallel, Word Input Loading, 3us Settling Time,
Maker	Burr-Brown	Burr-Brown
Reach Compliance Code	unknown	unknown
Converter type	D/A CONVERTER	D/A CONVERTER
Enter bit code	COMPLEMENTARY 2\'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY, COMPLEMENTRY BINARY	COMPLEMENTARY 2\'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY, COMPLEMENTRY BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	X-XUUC-N27	X-XUUC-N27
Maximum linear error (EL)	0.012%	0.012%
Nominal negative supply voltage	-12 V	-12 V
Number of digits	12	12
Number of functions	1	1
Number of terminals	27	27
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C
Package body material	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIE	DIE
Encapsulate equivalent code	DIE OR CHIP	DIE OR CHIP
Package shape	UNSPECIFIED	UNSPECIFIED
Package form	UNCASED CHIP	UNCASED CHIP
power supply	+-12/+-15 V	+-12/+-15 V
Certification status	Not Qualified	Not Qualified
Maximum stabilization time	4 µs	4 µs
Nominal settling time (tstl)	1 µs	3 µs
Maximum slew rate	20 mA	20 mA
Nominal supply voltage	12 V	12 V
surface mount	YES	YES
technology	BIPOLAR	BIPOLAR
Temperature level	OTHER	OTHER
Terminal form	NO LEAD	NO LEAD
Terminal location	UPPER	UPPER
