Memory Module Specification
KVR333S4R25/512
DESCRIPTION:
This document describes ValueRAM's 64M x 72-bit (512MB) DDR333 CL2.5 SDRAM
(Synchronous DRAM) "single rank" Registered ECC memory module. The components on
this module include eighteen 64M x 4-bit (16M x 4-Bit x 4 Bank) DDR333 SDRAM in BGA
packages. This 184-pin DIMM uses gold contact fingers and requires +2.5V. The electrical
and mechanical specifications are as follows:
FEATURES:
Clock Cycle Time (tCK)
Row Cycle Time (t
RC
)
Refresh Row Cycle Time (tRFC)
Row Active Time (tRAS)
Single Power Supply of
Power
UL Rating
6ns (min.) / 12ns (max.)
60ns (min.)
72ns (min.)
42ns (min.) / 70,000ns (max.)
+2.5V (+/- .2V)
7.225 W (operating)
94 V - 0
512MB 64M x 72-Bit DDR333
CL2.5 Registered 184-Pin ECC DIMM
Note:
The module defined in this data sheet is one of several configurations available under this part number. While
all configurations are compatible, the DRAM combination and/or the module height may vary from what is described
here. However, in no configuration will the module height exceed 1.200" (30.48mm).

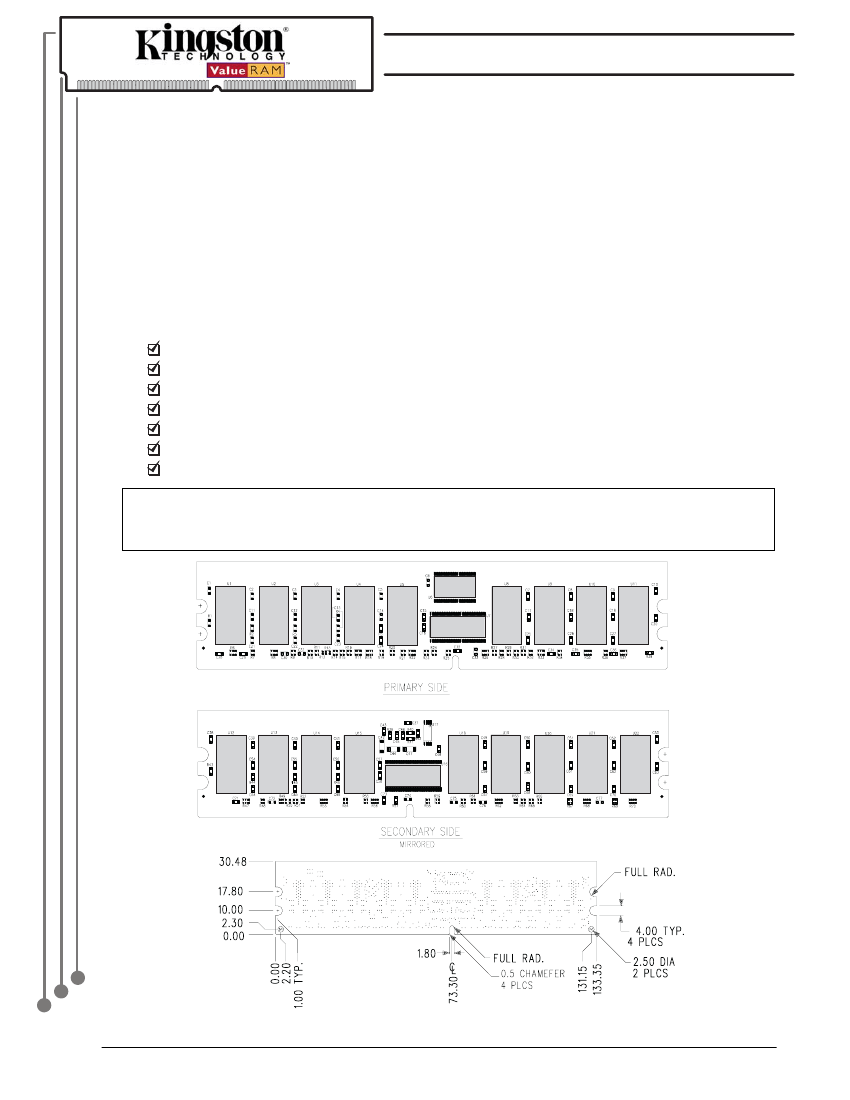

Figure 1: KVR333S4R25/512 184-Pin DIMM
Part No. VALUERAM0421-001.A00
05/19/05
