RPC Series
Pulse Withstanding Thick Film Chip Resistor
Features:
•
•
•
•
•
Stackpole Electronics, Inc.
Resistive Product Solutions
Excellent pulse withstanding performance
Broad resistance range
Higher anti-surge performance compared with RMC Series
Stability class: 5%
RoHS compliant / lead-free
Electrical Specifications
Type / Code
RPC0603
RPC0805
RPC1206
RPC1210
RPC2010
RPC2512
Power Rating (Watts)
@ 70ºC
0.1W
(2)
0.25W
(2)
0.33W
(2)
0.5W
(2)
0.75W
1.5W
Maximum Working
Voltage
(1)
50V
150V
200V
200V
400V
500V
Resistance Temperature
Coefficient
±100 ppm/ºC
±200 ppm/ºC
±100 ppm/ºC
±200 ppm/ºC
±100 ppm/ºC
±200 ppm/ºC
±100 ppm/ºC
±200 ppm/ºC
±100 ppm/ºC
±200 ppm/ºC
±100 ppm/ºC
±200 ppm/ºC
Ohmic Range (Ω) and Tolerance
1%, 5%, 10%, 20%
(3)
300 - 1M
10 - 299
300 - 20M
1 - 299
20.1 - 20M
1 - 20
20.1 - 20M
1 - 20
20.1 - 20M
1 - 20
20.1 - 20M
1 - 20
(1) Lesser of
√PR
or maximum working voltage
(2) Higher power ratings available. Contact factory for available resistance ranges, tolerances and TCR's.
(3) 0.5% tolerances may be availabe for some resistance values. Contact factory for availability.

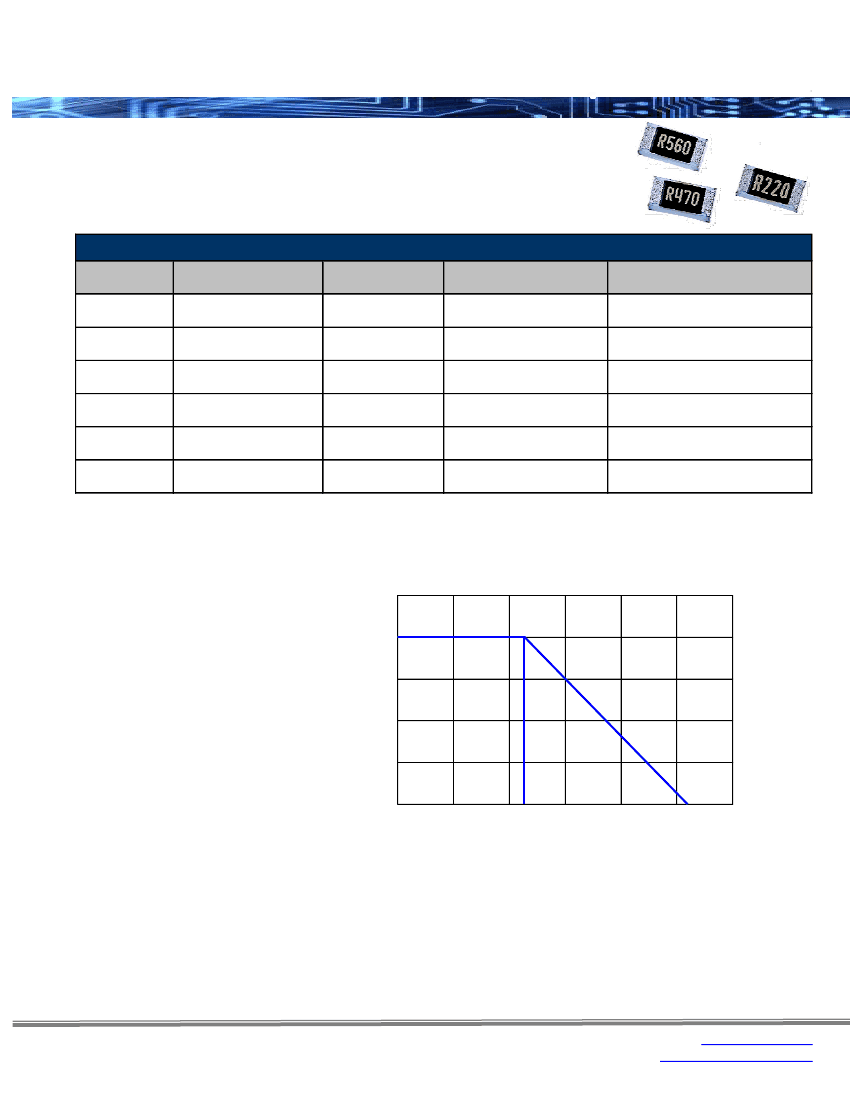

Power Derating Curve:
Percent Rated Power (%)
100
75
50
25
0
30
60
90
120
150
180
Ambient Temperature (ºC)
Rev Date: 09/09/2011
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
marketing@seielect.com
RPC Series
Pulse Withstanding Thick Film Chip Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions

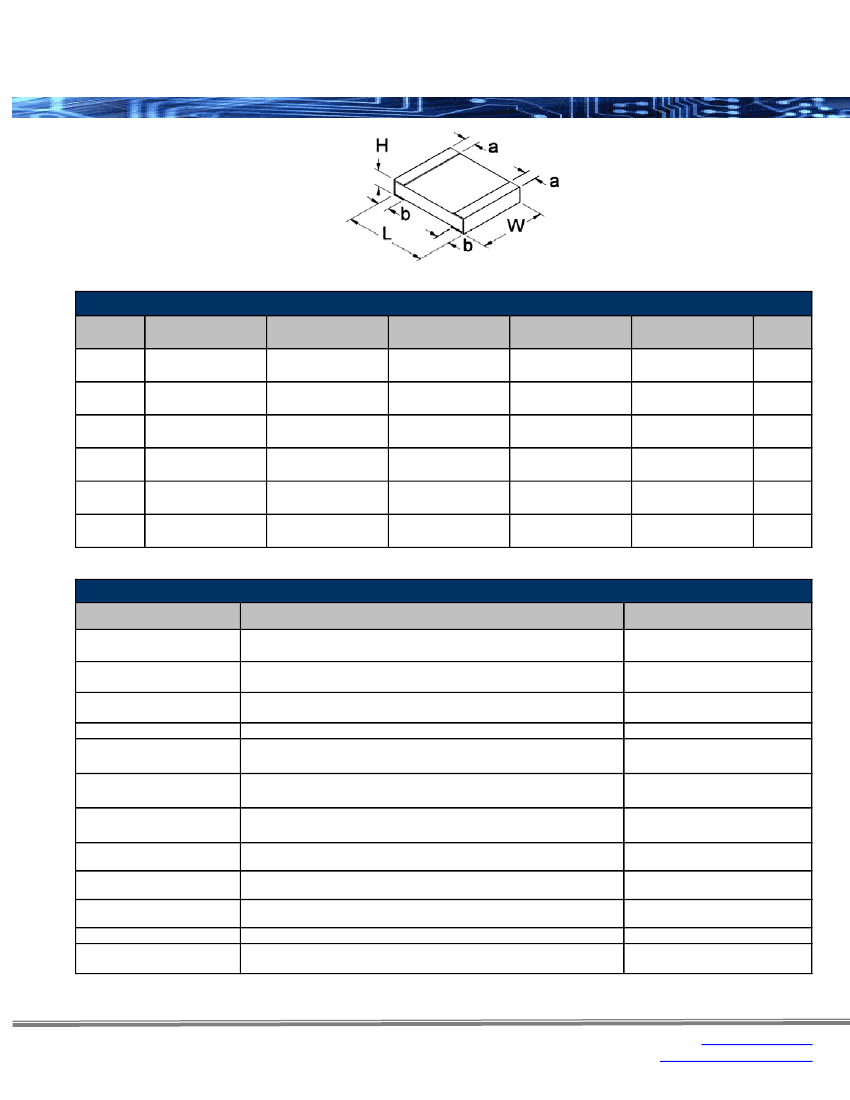

Mechanical Specifications
Type / Code
RPC0603
RPC0805
RPC1206
RPC1210
RPC2010
RPC2512
L
Body Length
0.063 ± 0.004
1.60 ± 0.10
0.079 ± 0.004
2.00 ± 0.10
0.126 ± 0.006
3.20 ± 0.15
0.126 ± 0.006
3.20 ± 0.15
0.197 ± 0.008
5.00 ± 0.20
0.250 ± 0.008
6.35 ± 0.20
W
Body Width
0.032 ± 0.004
0.80 ± 0.10
0.049 ± 0.004
1.25 ± 0.10
0.063 ± 0.006
1.60 ± 0.15
0.098 ± 0.006
2.50 ± 0.15
0.098 ± 0.006
2.50 ± 0.15
0.126 ± 0.006
3.20 ± 0.15
H
Body Height
0.018 ± 0.004
0.45 ± 0.10
0.021 ± 0.005
0.55 ± 0.15
0.021 ± 0.004
0.55 ± 0.10
0.021 ± 0.006
0.55 ± 0.15
0.021 ± 0.006
0.55 ± 0.15
0.021 ± 0.006
0.55 ± 0.15
a
Top Termination
0.012 ± 0.008
0.30 ± 0.20
0.014 ± 0.01
0.35 ± 0.25
0.019 ± 0.016
0.50 ± 0.40
0.019 ± 0.01
0.50 ± 0.25
0.024 ± 0.02
0.60 ± 0.50
0.024 ± 0.02
0.60 ± 0.50
b
Bottom Termination
0.012 ± 0.008
0.30 ± 0.20
0.016 ± 0.008
0.40 ± 0.20
0.020 ± 0.010
0.50 ± 0.25
0.020 ± 0.010
0.50 ± 0.25
0.020 ± 0.012
0.50 ± 0.30
0.020 ± 0.012
0.50 ± 0.30
Unit
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
Performance Characteristics
Test
Voltage Proof
Variation of Resistance with
Temperature
Overload
Solderability
Resistance to Soldering Heat
Rapid Change of Temperature
Climatic Sequence
Damp Test, Steady State
Endurance @ 70ºC
Endurance at the Upper Category
Temperature
Adhesion
Bend of Strength of the Face
Plating
Operating Temperature Range:
Test Methods (JIS C 5201-1 : 1198)
Clause 4.7 500Va.a., 60s
Clause 4.8 +20ºC/ -55ºC / +20ºC/ +125ºC/ +20ºC: RPC 2010, 2512
+20ºC/ -55ºC/ +20ºC/ +155ºC/ +20ºC: RPC 0603, 0805, 1206, 1210
Clause 4.13 The applied voltage shall be 2.5 times of the rated voltage or
twice of the limiting element voltage, whichever is the less severe, 2s.
Clause 4.17 235ºC, 2s.
Clause 4.18 After immersion into the flux, the immersion into
solder shall be carried out in solder bath at 260º for 5s.
Clause 4.19 Cycle: -55ºC/ +125ºC 5 times: RPC 2010, 2512
Cycle: -55ºC/ +155ºC 5 times: RPC 0603, 0805, 1206, 1210
Clause 4.23 Dry/Damp heat (12+12h cycle), first cycle/
Cold/Damp heat (12+12h cycle), remaining cycle / D.C. Load
Clause 4.24 40ºC, 95% R.H., 56 days, test a) and b) of Clause 4.24.2.1
Clause 4.25.1 Rated voltage, 1.5h "ON", 0.5h "OFF", 70ºC, 1,000h
Clause 4.25.3 125ºC, no load, 1.000h: RPC 2010, 2512
155ºC, no load, 1.000h: RPC 0603, 0805, 1206, 1210
Clause 4.32 5N, 10s
Clause 4.33 Amount of bend: 3mm RPC 0603, 0805, 1206, 1210
Amount of bend: 1mm RPC 2010, 2512
-55ºC to +155ºC
Test Results
No breakdown or flashover
R
≥
1G Ohm
See ratings table
∆R
≤
± 1% +0.05Ω
No visible damage, legible markings
In accordance with Clause 4.17.4.5
∆R ≤
± 1% +0.05Ω
∆R ≤
± 1% +0.05Ω
No visible damage
∆R ≤
± 5% +0.1Ω
No visible damage
∆R
≤
± 5% +0.1Ω
No visible damage, legible markings
∆R
≤
± 5% +0.1Ω
No visible damage
∆R
≤
± 5% +0.1Ω
No visible damage
No visible damage
∆R ≤
± 1% +0.05Ω
Rev Date: 09/09/2011
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
2
www.seielect.com
marketing@seielect.com
RPC Series
Pulse Withstanding Thick Film Chip Resistor
Lightning Surge
Stackpole Electronics, Inc.
Resistive Product Solutions

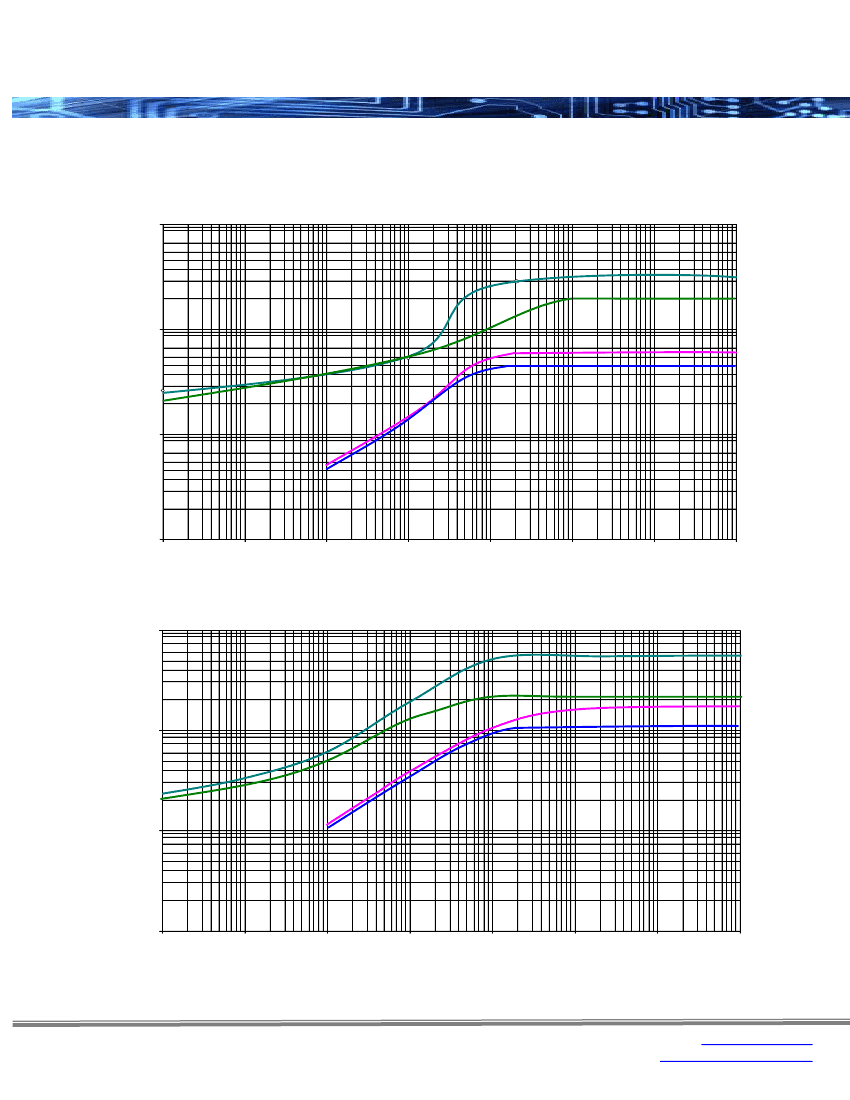

Resistors are tested in accordance with IEC 60115-1 using both 1.2/50us and 10/700 pulse shapes. The limit of
acceptance is a shift in resistance of less than 1% from the initial value.
10/700us Lightning Surge - 1%
10,000
Peak Voltage (Volts) .
2512
2010
1,000
1206
0805
100
10
1
10
100
1,000
10,000
100,000
1,000,000
10,000,000
Resistance (Ohms)
1.2/50us Lightning Surge - 1%
10,000
Test Condition: IEC 60115-1
2512
Peak Voltage (Volts) .
1,000
2010
1206
0805
100
10
1
10
100
1,000
10,000
100,000
1,000,000
10,000,000
Resistance (Ohms)
Test Condition: IEC 60115-1
Rev Date: 09/09/2011
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
3
www.seielect.com
marketing@seielect.com
RPC Series
Pulse Withstanding Thick Film Chip Resistor
Pulse Withstand Capacity
Stackpole Electronics, Inc.
Resistive Product Solutions
The single impulse graph is the result of 50 impulses of rectangular shape applied at one minute intervals. The limit of
acceptance was a shift in resistance of less than 1% from the initial value. The power applied was subject to the
restrictions of the maximum permissible impulse voltage graph shown.

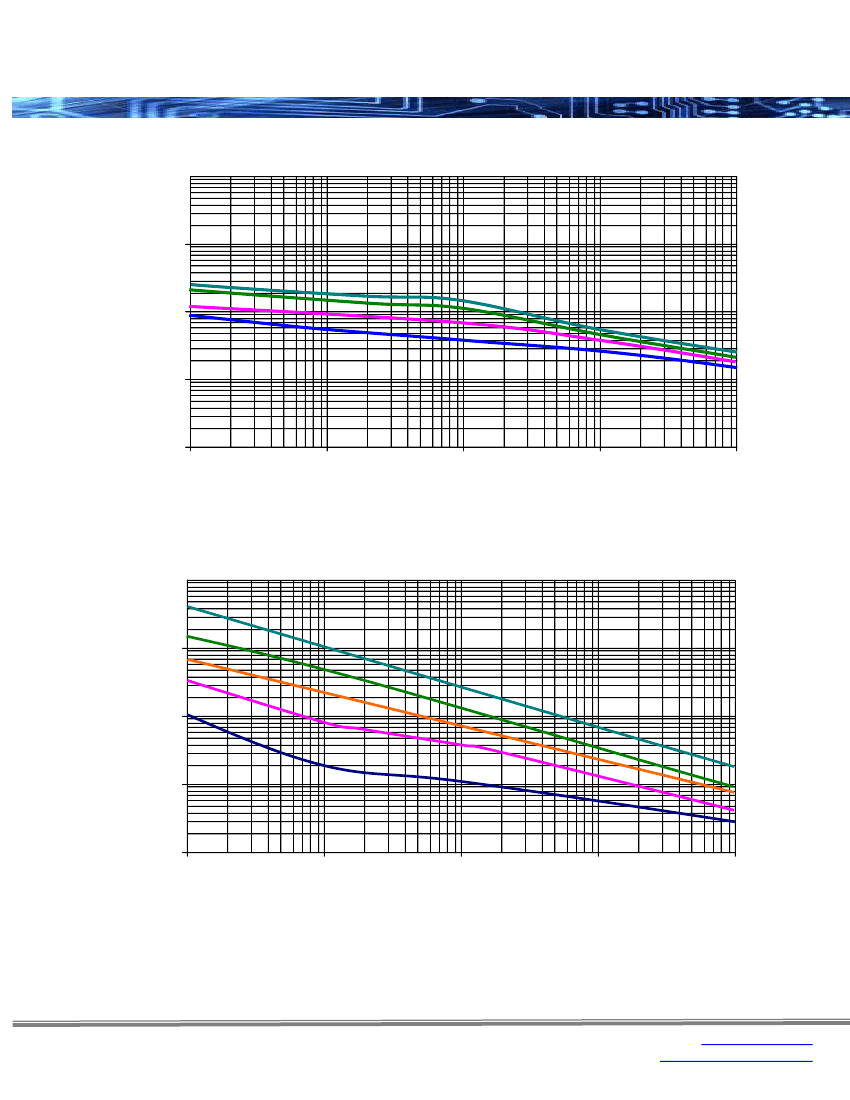

Single Pulse Power (100 Ohm) – 1%
1,000
Power (Watts)
100
10
2512
2010
1206
0805
0603
0.001
0.01
0.1
1
1
0.0001
Time (sec.)
Continuous Pulse
The continuous load graph was obtained by applying repetitive rectangular pulses where the pulse period was adjusted
so that the average power dissipated in the resistor was equal to its rated power at 70ºC. Again the limit of acceptance
was a shift in resistance of less than 1% from the initial value.

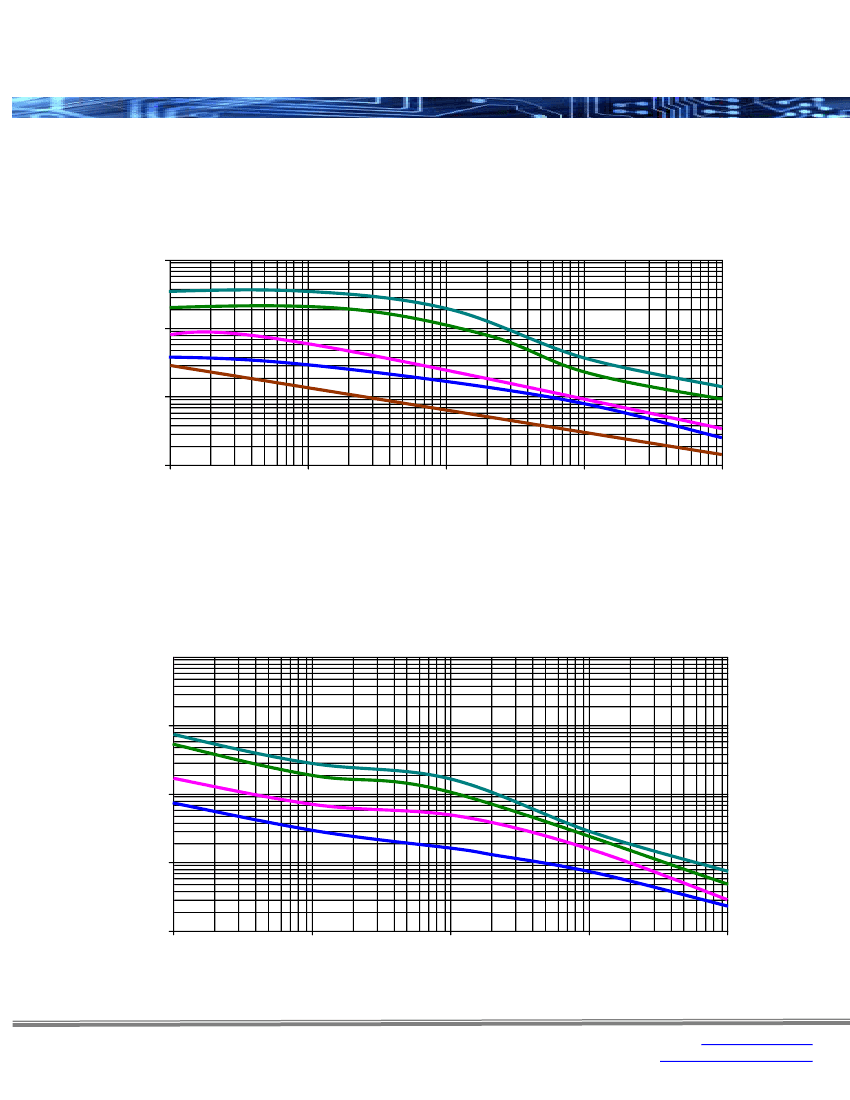

Continuous Pulse Power (100 Ohm) – 1%
10,000
Pulse Power P (W)
1,000
100
10
1
0.0001
0.001
0.01
0.1
1
2512
2010
1206
0805
Pulse Duration ti (s)
Rev Date: 09/09/2011
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
4
www.seielect.com
marketing@seielect.com
