330R822U020HP8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 330R822U020HP8

330R822U020HP8: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 20V, 75% +Tol, 10% -Tol, 8200uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size367KB，5 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

330R822U020HP8 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 20V, 75% +Tol, 10% -Tol, 8200uF, Through Hole Mount, RADIAL LEADED

330R822U020HP8 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	8200 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	22.6 mm
dielectric materials	ALUMINUM (WET)
ESR	21.6 mΩ
leakage current	4 mA
length	67.3 mm
Manufacturer's serial number	330R
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	PCB Mou
polarity	POLARIZED
positive tolerance	75%
Rated (DC) voltage (URdc)	20 V
ripple current	2650 mA
series	330R
surface mount	NO
Terminal shape	WIRE

Preview

Download Datasheet

View All

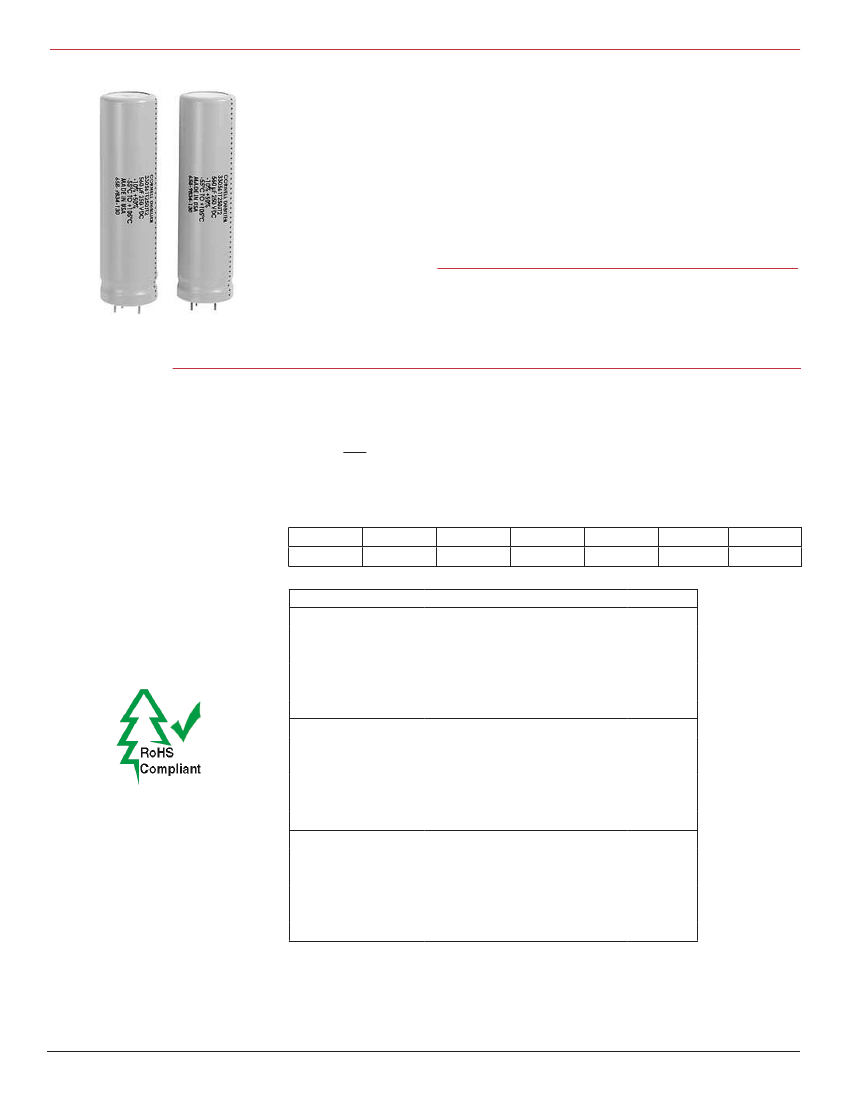

Type 330

–55 °C to 105 °C Ultra-Long-Life, Switching Power Grade Radial

High Ripple and Ultra-Long Life

The Type 330 is the ultra-long-life version of the Type 300 capacitor.

With an astonishing, 50,000-hour

expected life operating

continuously at full load and 65 ºC the 330 is the choice for power

supply outputs and UPS battery stiffening. The exceptionally low

ESRs enable high ripple-current capability. With series inductance

of 12 to 16 nH and ripple currents to 16 amps one of these capacitors

can save by replacing three or four of the 12.5 mm diameter

capacitors routinely at the output of switching power supplies. Type

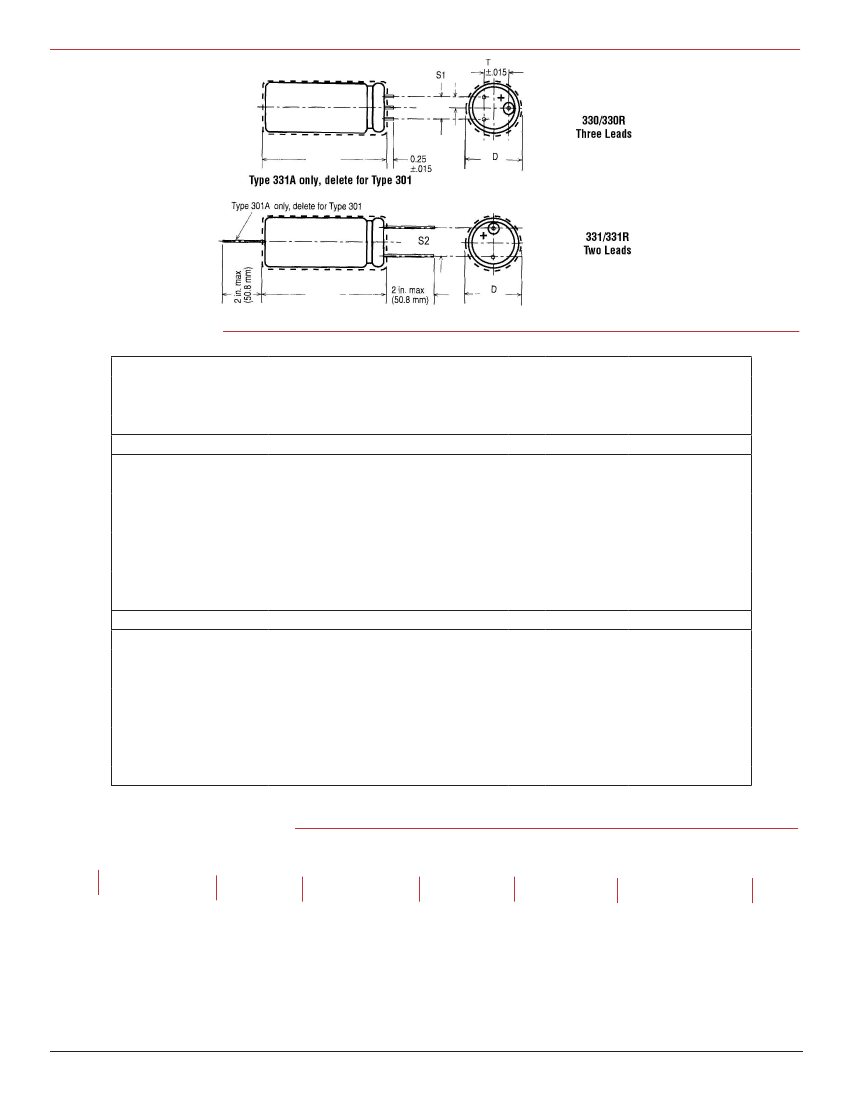

330 R delivers even lower ESR and higher ripple. Type 330 has three

leads for rugged, reverse-proof mounting. Two leads are available as

Types 331 and 331R.

Highlights

Speciﬁcations

Operating Temperature:

Rated Voltage:

Capacitance:

Capacitance Tolerance:

Leakage Current:

Cold Impedance:

Ripple Current Multipliers:

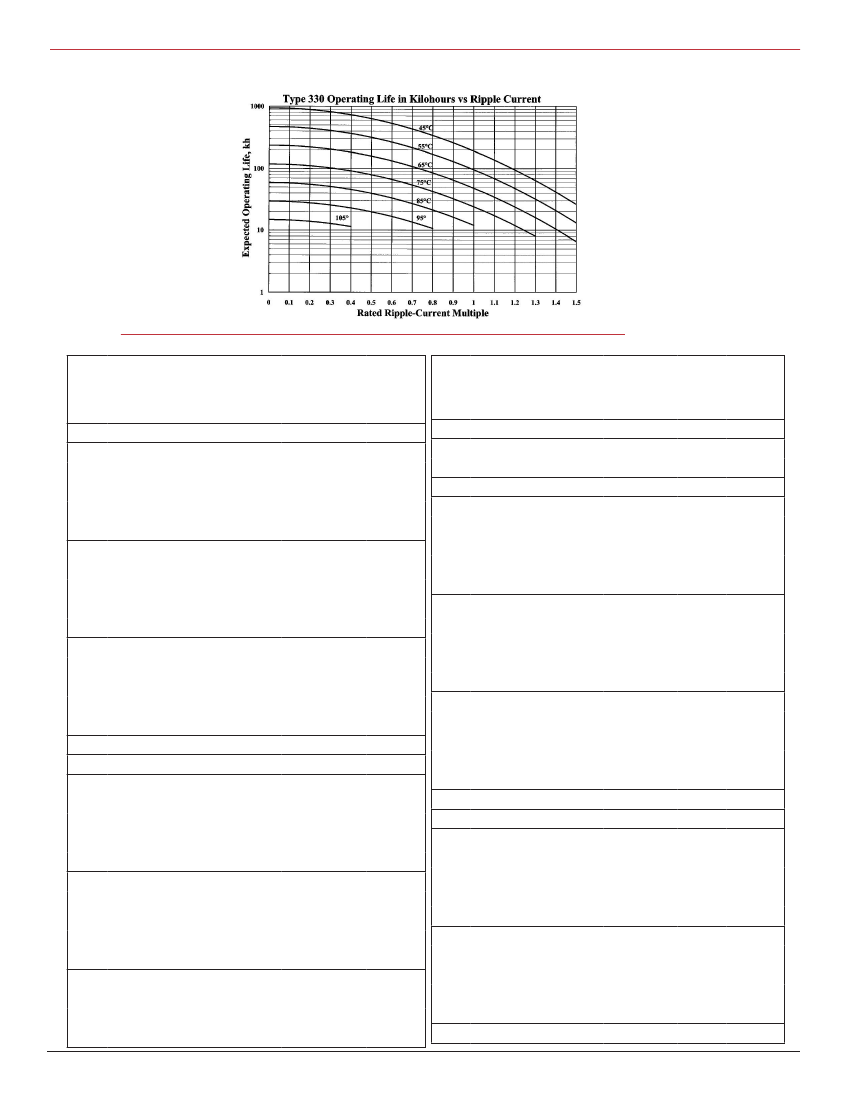

• Expected Life > 20 years @ 45 °C

• Ripple Current to 16 amps

• ESRs to 6

mΩ

• > 90% capacitance at –40 °C

• Replaces multiple capacitors

–55 °C to +105 °C

6.3 to 250 Vdc

270 µF to 33,000 µF

6.3 to 100 Vdc; –10 + 75%, 160 to 250 Vdc; –10 + 50%

≤ 0.5 √CV µA, 4 mA max, 5 min.

–55 °C multiple of 25 °C Z ≤ 4 for 6.3 & 7.5 V, 3 for 10 to 50 V,

2 for > 50 V

Ambient Temperature

45 °C

1.66

55 °C

1.52

65 °C

1.37

75 °C

1.20

85 °C

1.00

95 °C

0.75

105 °C

0.36

Frequency

50 Hz 60 Hz 120 Hz

.77” Diameter

6.3 & 7.5 V

10 to 40 V

50V

63 & 75 V

100 to 250 V

.895” Diameter

6.3 & 7.5 V

10 to 40 V

50V

63 & 75 V

100 to 250 V

1.02” Diameter

6.3 & 7.5 V

10 to 40 V

50V

63 & 75 V

100 to 250 V

0.84

0.81

0.76

0.77

0.76

0.88

0.86

0.81

1.00

1.12

1.15

1.23

1.24

1.17

1.22

1.35

1.37

1.19

1.25

1.42

1.44

1.20

1.26

1.44

1.46

0.82

0.80

0.75

0.76

0.86

0.84

0.80

0.81

1.00

1.14

1.17

1.27

1.26

1.25

1.20

1.25

1.42

1.40

1.38

1.23

1.29

1.50

1.48

1.46

1.24

1.30

1.52

1.50

1.48

0.82

0.78

0.76

0.74

0.76

0.86

0.83

0.81

0.80

0.81

1.00

1.15

1.20

1.25

1.28

1.24

1.21

1.30

1.38

1.43

1.37

1.24

1.35

1.45

1.52

1.44

1.25

1.36

1.47

1.54

1.46

360 Hz 1 kHz 5 kHz 10 kHz & up

Complies with the EU Directive

2002/95/EC requirement

restricting the use of Lead (Pb),

Mercury (Hg), Cadmium (Cd),

Hexavalent chromium (Cr(VI)),

PolyBrominated Biphenyls

(PBB) and PolyBrominated

Diphenyl Ethers (PBDE).

Load Life:

Shelf Life:

10,000 h at full load at 85 °C

∆ Capacitance ±20%

ESR 200% of limit

DCL 100% of limit

500 h at 105 °C, capacitance, ESR and DCL, initial requirements

CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864) 843-2277 • Fax: (864) 843-3800 • www.cde.com
