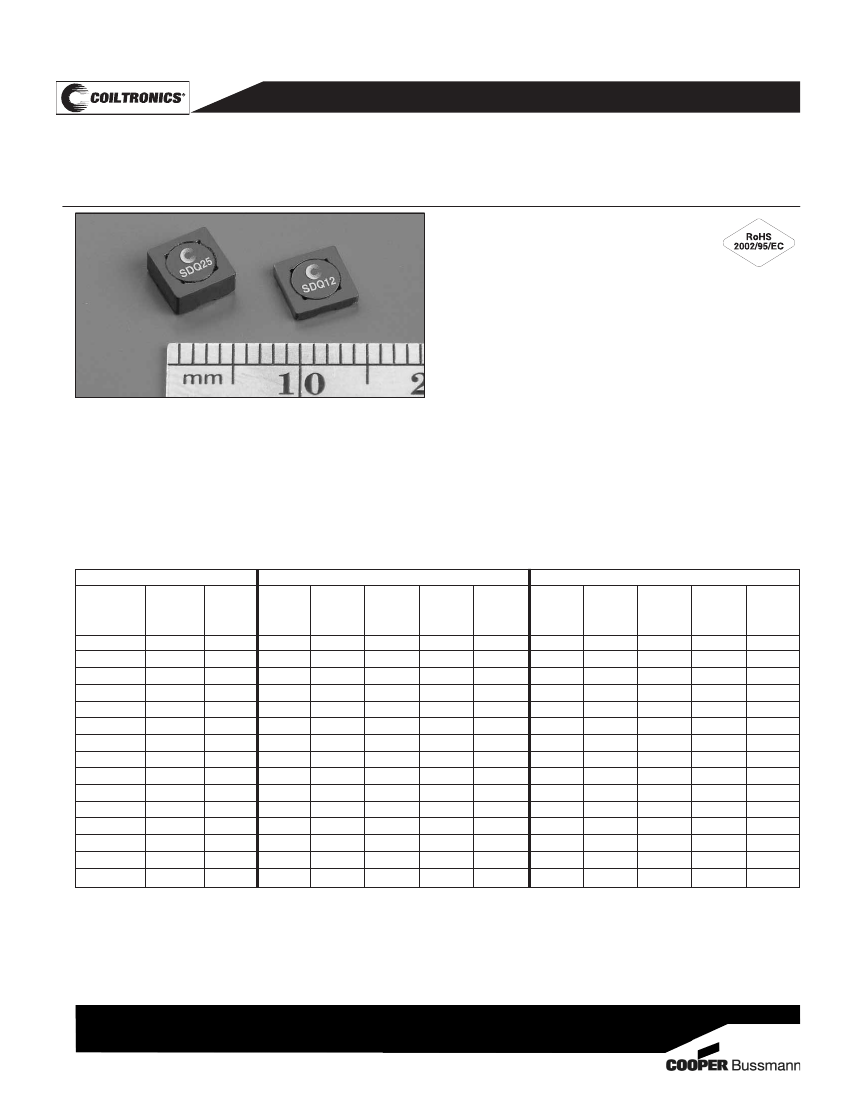

SMD Device
Description
• 125°C maximum total temperature operation
• Dual winding inductors that can be used as either a single inductor, or
in coupled inductor/transformer applications (1:1 turns ratio)
• Windings can be connected in series or parallel, offering a broad range
of inductance and current ratings
• Current range from 6.43 to 0.063 Amps
• Inductance range from 0.47µH to 4.03mH
Environmental Data
• Storage temperature: -40°C to +125°C
• Operating temperature range: -40°C to +125°C
(Range is application specific).
• Solder reflow temperature: 260°C max. for 10 seconds max.
Packaging
• Supplied in tape and reel packaging, SDQ12-3800, SDQ25-2900 parts
per reel, 13” diameter reel
Series Ratings
Irms
Isat
(3)
DCR
Ω
(4)
Amps
Amps
typ.
(2)
Part
Number
SDQ12-R47-R
SDQ12-1R0-R
SDQ12-1R5-R
SDQ12-2R2-R
SDQ12-3R3-R
SDQ12-4R7-R
SDQ12-6R2-R
SDQ12-8R2-R
SDQ12-100-R
SDQ12-150-R
SDQ12-220-R
SDQ12-330-R
SDQ12-470-R
SDQ12-680-R
SDQ12-820-R
Rated
Inductance
(µH)
0.47
1
1.5
2.2
3.3
4.7
6.2
8.2
10
15
22
33
47
68
82
Part
Marking
A
B
C
D
E
F
G
H
J
K
L
M
N
O
P
OCL
±20%
(µH)
0.49±30%
0.81
1.69
2.25
3.61
4.41
6.25
8.41
9.61
15.21
22.09
32.49
47.61
68.89
82.81
(1)
Parallel Ratings
Irms
Isat
(3)
DCR
(4)
Amps
Amps
(
Ω
) typ.
(2)
2.78
2.49
1.69
1.60
1.28
1.12
1.02
0.868
0.831
0.658
0.548
0.439
0.401
0.326
0.309
4.34
3.38
2.34
2.03
1.60
1.45
1.22
1.05
0.981
0.779
0.647
0.533
0.441
0.366
0.334
0.0325
0.0403
0.0870
0.0977
0.1527
0.1990
0.2387
0.3318
0.3620
0.5766
0.8332
1.29
1.55
2.36
2.62
Volts
µ-Sec
typ.
2.45
3.15
4.55
5.25
6.65
7.35
8.75
10.15
10.85
13.65
16.45
19.95
24.15
29.05
31.85
(5)
OCL
±20%
(µH)
1.96±30%
3.24
6.76
9.00
14.44
17.64
25.00
33.64
38.44
60.84
88.36
130.0
190.4
275.6
331.2
(1)
1.39
1.25
0.847
0.800
0.640
0.560
0.512
0.434
0.416
0.329
0.274
0.220
0.201
0.163
0.154
2.17
1.69
1.17
1.01
0.800
0.724
0.608
0.524
0.490
0.390
0.323
0.267
0.220
0.183
0.167
0.1298
0.1611
0.3481
0.3908
0.6106
0.7959
0.9548
1.33
1.45
2.31
3.33
5.18
6.21
9.43
10.49
Volts
(5)
µ-Sec
typ.
4.90
6.30
9.10
10.5
13.3
14.7
17.5
20.3
21.7
27.3
32.9
39.9
48.3
58.1
63.7
(1) Test Parameters: 100kHz,.0.25 Vrms 0.0Adc
(2) Irms: DC current for approximately
ΔT
of 40°C without core loss. It is recommended that the
temperature of the part not to exceed 125°C. Derating is necessary for AC currents
(3) Isat: Peak current for approximately 30% rolloff @20°C
(4) DCR limits @20°C
(5) Applied Volt-Time product (V-µS) across the inductor at 100kHz necessary to generate a core loss equal
to 10% of the total losses for a 40°C temperature rise. Derating of the Irms is required to
prevent excessive temperature rise.
Part Number Definition:
SDQ12-XXX-R
SDQ12 = Product code and Size
XXX = Inductance in uH, R = Decimal point
If no R is present, third character = # of zeros.
-R suffix indicated RoHS compliant
06-13-08
SB-BU08352
Page 1 of 4
Data Sheet: 4339
Part
Number
SDQ25-R47-R
SDQ25-R82-R
SDQ25-1R0-R
SDQ25-1R5-R
SDQ25-2R2-R
SDQ25-3R3-R
SDQ25-4R7-R
SDQ25-6R8-R
SDQ25-8R2-R
SDQ25-100-R
SDQ25-150-R
SDQ25-220-R
SDQ25-330-R
SDQ25-470-R
SDQ25-680-R
SDQ25-820-R
SDQ25-101-R
SDQ25-151-R
SDQ25-221-R
SDQ25-331-R
SDQ25-471-R
SDQ25-681-R
SDQ25-821-R
SDQ25-102-R
Rated
Inductance
(µH)
0.47
0.82
1
1.5
2.2
3.3
4.7
6.8
8.2
10
15
22
33
47
68
82
100
150
220
330
470
680
820
1000
Part
Marking
A
B
C
D
E
F
G
H
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
OCL
±20%
(µH)
0.392±30%
0.648±30%
0.97
1.35
2.31
2.89
5
6.73
8.71
9.8
14.79
22.47
33.8
47.43
69.19
81.61
98.57
150.2
223.1
329.7
472.4
677.4
824.3
1008.2
(1)
Parallel Ratings
Irms
Isat
(3)
DCR
(4)
Amps
Amps
(
Ω
) typ.
(2)
3.71
3.37
3.15
2.97
2.67
2.50
1.96
1.84
1.57
1.53
1.24
1.01
0.812
0.749
0.603
0.580
0.499
0.408
0.326
0.292
0.243
0.197
0.186
0.160
6.43
5.00
4.09
3.46
2.65
2.37
1.80
1.55
1.36
1.29
1.05
0.849
0.692
0.584
0.484
0.446
0.405
0.328
0.269
0.222
0.185
0.155
0.140
0.127
0.0181
0.0221
0.0252
0.0283
0.0351
0.0399
0.0653
0.0741
0.1015
0.1068
0.1632
0.2431
0.3795
0.4461
0.6865
0.7435
1.00
1.50
2.36
2.93
4.25
6.45
7.25
9.82
Volts
µ-Sec
typ.
2.31
2.97
3.63
4.29
5.61
6.27
8.25
9.57
10.9
11.6
14.2
17.5
21.5
25.4
30.7
33.3
36.6
45.2
55.1
67.0
80.2
96.0
106
117
(5)
OCL
±20%
(µH)
1.57±30%
2.59±30%
3.87
5.41
9.25
11.55
20.00
26.91
34.85
39.20
59.17
89.89
135.2
189.7
276.8
326.4
394.3
600.6
892.4
1318.7
1889.6
2709.8
3297.3
4032.8
(1)
Irms
Amps
(2)
Series Ratings
Isat
(3)
DCR
Ω
(4)
Amps
typ.
3.21
2.50
2.05
1.73
1.32
1.18
0.900
0.776
0.682
0.643
0.523
0.425
0.346
0.292
0.242
0.223
0.203
0.164
0.135
0.111
0.093
0.077
0.070
0.063
0.0725
0.0883
0.1007
0.1130
0.1402
0.1595
0.2612
0.2964
0.4059
0.4273
0.6526
0.9724
1.52
1.78
2.75
2.97
4.02
6.00
9.42
11.71
16.99
25.78
28.99
39.26
1.86
1.68
1.58
1.49
1.34
1.25
0.98
0.918
0.785
0.765
0.619
0.507
0.406
0.374
0.302
0.290
0.249
0.204
0.163
0.146
0.121
0.098
0.093
0.080
Volts
(5)
µ-Sec
typ.
4.62
5.94
7.26
8.58
11.2
12.5
16.5
19.1
21.8
23.1
28.4
35.0
42.9
50.8
61.4
66.7
73.3
90.4
110
134
160
192
212
234
(1) Test Parameters: 100kHz,.0.25 Vrms 0.0Adc
(2) Irms: DC current for approximately
ΔT
of 40°C without core loss. It is recommended that the
temperature of the part not to exceed 125°C. Derating is necessary for AC currents
(3) Isat: Peak current for approximately 30% rolloff @20°C
(4) DCR limits @20°C
(5) Applied Volt-Time product (V-µS) across the inductor at 100kHz necessary to generate a core loss equal
to 10% of the total losses for a 40°C temperature rise. Derating of the Irms is required to
prevent excessive temperature rise.
Part Number Definition:
SDQ12-XXX-R
SDQ12 = Product code and Size
XXX = Inductance in uH, R = Decimal point
If no R is present, third character = # of zeros.
-R suffix indicated RoHS compliant

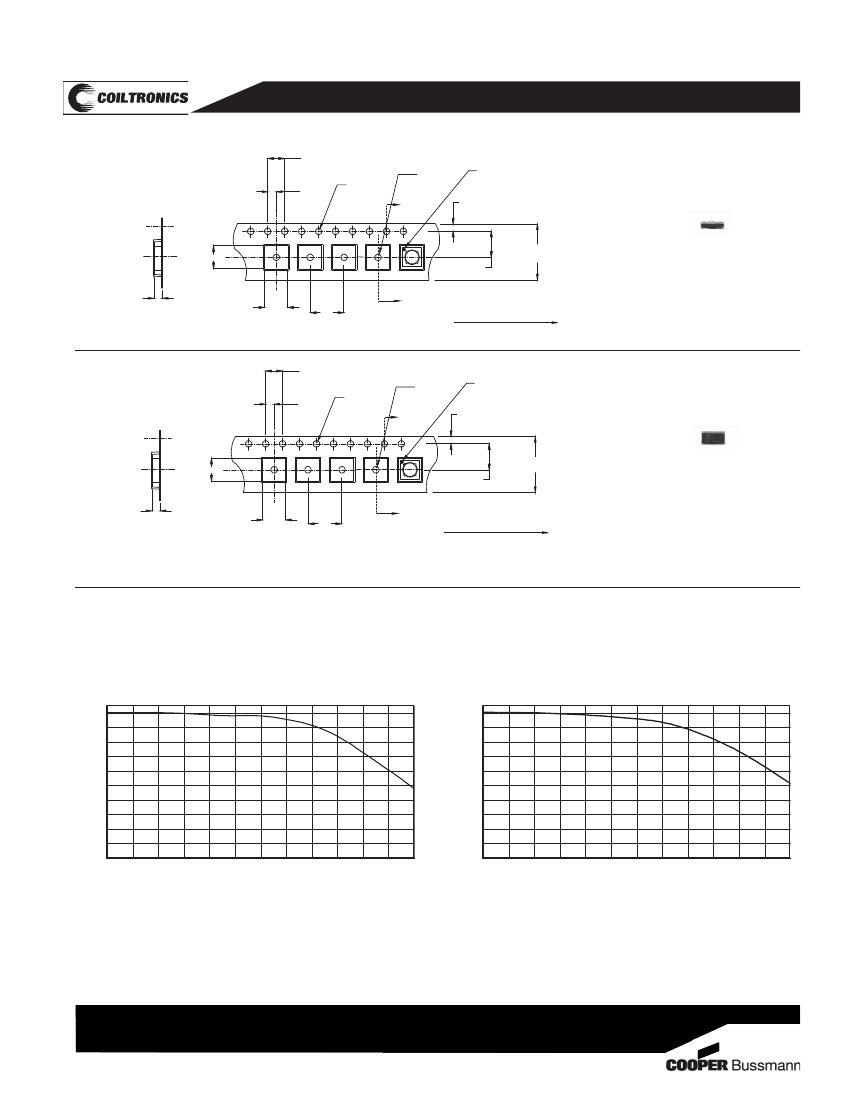

Dimensions - mm
Top View
Pin #1 identifier
Side View
Bottom View
1.5 typ ref
Recommended Pad Layout
2 PAD LAYOUT
4 PAD LAYOUT
Schematic
1
4
2
3
TRANSFORMER
1
4
1
4
1
2
Pa marking
rt
(Note A)
5.2
Max
4
3
5.2
Max
2
1
HT
3
2.975
1
5.95
4
3
2.975
2.975
5.950
2
2
5.950
1.5 Typ.
4
Ref.
1.02
2.975
2.575
5.15
R2.250
R2.250
3
PARALL EL
2
SERIES
3
SDQ12 = 1.2mm max.
SDQ25 = 2.5mm max.
Part marking: Line 1 (1st digit inductance value per part marking designator in chart above)
Line 2: xx (indicates the product size code)
(2nd digit is a bi-weekly production date code)
(3rd digit is the last digit of the year produced)
06-13-08
SB-BU08352
Page 2 of 4
Data Sheet: 4339
Packaging Information - mm
SDQ12 Series
4.00
1.5 Dia.
+0.1/-0.0
1.5 Dia.
min.
Pin #1 indicator
2.00
A
1.75
4
5.45
1
3
12.0
+/-0.3
5.50
Actual Size
SDQ12
2.00
5.45
SECTION A-A
8.0
2
A
Direction of feed
Supplied in tape-and-reel packaging,3800 parts per reel, 13” diameter reel.
SDQ25 Series
4.00
1.5 Dia.
+0.1/-0.0
1.5 Dia
min.
Pin #1 indicator
2.00
A
1.75
1
5.45
4
12.0
+/-0.3
5.50
Actual Size
SDQ25
2
2.70 mm
5.45
SECTION A-A
8.0
3
A
Direction of feed
Supplied in tape-and-reel packaging, 2900 parts per reel, 13” diameter reel.
Inductance Characteristics
OCL vs Isat
SDQ12
100
90
80
70
100
90
80
70
OCL vs I sat
SDQ25
OCL (%)
60
50
40
30
20
10
0
0
10
20
30
40
50
60
70
80
90
100
110
120
OCL (%)
60
50
40
30
20
10
0
0
10
20
30
40
50
60
70
80
90
100
110
120
% of I sat
% of I sat
06-13-08
SB-BU08352
Page 3 of 4
Data Sheet: 4339

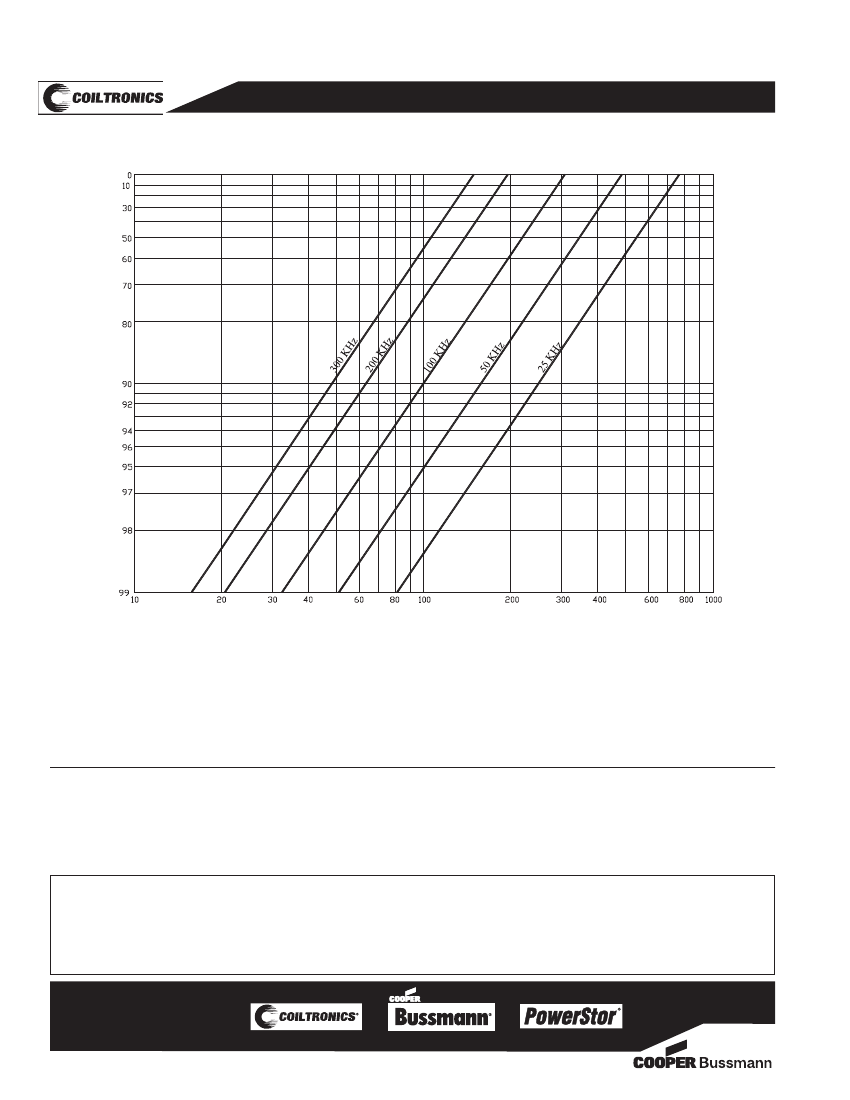

Core Loss
I rms Derating with Core Loss
% of Losses from Irms (maximum)
% of Applied Volt-Second
North America
Cooper Electronic Technologies
1225 Broken Sound Parkway NW
Suite F
Boca Raton, FL 33487-3533
Tel: 1-561-998-4100
Fax: 1-561-241-6640
Toll Free: 1-888-414-2645
Cooper Bussmann
P.O. Box 14460
St. Louis, MO 63178-4460
Tel: 1-636-394-2877
Fax: 1-636-527-1607
Europe
Cooper Electronic Technologies
Cooper (UK) Limited
Burton-on-the-Wolds
Leicestershire • LE12 5TH UK
Tel: +44 (0) 1509 882 737
Fax: +44 (0) 1509 882 786
Cooper Electronic Technologies
Avda. Santa Eulalia, 290
08223
Terrassa, (Barcelona), Spain
Tel: +34 937 362 812
+34 937 362 813
Fax: +34 937 362 719
Asia Pacific
Cooper Electronic Technologies
1 Jalan Kilang Timor
#06-01 Pacific Tech Centre
Singapore 159303
Tel: +65 278 6151
Fax: +65 270 4160
The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This
bulletin is intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann reserves the right, with-
out notice, to change design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any
technical information contained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
Life Support Policy: Cooper Bussmann does not authorize the use of any of its products for use in life support devices or systems without the express written approval of an officer of the Company.
Life support systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably
expected to result in significant injury to the user.
This tutorial includes the basic introductory applications of the AVR microcontroller ATmega8, keyboard scanning, terminal system, fixed counter, and serial communication. The tutorial is easy to unde...
[align=left]Due to the semiconductor manufacturing process, the cost of low-voltage devices is lower than that of traditional 5V devices, and the performance is better. In addition, the I/O pins of mo...
1. Experimental tasks As shown in the previous test schematic, switch SP1 is connected to the P3.7/RD pin, and four LEDs are connected to the P1 port of the AT89S51 microcontroller. When the power is ...
1.Description Resource Path Location Type
#10099-D program will not fit into available memory. placement with alignment/blocking fails for section ".cinit" size 0x81 page 0. Available memory ranges: P...
Sohu Wireless: A pioneer in mobile entertainmentBest performance: Sohu Wireless leveraged the resources and popularity of the Sohu portal website to launch the mobile portal "Mobile Sohu", creating a ...
I use 51 to make an electronic perpetual calendar. I use a lot of digital tubes. I don't want to use LCD. How can I assign the data read from DS1302 to 74LS47 (with many digital tubes)?...
Analog electronics
京公网安备 11010802033920号
EEWORLD
