S1206CA9090FHW datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> S1206CA9090FHW

S1206CA9090FHW: DescriptionFixed Resistor, Thin Film, 0.3W, 909ohm, 100V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 1206, CHIP; CategoryPassive components The resistor; File Size93KB，1 Pages; ManufacturerState of the Art Inc.; Environmental Compliance

Download Datasheet Parametric View All

S1206CA9090FHW Overview

Fixed Resistor, Thin Film, 0.3W, 909ohm, 100V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 1206, CHIP

S1206CA9090FHW Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	State of the Art Inc.
package instruction	CHIP
Reach Compliance Code	compli
ECCN code	EAR99
Other features	PRECISION, REFERENCE STANDARD: MIL-PRF-55342
structure	Chi
JESD-609 code	e4
Manufacturer's serial number	1206
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package height	0.38 mm
Package length	3.2 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	1.55 mm
method of packing	BULK
Rated power dissipation(P)	0.3 W
Rated temperature	70 °C
resistance	909 Ω
Resistor type	FIXED RESISTOR
series	1206(STD)-THINFILM
size code	1206
surface mount	YES
technology	THIN FILM
Temperature Coefficient	50 ppm/°C
Terminal surface	Gold (Au)
Terminal shape	WRAPAROUND
Tolerance	1%
Operating Voltage	100 V

Preview

Download Datasheet

View All

PROTECTIVE

ENCAPSULANT

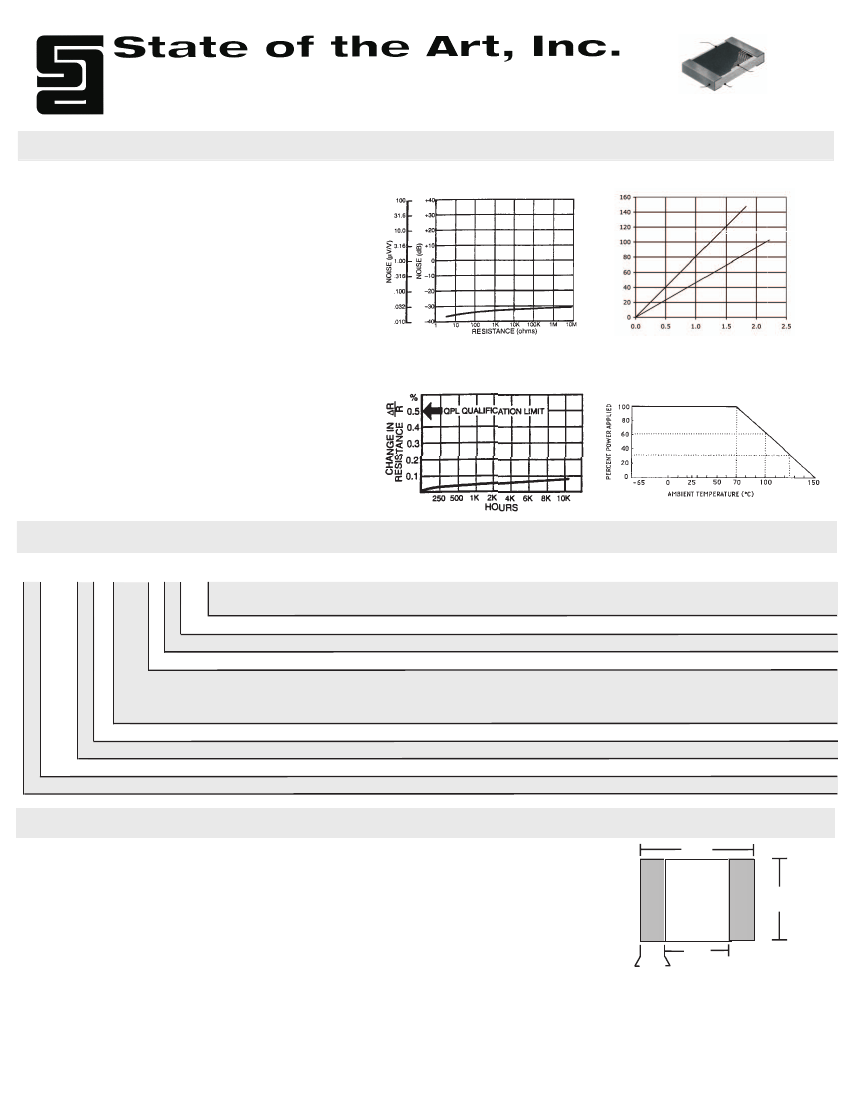

1206 Thin Film Chip Resistor

Standard Grade, Wraparound

PERFORMANCE CHARACTERISTICS

Resistance Range(1)

Tolerances (2)

TCR

Thermal Resistance

Maximum Power

Maximum Voltage

5.6

W- 1.8MW

0.1%, 0.25%, 0.5%,1%, 2%, 5%

±25, ±50, ±100 ppm

67.2°C/W

300 mW

100 Volts

WRAPAROUND

TERMINATIONS

PRECISION

THIN FILM

99.6% ALUMINA

CURRENT NOISE

TEMPERATURE RISE (°C)

POWER DISSIPATION

fiber epoxy board

(1) Minimum resistance range at 0.1% tolerance is 100ohms.

(2) +/- 0.05% limited availability - consult factory

ceramic board

ENVIRONMENTAL PERFORMANCE (3)

Thermal Shock

Low Temperature Operation

Short-time Overload

Resistance to Bonding Exposure

Moisture Resistance

High Temperature Exposure

Life Test

±0.02%

±0.03%

See Chart

POWER DISSIPATION (WATTS)

TYPICAL LIFE TEST PERFORMANCE

POWER DERATING

(3)Typical resistance change, test methods and criteria

per MIL-PRF-55342.

PART NUMBERING

S 1206 C A 1001 F H B - TR

PACKAGING CODE: - TR = Tape/Reel - W = Waffle Carrier (Default packaging is Bulk)

TERMINATION FINISH: B: Sn60 over nickel barrier W: Gold

TEMPERATURE CHARACTERISTIC TCR: E: ±25 ppm H: ±50 ppm K: ±100 ppm

TOLERANCE: B: 01% C: 0.25% D: 0.5% F: 1% G: 2% J: 5%

RESISTANCE VALUE:

Three or Four digits are used, with all leading digits significant. Four digits are used for 1% tolerance or lower; otherwise, three digits are

used. The last digit specifies the number of zeros to add. The letter "R" is used to represent the decimal for fractional ohmic values.

Example: 5R6 is 5.6 ohms.

PRODUCT DESIGNATION: A: Thin film on alumina

TERMINATION TYPE: C: Wraparound termination

SIZE CODE

GRADE: S: Standard Production H: High Reliability (For Screening options, contact the factory)

MECHANICAL

INCHES

MILLIMETERS

.156

MINIMUM

RECOMMENDED

MOUNTING

PADS

(INCHES)

Length

Width

Thickness

Top Term

Bottom Term

Gap

Approx. Weight

.126 (.124 - .132)

.061 (.059 - .067)

.017 (.013 - .023)

.015 (.010 - .020)

.021 (.015 - .025)

.085 (.081 - .089)

0.0081 grams

3.20

1.55

0.38

0.53

2.15

(3.15 - 3.35)

(1.50 - 1.70)

(0.33 - 0.58)

(0.25 - 0.50)

(0.38 - 0.64)

(2.05 - 2.25)

.067

.079

.039

“Specifications subject to change without notice.”

STATE OF THE ART, INC.

2470 Fox Hill Road, State College, PA 16803-1797

Phone (814) 355-8004

www.resistor.com

Fax (814) 355-2714

Toll Free 1-800-458-3401

02/08/08
