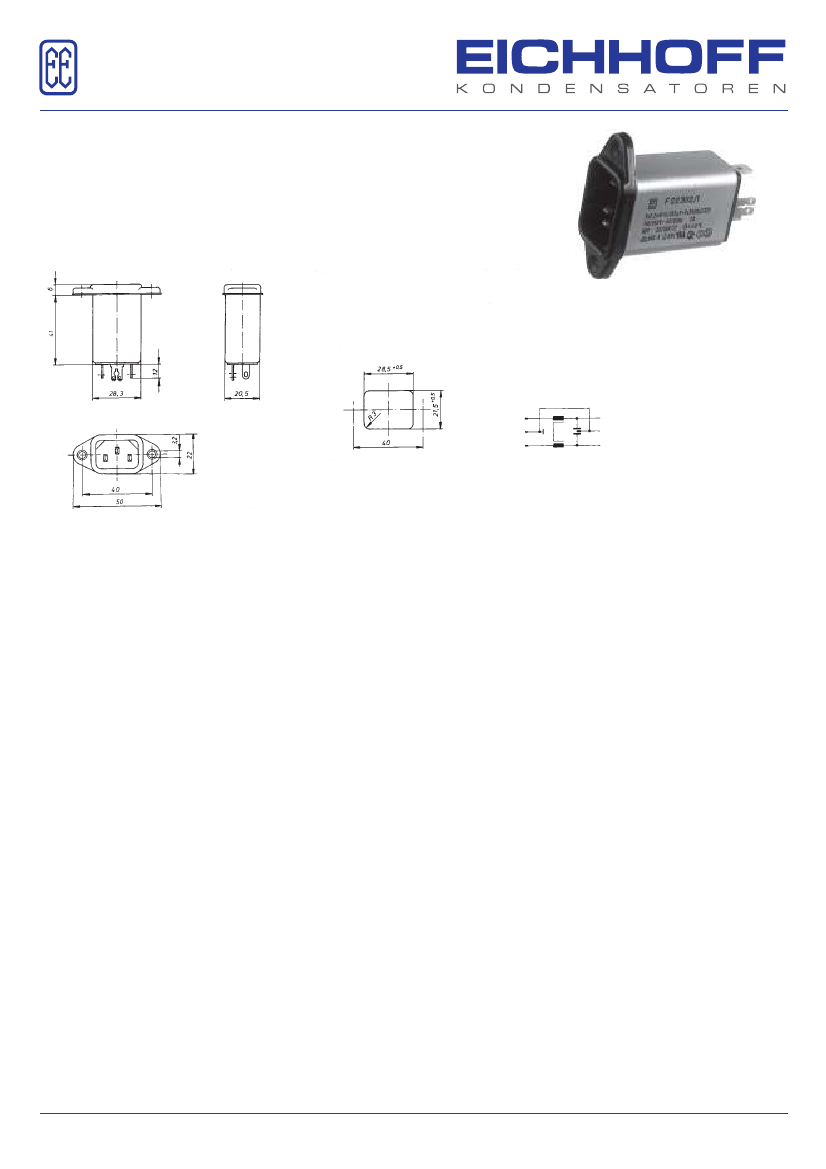

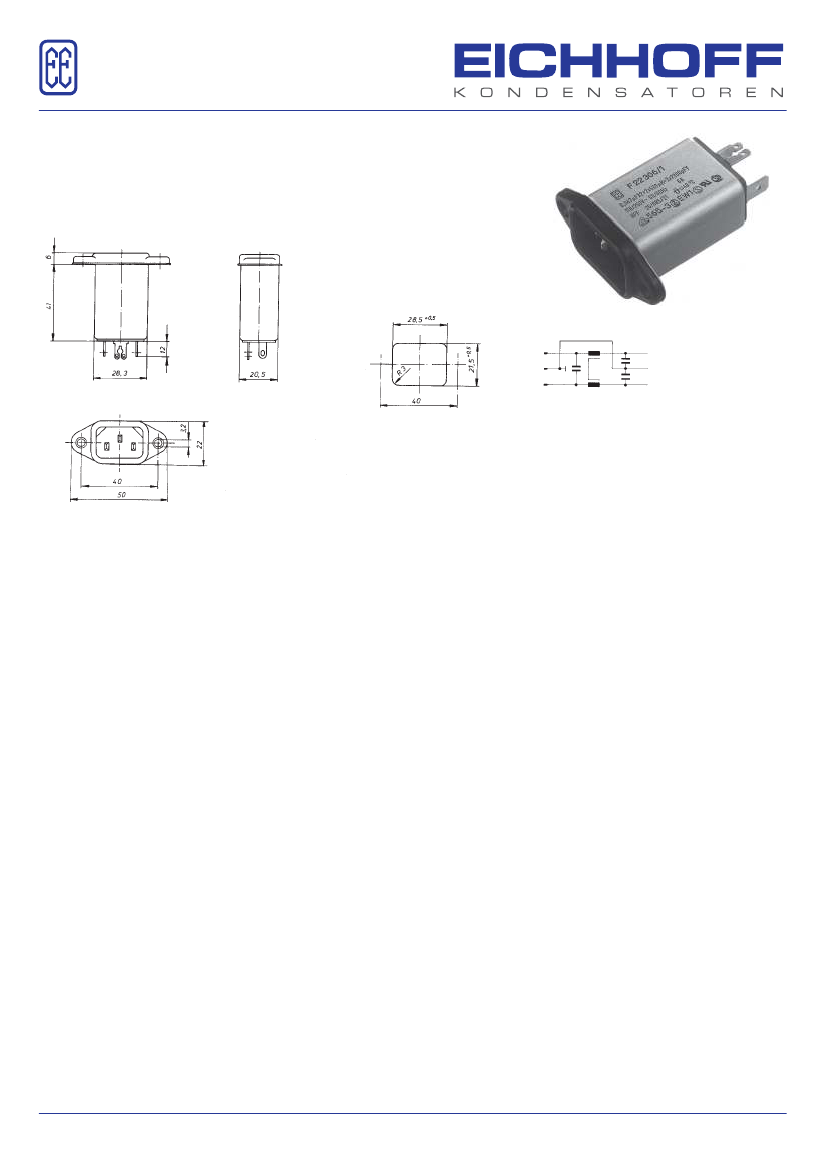

Funk-Entstörfilter mit Kaltgerätestecker nach IEC

Radio-Interference Suppression Filters with IEC Power Line Connector

Filtres secteur avec prise conforme aux normes IEC

Montageausschnitt

Mounting cutout

Perçage pour montage

Nennspannung:

Ausführung:

Kondensatorenklasse:

Klimakategorie:

AC 110/250 V 50/60 Hz

Metallgehäuse mit Kaltgerätestecker nach IEC

X1Y2

25/085/21-C nach IEC 60068-1

Anschlüsse:

NETZSEITE

Gerätestecker für kalte Anschlussstellen

GERÄTESEITE

Ausführung „a“

Lötösen

Schutzleiter

Flachstecker

6,3/2,8 x 0,8 mm

Ausführung „b“

Flachstecker

6,3 x 0,8 mm

Schutzleiter

Flachstecker

6,3/2,8 x 0,8 mm

฀ ฀ ฀

฀ ฀ ฀ ฀

฀ ฀ ฀

฀ ฀

฀

Rated voltage:

Encapsulation:

Capacitor class:

Climatic category:

฀ ฀

฀

฀ ฀

฀

AC 110/250 V 50/60 Hz

metal case with IEC power line connector

X1Y2

25/085/21-C to IEC 60068-1

฀

Terminals:

INPUT

IEC power line connector

OUTPUT

Version „a“

solder tags

Ground

fastons

6.3/2.8 x 0.8 mm

Version „b“

fastons

6.3 x 0.8 mm

Ground

fastons

6.3/2.8 x 0.8 mm

Tension nominale:

Boîtier:

Classes des condensateurs:

Catégorie climatique:

฀ ฀ ฀ ฀ ฀ ฀ ฀ ฀ ฀ ฀฀ ฀฀ ฀ ฀

฀ ฀ ฀ ฀ ฀ ฀ ฀ ฀ ฀ ฀฀ ฀ ฀

฀

EICHHOFF Kondensatoren GmbH

Heidgraben 4

36110 Schlitz - Germany

sales@eichhoff.de

฀ ฀ ฀฀ ฀ ฀ ฀ ฀ ฀ ฀ ฀

฀฀

Prüfzeichen:

Approvals:

Homologations:

฀ ฀ ฀ ฀

฀ ฀

฀

฀ ฀ ฀ ฀ ฀ ฀ ฀ ฀

฀ ฀ ฀ ฀

฀ ฀ ฀ ฀ ฀ ฀ ฀ ฀

฀ ฀ ฀ ฀

฀ ฀ ฀ ฀฀ ฀฀ ฀ ฀ ฀ ฀ ฀ ฀ ฀

110/250 V 50/60 Hz

métallique avec prise conforme aux normes IEC

X1Y2

25/085/21-C selon 60068-1

EN 60939-2

Connexions

CÔTÉ SECTEUR

Prise conforme aux normes IEC

CÔTÉ APPAREIL

Exécution „a“

Exécution „b“

cosses à souder

Cosses faston

6,3 x 0,8 mm

Terre de protection

cosses faston

6,3/2,8 x 0,8 mm
