OMEGA Thinfilm RTD Elements
®
OMEGAFILM
®
RTD’s can be used
with various OMEGA
®
controllers
and digital readout thermometers.
The following shows where some
of these instruments can be found
in this catalog:
Instrument
All RTD elements
available with
Teflon
®
insulated
lead wire.
Pricing is dependent
on lead style,
See page with
“RTD Elements with
Lead Wires Attatched”
(page C-12).
Section
M
M
P
1.
DP41-RTD series meters
2.
DP25-RTD digital indicators
3.
CN77000 series controllers
OMEGA can offer Series W
and Series F OMEGAFILM
®
RTD’s
encapsulated in hex head
machine screws and other
metal holders. Please contact
OMEGA’s Applications Engineering
Department about other
custom assemblies.
Discount Schedule
1 to 10 units . . . . . . . . . . .Net
11 to 24 units . . . . . . . . .10%
25 to 49 units . . . . . . . . .15%
50 to 99 units . . . . . . . . .20%
100 units and up . . . . . . .25%

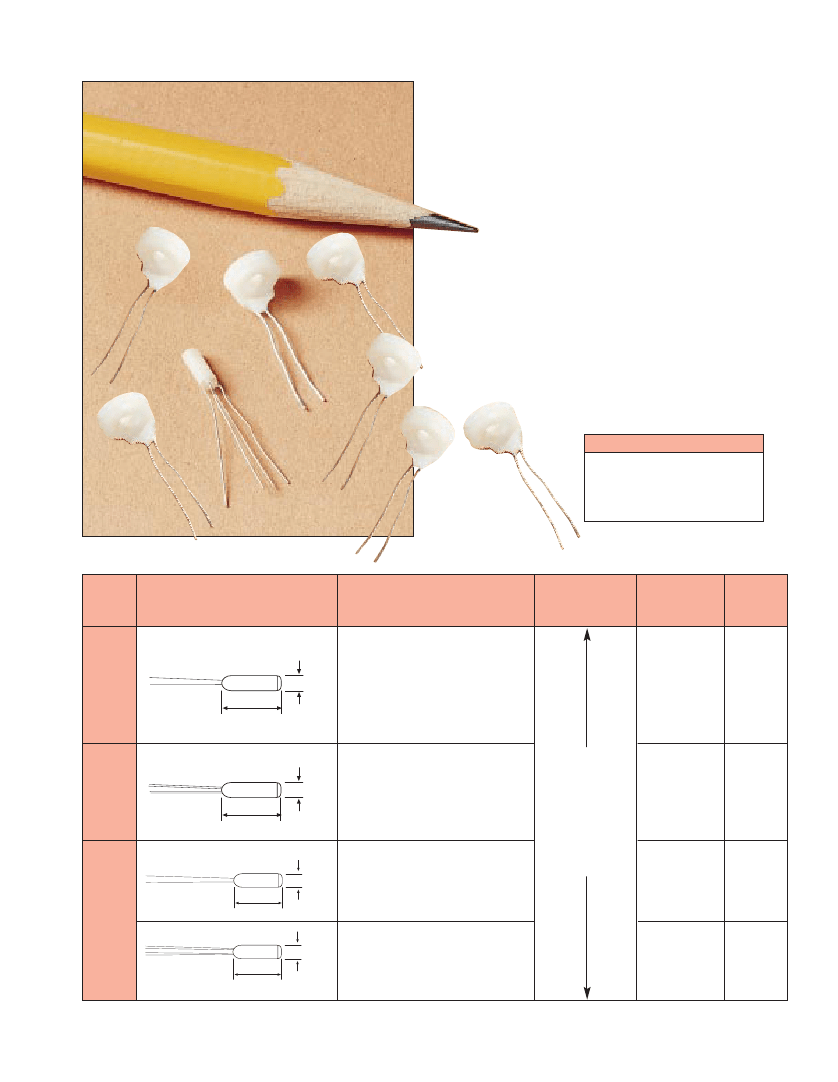

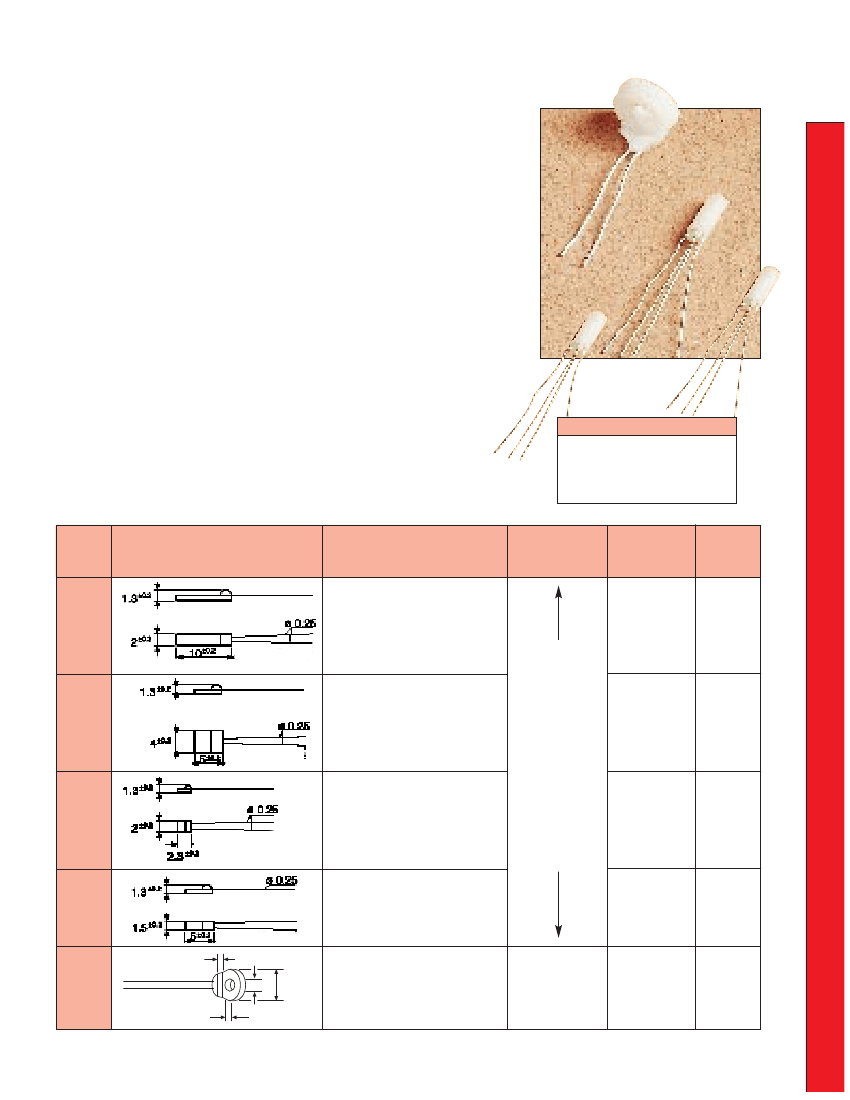

Shown
larger than
actual size
OMEGAFILM
®
– Platinum RTD Elements (Alpha=.00385)
Series
Dimensions in millimeters
(1 mm = .03937")
Single or
Dual
1
1
1
1
1
1
2
2
2
2
2
Nominal
Resistance
(ohms)
100
200
400
500
1000
2000
100
200
400
500
1000
Temperature
Range
Model
Number
W2102
W2112
W2122
W2132
W2142
W2152
W2202
W2212
W2222
W2232
W2242
Price
$32
35
39
39
48
97
58
68
66
61
71
W
12
*
3.0 mm
W
12
*
3.0 mm
x
x
x
x
x
x
x
x
x
x
x
-50
to
600°C
(-58
to
1112°F)
2.0 mm
7
1
x
100
W2103
36
W
3.0 mm
2
7
x
100
W2204
64
STOCKED FOR IMMEDIATE DELIVERY
C-29
* Length is 17 mm for 1000 and 2000 ohm elements
OMEGAFILM RTD Elements
Series W.
Series W are rugged,
ceramic, cylindrically shaped
elements for use in the temperature
range from -50 to 600°C (-58 to
1112°F). Elements have .015"
gold palladium alloy leads
approximately 0.4" long, which
are strain relieved in the stress free
ceramic body. Elements are available
in both single and dual configurations
with resistances at 0°C (32°F) of 100,
200, 400, 500, 1000 and 2000 ohms.
Calibration conforms to standard DIN
43760 with 0.1% resistance tolerance.
Resistance vs. Temperature values
are shown in the technical section.
Series F.
Series F are small, thin, flat
ceramic encased elements with strain
relieved leads approximately 10 mm
(0.4") long. Temperature rating is
from -50 to 600°C (-60 to 1110°F).
Calibration is to DIN standard 43760,
0.1% tolerance. Available in a single
winding configuration with a choice
of 100, 500 and 1000 ohm resistance
at 0°C (32°F). Series F elements
yield a superior approach to
accurate, reliable, surface
temperature measurement.
Model WS81.
The WS81 donut
shaped 100 ohm RTD element
offers fast, accurate temperature
measurement as well as a
convenient means of attaching to
a surface without cement. These
highly versatile units can be secured
to a surface by a machine screw and
washer or by a rivet. They can also
be directly cemented with or without
the use of a vertical centering post.
Rated temperature is from -50 to
850°C (-58 to 1562°F). Accuracy
and speed of response are enhanced
by locating the winding deposition
only 0.007" beneath the mounting
surface. The rugged ceramic body,
with firmly strain relieved 0.015"
diameter platinum, is designed to
withstand high vibration conditions.
This versatile 100 ohm unit meets
DIN standard 43760, “0.1%”
resistance tolerance. Resistance vs.
Temperature tables and polynomials
are shown in the technical section.
Shown
larger than
actual size
®
C
Discount Schedule
1 to 10 units . . . . . . . . . . .Net
11 to 24 units . . . . . . . . .10%
25 to 49 units . . . . . . . . .15%
50 to 99 units . . . . . . . . .20%
100 units and up . . . . . . .25%
OMEGAFILM
®
– Platinum RTD Elements (Alpha=.00385)
Series
Dimensions in millimeters
(1 mm = .03937")
Nominal
Single or
Resistance
Dual
(ohms)
1
x
100
1
1 mm Thick
Temperature
Range
Model
Number
F3101
F3131
F3141
F3102
Price
$19
19
19
19
19
19
F
x
x
x
x
x
500
1000
100
500
1000
-50
to
600°C
(-60
to
1110°F)
1
1
1
F
1 mm Thick
F3132
F3142
1
F
1 mm Thick
1
x
100
F3105
19
F
1.0
1
x
100
-50 to
850°C
(-60 to
1560°F)
F3107
19
WS
2.2
6.7
1
x
100
WS81
87
2.1 thick
C-30
