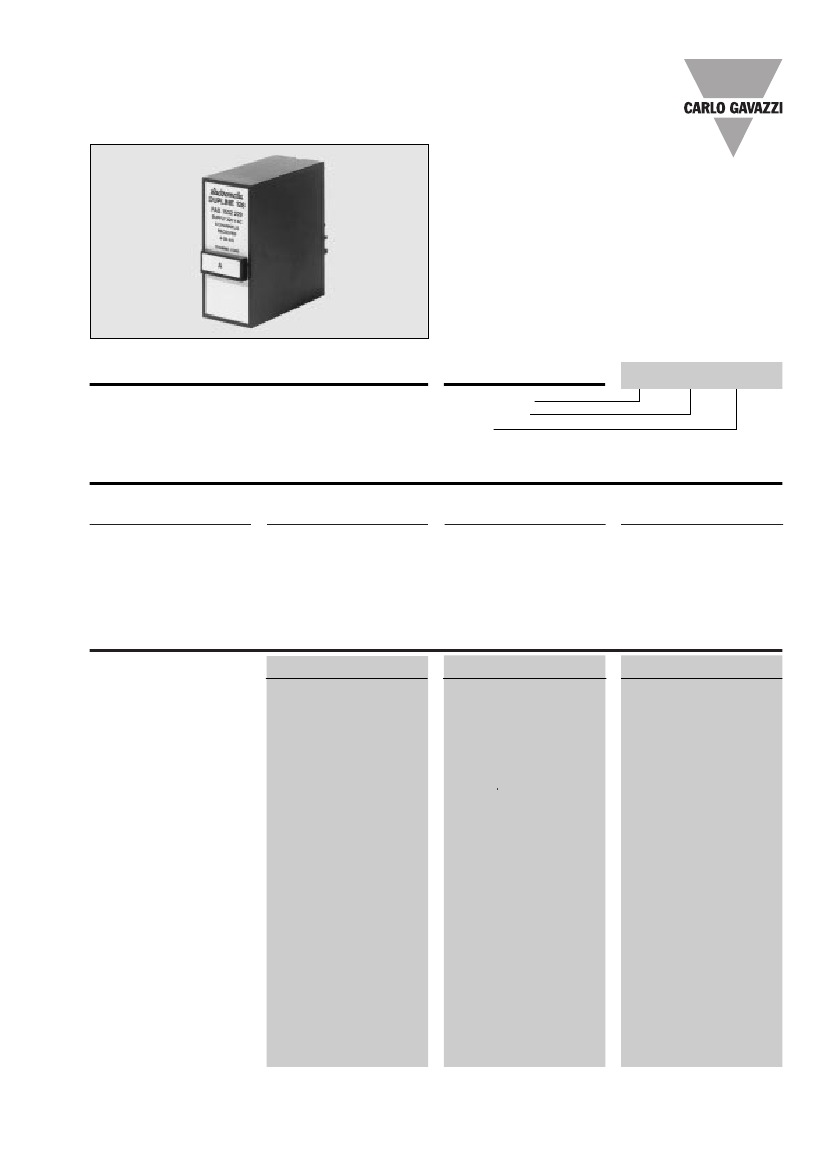

Dupline

Field- and Installationbus

Receiver with Analog Current Output

Types FAD 1530, FAD 1531, FAD 1532

• Receivers with current signal output

• Current output signals:

FAD 1530: 1 x 0 to 1 mA

FAD 1531: 1 x 0 to 20 mA

FAD 1532: 1 x 4 to 20 mA

• 8-bit (8 channels) resolution

• For binary transmitted analogue signals

• Galvanically separated output

• D-housing

• Plug-in type module

• AC power supply

Product Description

Dupline analog receivers with

standard current output sig-

nals (0 to 1 mA, 0 to 20 mA, 4

to 20 mA). Convert binary

codes into analog current sig-

nals.

Ordering Key

Type: Dupline

Output signal

Supply

FAD 1530 024

Type Selection

Supply

24 VAC

120 VAC

220 VAC

Code module

Ordering no.

0 to 1 mA

FAD 1530 024

FAD 1530 120

FAD 1530 220

FMK A to FMK P

Ordering no.

0 to 20 mA

FAD 1531 024

FAD 1531 120

FAD 1531 220

FMK A to FMK P

Ordering no.

4 to 20 mA

FAD 1532 024

FAD 1532 120

FAD 1532 220

FMK A to FMK P

Output Specifications

FAD 1530 ...

Output

Signal range

Isolated in groups of

Output load resistance

Resolution

Settling time

Short-circuit protection

Short-circuit current

Open loop voltage

Inaccuracy

Cable length

Dielectric voltage

Output - Dupline

1 current output

0 to 1 mA

1x1

≤

10 kΩ

8 bits (3.92 µA/LSB)

≤

1 pulse train + 10 ms

Yes

1 mA

Approx. 15 V

≤

1% of full scale

≤

≥

200 VAC (rms)

FAD 1531 ...

1 current output

0 to 20 mA

1x1

≤

350

Ω

8 bits (78.43 µA/LSB)

≤

1 pulse train + 10 ms

Yes

20 mA

Approx. 15 V

≤

1% of full scale

≤

≥

200 VAC (rms)

FAD 1532 ...

1 current output

4 to 20 mA

1x1

≤

350

Ω

8 bits (62.75 µA/LSB)

≤

1 pulse train + 10 ms

Yes

20 mA

Approx. 15 V

≤

1% of full scale

≤

≥

200 VAC (rms)

Specifications are subject to change without notice (01.09.99)
