Internal
Connectors
Specifications
Insulation Resistance:
Withstanding Voltage:
Contact Resistance:
Current Rating:
Operating Temp. Range:
Series FAS
MIL Std. IDC Type Socket, (2.54mm Pitch)
Part Number (Details)
1,000MΩ min. at 500V DC
700V ACrms for 1 minute
30mΩ max. at 10mA
1A
–20°C to +105°C
FAS
Series (socket)
No. of Leads
- 3401 - 2 2
01 - * - 0 * F
Materials and Finish
Housing: PBT, glass filled UL 94V-0 rated
Contacts: Phosphor Bronze
Plating: Contacts - Au over Ni
IDC Terminals - Flash Au over Nickel
Housing Type:
2 = MIL std. key
(with central key)
Pressure Cover Type:
1 = Open End
2 = Closed End
Strain Relief
Features
2.54 mm contact pitch connectors for
50 MIL standard flat cables
Variations include latch header plugs, box header plugs,
and flat cable sockets
Housing Colour: 1 = Black
2 = Blue (Standard)
0 = Mating Cables (1.27 pitch):
AWG 28 Stranded Wire or AWG 30 Solid Wire
Contact Plating: A = Gold (0.76µm over Ni 2.5~4.5µm)
B = Gold (0.3µm over Ni 2.5~4.5µm)
IDC Terminal Plating:
F = Flash Au over Ni
Jigs and Tools
(For FAS / FAP Type)
Hand press: FX-003
Applicable jig: FA-005
Applicable Cables
AWG 28 stranded wire, 1.27mm pitch
AWG 30 solid wire, 1.27mm pitch
(e.g. DK**-*, FLEX-S*, TPFLEX-N*, FS-FLEX-B*, see Section F)

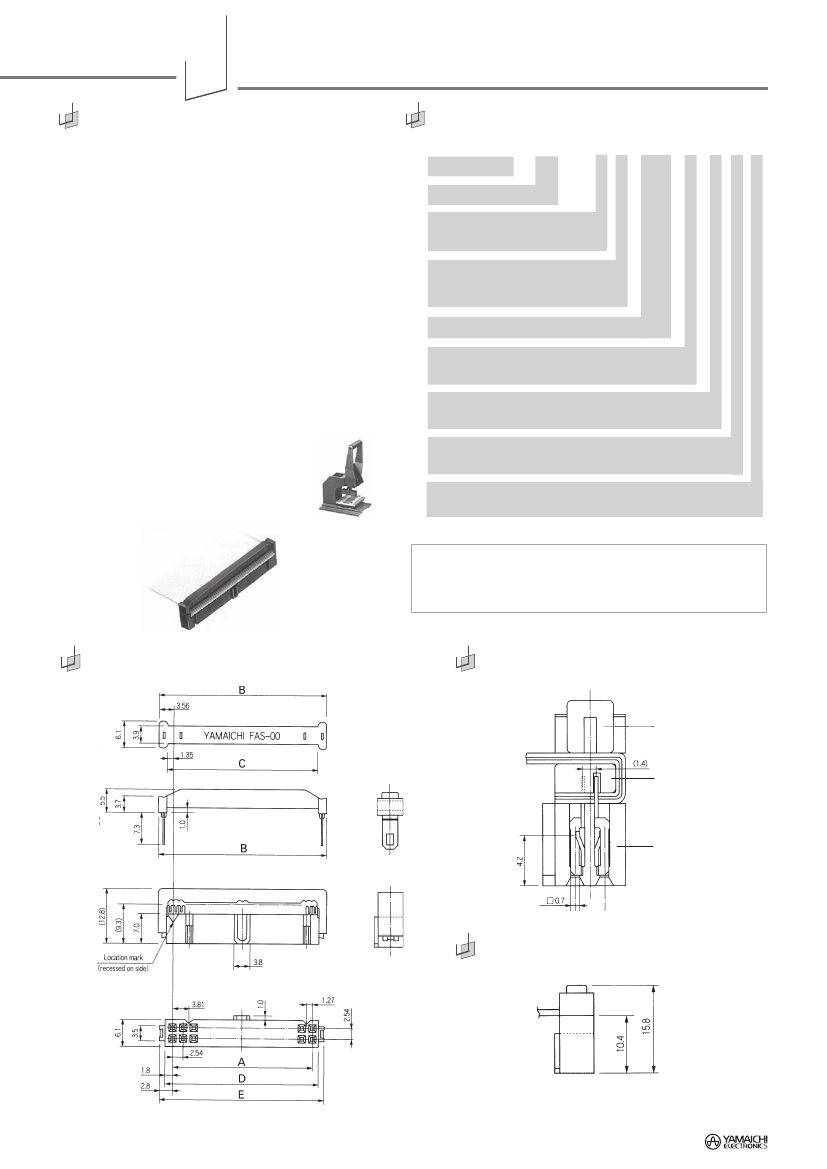

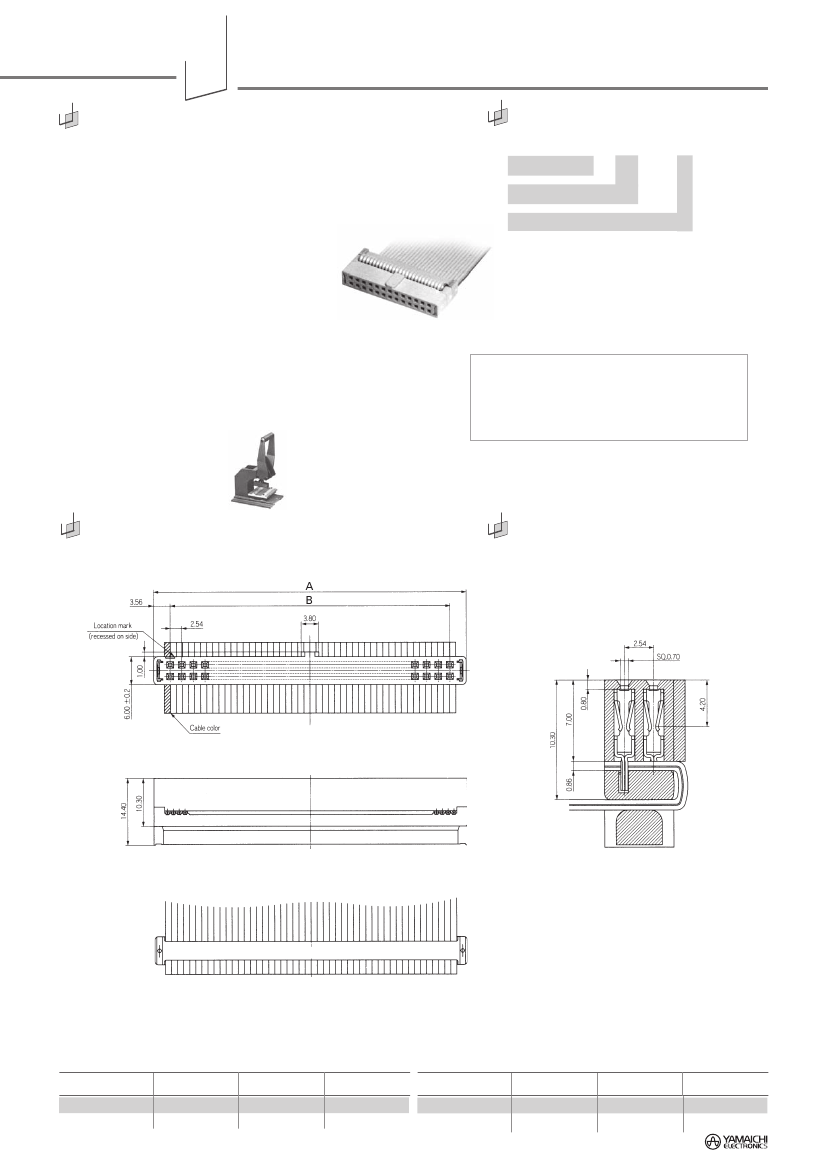

Outline Dimensions
Contact Details
Strain
Relief
Pressure
Cover
Socket
Cable Connection
D-16
Connectors
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
Series FAS
MIL Std. IDC Type Socket, (2.54mm Pitch)
Part Numbers
Part Number
No. of Leads
A
Internal
Connectors
Standard types see table.
For other versions please contact Yamaichi, minimum order quantity may be required
B
C
D
E
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
Connectors
D-17
2.54mm Board-to-Cable Connectors
FAS-1001-2101-2-0AF
FAS-1001-2101-2-0BF
FAS-1401-2101-2-0AF
FAS-1401-2101-2-0BF
FAS-1601-2101-2-0AF
FAS-1601-2101-2-0BF
FAS-1601-2101-2-0BF
FAS-2001-2101-2-0AF
FAS-2001-2101-2-0BF
FAS-2001-2201-2-0AF
FAS-2601-2101-1-0BF
FAS-2601-2101-2-0AF
FAS-2601-2101-2-0BF
FAS-2601-2201-2-0AF
FAS-3001-2101-2-0BF
FAS-3401-2101-1-0BF
FAS-3401-2101-2-0AF
FAS-3401-2101-2-0BF
FAS-4001-2101-1-0BF
FAS-4001-2101-2-0AF
FAS-4001-2101-2-0BF
FAS-4001-2201-2-0AF
FAS-5001-2101-2-0AF
FAS-5001-2101-2-0BF
FAS-6001-2101-2-0AF
FAS-6401-2101-1-0BF
FAS-6401-2101-2-0AF
FAS-6401-2101-2-0BF
10
10
14
14
16
16
16
20
20
20
26
26
26
26
30
34
34
34
40
40
40
40
50
50
60
64
64
64
10.16
10.16
16.16
16.16
17.78
17.78
17.78
22.86
22.86
22.86
30.48
30.48
30.48
30.48
35.56
40.64
40.64
40.64
48.26
48.26
48.26
48.26
60.96
60.96
73.66
78.74
78.74
78.74
17.28
17.28
22.28
22.28
24.90
24.90
24.90
29.98
29.98
29.98
37.60
37.60
37.60
37.60
42.68
47.76
47.76
47.76
55.38
55.38
55.38
55.38
68.08
68.08
80.78
85.86
85.86
85.86
12.86
12.86
17.86
17.86
20.48
20.48
20.48
25.56
25.56
25.56
33.18
33.18
33.18
33.18
38.26
43.34
43.34
43.34
50.96
50.96
50.96
50.96
63.66
63.66
76.36
81.44
81.44
81.44
13.76
13.76
18.72
18.72
21.38
21.38
21.38
26.46
26.46
26.46
34.08
34.08
34.08
34.08
39.16
44.24
44.24
44.24
51.86
51.86
51.86
51.86
64.56
64.56
77.26
82.34
82.34
82.34
15.76
15.76
20.56
20.56
23.38
23.38
23.38
28.46
28.46
28.46
36.08
36.08
36.08
36.08
41.16
46.24
46.24
46.24
53.86
53.86
53.86
53.86
66.56
66.56
79.26
84.34
84.34
84.34
Internal
Connectors
Specifications
Insulation Resistance:
Withstanding Voltage:
Contact Resistance:
Current Rating:
Operating Temp. Range:
Series FAS
IDC - Socket, 2.54mm Pitch (2-Point Contact)
Part Number
(Details)
1,000MΩ min. at 500V DC
700V ACrms for 1 minute
30mΩ max. at 10mA
1A
–20°C to +105°C
FAS
Series (socket)
No. of Leads
Center Key
- 34
- 17
Materials and Finish
Housing: PBT, glass filled UL 94V-0 rated
Contacts: Copper Alloy
Plating: Contacts - Au 0.3µm over Ni
IDC Terminals - Flash Au over Ni
Features
2.54mm contact pitch sockets for flat cables with cable-end strain relief
Applicable Cables
Variations include latch header plugs (for PC-board connection
AWG 28 stranded wire, 1.27mm pitch
and IDC) and IDC sockets
AWG 30 solid wire, 1.27mm pitch
Two-point contact of the flat cable sockets ensures high reliability
(e.g. DK**-*, FLEX-S*, TPFLEX-N*, FS-FLEX-B*,
see Section F)
Jigs and Tools
Hand press: FX-003
Applicable jig: FA-005
Outline Dimensions
Contact Details
Standard types see table.
For other versions from 10 to 64 leads please contact Yamaichi,
minimum order quantity may be required
Part Number
FAS-16-17
FAS-20-17
No. of Leads
16
20
A
24.90
29.98
B
17.78
22.86
Part Number
FAS-26-17
FAS-34-17
No. of Leads
26
34
A
37.60
47.76
B
30.48
40.64
D-18
Connectors
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
