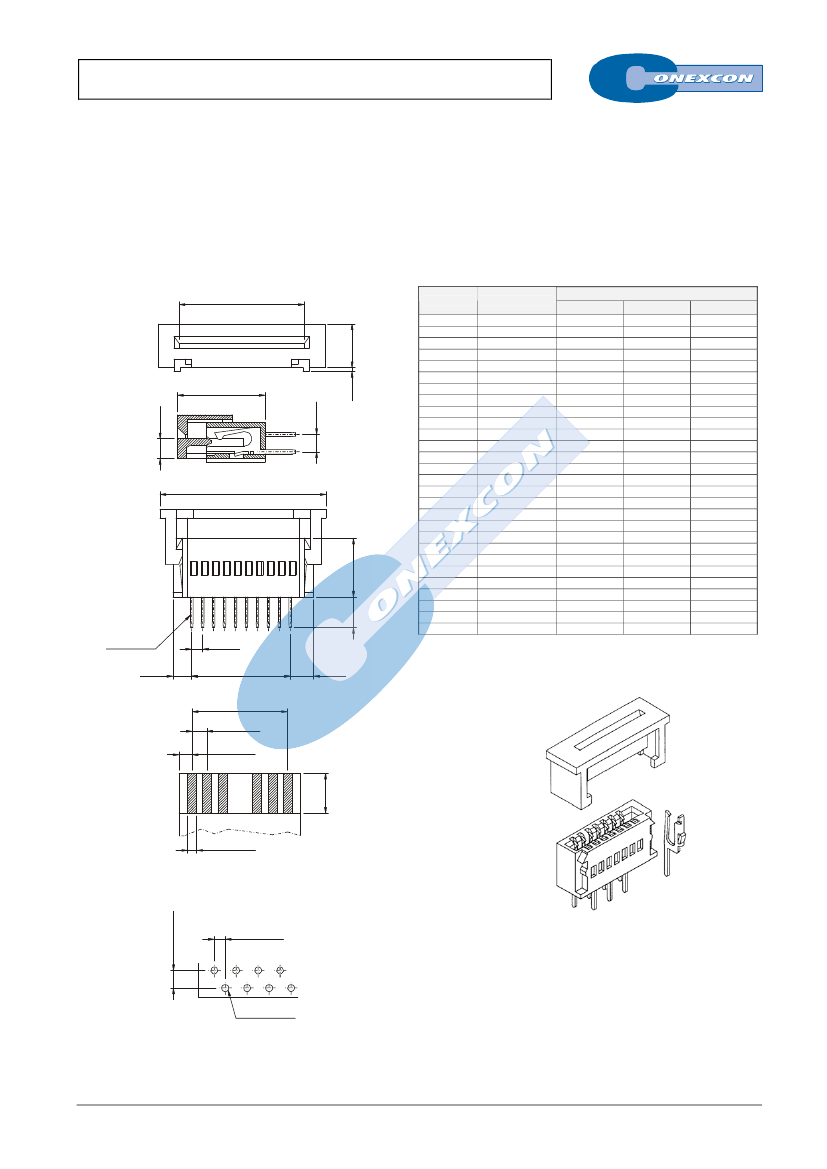

1.25mm VERTICAL ZIF CONNECTOR
2126 SERIES.
1.25mm(0.492”). For PCB Solder
Features
Available in 3 through 30 circuits
Zero insertion force, firmly locks with snap
Insulator Material: Glass filled polyester, UL 94V-0
Contact Material: Phosphor bronze
Compact, low profile and design for space saving and closer
packaging densities
Mates with Flexible Printed Circuit
Contact resistance: 20 m Maximum
Ordering and Dimensional Information
Dimensional Information
C±0.15
Circuit Size
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Part Number
2126 - 2031
2126 - 2041
2126- 2051
2126- 2061
2126- 2071
2126- 2081
2126- 2091
2126- 2101
2126- 2111
2126- 2121
2126- 2131
2126- 2141
2126- 2151
2126- 2161
2126- 2171
2126- 2181
2126- 2191
2126- 2201
2126- 2211
2126- 2221
2126- 2231
2126- 2241
2126- 2251
2126- 2261
2126- 2271
2126- 2281
2126- 2291
2126- 2301
Dimensions
A
2.50(0.098)
3.75(0.148)
5.00(0.197)
6.25(0.246)
7.50(0.295)
8.75(0.344)
10.00(0.394)
11.25(0.443)
12.50(0.492)
13.75(0.541)
15.00(0.591)
16.25(0.640)
17.50(0.689)
18.75(0.738)
20.00(0.787)
21.25(0.837)
22.50(0.886)
23.75(0.935)
25.00(0.984)
26.25(1.033)
27.50(1.083)
28.75(1.132)
30.00(1.181)
31.25(1.230)
32.50(1.280)
33.75(1.329)
35.00(1.378)
36.25(1.427)
B
9.60(0.378)
10.85(0.427)
12.10(0.476)
13.35(0.526)
14.60(0.575)
15.85(0.624)
17.10(0.673)
18.35(0.722)
19.60(0.772)
20.85(0.821)
22.10(0.870)
23.35(0.919)
24.60(0.969)
25.85(1.018)
27.10(1.067)
28.35(1.116)
29.60(1.165)
30.85(1.215)
32.10(1.264)
33.35(1.313)
34.60(1.362)
35.85(1.411)
37.10(1.461)
38.35(1.510)
39.60(1.559)
40.85(1.608)
42.10(1.657)
43.35(1.707)
C
5.20 (0.205)
6.45 (0.254)
7.70 (0.303)
8.95 (0.352)
10.20 (0.402)
11.45 (0.451)
12.70 (0.500)
13.95 (0.549)
15.20 (0.598)
16.45 (0.648)
17.70 (0.697)
18.95 (0.746)
20.20 (0.795)
21.45 (0.844)
22.70 (0.894)
23.95 (0.943)
25.20 (0.992)
26.45 (1.041)
27.70 (1.091)
28.95 (1.140)
30.20 (1.189)
31.45 (1.238)
32.70 (1.287)
33.95 (1.337)
35.20 (1.386)
36.45 (1.435)
37.70 (1.484)
38.95 (1.533)
5.00
2.30
.091
B±0.3
2.00
.079
9.6
.378
Ref.
1ST CIRCUIT
2.20
.087
1.250
TYP.
.049
A±0.15
2.70
.106
A±0.05
1.25±0.05
.049±.002
1.25±0.1
.049±.004
TYP.
TYP.2
4.0 Min
0.80±0.05
.031±.002
TYP.
Accommodated FPC/FFC
(Thickness: 0.29 ~ 0.34mm)
2.00±0.05
.097±.002
1.25±0.05
.049±.002
TYP.
0.80±0.05
.031±.002
TYP.
RECOMMENDED HOLE PATTERN
FULL LINE CATALOGUE
3.50
.138
6.10
.240
0.40
.016
.197
P-XX
Embedded System
