FES2A ........ FES2J
2 Amp. Surface Mounted Glass Passivated Ultrafast Recovery Rectifier
Dimensions in mm.
5.1
± 0.3
CASE:
SMB/DO-214AA
Voltage
50 to 600 V
Current
2.0 A
®
1.25
± 0.25
1.25
± 0.25
Week code
•
Glass passivated junction
•
High current capability
•
The plastic material carries U/L 94 V-0
•
Low profile package
•
Easy pick and place
•
High temperature soldering 260 ºC 10 sec
2.0
Year code
Type No. Closs
4.2
Standard soldering pad
MECHANICAL DATA
Terminals: Solder plated, solderable per IEC 68-2-20.
Standard Packaging: 8 mm. tape (EIA-RS-481).
Weight: 0.093 g.
Maximum Ratings and Electrical Characteristics at 25 ºC
FES2A
FES2B
V2
FES2D
V3
FES2F
V4
FES2G
V5
FES2J
V6
Marking Code
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
T
rr
C
j
R
th (j-l)
R
th (j-a)
T
j -
T
stg
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Forward current at T
L
= 110 ºC
V1
50
35
50
100
70
100
200
140
300
210
400
280
400
600
420
600
200
300
2.0 A
50 A
8.3 ms. peak forward surge current
(Jedec Method)
Maximum Instantaneous Forward
Voltage at 2.0A
Maximum DC Reverse Current
at Rated DC Blocking Voltage
Ta = 25 ºC
Ta = 100 ºC
0.95 V
10 µA
350 µA
50 ns
35 pF
20 ºC/W
60 ºC/W
-55 to + 150 ºC
1.25 V
Maximum Reverse Recovery Time (0.5/1/0.25A)
Typical Junction Capacitance (1MHz; -4V)
Typical Thermal Resistance
(5x5 mm
2
x 130 µ Copper Area)
Operating Junction and Storage
Temperature Range
Jun - 03
FES2

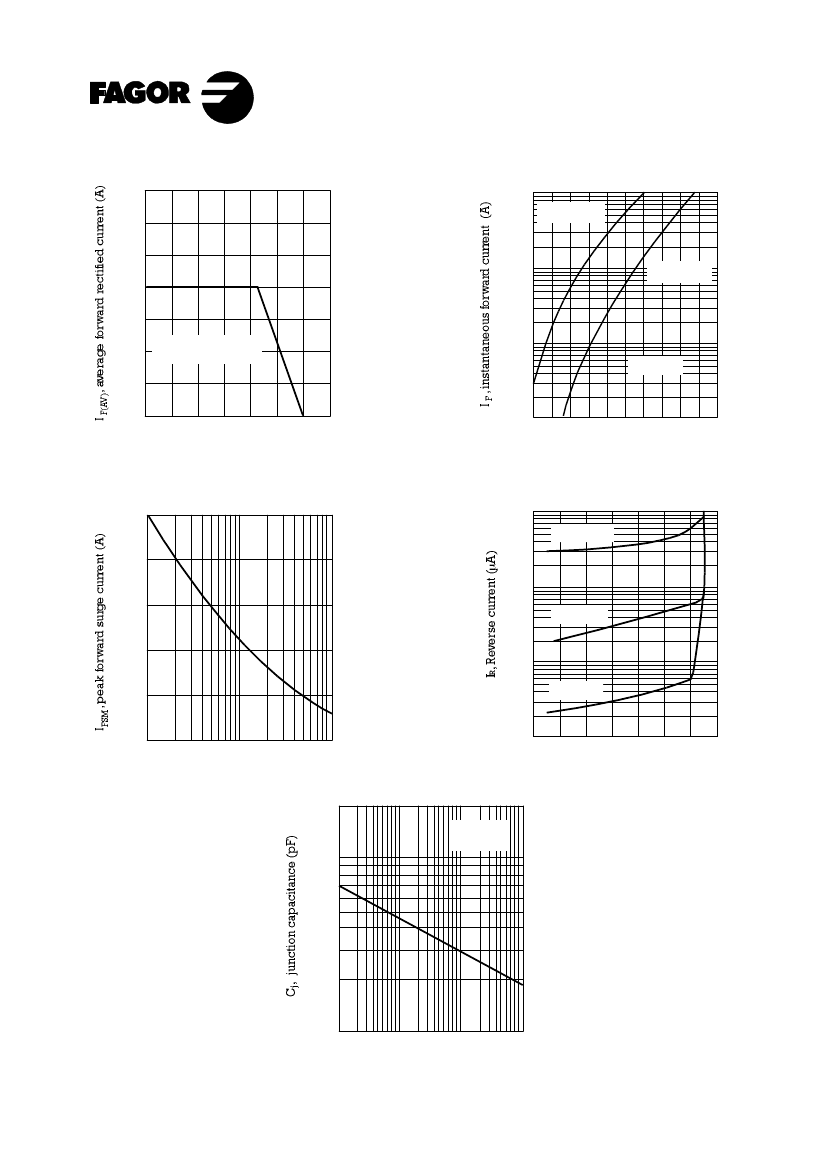

Rating And Characteristic Curves
FORWARD CURRENT DERATING CURVE
TYPICAL FORWARD CHARACTERISTIC
10
3
2
1
2
0.2
1
5x5mm
2
x 130
µ
Thick Copper Land Areas
FES2A....2D
FES2F....2J
0.1
T j = 25 ºC
0
0
25
50
75 100 125 150 175
Lead temperature (ºC)
MAXIMUM NON REPETITIVE
PEAK FORWARD SURGE CURRENT
50
0.01
0.6
0.8
1
1.2
1.4
1.6
V
F
, instantaneous forward
voltage (V)
TYPICAL REVERSE CHARACTERISTIC
10
T j = 125 ºC
40
1
30
T j = 75 ºC
20
0.1
10
0.01
1
2 4
6
10
20
40
100
TYPICAL JUNCTION
CAPACITANCE
T j = 25 ºC
f = 1 MHz
T j = 25 ºC
0
Number of cycles at 60 Hz
20
40
60
80 100 120
Percent of rated peak
reverse voltage
100
40
20
10
0.1
0.4 1.0
4 10
40 100
V
R
, reverse voltage (V)
Jun - 03
