0.3 mm Pitch, 1.0 mm above the board Flexible Printed Circuit ZIF Connectors
FH36 Series
qSpace
saving (51 positions shown)
2.7mm
[51 Positions]
16.9mm

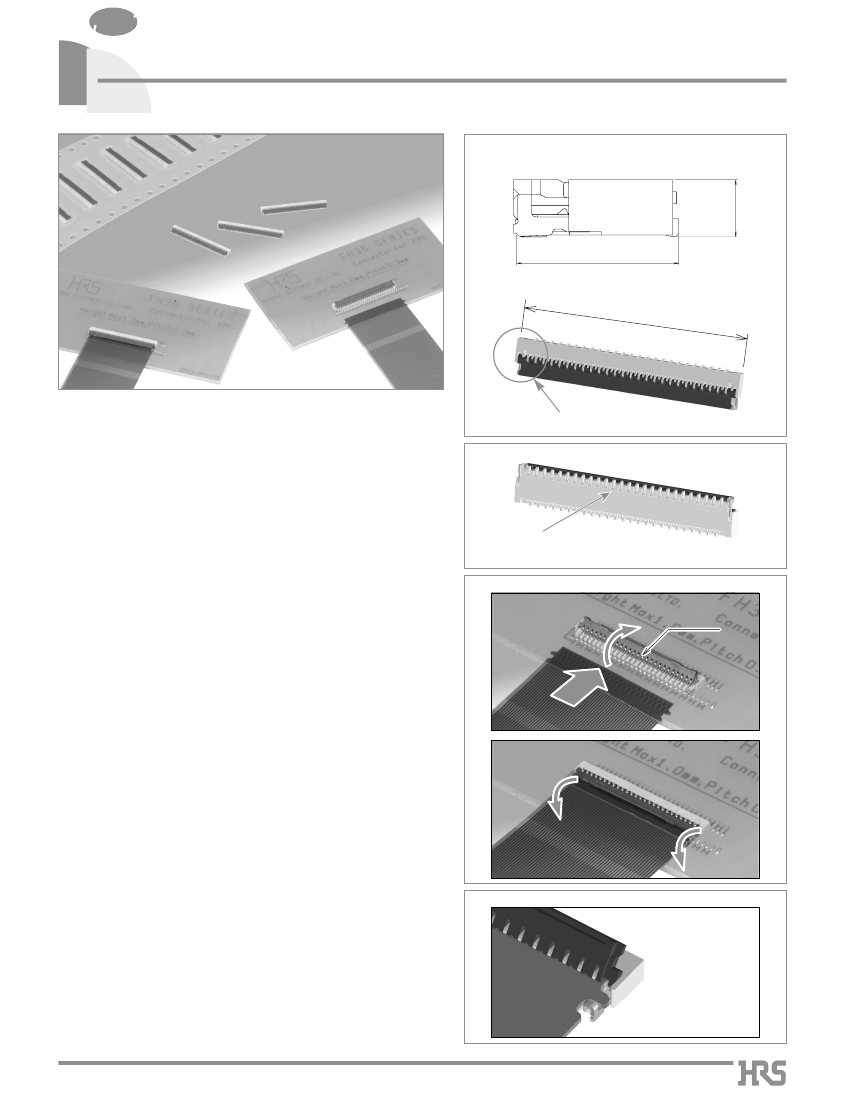

sFeatures
1. Low-profile and light weight
Weight: Reduced approximately 30%
Board footprint: Reduced approximately 15%
(As compared with Hirose Electric's FH26 Series connectors
(51 positions)
Metal fittings do not protrude outside of the connector body
qCan
be mounted over conductive traces
2. Easy solderability on the PC board
The soldering leads are on 0.6 mm pitch, exiting on front and
back of the connector.
No exposed contacts on the bottom of
the connector
qOperation
(1) Actuator open
(2) Insert FPC
3. Conducive traces on the PCB can run under
the connector
No exposed contacts on the bottom of the connector.
4. Easy FPC insertion and reliable electrical
connection
Proven Flip Lock actuator allows easy insertion of FPC and
provides a tactile sensation when fully closed, confirming
complete electrical and mechanical connection.
1
Actuator
2
5. FPC position hold
Tabs on each side of the FPC assure correct placement
and hold in the connector prior to closing of the actuator.
FPC
6. Accepts standard FPC thickness
0.2mm thick standard Flexible Printed Circuit (FPC) can be
used. This is the only ultra-low profile ZIF connector using
standard FPC.
(3) Close the actuator
(4) FPC connected
3
7. Board placement with automatic equipment
Flat upper surface and tape and reel packaging facilitate
vacuum pick-up and placement.
Standard reel packaging contains 5,000 connectors.
4
8. Halogen-free
*
(FH36W Series)
*As defined by IEC61249-2-21
Br-900ppm maximum, Cl-900ppm maximum,
Cl + Br combined-1,500ppm maximum
qFPC
temporary hold
2010.9
1.0mm MAX
1
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH36 Seriesq0.3 mm Pitch, 1.0 mm above the board Flexible Printed Circuit ZIF Connectors
sSpecifications
Rating
Operating
Current rating 0.2 A DC (Note 1)
-55 to +85°C (Note 2)
temperature range
Operating
Relative humidity 90%
Voltage rating 30 Vrms AC
humidity range
max. (No condensation)
Thickness: 0.2±0.03mm Gold plated
Conditions
100 V DC
90 Vrms AC / one minute
1 mA
10 cycles
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm
10 cycles in each of the 3 directions
Acceleration of 981m/s
2
, 6 ms duration,
sine half-wave, 3 cycles in each of the 3 axis
96 hours at a temperature of 40°C and humidity of
90 to 95%
Temperature:-55ç➝+15ç to +35ç➝+85ç➝+15ç to +35ç
Time: 30➝ 2 to 3
➝
30➝ 2 to 3 minutes
5 cycles
1) Reflow: At the recommended temperature profile.
2) Manual soldering: 350ç ± 10ç for 5 seconds
Storage
-10 to +50°C (Note 3)
temperature range
Storage
Relative humidity 90%
humidity range
max. (No condensation)
Recommended FPC
Item
Specification
1.Insulation resistance 50 Mø min
2.Withstanding voltage No flashover or insulation breakdown
100 mø max.
3.Contact resistance
* Including FPC conductor resistance
Contact resistance: 100 mø max.
4.Durability
No damage, cracks, or parts dislocation
No electrical discontinuity of 1 µs or longer
5.Vibration
Contact resistance: 100 mø max.
No damage, cracks, or parts dislocation
No electrical discontinuity of 1 µs or longer
6.Shock
Contact resistance: 100 mø max.
No damage, cracks, or parts dislocation
Contact resistance: 100 mø max.
7.Humidity
Insulation resistance: 50 Mø min.
(Steady state)
No damage, cracks, or parts dislocation
Contact resistance: 100 mø max.
8.Temperature cycle
Insulation resistance: 50 Mø min.
No damage, cracks, or parts dislocation
9.Resistance to
soldering heat
No deformation of components affection performance.
Note 1: When passing the current through all of the contacts, use 70% of the rated current.
Note 2: Includes temperature rise caused by current flow.
Note 3: The term "storage" refers to products stored for a long period prior to mounting and use.
The operating temperature and humidity range covers the non-conducting condition of installed connectors in storage,
shipment or during transportation.
Note 4: Small blisters of the molding compounds in small areas will not affect form, fit or function.
Note 5: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and
specifications for a specific part number shown.
sMaterials
Part
Insulator
Actuator
Contacts
Metal fittings
Material
LCP
PA
Phosphor bronze
Finish
Color: Beige
FH36 series: Dark brown
FH36W series: Light brown
Gold plating
Pure tin reflow plating
Remarks
UL94V-0
UL94HB
-----------------
-----------------
sOrdering
information
FH 36 W - 51S - 0.3 SHW (50)
1
1
Series name
2
Series No.
3
Blank :Standard
W :Halogen-free
(Flame retardance UL94HB).
2
: FH
: 36
3
4
5
6
7
4
Number of positions : 11 to 61
5
Contact pitch : 0.3mm
6
Termination type: SMT horizontal staggered mounting type
7
Plating specifications (50)…Gold plating with nickel barrier
2
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH36 Seriesq0.3 mm Pitch, 1.0 mm above the board Flexible Printed Circuit ZIF Connectors
sConnector
Dimensions
A±0.15
B±0.1
0.6±0.1
Lot No. indicator
(1)
A**
0.3±0.1
(0.12)
HRS mark
0.6±0.1
Cav No.
Number of contacts indicator
C±0.1
(0.12)
(1.0 MAX)
(0.47)
(0.25)
1
(2.7)
0.1
(D: FPC insertion slot dimension)
E±0.1
1
(2.75)
0.1
Note 1 : The coplanarity of each terminal lead is within 0.1.
Note 2 : Packaged on tape and reel only. Check packaging specification.
Note 3 : Slight discoloration in color of the plastic compounds does not affect form, fit or function of the connector.
Note 4 : After reflow, the terminal plating may change color, however this does not represent a quality issue.
All dimensions: mm
Part Number
FH36-15S-0.3SHW(50)
FH36-17S-0.3SHW(50)
FH36-19S-0.3SHW(50)
FH36-25S-0.3SHW(50)
FH36-29S-0.3SHW(50)
FH36-33S-0.3SHW(50)
FH36-35S-0.3SHW(50)
FH36-45S-0.3SHW(50)
FH36-51S-0.3SHW(50)
FH36-61S-0.3SHW(50)
FH36W-11S-0.3SHW(50)
FH36W-15S-0.3SHW(50)
FH36W-17S-0.3SHW(50)
FH36W-19S-0.3SHW(50)
FH36W-23S-0.3SHW(50)
FH36W-27S-0.3SHW(50)
FH36W-31S-0.3SHW(50)
FH36W-33S-0.3SHW(50)
FH36W-39S-0.3SHW(50)
FH36W-51S-0.3SHW(50)
FH36W-61S-0.3SHW(50)
CL No.
580-1618-8-50
580-1606-9-50
580-1607-1-50
580-1619-0-50
580-1613-4-50
580-1615-0-50
580-1604-3-50
580-1617-5-50
580-1601-5-50
580-1600-2-50
580-1625-3-50
580-1623-8-50
580-1616-2-50
580-1612-1-50
580-1614-7-50
580-1608-4-50
580-1609-7-50
580-1622-5-50
580-1620-0-50
580-1605-6-50
580-1611-9-50
Number of contacts
15
17
19
25
29
33
35
45
51
61
11
15
17
19
23
27
31
33
39
51
61
A
6.1
6.7
7.3
9.1
10.3
11.5
12.1
15.1
16.9
19.9
4.9
6.1
6.7
7.3
8.5
9.7
10.9
11.5
13.3
16.9
19.9
B
3.6
4.2
4.8
6.6
7.8
9
9.6
12.6
14.4
17.4
2.4
3.6
4.2
4.8
6
7.2
8.4
9
10.8
14.4
17.4
C
4.2
4.8
5.4
7.2
8.4
9.6
10.2
13.2
15
18
3
4.2
4.8
5.4
6.6
7.8
9
9.6
11.4
15
18
D
4.83
5.43
6.03
7.83
9.03
10.23
10.83
13.83
15.63
18.63
3.63
4.83
5.43
6.03
7.23
8.43
9.63
10.23
12.03
15.63
18.63
E
5.59
6.19
6.79
8.59
9.79
10.99
11.59
14.59
16.39
19.39
4.39
5.59
6.19
6.79
7.99
9.19
10.39
10.99
12.79
16.39
19.39
Tape and reel packaging (5,000 pieces/reel).
Order by number of reels.
3
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH36 Seriesq0.3 mm Pitch, 1.0 mm above the board Flexible Printed Circuit ZIF Connectors

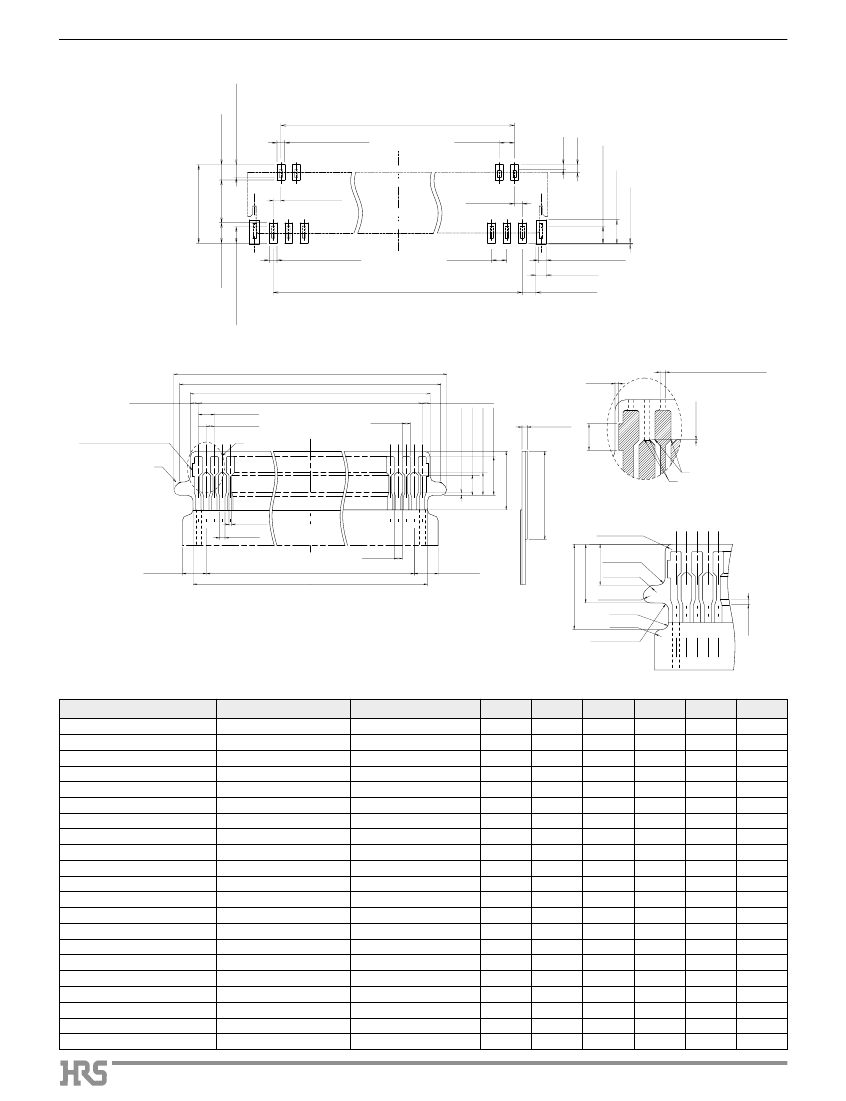

sRecommended
PCB mounting pattern and metal mask dimensions
0.6±0.05
(0.5:Metal mask)
(Recommended metal mask thickness: t=0.1)
B±0.05
(0.2)
(0.3)
(0.7:Metal mask)
0.95±0.05
0.03±0.05
0.3±0.03
(0.23:Metal mask)
0.6±0.05
1.67±0.05
(3.07)
0.3±0.05
0.3±0.05
0.8±0.05
(0.65:Metal mask)
0.3±0.03
(0.23:Metal mask)
C±0.05
0.6±0.05
(0.3:Metal mask)
0.4±0.05
0.535±0.05
sRecommended
FPC Dimensions
0.3±0.07
0.6±0.02
0.3±0.02
disengagement shift
S
R
F±0.1
G±0.1
H±0.05
C±0.03
0.3
+0.04
– 0.03
0.3±0.07
0.1±0.15
0.75±0.1
0.85±0.1
1.45±0.1
Detail R
(Lead plated 0.1 MAX)
0±0.03
*RELATIVE POSITIONS OF
POINT A and B
(0.07)
3.3±0.3 (Stiffener)
2.2±0.3
(0.5)
0.2±0.03
B
A
0.1±0.02
(0.2)
0.3
+0.04
– 0.03
0.9±0.2
B±0.03
J±0.05
0.9±0.2
Detail S
MAX R0.2
2.4±0.1
1.65±0.05
1.15±0.05
R0.2±0.05
R0.2±0.1
R0.2±0.05
(R0.2)
(R0.2)
R0.2±0.05
All dimensions: mm
Part Number
FH36-15S-0.3SHW(50)
FH36-17S-0.3SHW(50)
FH36-19S-0.3SHW(50)
FH36-25S-0.3SHW(50)
FH36-29S-0.3SHW(50)
FH36-33S-0.3SHW(50)
FH36-35S-0.3SHW(50)
FH36-45S-0.3SHW(50)
FH36-51S-0.3SHW(50)
FH36-61S-0.3SHW(50)
FH36W-11S-0.3SHW(50)
FH36W-15S-0.3SHW(50)
FH36W-17S-0.3SHW(50)
FH36W-19S-0.3SHW(50)
FH36W-23S-0.3SHW(50)
FH36W-27S-0.3SHW(50)
FH36W-31S-0.3SHW(50)
FH36W-33S-0.3SHW(50)
FH36W-39S-0.3SHW(50)
FH36W-51S-0.3SHW(50)
FH36W-61S-0.3SHW(50)
CL No.
580-1618-8-50
580-1606-9-50
580-1607-1-50
580-1619-0-50
580-1613-4-50
580-1615-0-50
580-1604-3-50
580-1617-5-50
580-1601-5-50
580-1600-2-50
580-1625-3-50
580-1623-8-50
580-1616-2-50
580-1612-1-50
580-1614-7-50
580-1608-4-50
580-1609-7-50
580-1622-5-50
580-1620-0-50
580-1605-6-50
580-1611-9-50
Number of contacts
15
17
19
25
29
33
35
45
51
61
11
15
17
19
23
27
31
33
39
51
61
B
3.6
4.2
4.8
6.6
7.8
9
9.6
12.6
14.4
17.4
2.4
3.6
4.2
4.8
6
7.2
8.4
9
10.8
14.4
17.4
C
4.2
4.8
5.4
7.2
8.4
9.6
10.2
13.2
15
18
3
4.2
4.8
5.4
6.6
7.8
9
9.6
11.4
15
18
F
6.04
6.64
7.24
9.04
10.24
11.44
12.04
15.04
16.84
19.84
4.84
6.04
6.64
7.24
8.44
9.64
10.84
11.44
13.24
16.84
19.84
G
5.6
6.2
6.8
8.6
9.8
11
11.6
14.6
16.4
19.4
4.4
5.6
6.2
6.8
8
9.2
10.4
11
12.8
16.4
19.4
H
4.8
5.4
6
7.8
9
10.2
10.8
13.8
15.6
18.6
3.6
4.8
5.4
6
7.2
8.4
9.6
10.2
12
15.6
18.6
J
4.6
5.2
5.8
7.6
8.8
10
10.6
13.6
15.4
18.4
3.4
4.6
5.2
5.8
7
8.2
9.4
10
11.8
15.4
18.4
4
(0.15)
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH36 Seriesq0.3 mm Pitch, 1.0 mm above the board Flexible Printed Circuit ZIF Connectors

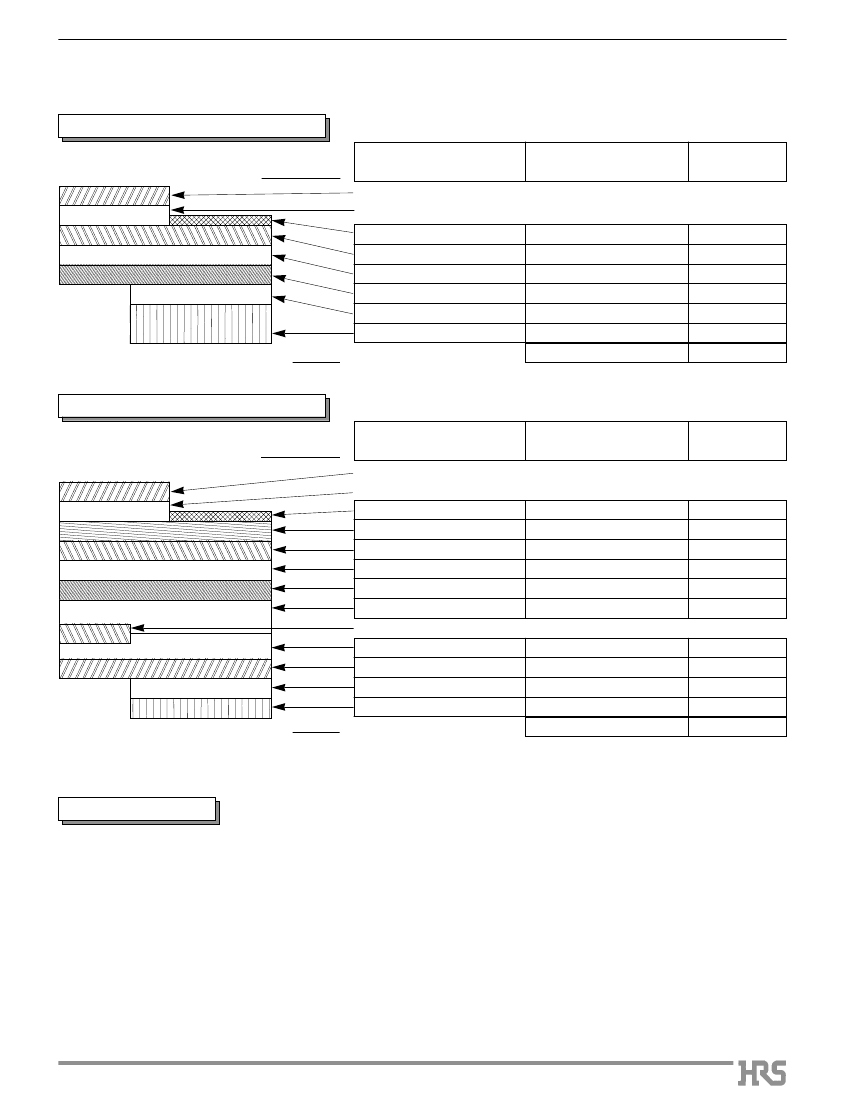

sRecommended
FPC construction
qContact
FPC manufacturer for specific details.
1. Using Single-sided FPC
Connecting side
Material Name
Covering film layer
Cover adhesive
Surface treatment
Copper foil
Base adhesive
Base film
Stiffener
Material
Polyamide
1 mil thick.
Material Thickness
(µm)
(25)
(25)
0.2µm thick gold plated over 1 to 5µm
thick nickel underplating
3
35
25
25
40
75
203
Cu
Polyamide
1oz
1 mil thick
Thermosetting adhesive
Reinforcement material adhesive Thermosetting adhesive
Polyamide 3 mil thick
Total
Back side
2. Using Double-sided FPC
Connecting side
Material Name
Covering layer film
Cover adhesive
Surface treatment
Through-hole copper
Copper foil
Base adhesive
Base film
Base adhesive
Copper foil
Cover adhesive
Covering film layer
Stiffener
Material
Polyamide
1 mil thick
Material Thickness
(µm)
(25)
(25)
3
15
18
18
25
18
(18)
25
25
25
25
197
0.2µm thick gold plated over 1 to 5µm
thick nickel underplating
Cu
Cu
Polyamide
Cu
Polyamide
Polyamide
Total
1/2oz
1 mil thick
1/2oz
1 mil thick
1 mil thick
Thermosetting adhesive
Thermosetting adhesive
Thermosetting adhesive
Reinforcement material adhesive Thermosetting adhesive
Back side
* To prevent release of the FPC due to its bending, use of the double sided FPC with copper foil on the back side is NOT RECOMMENDED.
3.Precautions
1. This specification is a recommendation for the construction of the FH36 Series FPC (t=0.2
±
0.03)
2. For details about the construction, please contact the FPC manufacturers.
Leave a commentRecommend to a friendPrintON Semiconductor's Industry's Smallest Package for Handheld Devices Low Voltage Analog SwitchesOn January 12, ON Semiconductor introduced three new low-impedan...
Hello everyone... I'm here to ask for help again!! I'm new to the 2440 development board. I've already run 5.0 and want to try 6.0 today. Since I'm still a novice, I downloaded the BSP that has been t...
Microcontroller MCU
京公网安备 11010802033920号
EEWORLD
