BX9144 Overview

20 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1, TO-8

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknow
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	9 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	1000 MHz
Minimum operating frequency	20 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

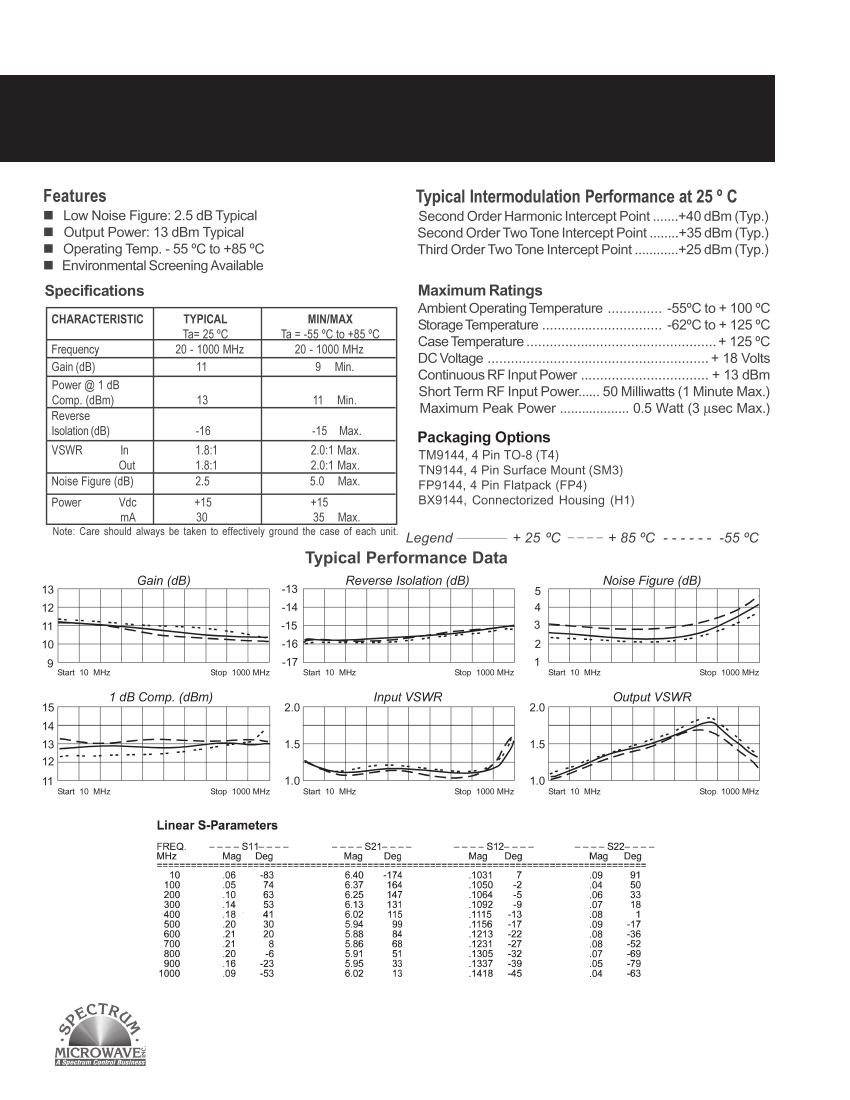

RF Amplifier

Low Noise: 2.5 dB

Model TM9144

20 to 1000 MHz

(see Appendix)

SPECTRUM MICROWAVE • 2144 Franklin Drive N.E. • Palm Bay, Florida 32905 • Phone: (888) 553-7531 • Fax: (888) 553-7532

438

www.specwave.com

SPECTRUM CONTROL GmbH • Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58

	BX9144	FP9144	TN9144	TM9144
Description	20 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1, TO-8	20 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, FP-4	20 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM3, 4 PIN	20 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, T4, TO-8, 4 PIN
Reach Compliance Code	unknow	unknown	unknown	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL	COMPONENT	COMPONENT	COMPONENT
Gain	9 dB	9 dB	9 dB	9 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	1000 MHz	1000 MHz	1000 MHz	1000 MHz
Minimum operating frequency	20 MHz	20 MHz	20 MHz	20 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
Maker	Spectrum Microwave	-	Spectrum Microwave	Spectrum Microwave
