S-22H10I10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> S-22H10I10

S-22H10I10: Description64X4 NON-VOLATILE SRAM, 200ns, PDIP18, DIP-18; Categorystorage storage; File Size222KB，11 Pages; ManufacturerSeiko Epson Corporation

Download Datasheet Parametric Compare View All

S-22H10I10 Overview

64X4 NON-VOLATILE SRAM, 200ns, PDIP18, DIP-18

S-22H10I10 Parametric

Parameter Name	Attribute value
Maker	Seiko Epson Corporation
Parts packaging code	DIP
package instruction	DIP,
Contacts	18
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum access time	200 ns
JESD-30 code	R-PDIP-T18
length	22 mm
memory density	256 bi
Memory IC Type	NON-VOLATILE SRAM
memory width	4
Number of functions	1
Number of terminals	18
word count	64 words
character code	64
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	64X4
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

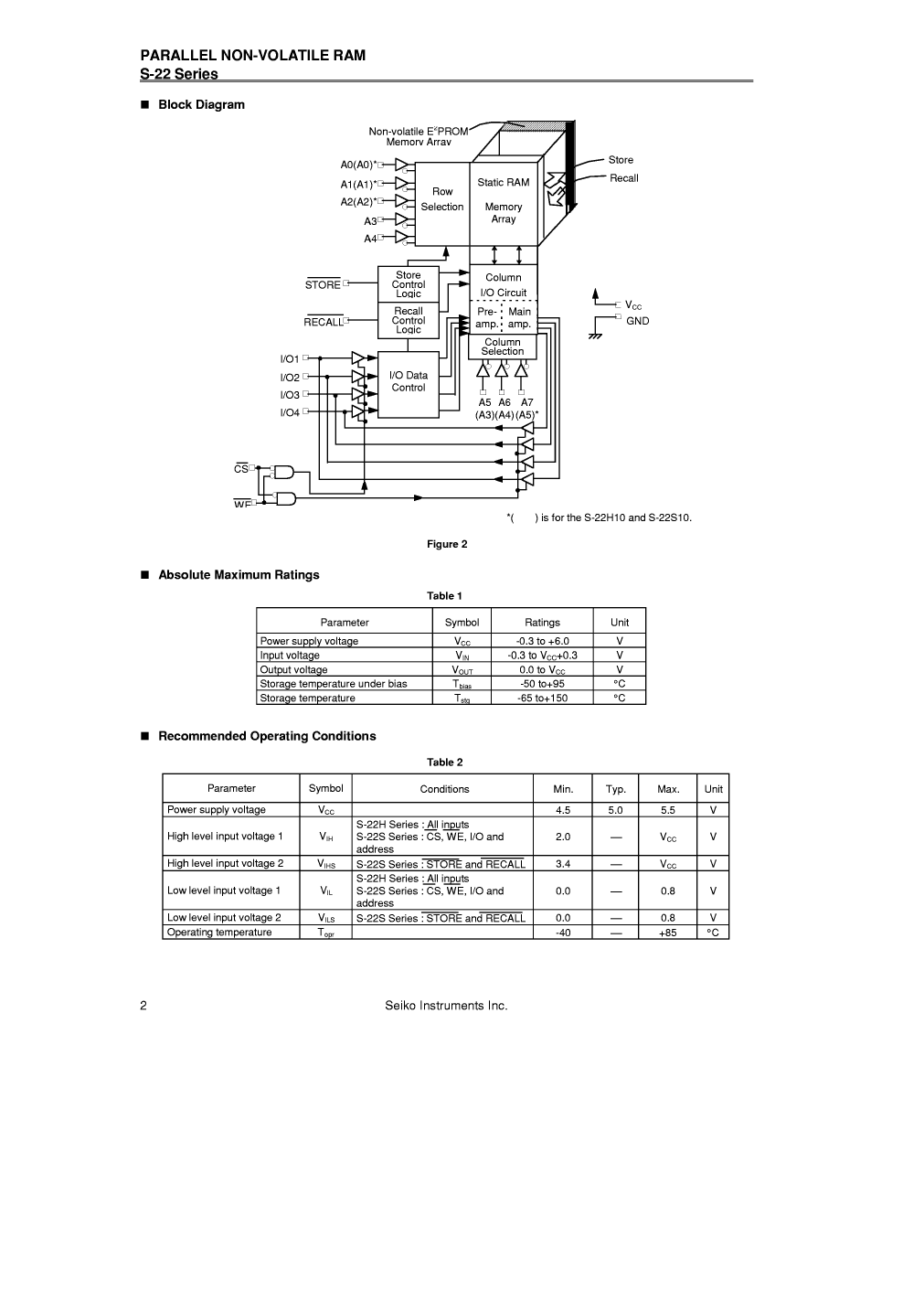

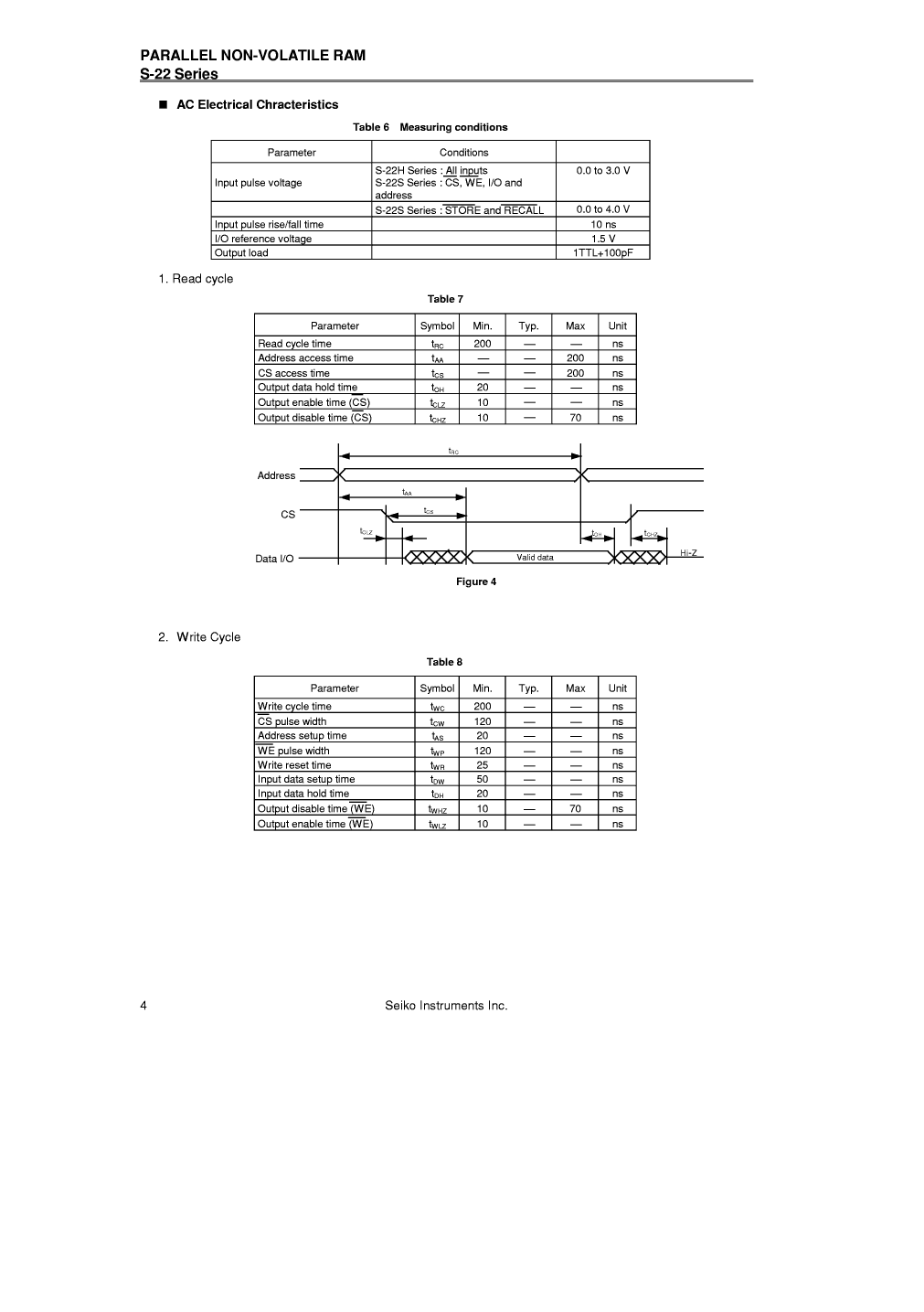

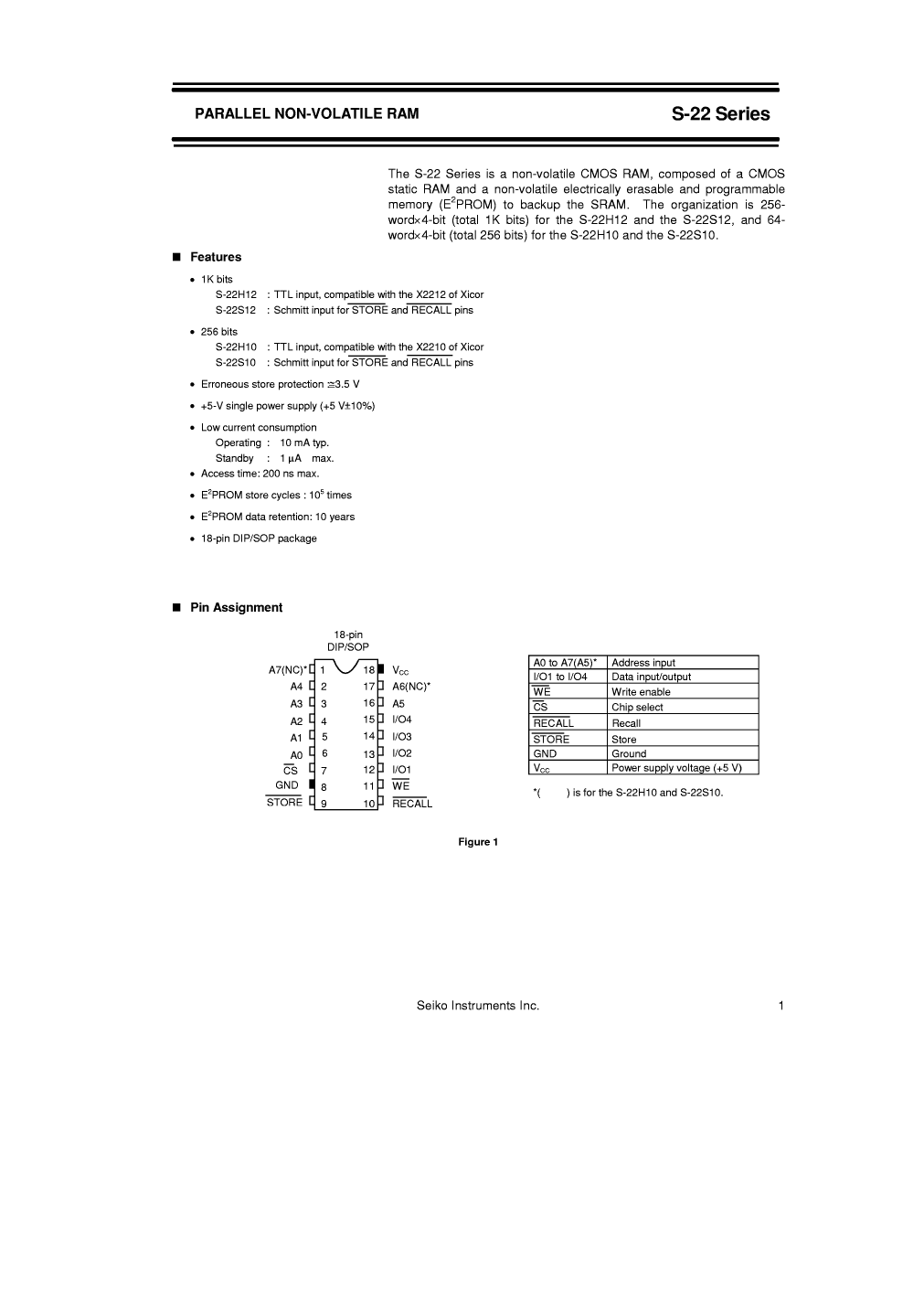

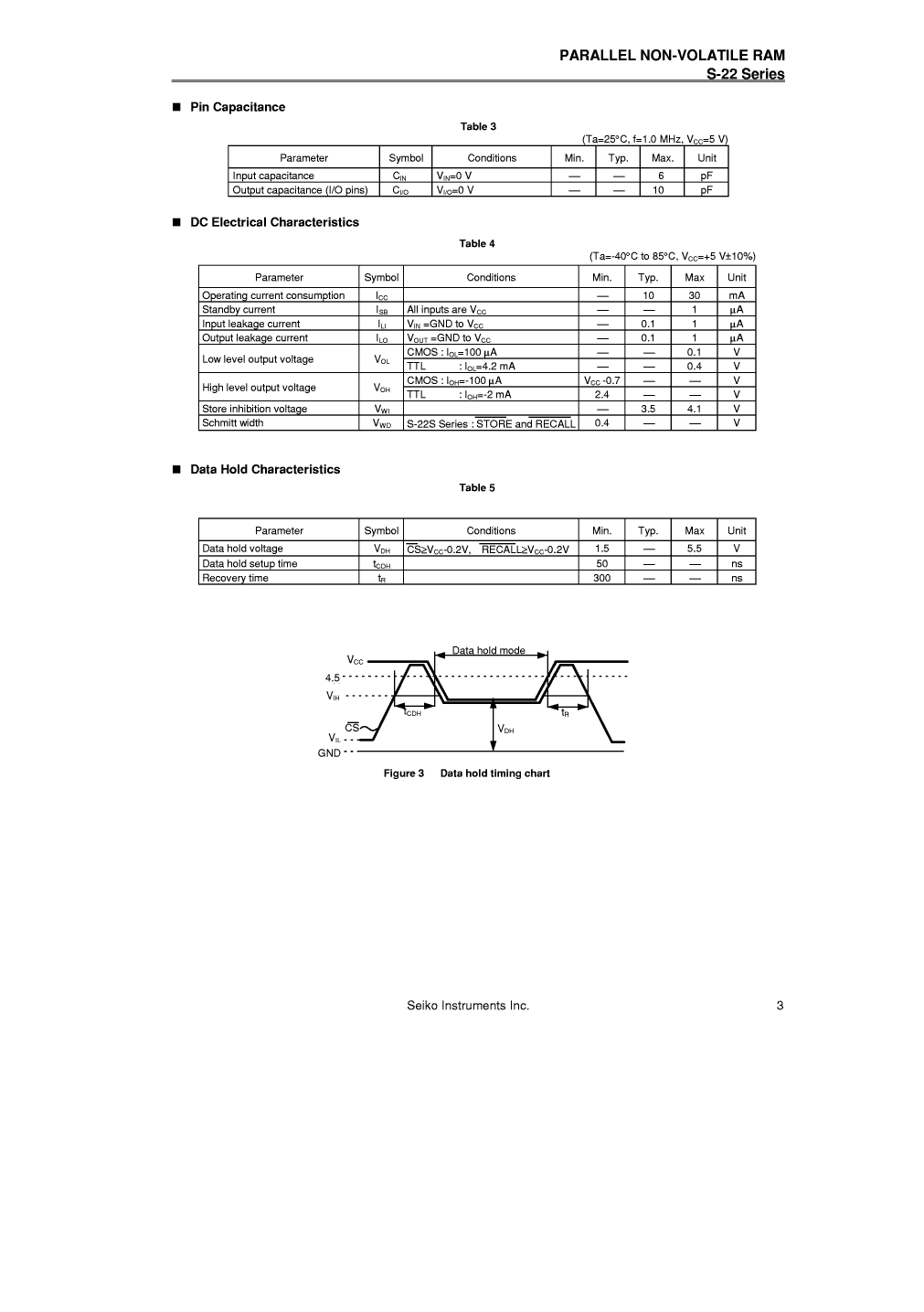

Preview

Download Datasheet

View All

S-22H10I10 Related Products

	S-22H10I10	S-22H12IF10	S-22H12I10	S-22S12IF10	S-22S12I10	S-22S10IF10	S-22H10IF10
Description	64X4 NON-VOLATILE SRAM, 200ns, PDIP18, DIP-18	256X4 NON-VOLATILE SRAM, 200ns, PDSO18, SOP-18	256X4 NON-VOLATILE SRAM, 200ns, PDIP18, DIP-18	256X4 NON-VOLATILE SRAM, 200ns, PDSO18, SOP-18	256X4 NON-VOLATILE SRAM, 200ns, PDIP18, DIP-18	64X4 NON-VOLATILE SRAM, 200ns, PDSO18, SOP-18	64X4 NON-VOLATILE SRAM, 200ns, PDSO18, SOP-18
Maker	Seiko Epson Corporation	Seiko Epson Corporation	Seiko Epson Corporation	Seiko Epson Corporation	Seiko Epson Corporation	Seiko Epson Corporation	Seiko Epson Corporation
Parts packaging code	DIP	SOIC	DIP	SOIC	DIP	SOIC	SOIC
package instruction	DIP,	SOP,	DIP,	SOP,	DIP,	SOP,	SOP,
Contacts	18	18	18	18	18	18	18
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	200 ns	200 ns	200 ns	200 ns	200 ns	200 ns	200 ns
JESD-30 code	R-PDIP-T18	R-PDSO-G18	R-PDIP-T18	R-PDSO-G18	R-PDIP-T18	R-PDSO-G18	R-PDSO-G18
length	22 mm	11.4 mm	22 mm	11.4 mm	22 mm	11.4 mm	11.4 mm
memory density	256 bi	1024 bit	1024 bit	1024 bit	1024 bit	256 bit	256 bit
Memory IC Type	NON-VOLATILE SRAM	NON-VOLATILE SRAM	NON-VOLATILE SRAM	NON-VOLATILE SRAM	NON-VOLATILE SRAM	NON-VOLATILE SRAM	NON-VOLATILE SRAM
memory width	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1
Number of terminals	18	18	18	18	18	18	18
word count	64 words	256 words	256 words	256 words	256 words	64 words	64 words
character code	64	256	256	256	256	64	64
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
organize	64X4	256X4	256X4	256X4	256X4	64X4	64X4
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	DIP	SOP	DIP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	2 mm	5.08 mm	2 mm	5.08 mm	2 mm	2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	5.4 mm	7.62 mm	5.4 mm	7.62 mm	5.4 mm	5.4 mm
