KA-59-96 datasheet, PDF - EEWORLD Datasheet

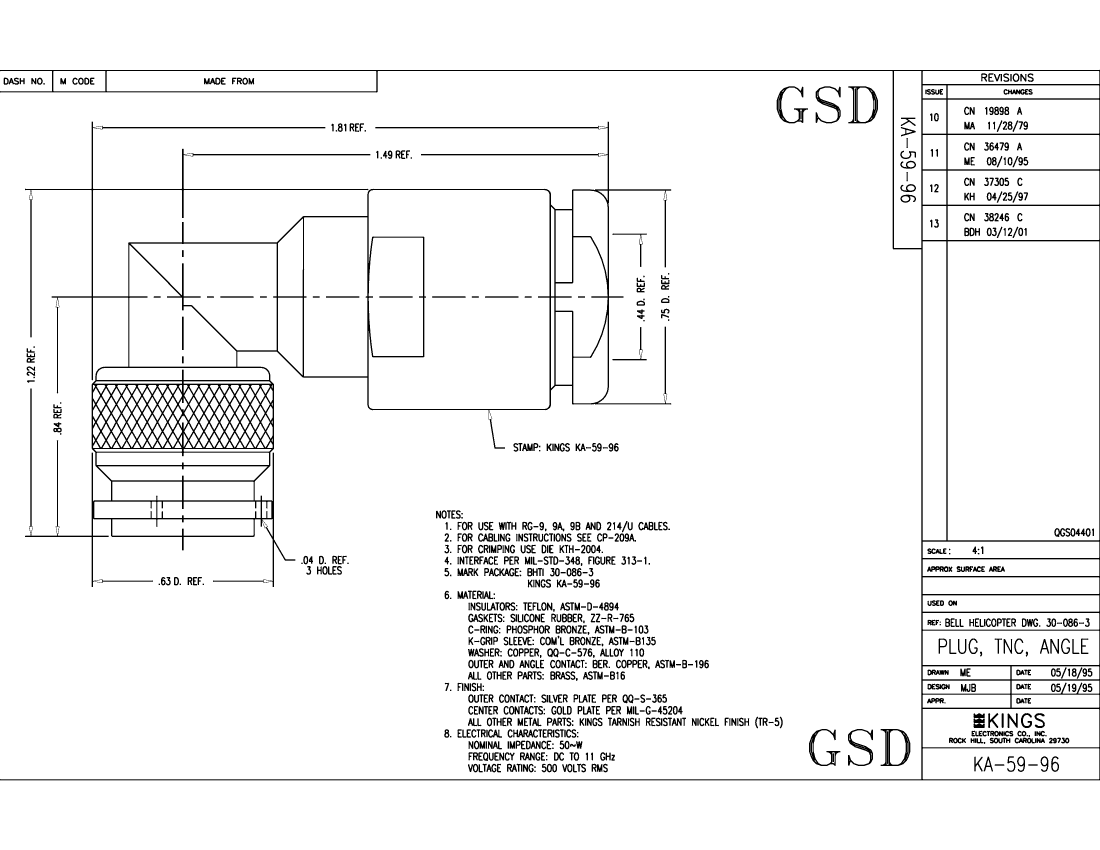

KA-59-96: DescriptionRF TNC Connector, Male, Cable Mount, Crimp Terminal, Plug; CategoryThe connector The connector; File Size37KB，1 Pages; ManufacturerKings Electronics

Download Datasheet Parametric View All

KA-59-96 Overview

RF TNC Connector, Male, Cable Mount, Crimp Terminal, Plug

Parameter Name	Attribute value
Maker	Kings Electronics
Reach Compliance Code	unknow
Other features	APPLICABLE CABLES: RG-9/U; RG-9A/U; RG-9B/U; RG-214/U
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF TNC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	KA-59-96
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	11 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
