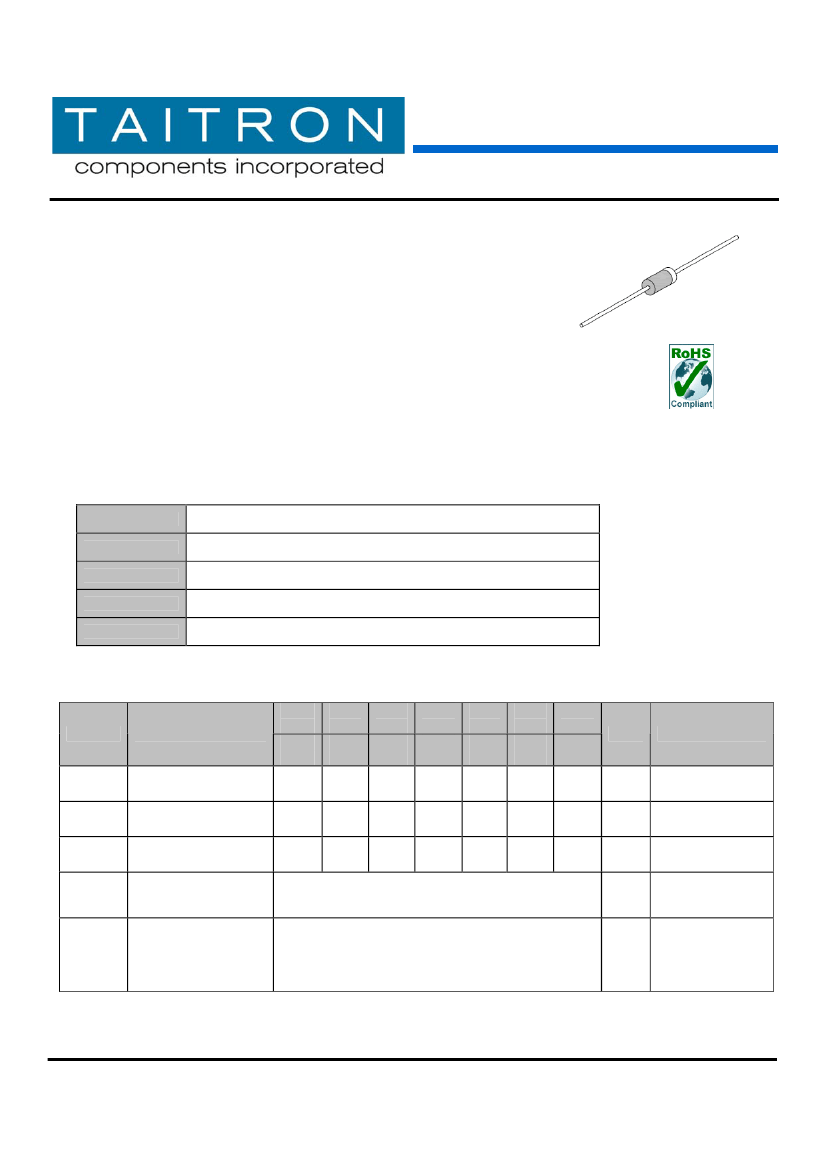

1.5A Fast Recovery Rectifier
TF151 – TF157
FR151 – FR157
1.5A Fast Recovery Rectifier
Features
Low forward voltage drop
High current capability
High reliability
High surge current capability
High temperature soldering guaranteed: 250°C/10 seconds
/.0375" (9.5mm) lead length, 5lbs (2.3kg) tension
•
RoHS Compliance
•
•
•
•
•
DO-15
Mechanical Data
Case:
Epoxy:
Terminals:
Polarity:
Weight:
DO-15, molded plastic
UL 94V-0 rate flame retardant
Axial leads, solderable per MIL-STD-202, Method 208 guaranteed
Color band denotes cathode end
0.40 gram
Maximum Ratings and Electrical Characteristics
(T
A
=25ºC unless noted otherwise)
Symbol
Description
TF
151
FR
151
50
35
50
TF
152
FR
152
100
70
100
TF
153
FR
153
200
140
200
TF
154
FR
154
400
280
400
1.5
TF
155
FR
155
600
420
600
TF
156
FR
156
800
560
800
TF
157
FR
157
1000
700
1000
Unit
Conditions
V
RRM
V
RMS
V
DC
I
AV
Maximum Repetitive
Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking
Voltage
Maximum Average
Forward Rectified
Current
Peak Forward Surge
Current
V
V
V
A
Ta=55 ˚C
8.3ms single half
sine-wave
superimposed on
rated load (JEDEC
Method)
I
FSM
60
A
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel:
Fax:
(800)-TAITRON (800)-824-8766
(800)-TAITFAX (800)-824-8329
(661)-257-6060
(661)-257-6415
Rev. B/AH 2008-04-29
Page 1 of 4
1.5A Fast Recovery Rectifier
TF151 – TF157/FR151 – FR157
Symbol
Description
TF
151
FR
151
TF
152
FR
152
TF
153
FR
153
TF
154
FR
154
1.3
5.0
µA
100
150
30
-55 to +125
°C
-55 to +150
250
500
nS
pF
T
A
=100° C
I
F
=0.5A, I
R
=1A,
I
rr
=0.25A
V
R
=4V, f=1MHz
TF
155
FR
155
TF
156
FR
156
TF
157
FR
157
Unit
Conditions
V
F
Maximum
Instantaneous
Forward Voltage
Maximum DC
Reverse Current at
Rated DC Blocking
Voltage
Typical Reverse
Recovery Time
Typical Junction
Capacitance
Operating
Temperature range
Storage Temperature
Range
V
I
F
=1.5 A
T
A
=25° C
I
R
T
rr
C
J
T
J
T
STG
Typical Characteristics Curves

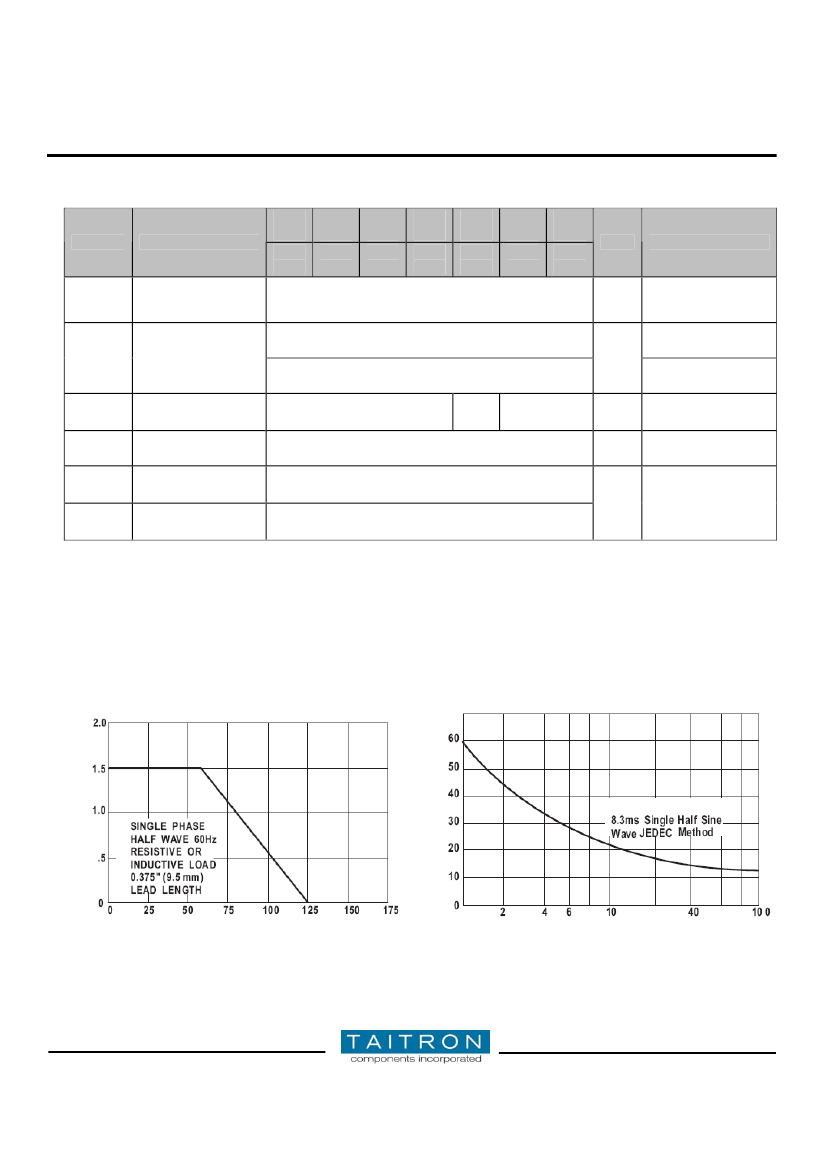

Fig.1-Max. Forward Current Derating Curve
Fig.2-Max. Non-Repetitive Forward Surge Current
Peak Forward Surge Current (A)
Average Forward Rectified Current
(A)
Ambient Temperature T
a
(°C)
Number of Cycles at 60Hz
Rev. B/AH 2008-04-29
www.taitroncomponents.com
Page 2 of 4
1.5A Fast Recovery Rectifier
TF151 – TF157/FR151 – FR157

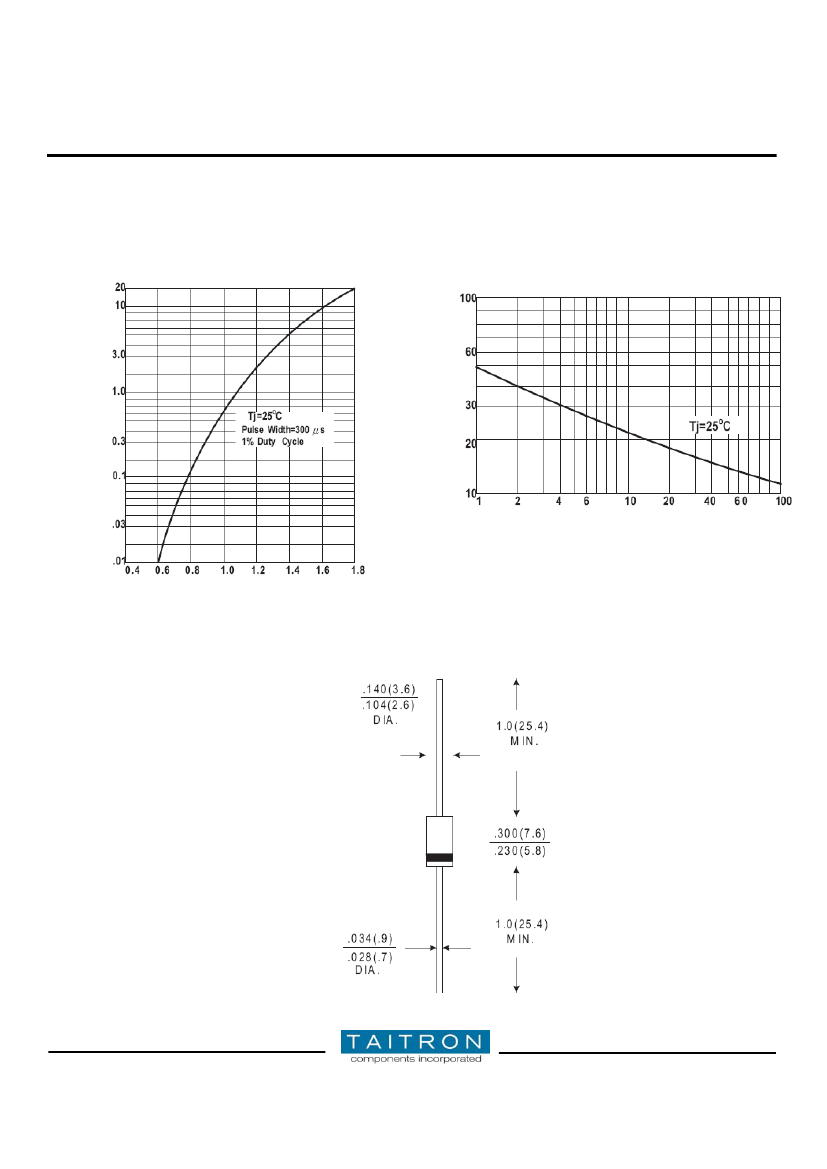

Fig.3- Typical Forward Characteristics
Fig.4- Typical Junction Capacitance
Junction
Capacitance (pF)
Instantaneous Forward Current
(A)
Reverse Voltage (V)
Forward Voltage (V)
Dimensions in inches (mm)
DO-15
Rev. B/AH 2008-04-29
www.taitroncomponents.com
Page 3 of 4
1.5A Fast Recovery Rectifier
TF151 – TF157/FR151 – FR157
