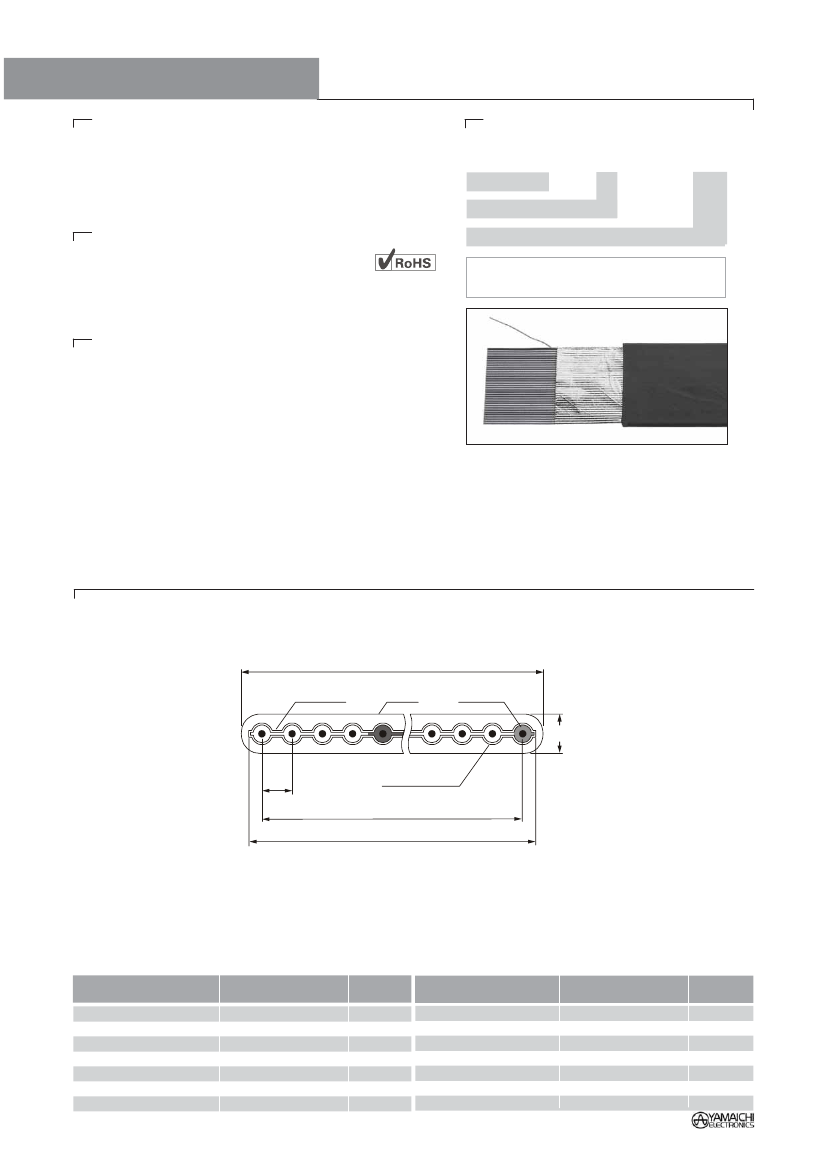

Flat Cables
Specifications
Conductor Resistance:
Insulation Resistance:
Dielectric Strength:
Flame Resistance:
222Ω/km max.
5MΩ min. (km)
2,000V AC / minute
VW-1
50MIL
(1.27mm)
OKIFLEX-FS Type
(150V, 60°C)
Part Number
(Details)
FS-FLEX - B
Cable Series
Number of Conductors
** - 7/0.127 ALV
Materials and Finish
Insulation:
Conductor:
Shielding:
Jacket:
PVC
28 AWG (7/0.127mm) stranded copper wire
Aluminium foil together with a 28 AWG drain wire
PVC colour black
Aluminium Shield
Standard Cable Length
61 meters per coil
Features
Flat 50MIL (1.27mm) Cable, jacketed and shielded
Thin PVC jacket designed for external equipment applications
Aluminium shielding on each side which minimizes RFI / EMI
UL Style No. 2912
Cable Dimensions
A
Drain wire
Jacket
Red Edge
3.0
Aluminium
Shield
(Number of conductors –1) x 1.27
Number of conductors x 1.27
1.27
Following versions available on request, minimum oder quantity may be required
Part Number
FS-FLEX-B 8-7/0.127 ALV
FS-FLEX-B 10-7/0.127 ALV
FS-FLEX-B 14-7/0.127 ALV
FS-FLEX-B 16-7/0.127 ALV
FS-FLEX-B 20-7/0.127 ALV
FS-FLEX-B 25-7/0.127 ALV
FS-FLEX-B 26-7/0.127 ALV
Sockets and Connectors
No. of Conductors
8
10
14
16
20
25
26
Dim ‘A’
13.6
16.0
21.2
22.6
28.7
35.1
36.3
Part Number
FS-FLEX-B 30-7/0.127 ALV
FS-FLEX-B 34-7/0.127 ALV
FS-FLEX-B 36-7/0.127 ALV
FS-FLEX-B 40-7/0.127 ALV
FS-FLEX-B 50-7/0.127 ALV
FS-FLEX-B 60-7/0.127 ALV
FS-FLEX-B 64-7/0.127 ALV
No. of Conductors
30
34
36
40
50
60
64
Dim ‘A’
40.1
46.5
49.0
54.0
66.8
79.5
84.6
Trading Division
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
