RTL110G12VG2M9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> RTL110G12VG2M9

RTL110G12VG2M9: DescriptionRocker Switch, DPST, Off-on, Maintained, 14A, 14VDC, Quick Connect Terminal, Rocker Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size51KB，2 Pages; ManufacturerOslo Switch Inc

Download Datasheet Parametric View All

RTL110G12VG2M9 Overview

Rocker Switch, DPST, Off-on, Maintained, 14A, 14VDC, Quick Connect Terminal, Rocker Actuator, Panel Mount

RTL110G12VG2M9 Parametric

Parameter Name	Attribute value
Maker	Oslo Switch Inc
Reach Compliance Code	unknow
ECCN code	EAR99
Actuator angle
Actuator color	CLEAR
Actuator length	0.28 inch
Actuator type	ROCKER
Other features	APPROVALS: UL,CSA
body width	22.098 mm
Body color	BLACK
body height	26.035 mm
Body length or diameter	26.924 mm
Center contact plating	GOLD
Contact (AC) maximum rated power R load	1HP@250VAC
Contact (AC) maximum rated R load	20A@250VAC
Maximum contact current (AC)	20 A
Maximum contact current (DC)	14 A
Contact (DC) maximum rated R load	14A@14VDC
Contact function	OFF-ON
contact time	SNAP ACTION
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	14 V
Dielectric withstand voltage	1250VRMS V
Electrical life	100000 Cycle(s)
End contact plating	GOLD
illumination	LED
Insulation resistance	5000000 Ω
Manufacturer's serial number	CRTL
Installation features	PANEL MOUNT
surface mount	NO
Switch action	MAINTAINED
switch function	DPST
Switch type	ROCKER SWITCH
Termination type	QUICK CONNECT

Preview

Download Datasheet

View All

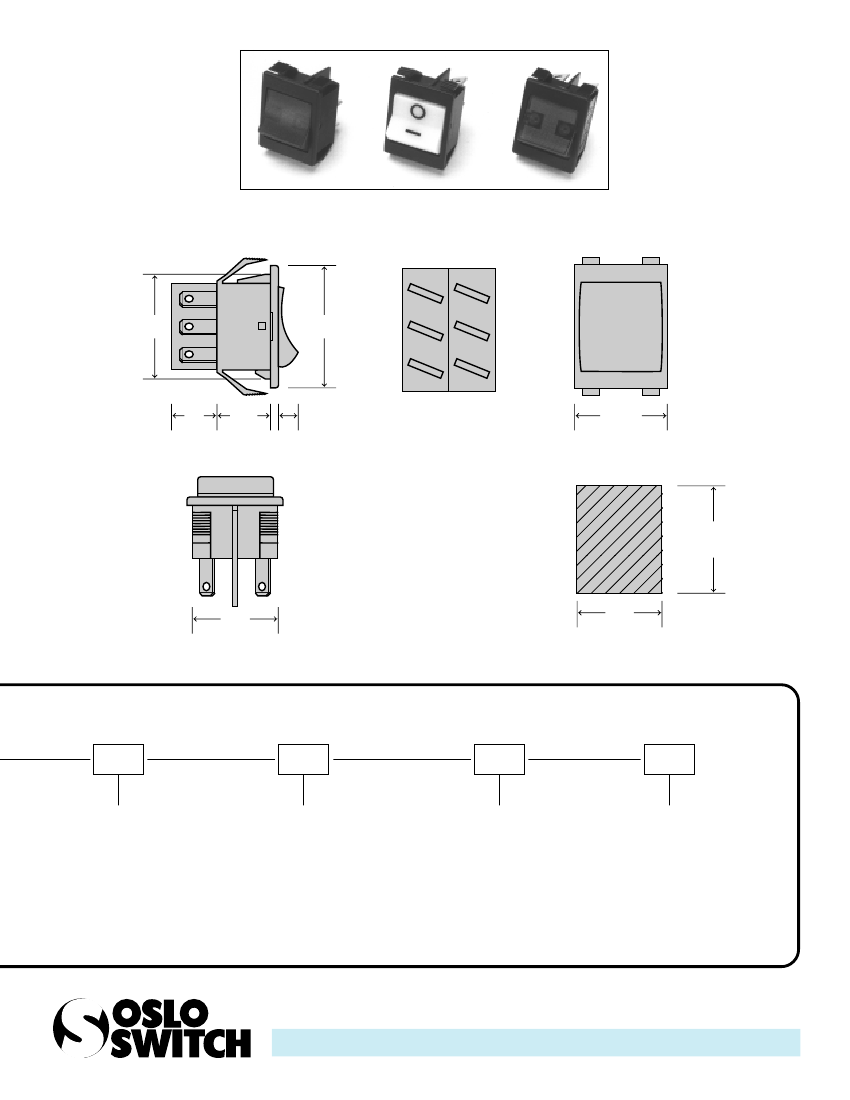

CRTL Series Lighted

Double-pole Rocker Switches

Approvals

D E

Mounting

Snap-in type panel mounting for ease of installation without

additional mounting hardware.

UL recognized, CSA certified. Load rating: 20A 125/250 VAC.

1 HP, 125/250 VAC. 14A 14VDC, VDE approval pending.

Contacts: fine silver for long life dependability. Dielectric strength:

1250 volts (live parts to ground). Life: 35,000 operations at

maximum rating. Insulation resistance: 5 megohms.

Low Level Control

For low level/dry circuit applications (<100 am) contact factory for

part number.

High Inrush

125 Amp inrush capability.

Terminals

Style A - 1/4-inch quick-connect

Mechanical Features

100,000 mechanical operations

Lamps

6, 12 and 28 volt incandescent lamps standard. 125 and 250 volt

neon lamps standard.

Special Lamps

Green neon 125 and 250 volt lamps. Consult factory.

LED Display

LED display options available.

Markings

Letters, numbers and symbols can be applied to rocker actuator

or to integral nylon bezel; see inside back cover for details.

Circuit

Switching

DPST

Maintained

Refer to Note 1

OFF

DPST

(Momentary)

Normally Open

Refer to Note 1

OFF

(ON)

110

DPST

Maintained

Independent Lamp

OFF

111

DPST

Maintained

Furnished with the lamp

internally connected to

light when the actuator

is pushed to on.

NOTE 1.

Furnished with one side of the lamp internally connected and a

single lamp-terminal at the back of the switch.

Ordering Information:

Actuator Shape

C=Curve

Blank=Flat

RTL

Circuit

11=DPST Maintained (Refer to Note 1)

44=DPST (Momentary) Normally Open (Refer to Note 1)

110=DPST Maintained (Independent Lamp)

111=DPST Maintained

Furnished with the lamp internally connected

to light when the actuator is pushed to on.

Terminal Option

A=Fine Silver (Normal Duty)

G=Gold Plated Contacts

H=High Inrush Contacts

*Green lenses require non-standard neon lamps for units with neon lamps.

Telephone (203) 272-2794

Fax (203) 272-3492

PAGE 20

MADE IN U.S.A.
