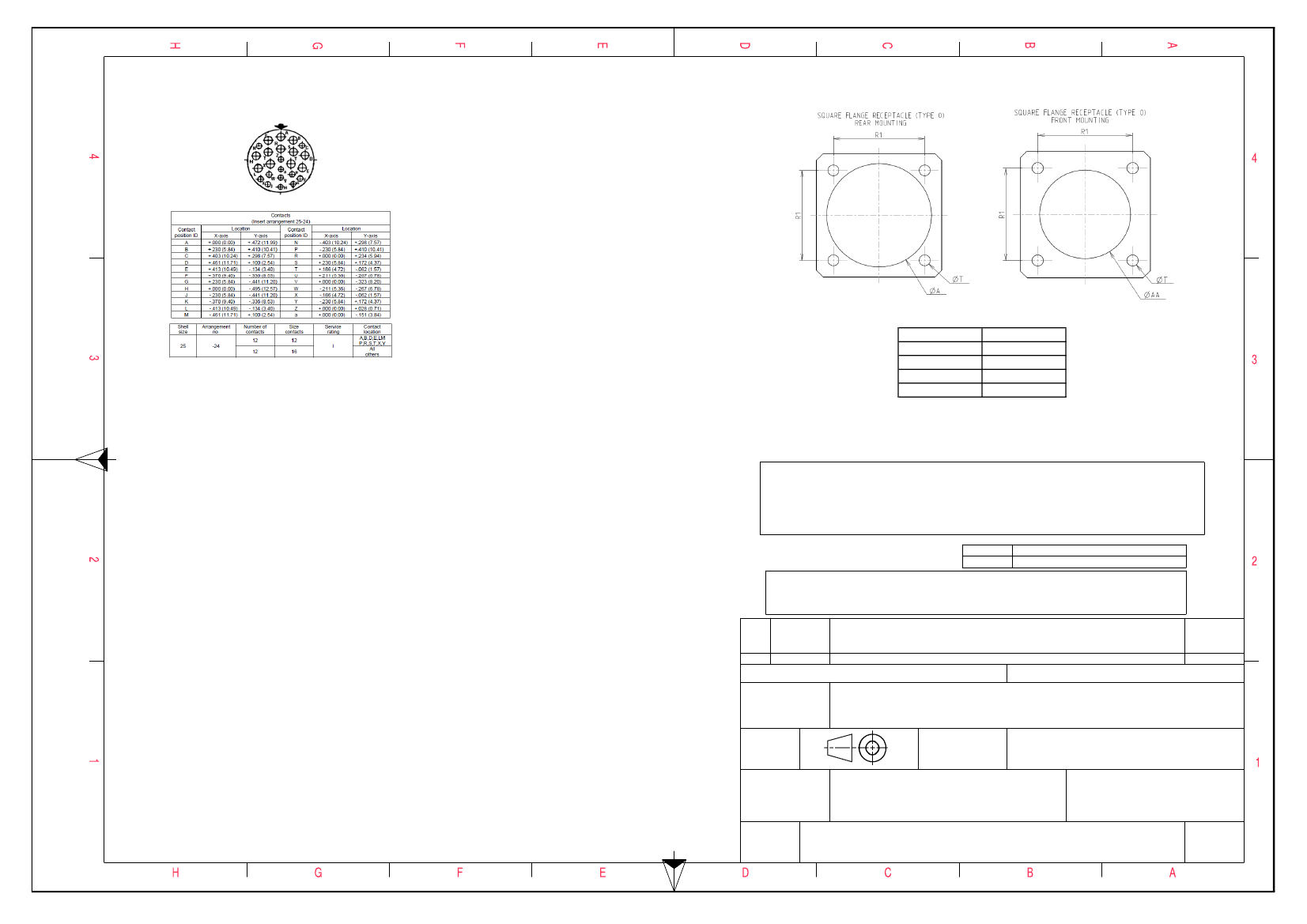

LAYOUT SHOWN AS EXAMPLE
Keying Shown as example
CHARACTERISTICS
-Standard : Based on MIL-DTL-38999 Series III
-Shell Material
-Shell Plating
-Insulator
-Contacts
-Seals & Grommet
-Contact Plating
-Durability
: Titanium
: Without Plating
: Thermoplastic
: Copper Alloy
: Silicon Elastomer
: Gold over copper Alloy 0.8µm minimum
: 500 Mating cycles
Connector dimension
Dim
Nominal
P
3.91±0.2
PP
6.15±0.2
R1
38.1
R2
34.93
S
46±0.3
V
20.07+0/-1.25
W
2.1/3.2
Z
31.5 Max
VV THREAD
M37x1-6g
SOURIAU shall not be liable for any non-conformity or damage
due to a use of the Products which does not comply with
the Specifications issued by either of the Parties or by a third party
(professional recommendation, technical notice.)
Country
FR
Jurisdiction & Control List
Not Listed
-Delivered with Souriau contacts and Accessories
-Temperature Range
-Salt Spray
-Mass
: -65°C to +200°C
: 500 hours
: 102.37 g ± 10%
PN: 8D025TT24BB
A
ISS
07-10-2016 First Release
DATE
Latest modification - by
Date:
MOD N°
CUSTOMER DRAWING
Designed By:
TITLE
BASIC SERIES:
8D
0
-
25
TT
24
B
B
SCALE
Titanium Receptacle 8D series
General linear
Tolerances:
±--
NPRDS / PROJECT
SHELL TYPE : Square Flange Receptacle
CONTACT TYPE
SHELL SIZE : 25
PLATING
: TT =
Without Plating
: Standard Crimp Contact
ORIENTATION : B
CONTACT TYPE : SOCKET(500 Matings)
CONTACT LAYOUT : 25-24
NA
859
This document is the property of
SOURIAU
it must not be reproduced or
communicated without permission
SOURIAU
FORMAT
WWW.SOURIAU.COM
A3
SOURIAU DRG N°
8D025TT24BB-C
SHEET
1/2
Contact Layout
Panel Cutout
Dim
ØA
ØAA
R1
ØT
Nominal
42.47 min
37.69 min
38.1
3.81 ±0.13
SOURIAU shall not be liable for any non-conformity or damage
due to a use of the Products which does not comply with
the Specifications issued by either of the Parties or by a third party
(professional recommendation, technical notice.)
Country
FR
Jurisdiction & Control List
Not Listed
PN: 8D025TT24BB
A
ISS
07-10-2016 First Release
DATE
Latest modification - by
Date:
MOD N°
CUSTOMER DRAWING
Designed By:
TITLE
SCALE
Titanium Receptacle 8D series
General linear
Tolerances:
±--
NPRDS / PROJECT
NA
859
This document is the property of
SOURIAU
it must not be reproduced or
communicated without permission
SOURIAU
FORMAT
WWW.SOURIAU.COM
A3
SOURIAU DRG N°
8D025TT24BB-C
SHEET
2/2
