8D519TT28BA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8D519TT28BA

8D519TT28BA: DescriptionMIL Series Connector,; CategoryThe connector The connector; File Size361KB，2 Pages; ManufacturerEsterline Technologies Corporation

Download Datasheet Parametric View All

8D519TT28BA Overview

MIL Series Connector,

8D519TT28BA Parametric

Parameter Name	Attribute value
Maker	Esterline Technologies Corporation
Reach Compliance Code	unknow
ECCN code	EAR99
Connector type	MIL SERIES CONNECTOR

Preview

Download Datasheet

View All

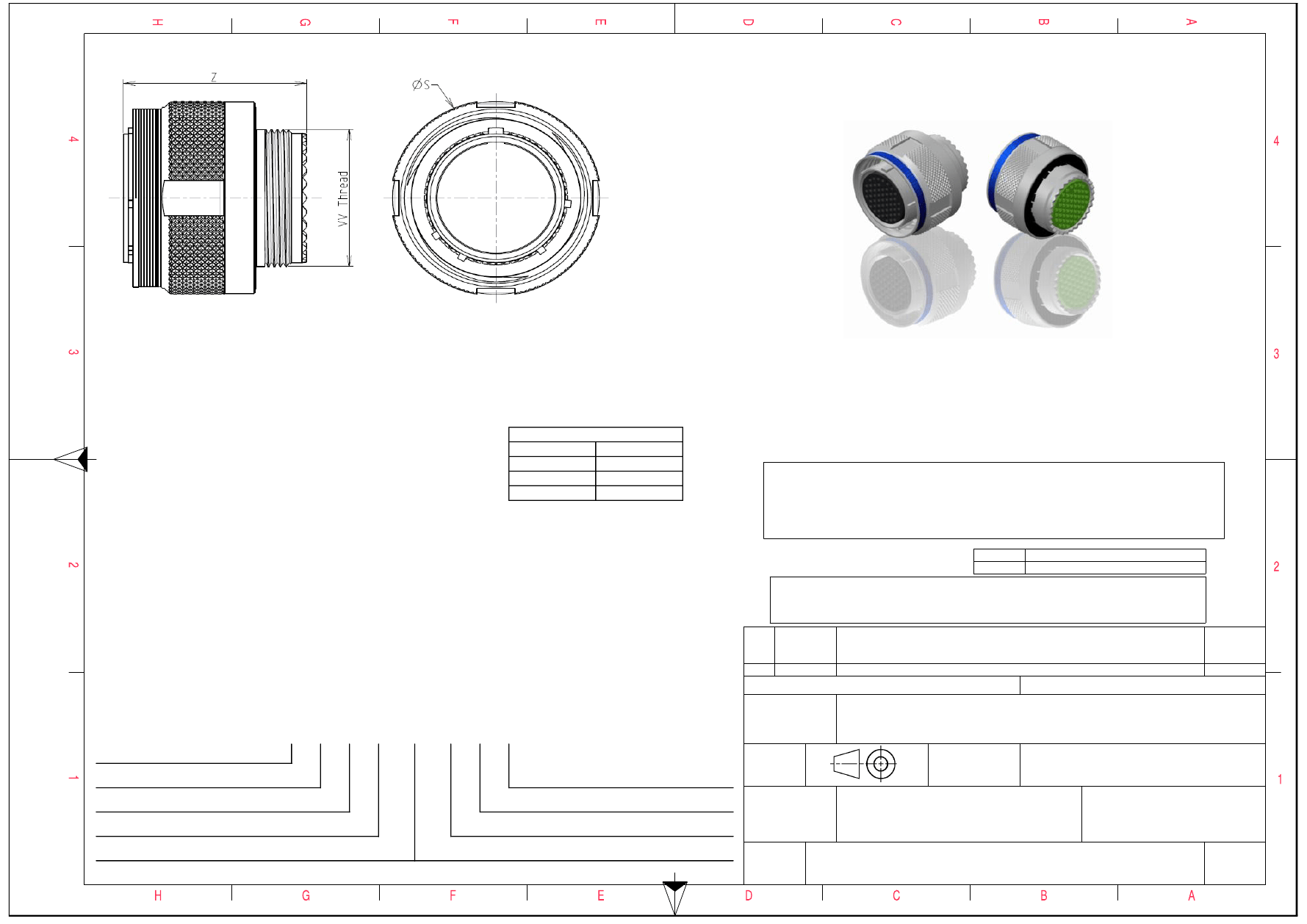

LAYOUT SHOWN AS EXAMPLE

Keying Shown as example

CHARACTERISTICS

-Standard : Based on MIL-DTL-38999 Series III

-Shell Material

-Shell Plating

-Insulator

-Contacts

-Seals & Grommet

-Contact Plating

-Durability

: Titanium

: Without Plating

: Thermoplastic

: Copper Alloy

: Silicon Elastomer

: Gold over copper Alloy 0.8µm minimum

: 500 Mating cycles

Connector dimension

Dim

Nominal

ØS

38.5 Max

31 Max

VV THREAD

M28x1-6g

SOURIAU shall not be liable for any non-conformity or damage

due to a use of the Products which does not comply with

the Specifications issued by either of the Parties or by a third party

(professional recommendation, technical notice.)

Country

Jurisdiction & Control List

Not Listed

-Delivered with Souriau contacts and Accessories

-Temperature Range

-Salt Spray

: -65°C to +200°C

: 500 hours

PN: 8D519TT28BA

ISS

19-10-2016 First Release

DATE

Latest modification - by

Date:

MOD N°

CUSTOMER DRAWING

TITLE

BASIC SERIES:

SHELL TYPE : Plug with RFI Shielding

CONTACT TYPE

SHELL SIZE : 19

PLATING

: TT =

Without Plating

: Standard Crimp Contact

ORIENTATION : A

CONTACT TYPE : SOCKET(500 Matings)

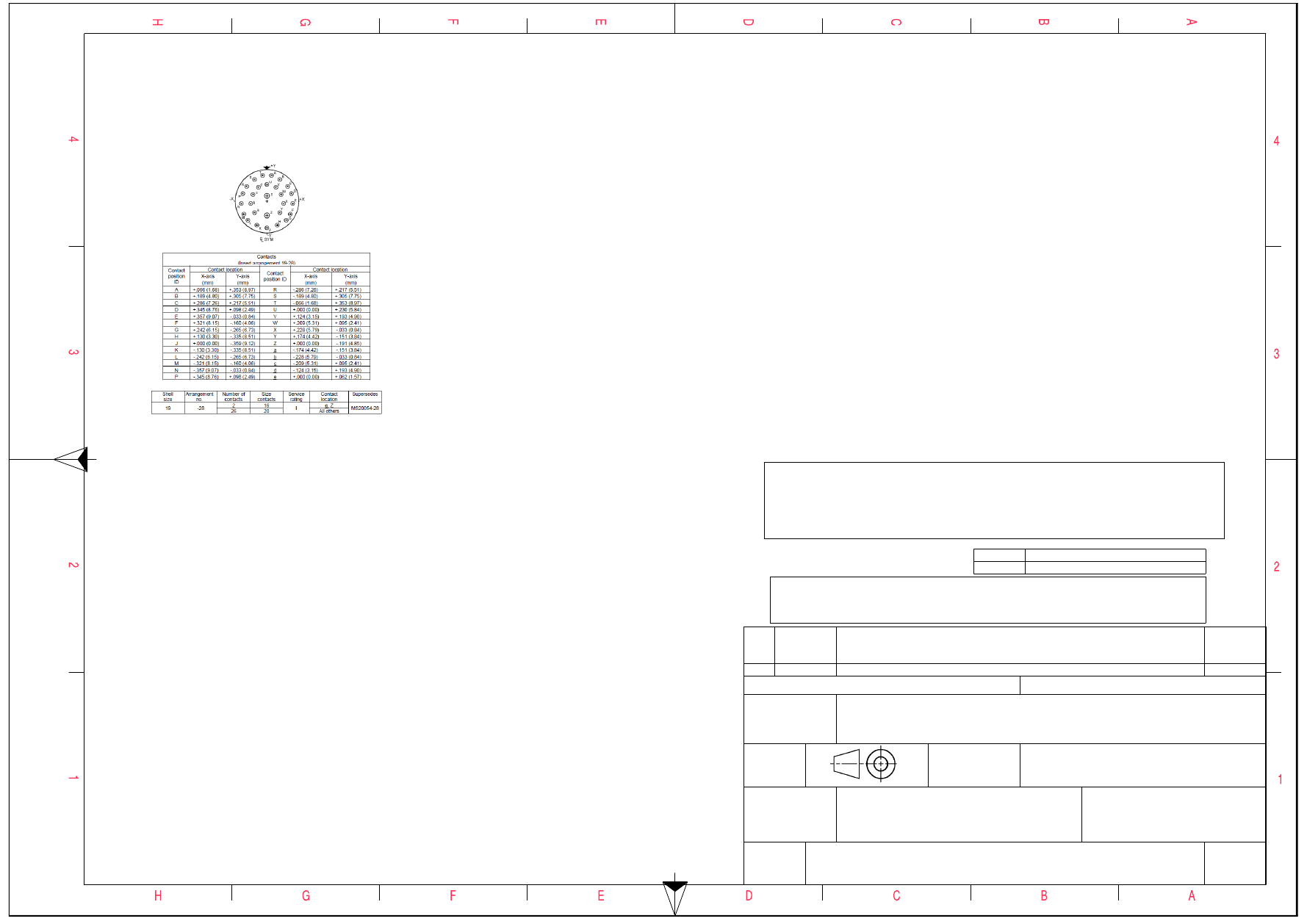

CONTACT LAYOUT : 19-28

FORMAT

Titanium Plug 8D series

General linear

Tolerances:

±--

SCALE

NPRDS / PROJECT

859

This document is the property of

SOURIAU

it must not be reproduced or

communicated without permission

SOURIAU

WWW.SOURIAU.COM

SOURIAU DRG N°

8D519TT28BA-C

SHEET

1/2
