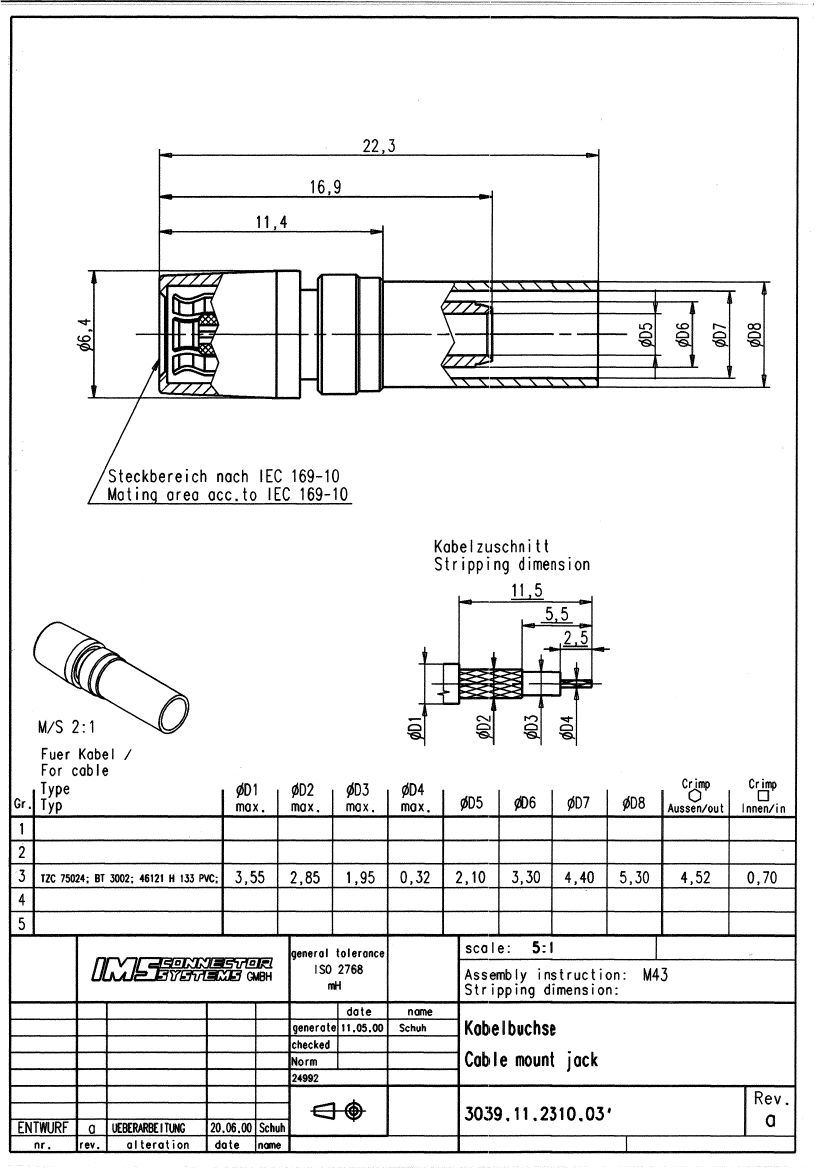

3039.11.2310.035 datasheet, PDF

3039.11.2310.035: DescriptionRF SMB Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack; CategoryThe connector The connector; File Size156KB，1 Pages; ManufacturerIMS Connector Systems Gmbh

Download Datasheet Parametric Compare View All

3039.11.2310.035 Overview

RF SMB Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack

Parameter Name	Attribute value
Maker	IMS Connector Systems Gmbh
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
subject depth	0.878 inch
Body diameter	0.252 inch
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF SMB CONNECTOR
Contact point gender	FEMALE
Contact resistance	5 mΩ
Contact style	COAX
Durability	500 Cycles
Insulation resistance	10000000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	4 GHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Rated current (signal)	1.5 A
Termination type	CRIMP
Total number of contacts	1

	3039.11.2310.035	3039.11.2310.031
Description	RF SMB Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack	RF SMB Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack
Maker	IMS Connector Systems Gmbh	IMS Connector Systems Gmbh
Reach Compliance Code	compliant	compliant
Other features	ROHS COMPLIANT	ROHS COMPLIANT
subject depth	0.878 inch	0.878 inch
Body diameter	0.252 inch	0.252 inch
Body/casing type	JACK	JACK
Characteristic impedance	50 Ω	50 Ω
Connector type	RF SMB CONNECTOR	RF SMB CONNECTOR
Contact point gender	FEMALE	FEMALE
Contact resistance	5 mΩ	5 mΩ
Contact style	COAX	COAX
Durability	500 Cycles	500 Cycles
Insulation resistance	10000000000 Ω	10000000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE
Installation option 1	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE
Number of ports	1	1
Maximum operating frequency	4 GHz	4 GHz
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Rated current (signal)	1.5 A	1.5 A
Termination type	CRIMP	CRIMP
Total number of contacts	1	1
