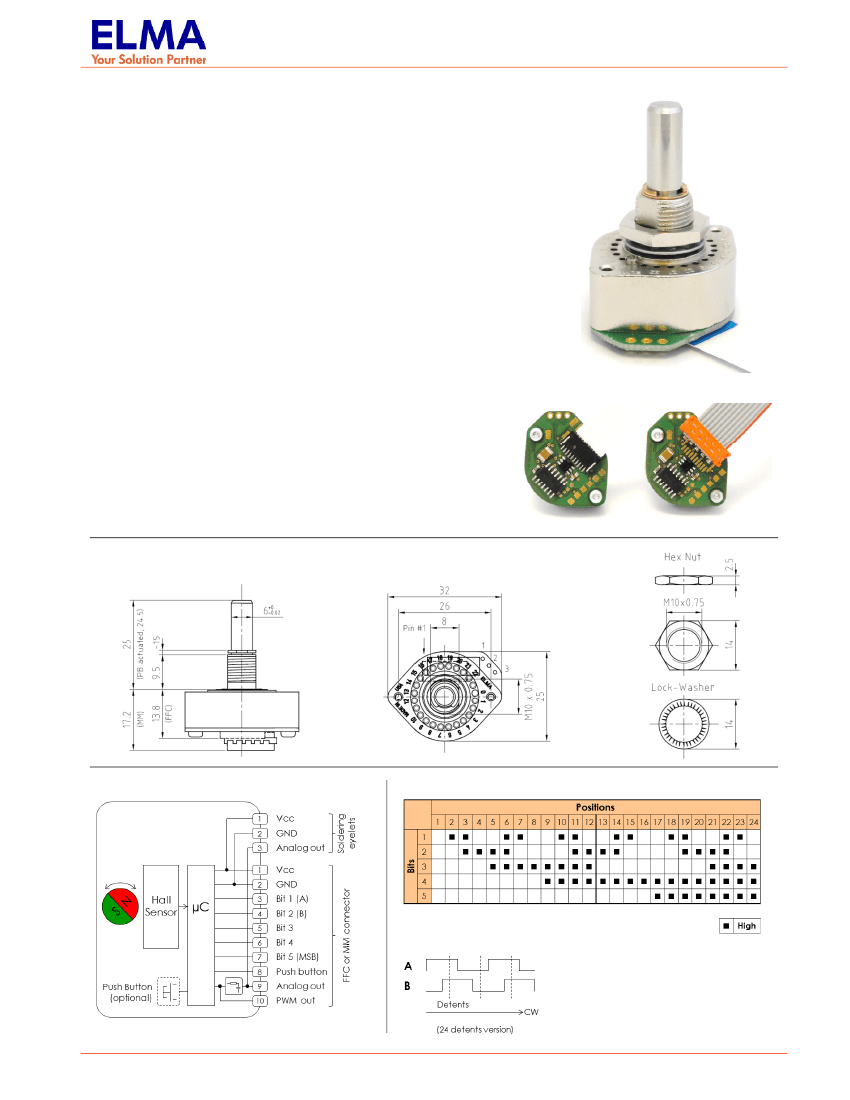

X4 Series
Super robust, Hall-sensed coded switch with optional push button function
Features
12 or 24 positions, with selectable end stop
1.5 to 20 Ncm switching torque
Up to 100k switching cycles
Absolute code with analog and PWM outputs, or encoder output
Optional push button function
2.7 to 5.5 VDC operating voltage
-30 to +85°C operation, with optional IP68 sealing
Possible Customization
Shaft styles
Indexing feel
Connectors, cabling and pinning
Operating voltage; up to 32 VDC
Interfacing; i.e. asynchronous, SPI, I
2
C or CAN
Applications
Construction site and transportation controls
Tool machines and defense applications
Medical controls
MIL-STD-202G
MIL-STD-810F
RoHS (2002/95/EC)
With FFC connector
With MicroMaTch connector
Dimensions
[mm]
Circuitry and Pin Allocation
Absolute Code Output
(Gray)
Encoder Output
29 May 2013, subject to change without notice.
www.elma.com/us
1/2
HMI Solutions
Specifications
Mechanical Rating
Indexing Resolution:
Switching torque:
Rotational life:
Data Sheet
Shaft strength:
End stop strength:
Mounting torque (Nut):
Connector:
Electrical Rating
Operating voltage (Vcc):
Current consumption:
Digital outputs:
Absolute code:
Encoder:
Push button:
Analog output:
PWM output:
Response times:
Materials and Finishes
Shaft:
Housing:
Nut:
Lock washer:
Environmental Rating
Temperature ranges:
Humidity:
Salt atmosphere:
IP sealing:
Vibration:
Flammability:
Push Button Rating
Type:
Actuation force:
Actuation life:
Switch travel:
Contact plating:
Packaging:
12 positions (30° Indexing; 330° total switch travel) or 24 positions (15° indexing; 345° total switch travel)
1.5, 4, 8, 15 or 20 Ncm (+/- 30%, over temperature range and life)
100k cycles with 1.5 Ncm switching torque (over temperature range, at 120 RPM)
50k cycles with 4 or 8 Ncm switching torque (over temperature range, at 120 RPM)
30k cycles with 15 or 20 Ncm switching torque (over temperature range, at 120 RPM)
1000 N push, 200 N pull, 500 N side force min. (all static, against housing, for 1 minute max.)
250 Ncm min. (push button not actuated)
300 Ncm max.
FFC (10 positions, 1 mm pitch, top contacts), or MicroMaTch, (10 positions)
2.7 to 5.5 VDC (stabilized, 20 mV
pp
max. ripple). With encoder option; 2.7 to 3.3 VDC
20 mA max. (at 5.5 VDC, +85 °C and no load condition)
Push/pull, 10 mA max. per output pin
12 or 24 positions Gray code, toggle free
12 PPR (pulses per revolution), channel A leading B (in clockwise direction), toggle free
De-bounced, active high
Scaling from 0 VDC to Vcc, voltage is proportional to switch position (ccw), output resistance; 1k ohm typ.,
ripple; 30 mV typ. (over temperature range, at 5 VDC), not provided with encoder option
10 bit resolution, approx. 5 kHz (at room temperature and 5 VDC), duty cycle; 0 to 100%, duty cycle is
proportional to switch position (ccw), not provided with encoder option
Rotary operation; 100 ms max. (120 RPM max.), push button; 10 ms max.
Stainless steel (1.4305)
Zinc diecast, matt nickel plated
Brass, zinc plated and passivated
Spring steel, zinc plated
-30 to +85°C max. operating, -55 to +85°C max. storage
90% relative humidity max., non-condensing (against front panel, MIL-STD-202G, method 103B, condition B)
With IP68 sealing option only (against front panel, MIL-STD-810F, method 509.4; 96 hrs.)
IP60, optional IP68 (against front panel, steady state, 50 m submersion for 4 hrs. max.)
29 G
RMS
max. at 100 to 1,000 Hz (MIL-STD-202G, method 214A, condition 1H/15 minutes)
UL94-HB
Tact switch, IP67 sealed
6 N (+/-30%, over temperature range and life)
100k cycles min. at 2 Hz max. actuation speed (over temperature range)
0.5 mm (+/- 0.2 mm)
Silver
Single piece packed (ESD shielded bag), nut and lock-washer are included

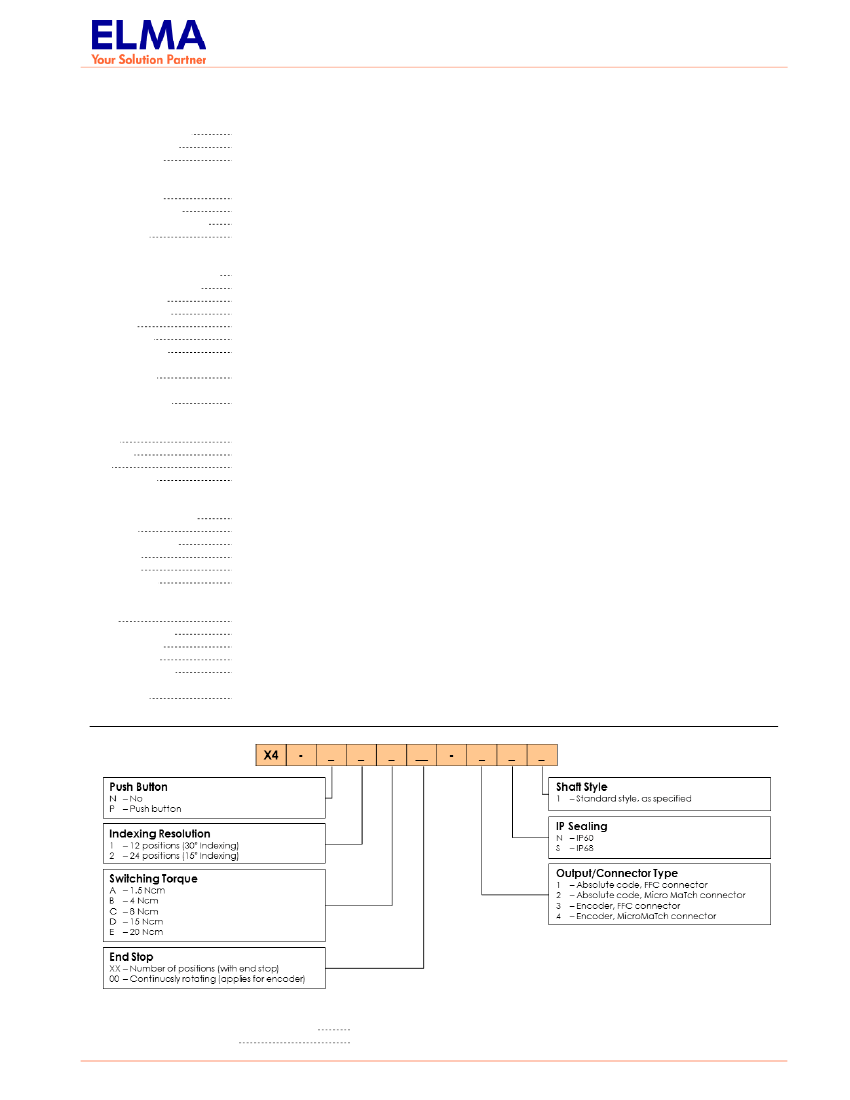

Ordering Code
Accessories to Order
Spare nuts with lock washer (10 pcs. pack):
Stop screws (10 pcs. pack):
29 May 2013, subject to change without notice.
P/N M10NUTWASH10
P/N X4-STOP10
www.elma.com/us
2/2
