601D
+105°C

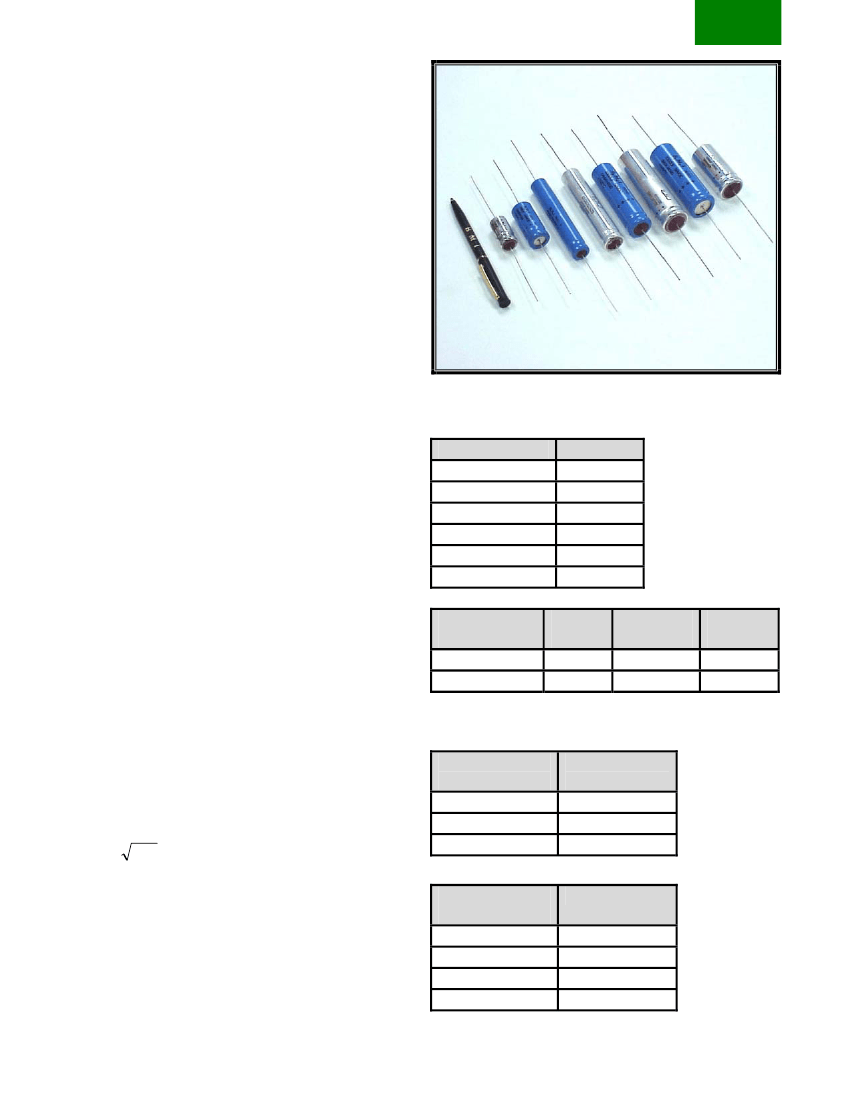

Tubular Axial Lead
Aluminum Capacitors
Features-
•
•
•
•
Wide Temperature Range
Military Version – Mil-PRF-39018/03
Long Life
Low ESR
General Specifications-
Operating Temperature:
-55 to +105°C
Voltage Range:
6.3 – 300 VDC
Capacitance Range:
12µF to 33,000µF
Capacitance Tolerance:
-10%/+50% (Std.)
Case Size Range:
0.625” X 1.125” – 1.000” X 3.625”
Termination:
Axial Leads.
Life Validation Test: 2,000hrs @ +105°C
Δ
CAP
≤
15% From initial measurement.
Δ
ESR
≤
1.25X Initial specified limit.
Δ
DCL
≤
Initial specified limit.
Shelf Test: 500hrs @ +105°C
Δ
CAP
≤
10% From initial measurement.
Δ
ESR
≤
1.15X Initial specified limit.
Δ
DCL
≤
2.0X Initial specified limit.
DC Leakage Current: (After 5 min. charge)
I
=
k CV
;
k = 0.5 @ +25°C; k = 3.0 @ +105°C
Where:
I is in µA
C is in µF
V is in Volts
Ripple Current Multipliers:
Temperature:
Ambient Temp. Multiplier
+105°C
0.40
+85°C
1.00
+75°C
1.41
+65°C
1.70
+45°C
2.00
+25°C
2.65
Frequency (Hz)
Rated Voltage
(VDC)
50 – 60 300 – 400
0 – 60
0.85
1.10
61 – 250
0.83
1.15
1k & Up
1.15
1.20
Low Temperature Performance:
Capacitance Ratio C
-55°C
/C
+25°C
min. @ 120Hz.
Rated Voltage
Capacitance
(VDC)
Remaining
0 – 25
75%
26 – 100
80%
101 – 250
85%
ESR Ratio ESR
-55°C
/ESR
+25°C
min. @ 120Hz
Rated Voltage
Multiplier
(VDC)
0–9
10
10 – 40
12
41 – 100
18
150 – 300
100
601D
PART NUMBER BREAK-DOWN:
601D 158 F 6R3 FE 1
CASE STYLE:
1 = P.V.C. SLEEVE (STD.)
2 = POLYESTER SLEEVE
3 = POLYESTER SLEEVE WITH EPOXY END SEAL
(REQ’D FOR EXPOSURE TO HALOGENATED CLEANING SOLVENTS.)
7 = P.V.C. SLEEVE
W
/ EPOXY END SEAL
(REQ’D FOR EXPOSURE TO HALOGENATED CLEANING SOLVENTS.)
CASE CODE:
(SEE TABLE 1.)
DC VOLTAGE RATING:
EXPRESSED IN VOLTS. THE LETTER “R” SIGNIFIES A DECIMAL POINT.
(ie. 6R3 = 6.3 VOLTS.)
CAPACITANCE TOLERANCE:
F = -10%/+50% (STD.)
CAPACITANCE:
EXPRESSED IN PICOFARADS. THE FIRST TWO DIGITS ARE
SIGNIFICANT FIGURES, THE THIRD IS THE NUMBER OF ZEROS.
BMI TYPE #:
IDENTIFIES THE BASIC CAPACITOR DESIGN.
Axial-Leaded Capacitor Dimensions
STYLES 1 &2
STYLES 3 & 7
Table 1. Case Dimensions mm(in.)
CASE
CODE
FE
FJ
FL
FP
FS
FT
GE
GJ
GL
GP
GS
GT
HE
HJ
HL
HP
HS
HT
JE
JJ
JL
JP
JS
JT
NOMINAL
‘D’
15.88 (0.625)
15.88 (0.625)
15.88 (0.625)
15.88 (0.625)
15.88 (0.625)
15.88 (0.625)
19.05 (0.750)
19.05 (0.750)
19.05 (0.750)
19.05 (0.750)
19.05 (0.750)
19.05 (0.750)
22.23 (0.875)
22.23 (0.875)
22.23 (0.875)
22.23 (0.875)
22.23 (0.875)
22.23 (0.875)
25.40 (1.000)
25.40 (1.000)
25.40 (1.000)
25.40 (1.000)
25.40 (1.000)
25.40 (1.000)
‘L’
28.58 (1.125)
41.28 (1.625)
53.98 (2.125)
66.68 (2.625)
79.38 (3.125)
92.08 (3.625)
28.58 (1.125)
41.28 (1.625)
53.98 (2.125)
66.68 (2.625)
79.38 (3.125)
92.08 (3.625)
28.58 (1.125)
41.28 (1.625)
53.98 (2.125)
66.68 (2.625)
79.38 (3.125)
92.08 (3.625)
28.58 (1.125)
41.28 (1.625)
53.98 (2.125)
66.68 (2.625)
79.38 (3.125)
92.08 (3.625)
STYLES 1 & 2
‘D’
‘L’
± 0.51 (±0.020) ± 1.58 (±0.062)
16.13 (0.635)
28.98 (1.141)
16.13 (0.635)
41.68 (1.641)
16.13 (0.635)
54.38 (2.141)
16.13 (0.635)
67.08 (2.641)
16.13 (0.635)
79.78 (3.141)
16.13 (0.635)
92.48 (3.641)
19.30 (0.760)
19.30 (0.760)
19.30 (0.760)
19.30 (0.760)
19.30 (0.760)
19.30 (0.760)
22.48 (0.885)
22.48 (0.885)
22.48 (0.885)
22.48 (0.885)
22.48 (0.885)
22.48 (0.885)
25.65 (1.010)
25.65 (1.010)
25.65 (1.010)
25.65 (1.010)
25.65 (1.010)
25.65 (1.010)
28.98 (1.141)
41.68 (1.641)
54.38 (2.141)
67.08 (2.641)
79.78 (3.141)
92.48 (3.641)
28.98 (1.141)
41.68 (1.641)
54.38 (2.141)
67.08 (2.641)
79.78 (3.141)
92.48 (3.641)
28.98 (1.141)
41.68 (1.641)
54.38 (2.141)
67.08 (2.641)
79.78 (3.141)
92.48 (3.641)
STYLES 3 & 7
‘D’
‘L’
± 0.51 (±0.020) ± 1.58 (±0.062)
16.13 (0.635)
30.15 (1.187)
16.13 (0.635)
42.85 (1.687)
16.13 (0.635)
55.55 (2.187)
16.13 (0.635)
68.25 (2.687)
16.13 (0.635)
80.95 (3.187)
16.13 (0.635)
93.65 (3.687)
19.30 (0.760)
19.30 (0.760)
19.30 (0.760)
19.30 (0.760)
19.30 (0.760)
19.30 (0.760)
22.48 (0.885)
22.48 (0.885)
22.48 (0.885)
22.48 (0.885)
22.48 (0.885)
22.48 (0.885)
25.65 (1.010)
25.65 (1.010)
25.65 (1.010)
25.65 (1.010)
25.65 (1.010)
25.65 (1.010)
30.15 (1.187)
42.85 (1.687)
55.55 (2.187)
68.25 (2.687)
80.95 (3.187)
93.65 (3.687)
30.15 (1.187)
42.85 (1.687)
55.55 (2.187)
68.25 (2.687)
80.95 (3.187)
93.65 (3.687)
30.15 (1.187)
42.85 (1.687)
55.55 (2.187)
68.25 (2.687)
80.95 (3.187)
93.65 (3.687)
WIRE GAUGE ‘W’
No. 20 AWG (0.032”)
No. 20 AWG (0.032”)
No. 20 AWG (0.032”)
No. 20 AWG (0.032”)
No. 20 AWG (0.032”)
No. 20 AWG (0.032”)
No. 18 AWG (0.040”)
No. 18 AWG (0.040”)
No. 18 AWG (0.040”)
No. 18 AWG (0.040”)
No. 18 AWG (0.040”)
No. 18 AWG (0.040”)
No. 18 AWG (0.040”)
No. 18 AWG (0.040”)
No. 18 AWG (0.040”)
No. 18 AWG (0.040”)
No. 18 AWG (0.040”)
No. 18 AWG (0.040”)
No. 18 AWG (0.040”)
No. 18 AWG (0.040”)
No. 18 AWG (0.040”)
No. 18 AWG (0.040”)
No. 18 AWG (0.040”)
No. 18 AWG (0.040”)
601D
STANDARD RATINGS FOR TYPE 601D
Maximum
ESR
Rated
+25°C
Capacitance Catalog Number
120Hz
(µF)
(Ω)
6.3 VOLTS DC WORKING; 8 VOLTS DC SURGE
Nominal
Case Size
DxL
(in.)
1,500
2,700
3,900
5,600
6,800
8,200
2,700
5,600
8,200
10,000
12,000
15,000
3,900
8,200
12,000
15,000
18,000
22,000
5,600
10,000
18,000
22,000
27,000
33,000
1,000
2,200
3,300
4,700
5,600
6,800
2,200
3,900
6,800
8,200
10,000
12,000
3,300
5,600
8,200
12,000
15,000
18,000
3,900
8,200
13,000
18,000
22,000
27,000
601D158F6R3FE1
601D278F6R3FJ1
601D398F6R3FL1
601D568F6R3FP1
601D688F6R3FS1
601D828F6R3FT1
601D278F6R3GE1
601D568F6R3GJ1
601D828F6R3GL1
601D109F6R3GP1
601D129F6R3GS1
601D159F6R3GT1
601D398F6R3HE1
601D828F6R3HJ1
601D129F6R3HL1
601D159F6R3HP1
601D189F6R3HS1
601D229F6R3HT1
601D568F6R3JE1
601D109F6R3JJ1
601D189F6R3JL1
601D229F6R3JP1
601D279F6R3JS1
601D339F6R3JT1
601D108F010FE1
601D228F010FJ1
601D338F010FL1
601D478F010FP1
601D568F010FS1
601D686F010FT1
601D228F010GE1
601D398F010GJ1
601D688F010GL1
601D828F010GP1
601D109F010GS1
601D129F010GT1
601D338F010HE1
601D568F010HJ1
601D828F010HL1
601D129F010HP1
601D159F010HS1
601D189F010HT1
601D398F010JE1
601D828F010JJ1
601D139F010JL1
601D189F010JP1
601D229F010JS1
601D279F010JT1
0.625 x 1.125
0.625 x 1.625
0.625 x 2.125
0.625 x 2.625
0.625 x 3.125
0.625 x 3.625
0.750 x 1.125
0.750 x 1.625
0.750 x 2.125
0.750 x 2.625
0.750 x 3.125
0.750 x 3.625
0.875 x 1.125
0.875 x 1.625
0.875 x 2.125
0.875 x 2.625
0.875 x 3.125
0.875 x 3.625
1.000 x 1.125
1.000 x 1.625
1.000 x 2.125
1.000 x 2.625
1.000 x 3.125
1.000 x 3.625
0.625 x 1.125
0.625 x 1.625
0.625 x 2.125
0.625 x 2.625
0.625 x 3.125
0.625 x 3.625
0.750 x 1.125
0.750 x 1.625
0.750 x 2.125
0.750 x 2.625
0.750 x 3.125
0.750 x 3.625
0.875 x 1.125
0.875 x 1.625
0.875 x 2.125
0.875 x 2.625
0.875 x 3.125
0.875 x 3.625
1.000 x 1.125
1.000 x 1.625
1.000 x 2.125
1.000 x 2.625
1.000 x 3.125
1.000 x 3.625
0.311
0.148
0.098
0.074
0.060
0.051
0.169
0.083
0.057
0.043
0.037
0.031
0.118
0.059
0.042
0.033
0.027
0.023
0.093
0.049
0.033
0.026
0.022
0.019
0.332
0.157
0.106
0.080
0.065
0.055
0.182
0.091
0.061
0.047
0.041
0.035
0.127
0.064
0.044
0.036
0.029
0.025
0.099
0.050
0.036
0.028
0.023
0.020
Maximum
ESR
+25°C
20-100kHz
(Ω)
0.227
0.108
0.072
0.055
0.044
0.038
0.124
0.061
0.042
0.032
0.028
0.023
0.088
0.044
0.031
0.024
0.020
0.018
0.069
0.036
0.025
0.020
0.017
0.015
0.233
0.111
0.075
0.057
0.047
0.039
0.129
0.065
0.044
0.034
0.029
0.025
0.090
0.046
0.032
0.026
0.020
0.018
0.071
0.037
0.026
0.021
0.017
0.015
Max. Ripple Max. Ripple
Current
Current
+85°C
+85°C
120Hz
20-100kHz
(A
rms
)
(A
rms
)
1.04
1.76
2.41
3.05
3.66
4.26
1.58
2.60
3.52
4.40
5.13
5.98
2.09
3.38
4.47
5.54
6.56
7.52
2.57
4.05
5.44
6.72
7.86
8.98
1.00
1.70
2.31
2.94
3.52
4.11
1.53
2.50
3.40
4.25
5.00
5.72
2.02
3.26
4.38
5.30
6.43
7.37
2.49
4.00
5.27
6.45
7.68
8.75
1.22
2.05
2.81
3.54
4.25
4.94
1.84
3.02
4.07
5.09
5.91
6.89
2.42
3.90
5.15
6.37
7.50
8.61
2.96
4.66
6.23
7.68
8.91
10.18
1.21
2.03
2.76
3.50
4.17
4.87
1.81
2.96
4.03
5.01
5.82
6.71
2.39
3.84
5.14
6.22
7.50
8.56
2.93
4.67
6.15
7.49
8.86
10.1
10 VOLTS DC WORKING; 15 VOLTS DC SURGE
601D
STANDARD RATINGS FOR TYPE 601D
Maximum
ESR
Rated
+25°C
Capacitance Catalog Number
120Hz
(µF)
(Ω)
16 VOLTS DC WORKING; 20 VOLTS DC SURGE
Nominal
Case Size
DxL
(in.)
820
1,800
2,700
3,300
3,900
4,700
1,500
3,300
4,700
5,600
8,200
10,000
2,200
4,700
6,800
10,000
12,000
15,000
3,300
6,800
10,000
560
1,000
1,500
2,200
2,700
3,300
1,000
1,800
2,700
3,900
4,700
5,600
1,500
2,700
3,900
5,600
6,800
8,200
1,800
3,900
5,600
8,200
10,000
12,000
601D827F016FE1
601D188F016FJ1
601D278F016FL1
601D338F016FP1
601D398F016FS1
601D478F016FT1
601D158F016GE1
601D338F016GJ1
601D478F016GL1
601D568F016GP1
601D828F016GS1
601D109F016GT1
601D228F016HE1
601D478F016HJ1
601D688F016HL1
601D109F016HP1
601D129F016HS1
601D159F016HT1
601D338F016JE1
601D688F016JJ1
601D109F016JL1
601D567F025FE1
601D108F025FJ1
601D158F025FL1
601D228F025FP1
601D278F025FS1
601D338F025FT1
601D108F025GE1
601D188F025GJ1
601D278F025GL1
601D398F025GP1
601D478F025GS1
601D568F025GT1
601D158F025HE1
601D278F025HJ1
601D398F025HL1
601D568F025HP1
601D688F025HS1
601D828F025HT1
601D188F025JE1
601D398F025JJ1
601D568F025JL1
601D828F025JP1
601D109F025JS1
601D129F025JT1
0.625 x 1.125
0.625 x 1.625
0.625 x 2.125
0.625 x 2.625
0.625 x 3.125
0.625 x 3.625
0.750 x 1.125
0.750 x 1.625
0.750 x 2.125
0.750 x 2.625
0.750 x 3.125
0.750 x 3.625
0.875 x 1.125
0.875 x 1.625
0.875 x 2.125
0.875 x 2.625
0.875 x 3.125
0.875 x 3.625
1.000 x 1.125
1.000 x 1.625
1.000 x 2.125
0.625 x 1.125
0.625 x 1.625
0.625 x 2.125
0.625 x 2.625
0.625 x 3.125
0.625 x 3.625
0.750 x 1.125
0.750 x 1.625
0.750 x 2.125
0.750 x 2.625
0.750 x 3.125
0.750 x 3.625
0.875 x 1.125
0.875 x 1.625
0.875 x 2.125
0.875 x 2.625
0.875 x 3.125
0.875 x 3.625
1.000 x 1.125
1.000 x 1.625
1.000 x 2.125
1.000 x 2.625
1.000 x 3.125
1.000 x 3.625
0.349
0.175
0.115
0.087
0.071
0.060
0.198
0.098
0.067
0.051
0.042
0.036
0.139
0.070
0.048
0.037
0.031
0.027
0.108
0.055
0.038
0.383
0.198
0.125
0.096
0.078
0.065
0.213
0.110
0.073
0.056
0.045
0.038
0.157
0.076
0.052
0.040
0.033
0.028
0.117
0.059
0.040
0.031
0.027
0.023
Maximum
ESR
+25°C
20-100kHz
(Ω)
0.230
0.116
0.077
0.058
0.048
0.040
0.132
0.066
0.045
0.035
0.029
0.025
0.094
0.048
0.033
0.026
0.022
0.019
0.075
0.038
0.027
0.237
0.124
0.078
0.061
0.050
0.041
0.134
0.070
0.047
0.036
0.029
0.025
0.100
0.049
0.034
0.026
0.022
0.019
0.076
0.039
0.027
0.021
0.018
0.016
Max. Ripple Max. Ripple
Current
Current
+85°C
+85°C
120Hz
20-100kHz
(A
rms
)
(A
rms
)
0.99
1.62
2.23
2.83
3.37
3.94
1.47
2.40
3.26
4.07
4.87
5.64
1.93
3.12
4.20
5.23
6.19
7.06
2.38
3.83
5.10
0.94
1.52
2.14
2.68
3.22
3.79
1.41
2.27
3.11
3.91
4.68
5.43
1.81
2.98
4.04
5.04
6.00
6.91
2.28
3.70
4.96
6.14
7.15
8.21
1.21
1.98
2.73
3.45
4.11
4.79
1.79
2.92
3.95
4.93
5.86
6.78
2.34
3.77
5.05
6.27
7.38
8.40
2.87
4.59
6.09
1.20
1.92
2.71
3.38
4.04
4.75
1.78
2.85
3.89
4.87
5.80
6.70
2.27
3.72
5.01
6.20
7.33
8.42
2.83
4.55
6.07
7.44
8.64
9.89
25 VOLTS DC WORKING; 40 VOLTS DC SURGE
601D
STANDARD RATINGS FOR TYPE 601D
Maximum
ESR
Rated
+25°C
Capacitance Catalog Number
120Hz
(µF)
(Ω)
35 VOLTS DC WORKING; 50 VOLTS DC SURGE
Nominal
Case Size
DxL
(in.)
330
680
1,000
1,500
1,800
2,200
680
1,200
2,200
2,700
3,300
3,900
1,000
2,200
2,700
3,900
4,700
5,600
1,200
2,700
3,900
5,600
6,800
8,200
270
470
680
1,000
1,200
1,500
470
1,000
1,500
1,800
2,200
2,700
680
1,500
2,200
2,700
3,300
3,900
1,000
1,800
2,700
3,900
4,700
5,600
601D337F035FE1
601D687F035FJ1
601D108F035FL1
601D158F035FP1
601D188F035FS1
601D228F035FT1
601D687F035GE1
601D128F035GJ1
601D228F035GL1
601D278F035GP1
601D338F035GS1
601D398F035GT1
601D108F035HE1
601D228F035HJ1
601D278F035HL1
601D398F035HP1
601D478F035HS1
601D568F035HT1
601D128F035JE1
601D278F035JJ1
601D398F035JL1
601D568F035JP1
601D688F035JS1
601D828F035JT1
601D277F050FE1
601D477F050FJ1
601D687F050FL1
601D108F050FP1
601D128F050FS1
601D158F050FT1
601D477F050GE1
601D108F050GJ1
601D158F050GL1
601D188F050GP1
601D228F050GS1
601D278F050GT1
601D687F050HE1
601D158F050HJ1
601D228F050HL1
601D278F050HP1
601D338F050HS1
601D398F050HT1
601D108F050JE1
601D188F050JJ1
601D278F050JL1
601D398F050JP1
601D478F050JS1
601D568F050JT1
0.625 x 1.125
0.625 x 1.625
0.625 x 2.125
0.625 x 2.625
0.625 x 3.125
0.625 x 3.625
0.750 x 1.125
0.750 x 1.625
0.750 x 2.125
0.750 x 2.625
0.750 x 3.125
0.750 x 3.625
0.875 x 1.125
0.875 x 1.625
0.875 x 2.125
0.875 x 2.625
0.875 x 3.125
0.875 x 3.625
1.000 x 1.125
1.000 x 1.625
1.000 x 2.125
1.000 x 2.625
1.000 x 3.125
1.000 x 3.625
0.625 x 1.125
0.625 x 1.625
0.625 x 2.125
0.625 x 2.625
0.625 x 3.125
0.625 x 3.625
0.750 x 1.125
0.750 x 1.625
0.750 x 2.125
0.750 x 2.625
0.750 x 3.125
0.750 x 3.625
0.875 x 1.125
0.875 x 1.625
0.875 x 2.125
0.875 x 2.625
0.875 x 3.125
0.875 x 3.625
1.000 x 1.125
1.000 x 1.625
1.000 x 2.125
1.000 x 2.625
1.000 x 3.125
1.000 x 3.625
0.480
0.231
0.154
0.118
0.095
0.080
0.266
0.133
0.087
0.068
0.054
0.046
0.182
0.091
0.062
0.047
0.039
0.033
0.146
0.071
0.048
0.037
0.030
0.026
0.519
0.249
0.165
0.128
0.107
0.087
0.285
0.139
0.095
0.071
0.060
0.050
0.196
0.099
0.067
0.051
0.042
0.036
0.148
0.077
0.052
0.040
0.033
0.028
Maximum
ESR
+25°C
20-100kHz
(Ω)
0.244
0.118
0.079
0.061
0.050
0.042
0.137
0.070
0.046
0.036
0.025
0.025
0.096
0.049
0.034
0.026
0.022
0.019
0.079
0.039
0.027
0.021
0.018
0.015
0.241
0.117
0.078
0.061
0.051
0.042
0.135
0.067
0.047
0.035
0.030
0.025
0.095
0.049
0.034
0.027
0.022
0.019
0.075
0.040
0.028
0.022
0.018
0.016
Max. Ripple Max. Ripple
Current
Current
+85°C
+85°C
120Hz
20-100kHz
(A
rms
)
(A
rms
)
0.84
1.40
1.93
2.42
2.91
3.40
1.26
2.06
2.84
3.52
4.25
4.95
1.68
2.73
3.67
4.61
5.46
6.33
2.04
3.35
4.52
5.62
6.66
7.66
0.81
1.35
1.87
2.33
2.76
3.28
1.22
2.02
2.73
3.45
4.08
4.76
1.62
2.63
3.55
4.44
5.28
6.12
2.03
3.23
4.37
5.44
6.47
7.45
1.18
1.96
2.68
3.35
4.02
4.67
1.75
2.84
3.89
4.80
5.75
6.67
2.31
3.72
4.94
6.17
7.26
8.35
2.77
4.49
5.99
7.37
8.67
9.92
1.19
1.98
2.71
3.37
3.97
4.70
1.77
2.90
3.90
4.90
5.75
6.67
2.32
3.72
4.99
6.17
7.29
8.38
2.86
4.50
6.00
7.40
8.69
9.92
50 VOLTS DC WORKING; 75 VOLTS DC SURGE
京公网安备 11010802033920号
EEWORLD
