HECR
SERIES
Avionicap™
Avionicap™ Series Minature Metallized Polycarbonate - Hermetically
Sealed

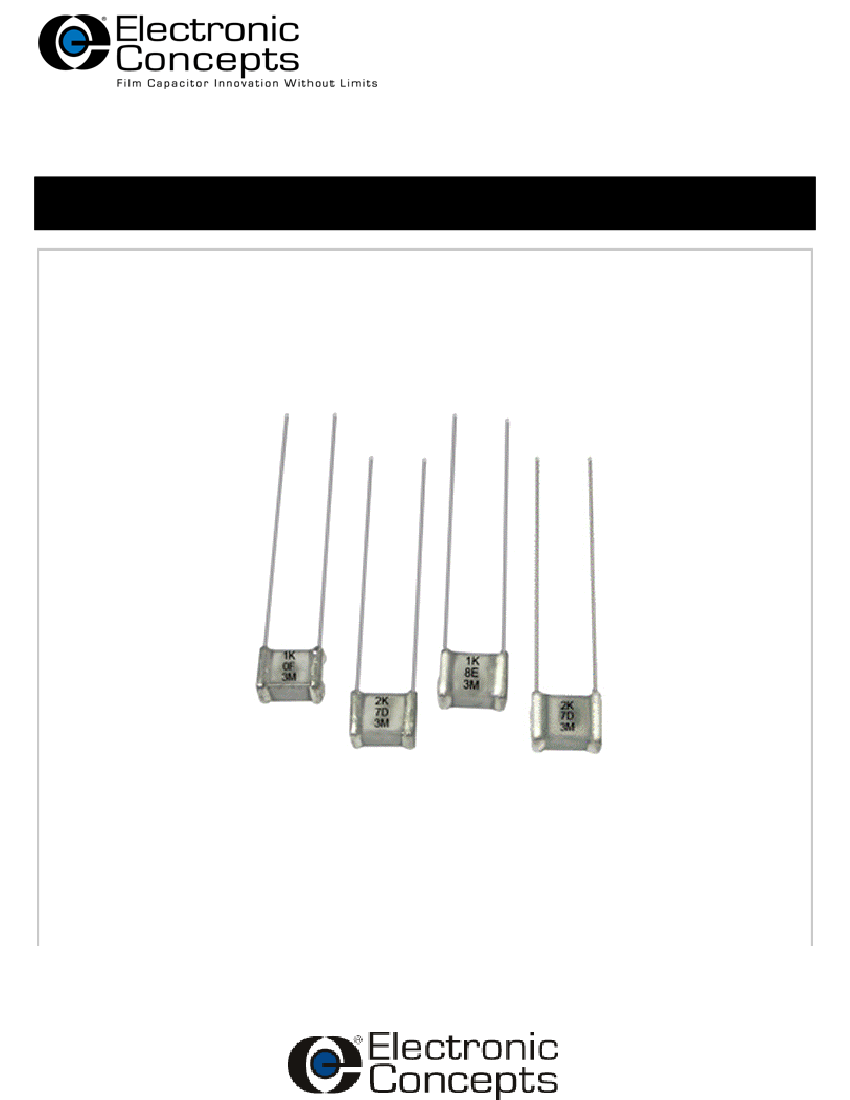

The Avionicap™ HECR type capacitor is a hermetically sealed version of our
Avionicap™ ECR type series, which has gained broad acceptance in the
electronic industry. It is hermetically sealed in ceramic case with metal end caps
so it offers excellent environmental protection.
FEATURES
-
For Hostile environments
where pcb density and
system miniaturization are
required.
-
Effective replacement for
conventional tubular axial
leaded capacitors
STANDARD CONFIGURATION
-
#22 AWG tinned copper clad steel
terminals
Specification Summary
Capacitance Range
0.001µF to 1.0µF Capacitance is measured at 25°C and at, or
referred to, a frequency of 1KHz.
Capacitance Tolerance
K=±10%, J=±5%, G=±2%, F=±1%
Operating Temperature Range
-55ºC to 125ºC
Enclosure/ Construction
Hermetically sealed ceramic case with tinned metal end caps.
Voltage Rating
DC working voltage ratings at +85ºC, 30VDC, 50VDC,
100VDC, 150VDC, 200VDC and 300VDC. Voltage derating of
1.25% per degree C is necessary to +125°C.
Quality Control
Capacitors are tested 100% for:
o Capacitance
o Tolerance
o Dissipation Factor
o Dielectric withstanding Voltage
o Insulation Resistance
o Seal Per Method 112 of MIL-STD-202 HECR - test condition A
M39022/11 - also tested to condition C, procedure IIIa.
Process and inspection data are maintained on file and available
on special request.
Environmental
Parameter
Vibration
Immersion
Shock
Humidity
Thermal Shock
Life
Method
204
104
213
106
107
108
Condition
D
C
I
-
B
F
Reference MIL-STD-202

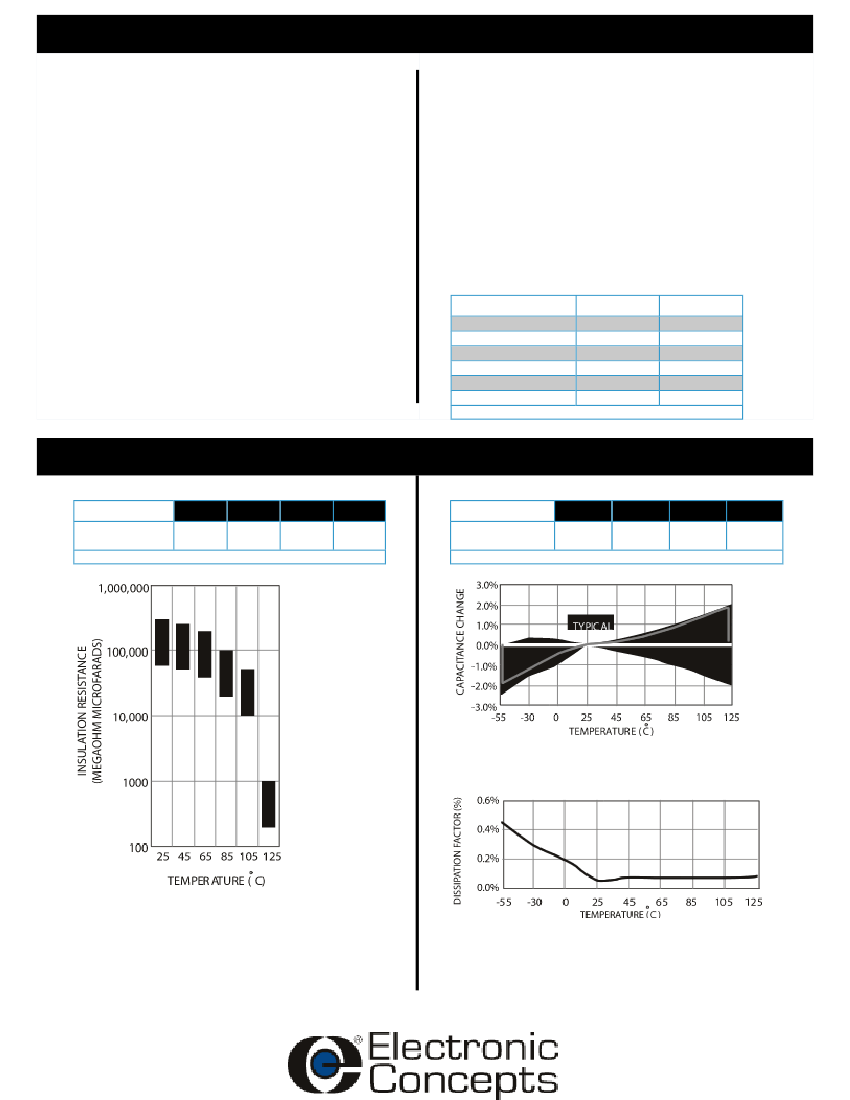

Characteristics
Insulation Resistance
Temperature(°C)
25
Megaohms x
100,000
Microfarads
85
7,000
125
700
Capacitance Change
Temperature(°C)
-55
Percentage Change
-2.5
(typical)
25
0
85
±1.0
125
±2.0
Insulation Resistance
Capacitance Change
Dissipation Factor
When measured at 1KHz, the dissipation factor will not exceed
0.2% form +25° to 125°C
Dielectric Strength
Capacitors will withstand a DC potential of 200% rated
voltage for two (2) minutes without damage or
breakdown.
Test voltage is applied and discharged through a
resistance of 1 OHM per volt minimum, and at 25°C.
Electrical Data
VALUE
IN MFD 30 50
0.0010
-
-
0.0012
-
-
0.0015
-
-
0.0018
-
-
0.0022
-
-
0.0027
-
-
0.0033
-
-
0.0039
-
-
0.0047
-
-
0.0056
-
-
0.0068
-
-
0.0082
-
-
-
-
-
VDC
100
-
-
-
-
-
-
-
-
-
1
1
1
-
150
-
-
-
-
-
-
1
1
1
2
2
-
-
VALUE
200 300 IN MFD 30 50
-
1
0.010
-
1
-
1
0.012
-
1
-
1
0.015
-
1
-
1
0.018
-
1
1
2
0.022
-
1
1
2
0.027
-
1
2
3
0.033
1 2
2
3
0.039
1 2
2
3
0.047
1 2
-
3
0.056
2 0
-
3
0.068
2 3
-
3
0.082
2 3
-
-
-
-
-
CASE NUMBER
VDC
100
2
2
2
-
-
-
3
3
3
3
4
4
-
150
-
-
-
-
3
3
4
4
-
5
5
6
-
VALUE
200 300 IN MFD 30 50
-
3
0.10
-
3
3
4
0.12
-
3
3
4
0.15
-
3
3
5
0.18
3 4
4
5
0.22
3 4
4
5
0.27
3 4
5
6
0.33
4 5
5
6
0.39
4 5
5
-
0.47
5 6
6
-
0.56
5 6
6
-
0.68
5 6
-
-
0.82
6
-
-
-
1.00
6
-
VDC
100
5
5
6
6
6
-
-
-
-
-
-
-
-
150
6
-
-
-
-
-
-
-
-
-
-
-
-
200 300
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

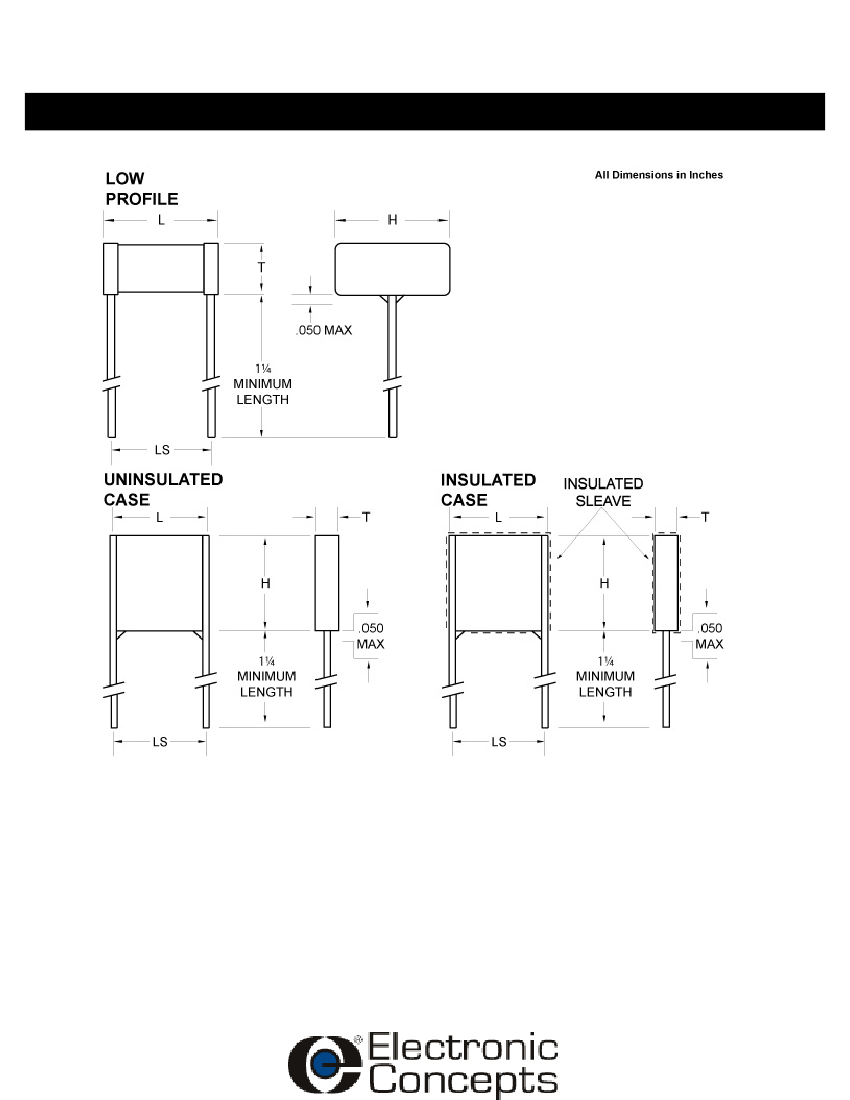

CASE DIMENSIONS
T
H
L
+0.030
+ 0.030
+ 0.030
- 0.010
- 0.010
- 0.020
0.110
0.210
0.240
0.170
0.270
0.240
0.170
0.270
0.340
0.190
0.380
0.340
0.190
0.380
0.450
0.220
0.500
0.450
LS
±0.015
0.200
0.200
0.300
0.300
0.400
0.400
CASE NO.
1
2
3
4
5
6
Note:
When specifying insulated case capacitors, add 0.025" to the T and L dimensions, and 0.040" to the H dimension.
ADDITIONAL INFORMATION
Because of it's sub miniature size, care must be taken to assure that the body temperature of the HECR
capacitor does not exceed 125°C during installation, so as not to adversely affect performance.
How To Order
TYPE
Metallized Polycarbonate - Hermetically Sealed
HECR
A
102
K
STYLE / VOLTAGE
A=30VDC, B=50VDC, D=100VDC, E=150VDC, F=200VDC, H=300VDC
CAPACITANCE IN PICOFARADS
TOLERANCE
The first digits are significant, the third digit represents the number of zeros
to follow to express capacitance in picofarads.
K=±10% J=±5% G=±2% F=±1%
Marking And Date Code
All capacitors are marked with company initials "EC", corporate logo or EC trademark—in addition to type HECR, capacitance,
tolerance, rated DC working voltage and date code. The first two digits of the date code represent the year, the second two digits the
week, i.e., 0952 is the 52nd week of 2009, 0902 is the second week of 2009. NOTE: Those supplied to MIL-C-39022/11 are marked
in accordance with the military specification.
Quality Assurance
Major emphasis is placed on quality assurance. EC is an ISO 9001-2000 and AS9100:2004 Certified Company. Raw material
inspection and the use of SPC manufacturing procedures assure the highest quality standards. Procedures are fully described in the
EC Quality Control Manual. Electronic Concepts will continue to advance the state-of-the-art by utilizing leading edge technology,
compact capacitor designs and establishing reliability procedures.
