BG035-18A-0-0320-0180-0290-N-B datasheet, PDF

Datasheet> All Categories > The connector> The connector> BG035-18A-0-0320-0180-0290-N-B

BG035-18A-0-0320-0180-0290-N-B: DescriptionBoard Connector, 18 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Plug,; CategoryThe connector The connector; File Size176KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BG035-18A-0-0320-0180-0290-N-B Overview

Board Connector, 18 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Plug,

BG035-18A-0-0320-0180-0290-N-B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Global Connector Technology
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.118 inch
subject depth	0.283 inch
body length	1.8 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	100 Cycles
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	BG035
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	18

Preview

Download Datasheet

View All

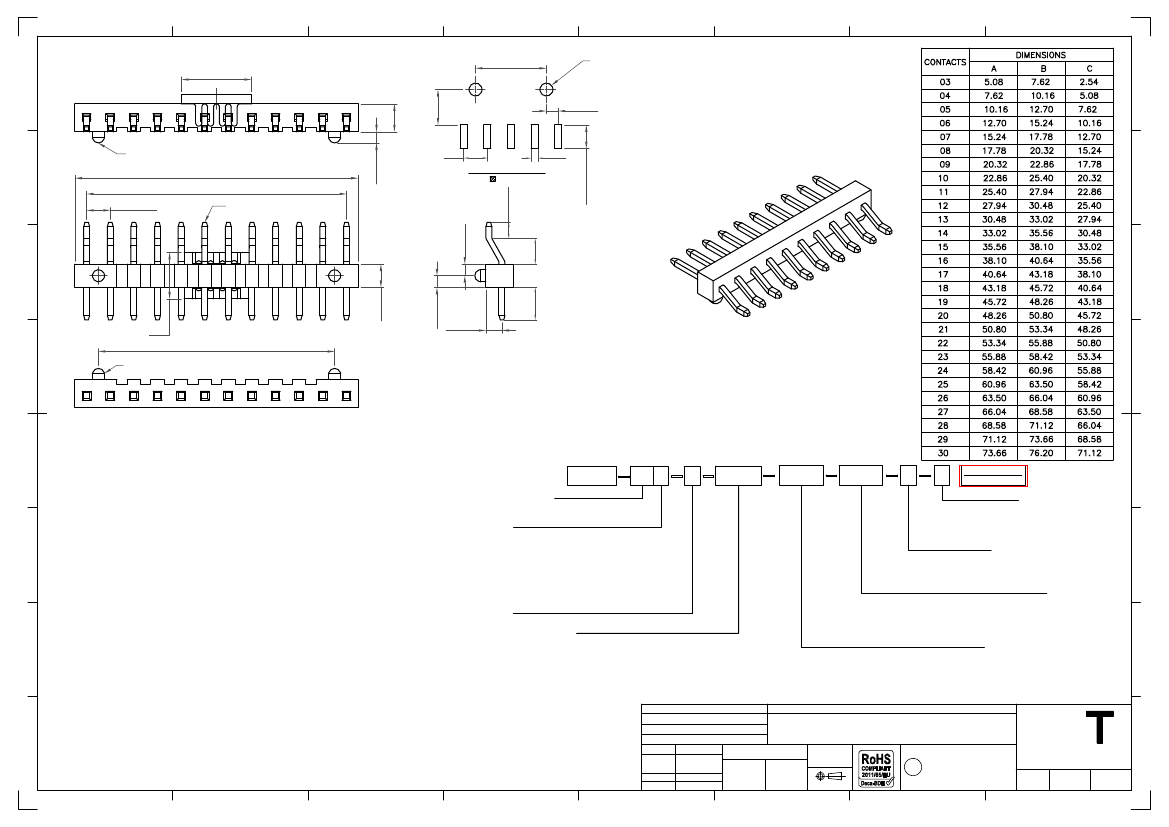

C±0.25

7.50

F+1.0mm

Ø1.40

LOCATING PEGS

3.00

1.27

2.54

1.02

Recommended PCB Layout

Solder Area

2.54

B±0.38

A±0.25

0.64 sq. Pin

1.25

E±0.2

2.50

D±0.2

1.25

5.00

C±0.25

1.73

Ø1.30

F±0.2

Specifications

规格

Material

物料

Insulator

绝缘½

Standard

标准物料

:Polyamide, Nylon 6T, UL 94V-0

Option

可选物料

: Polyester, LCP, UL 94V-0

Contact Terminal

接触端子

: Copper Alloy

Plating

电镀

Contact Terminal

接触端子部分

: See ordering Grid

Electrical

电气

Current Rating

电流额定值

: 3 Amp

Contact Resistance

接触电阻值

: 20 m

Ω

max.

Insulation Resistance

绝缘电阻值

: 1000 M

Ω

min.

Dielectric Withstand Voltage

寒耐电压

: 600 V AC

Mechanical & Environmental

机械

环境

Operating Temperature

工½温度

: -40°C to +105°C

Ordering Grid

E+1.0mm

1.20

BG035

No. of Contacts

03 to 30

XX X

XXXX

Request Samples

and Quotation

Contact Plating

A = Gold Flash All Over

(Standard)

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Locating Peg

0 = No Peg

1 = With Peg Dimension D (1/100mm)

(Post Length)

0320

3.20mm

(Standard)

Or specify Dimension D

eg 0250 = 2.50mm

Packing Options

B = Tape and Reel with Cap

(Standard)

D = Tube

E = Tube with Cap

Insulator Material

N = Nylon 6T

(Standard)

L = LCP

Dimension F (1/100mm)

(Tail Bend Length)

0290

2.90mm

(Standard)

Or specify Dimension F

eg 0250 = 2.50mm

Dimension E (1/100mm)

(Tail Foot Length)

0180 = 1.80mm

(Standard)

Or specify Dimension E

eg 0250 = 2.50mm

Product Description

Mates with

配套之母座

(Subject to pin length

在端子长度适合的条件下

)

BG090

BG095

BG096

BG100

BG110

BG115

BG125

BG130

BG135

BG145

BG205

Soldering Process

可焊性

Nylon 6T (Standard

标准物料

) -

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

: 230°C for 5-10 sec.

Manual Solder

人工焊接

: 350°C for 3-5sec

LCP (Option

可选物料

) -

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

: 250°C for 5-10 sec

Manual Solder

人工焊接

: 350°C for 3-5 sec

Part Number

BG035

Drawing Date

1st November 2006

Detail

Revision

Date

AJO

Drawing

Release

03/10/11

Length

2.54mm Pitch Pin Header

Single Row, Surface Mount, Horizontal

Tolerances

(Except as Noted)

Angle

X.° ± 5°

X. ± 0.30

X.X° ± 2°

X.X ± 0.20

X.XX ± 0.15 X.XX° ± 1°

X.XXX ± 0.10 X.XXX° ± 0.5°

Units:

Metric (mm)

3rd Angle Projection

This drawing is confidential and

Technology, Ltd (GCT).

This drawing must not be copied

or disclosed without written

consent. E & OE

Global Connector Technology

Drawn By

LYH

www.gct.co

Not to

Scale

Sheet No.

1/1
