3320809103541 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 3320809103541

Preview

3320809103541: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,; CategoryThe connector The connector; File Size141KB，1 Pages; ManufacturerStelvio Kontek SpA

Download Datasheet Parametric Compare View All

3320809103541 Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,

3320809103541 Parametric

Parameter Name	Attribute value
Maker	Stelvio Kontek SpA
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN (157) OVER NICKEL (50)
Contact completed and terminated	TIN (157) OVER NICKEL (50)
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

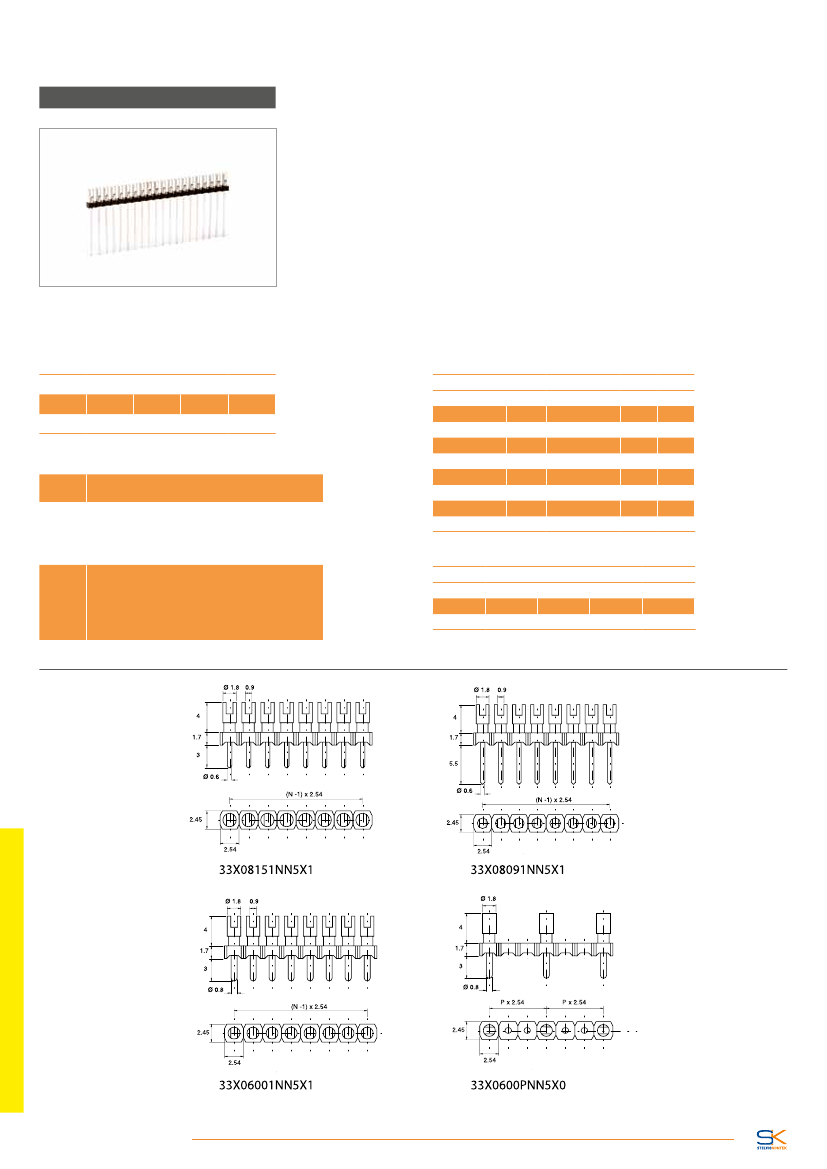

STRIP TERMINALS

“U”PINS STRIP TERMINALS COMPONENT SUPPORT STRIP

“U”PINS STRIP

Features

Strip Terminal pitch 2.54 mm

Headers breakable to required length

From 2 to 20 positions

Housing: Black glass filled Thermoplastic UL 94V0

Temperature rating: -40 °C to 125 °C

Dielectric withstanding: 1000 V AC

Insulation resistance: 1000 MΩ mini

Cardboard boxes

Material

Electrical

Packaging

Product Code

A

xxxxxxx

B

1xx

C

5x0

D

E

Version

3310815

P

1

3320815

3320809

3310809

1

(a)

20

nn

Plating

500

(b)

Au

Sn

Au

Sn

Au

500

540

500

540

A

Version, see table

B

Number of pins max

3310600

3320600

3310600

*P

20

Au

Sn

C

Plating

0 Gold

0.2 μm over Ni 1.27 μm

4 Tin

4 μm over Ni 1.27 μm

Pitch

P

Pitch

P

2.54

5

12.7

1

5.08

6

15.24

2

7.62

7

17.78

3

10.16

8

20.32

4

“Due to technical progress, all design, specification and components are subject to change without notice”.

230

‧

stelvio-kontek.com

3320809103541 Related Products

	3320809103541
Description	Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,
Maker	Stelvio Kontek SpA
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN (157) OVER NICKEL (50)
Contact completed and terminated	TIN (157) OVER NICKEL (50)
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0

Recommended Resources

Do you know the overview of flip chip for automotive applications?

Typical applications of three-terminal integrated voltage regulators (a)

Gentleman AM50 amplifier circuit

battery charger

400v dc switching circuit

Computer motherboard circuit diagram 815 4_37
