1821600263

Description

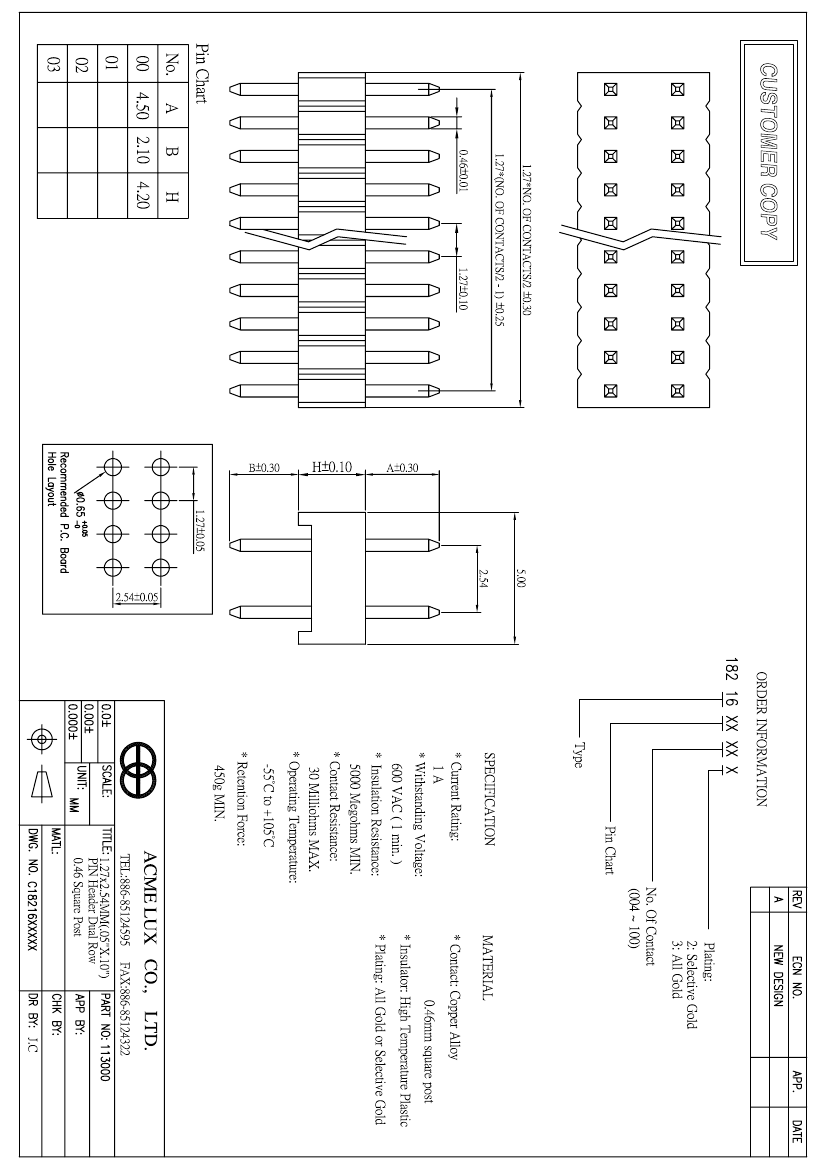

Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle
CategoryThe connector    The connector
File Size225KB,1 Pages
ManufacturerAcmelux Taiwan Inc
Websitehttp://www.acmelux.com
Download Datasheet Parametric View All

1821600263 Overview

Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle

1821600263 Parametric

Parameter NameAttribute value
MakerAcmelux Taiwan Inc
Reach Compliance Codeunknow
ECCN codeEAR99
Other features0.46MM SQUARE POST
body width0.197 inch
subject depth0.165 inch
body length0.65 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedGOLD
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance30 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage600VAC V
Insulation resistance5000000000 Ω
insulator materialTHERMOPLASTIC
Manufacturer's serial number182
Plug contact pitch0.05 inch
Match contact row spacing0.1 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.083 inch
Terminal pitch1.27 mm
Termination typeSOLDER
Total number of contacts26
