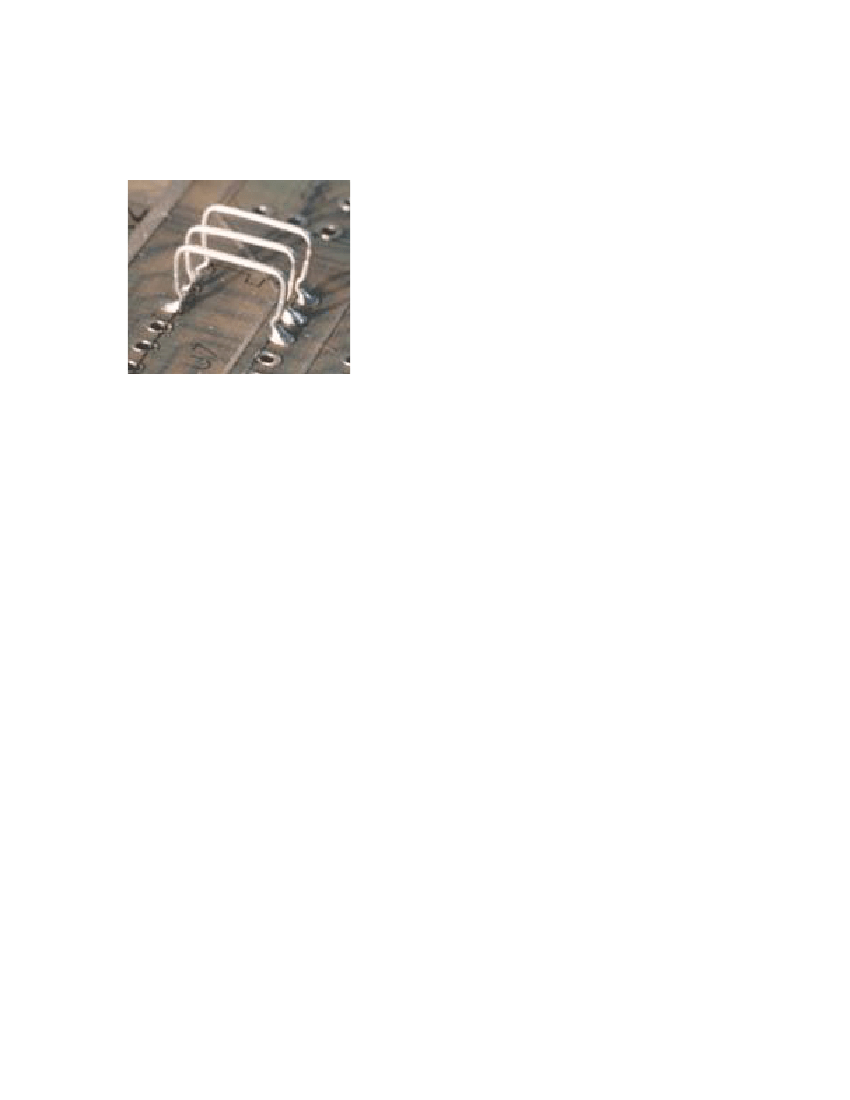

PJ-201 Series Print Circuit Preform Jumpers
Print Circuit Preform Jumpers
Specifications
Materials:
Contact Material:
.020" diameter 70/30 Brass Wire
Finish:
.0001" Matte Tin over .00005 Nickel

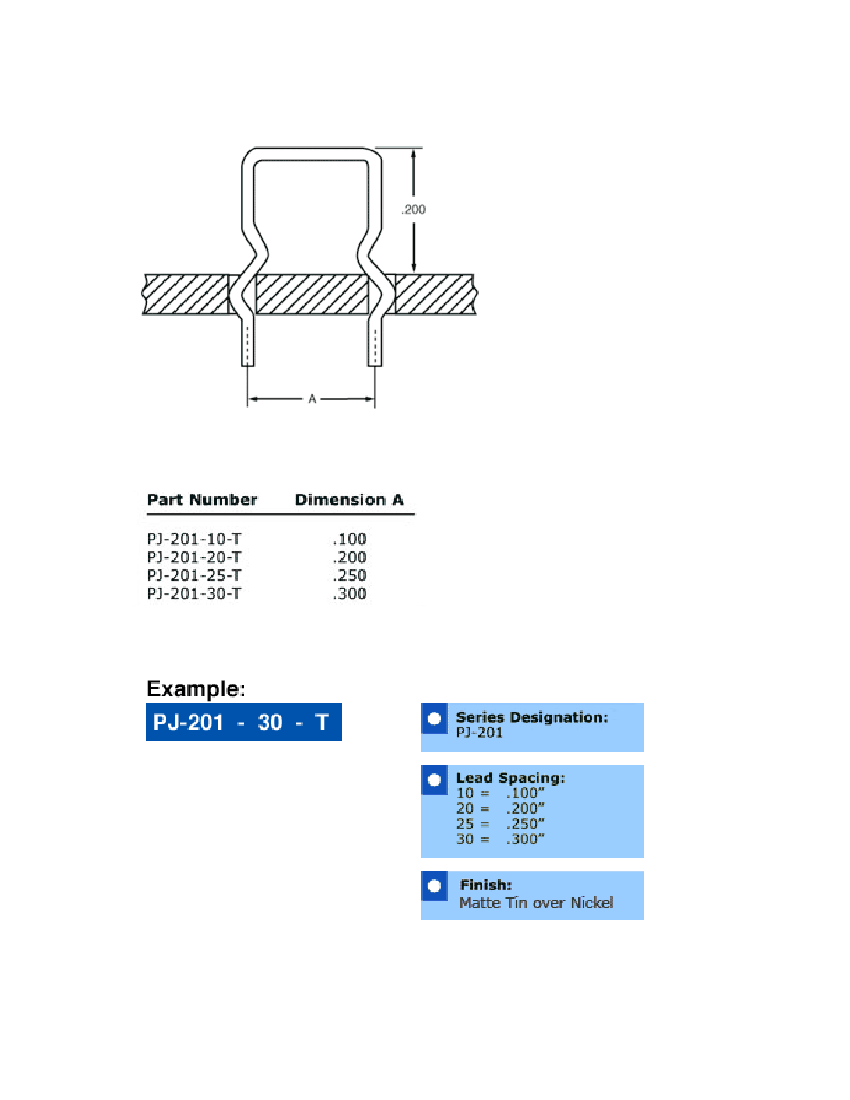

Mechanical:
Mounting Holes:
Two .040" diameter +/- .003" plated through holes
Electrical:
Maximum Current:
2 amperes
Components Corporation | ComponentsCorp.com
Product Description
The PJ-201 series is the low cost alternative for the circuit designer's printed
circuit mounted, jumper requirements. Numerous standard offerings in spacing
dimensions eliminate time consuming and costly fabrication of jumpers by
production personnel. The preset, "above board" positioning of this series
guarantees adequate clearance across circuit board paths and precludes the
need for expensive teflon insulation in many applications.
The exclusive detented leg design insures positive positioning and retention of
the PJ-201 series during wave soldering operations. Due to its spring brass
construction, this jumper will provide a rugged installation, resistant to damage
and possible short circuits.
As well as serving a jumper function, the PJ-201 can provide a simple, reliable
and economical means for the "hard wire" programming of circuit board logic.
Operations of multi-function, logic card modules may be permanently dedicated
through the cutting of appropriate PJ-201 jumpers on the board.
Certificate of Compliance with Directive 2002/95/EC RoHS and REACH
Regulations EC 1907/2006
This is to certify that Components Corporation designs, manufactures and
supplies products to our customers that are in compliance with RoHS Directive
2002/95/EC and REACH Regulations EC 1907/2006. This also pertains to
procurement of raw material, component parts and processes.
