CVS-1V4R7MD55-R

Description
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 4.7uF, Surface Mount, 1717, ROHS COMPLIANT
CategoryPassive components    capacitor
File Size137KB,1 Pages
ManufacturerCal-Chip Electronics
Environmental Compliance
Download Datasheet Parametric View All

CVS-1V4R7MD55-R Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 4.7uF, Surface Mount, 1717, ROHS COMPLIANT

CVS-1V4R7MD55-R Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerCal-Chip Electronics
package instruction, 1717
Reach Compliance Codecompli
ECCN codeEAR99
capacitance4.7 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
dielectric materialsALUMINUM (WET)
Manufacturer's serial numberCVS
Installation featuresSURFACE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
Package shapeCYLINDRICAL PACKAGE
method of packingTR, 15 INCH
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)35 V
ripple current14 mA
size code1717
surface mountYES
Delta tangent0.13
Terminal shapeFLAT

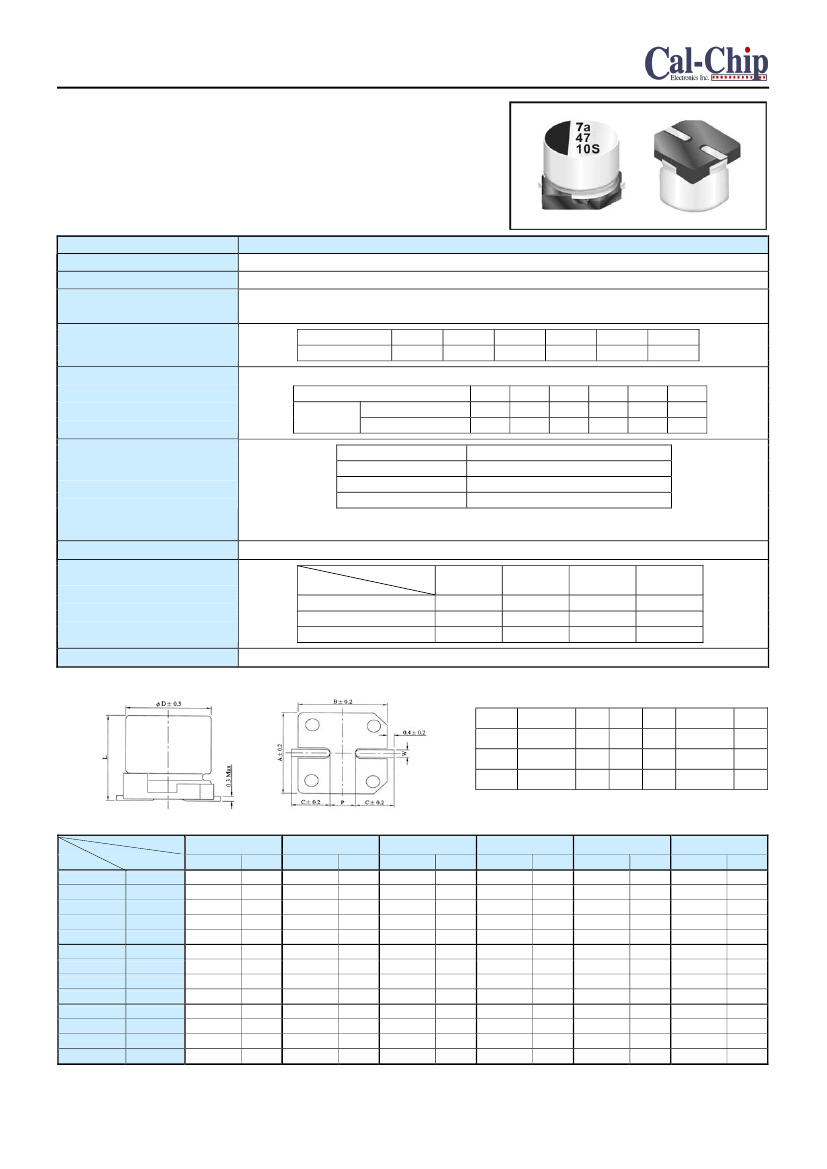

CVS-1V4R7MD55-R Preview

CVS
Features
SMD Aluminum Electrolytic Capacitors
4
½
6.3φ, 105
, 1,000 hours assured
Vertical chip type miniaturized for 5.5mm high capacitor
Designed for surface mounting on high density PC board.
RoHS Compliance
SPECIFICATIONS
Items
Operating Temperature Range
Capacitance Tolerance
Leakage Current (at 20℃)
Dissipation Factor
(Tanδat 120Hz, 20℃)
Low Temperature
Characteristics (at 120Hz)
Performance
-55℃ ~ +105℃
±20%
I = 0.01CV or 3 (μA) whichever is greater (after 2 minutes)
Where, C= rated capacitance in
μF.
V = rated DC working voltage in V.
Rated Voltage
Tanδ(max)
6.3
0.30
10
0.26
16
0.22
25
0.16
35
0.13
50
0.12
(at 120Hz, 20℃)
Impedance ratio shall not exceed the values given in the table below.
Rated Voltage
6.3
10
16
25
Z(-25℃)/Z(+20℃)
4
3
2
2
Impedance
Ratio
Z(-40℃)/Z(+20℃)
8
5
4
3
35
2
3
50
2
3
Load Life Test
Test Time
1,000 Hrs
Capacitance Change
Within
±20%
of initial value
Dissipation Factor
Less than 200% of specified value
Leakage Current
Within specified value
* The above specifications shall be satisfied when the capacitors are restored to 20℃after the rated voltage
applied for 1,000 hrs at 105℃.
Test time: 1,000 hrs; other items are the same as those for the load life test.
Freq.(Hz)
50
0.8
0.8
0.8
120
1.0
1.0
1.0
1K
1.15
1.25
1.35
10K up
1.25
1.40
1.50
Shelf Life Test
Ripple Current &
Frequency Multipliers
V.DC(V)
Under 16
25 ~ 35
50
Other Standards
JIS C 5101-1, -18
DIAGRAM OF DIMENSIONS
LEAD SPACING AND DIAMETER
φD
4
5
6.3
L
5.3±0.2
5.3±0.2
5.3±0.2
A
4.3
5.3
6.6
B
4.3
5.3
6.6
C
2.0
2.3
2.7
W
0.5 to 0.8
0.5 to 0.8
0.5 to 0.8
Unit: mm
P±0.2
1.0
1.5
2.0
DIMENSION & PERMISSIBLE RIPPLE CURRENT
V.DC
μF
0.1
0.22
0.33
0.47
1
2.2
3.3
4.7
10
22
33
47
100
Dimension:
φD
× L(mm)
Ripple Current: mA/rms at 120 Hz, 105°C
16V (1C)
mA
φD×L
25V (1E)
mA
φD×L
35V (1V)
mA
φD×L
50V (1H)
mA
φD×L
4×5.3
4×5.3
4×5.3
4×5.3
4×5.3
4×5.3
4×5.3
4×5.3
12
21
36
44
60
4×5.3
5×5.3
6.3×5.3
14
23
50
5×5.3
6.3×5.3
6.3×5.3
2
3
4
5
7
10
12
17
26
51
Contents
0R1
R22
R33
R47
010
2R2
3R3
4R7
100
220
330
470
101
6.3V (0J)
mA
φD×L
10V (1A)
mA
φD×L
4×5.3
4×5.3
5×5.3
5×5.3
6.3×5.3
21
30
36
61
5×5.3
5×5.3
6.3×5.3
6.3×5.3
15
25
31
43
65
4×5.3
5×5.3
6.3×5.3
6.3×5.3
6.3×5.3
16
28
40
47
70
5×5.3
6.3×5.3
6.3×5.3
6.3×5.3
