IS3960-206-6S datasheet, PDF - EEWORLD Datasheet

IS3960-206-6S: DescriptionRotary Switch, 6 Positions, DP6T, Latched, 1A, 28VDC, Solder Terminal, Shaft Type Actuator, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size1MB，5 Pages; ManufacturerCole Instrument Corporation; Websitehttps://www.cole-switches.com/

Download Datasheet Parametric View All

IS3960-206-6S Overview

Rotary Switch, 6 Positions, DP6T, Latched, 1A, 28VDC, Solder Terminal, Shaft Type Actuator, Panel Mount-threaded

Parameter Name	Attribute value
Maker	Cole Instrument Corporation
Reach Compliance Code	unknow
ECCN code	EAR99
Actuator type	SHAFT TYPE
body height	23.83 mm
Body length or diameter	17.45 mm
Contact (AC) maximum rated R load	1A@115VAC
Maximum contact current (AC)	1 A
Maximum contact current (DC)	1 A
Contact (DC) maximum rated R load	1A@28VDC
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Electrical life	25000 Cycle(s)
Graduation angle	60 deg
Installation features	PANEL MOUNT-THREADED
Number of positions	6
Number of switching segments	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
surface mount	NO
Switch action	LATCHED
switch function	DP6T
Switch type	ROTARY SWITCH
Termination type	SOLDER

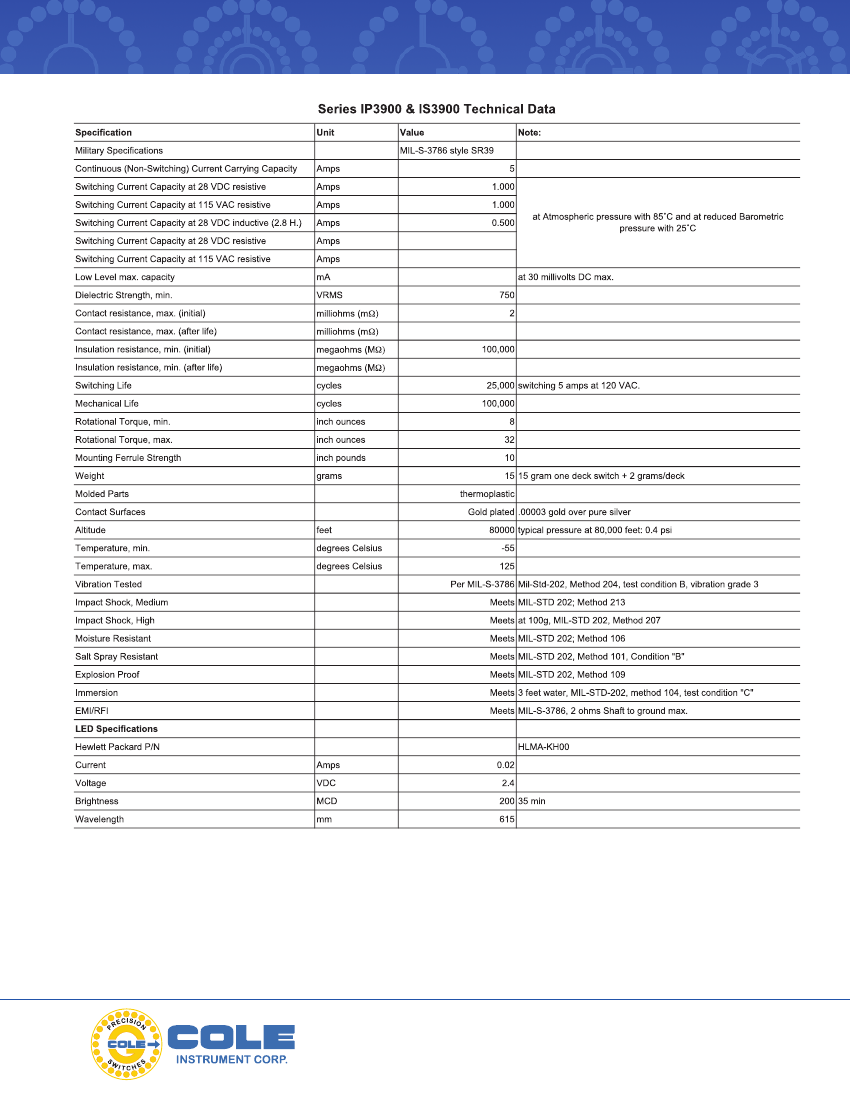

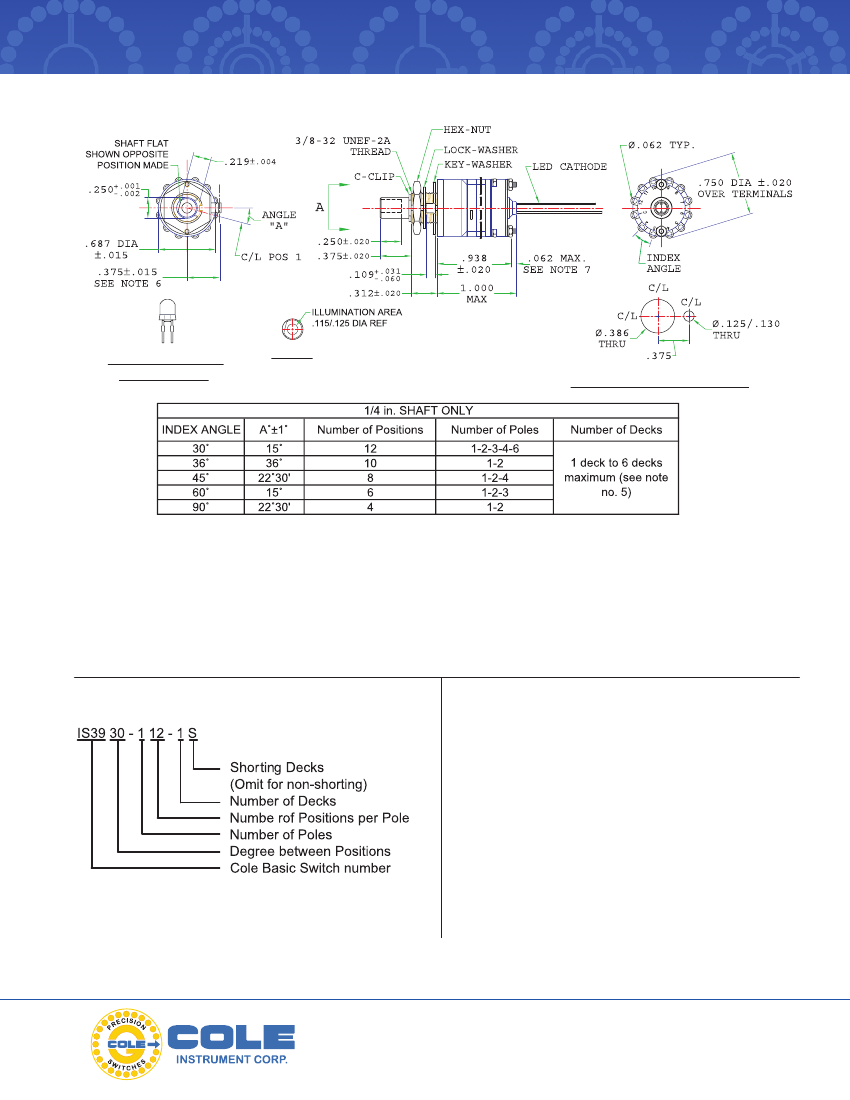

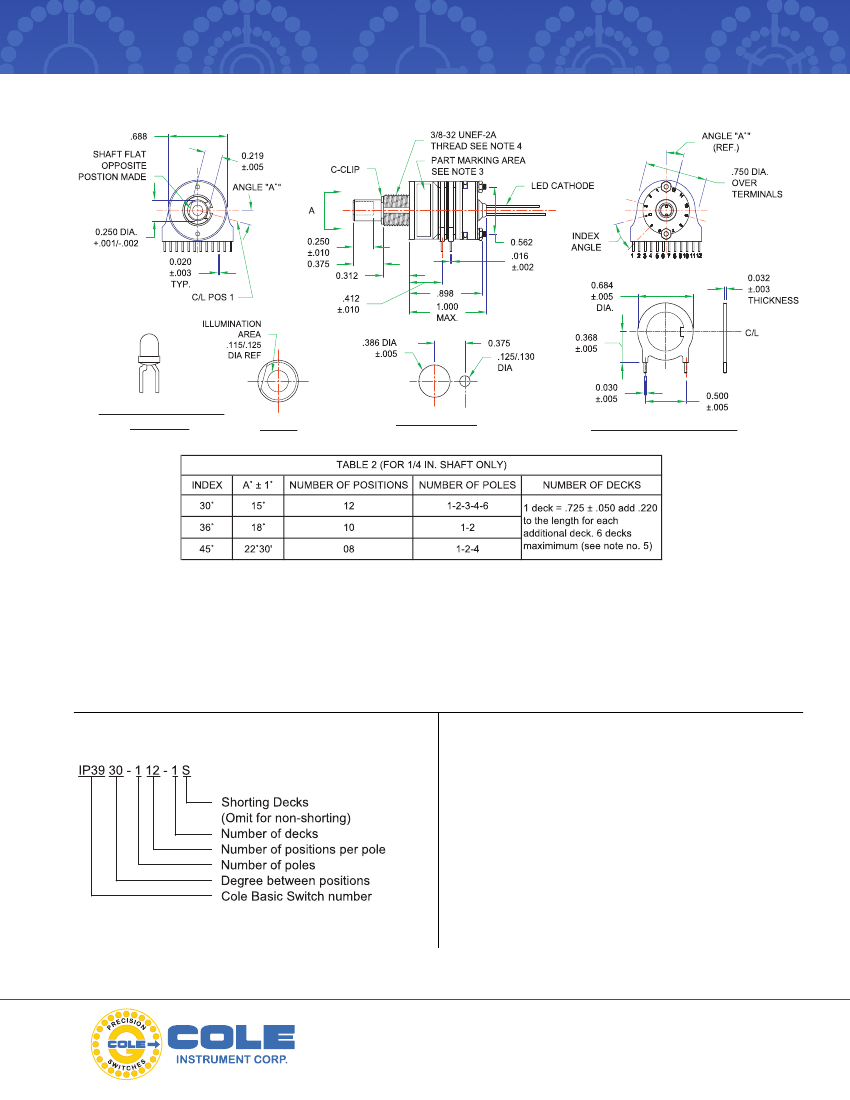

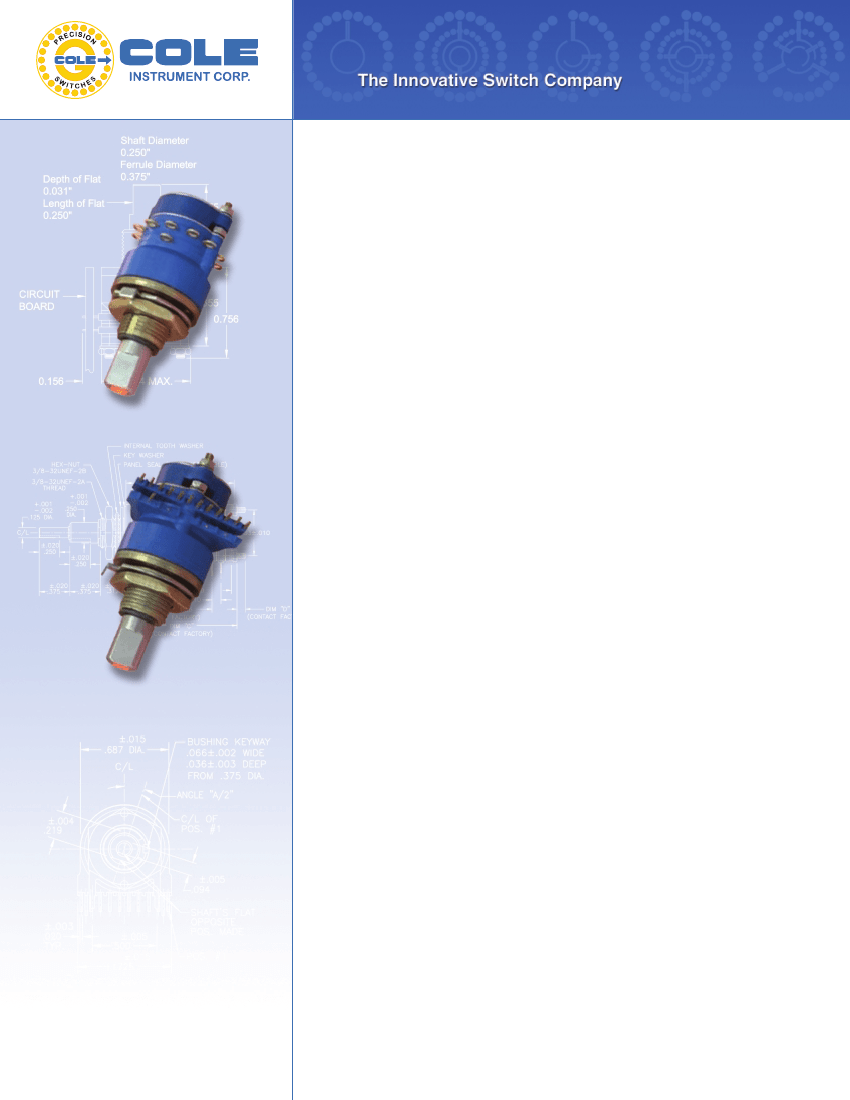

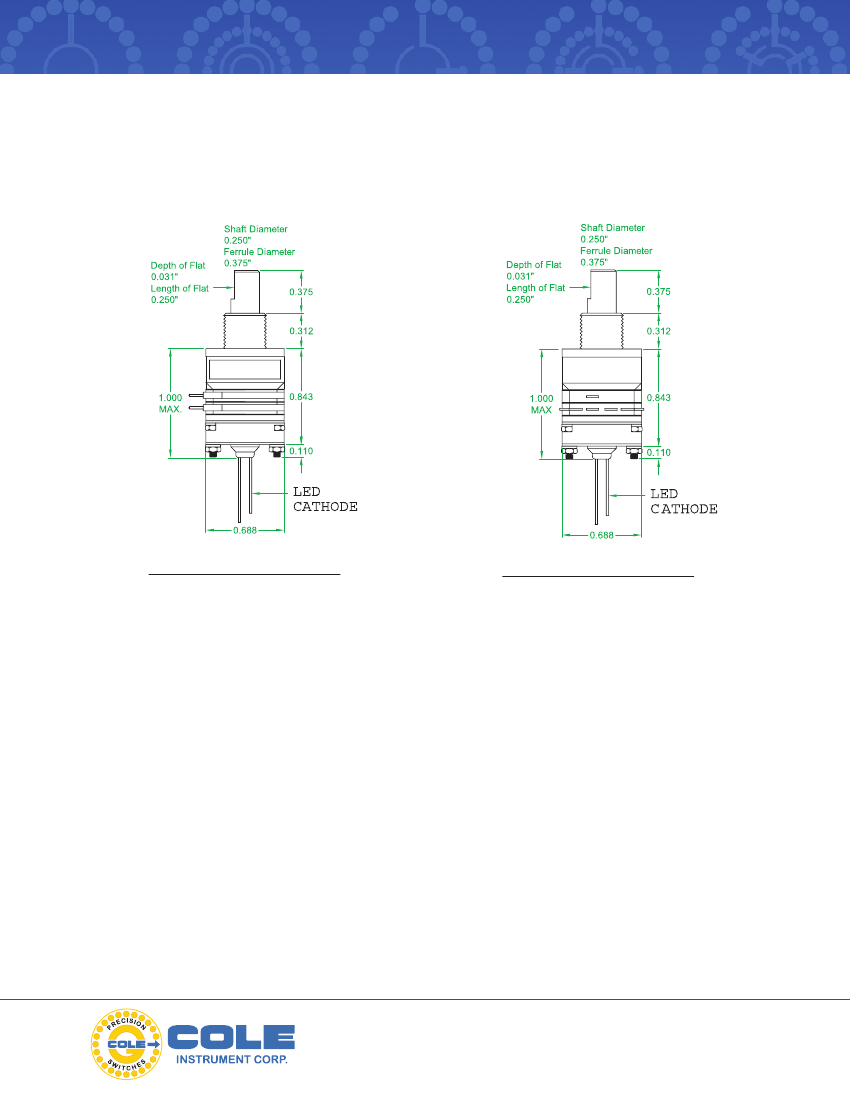

IP3900 & IS3900 SERIES

Illuminated Shaft, One Inch Diameter Body

used to light up any part of the rotary switch’s knob. An LED (Light

Emitting Diode) or an incandescent lamp is on the back end of the

switch body, and a light pipe or fiber optics brings the concentrated

light through the switch to the shaft front. The Series IP3900 and

IS3900 switch offers maximum and optimum visibility at sunlight

with minimum power levels. And at night, there is zero light leakage

through the length of the switch. Light can meet most chromaticity or

intensity requirements. The light can be an LED or a T1 incandescent

lamp. The switch features good heat sinking capabilities, and

delivers up to twice the light intensity of units at equivalent power

levels. On light failure, reclamping can be done by the customer.

Cole can provide the replacement assembly.

This switch can be used in airborne, shipboard, and submarine panel

control displays and meets the brightness requirements of high

altitude aircraft, as well as the MIL-S-901C shock requirement for

submarines and ships.

ole Instrument Corporation is proud to offer a rotary switch

with illumination through the end of the shaft front. This can be

ISO9001 CERTIFIED
