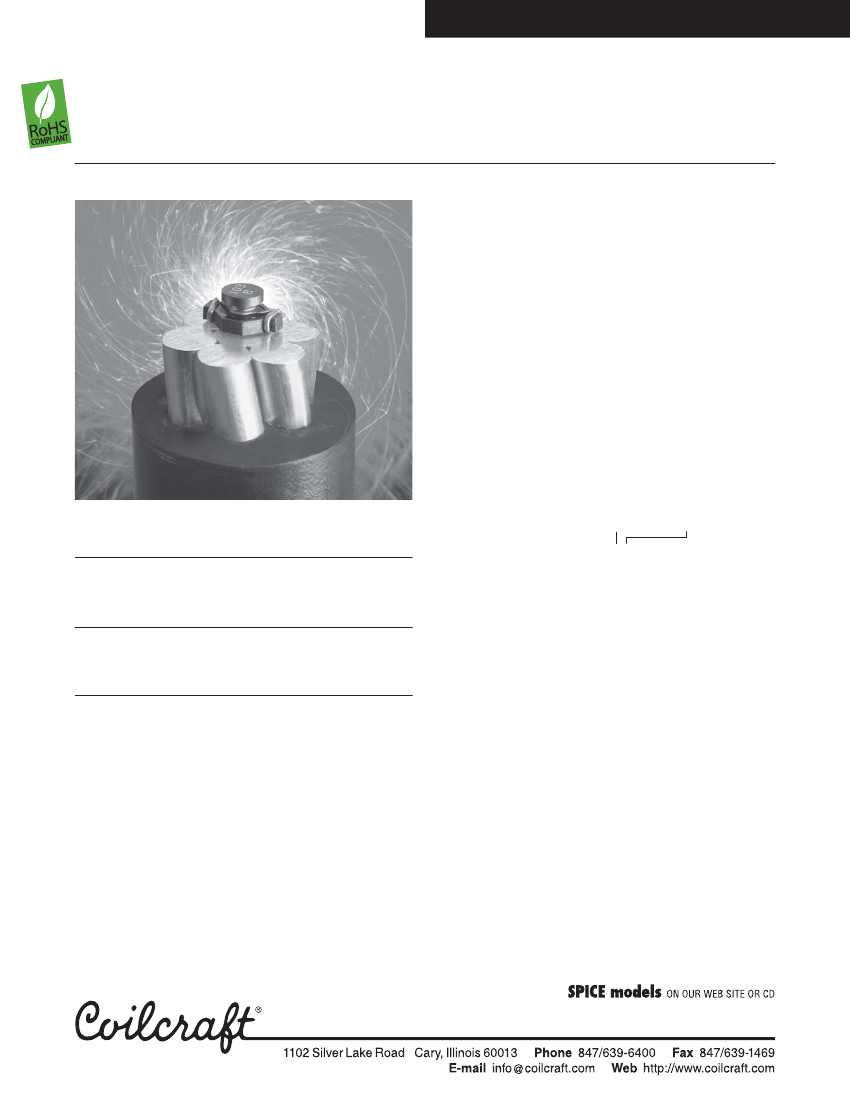

Document 207-1
SMT Power Inductors – DO1813H Series
• High-current power inductance; up to 14 A saturating current
• Rugged self-leaded construction for reliable soldering
Designer’s Kit C331
contains 3 of each part
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
RoHS compliant tin-silver over copper. Other
terminations available at additional cost.
Weight
278 – 315 mg
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+125°C with derated current
Storage temperature
Component: –40°C to +125°C.
Packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
1000 per 13″ reel Plastic tape: 16 mm wide,
0.3 mm thick, 12 mm pocket spacing, 5.4 mm pocket depth
PCB washing
Only pure water or alcohol recommended
Part number
1
DO1813H-181ML_
DO1813H-331ML_
DO1813H-561ML_
DO1813H-122ML_
DO1813H-222ML_
DO1813H-332ML_
DO1813H-472ML_
DO1813H-682ML_
DO1813H-822ML_
DO1813H-103ML_
DO1813H-153ML_
DO1813H-223ML_
DO1813H-333ML_
DO1813H-473ML_
L
L typ DCR
SRF
typ
Isat
3
Irms
4
ref
±20%
2
max
(µH)
(µH) (Ohms) (MHz) (A)
(A)
0.18
0.18 0.003 800 14.0 10.0
0.33
0.33 0.004 600 10.0
7.0
0.56
0.56 0.010 200 7.7
6.0
1.2
1.15 0.017 140 5.3
4.4
2.2
2.06 0.035 100 3.5
3.1
3.3
3.20 0.040
80 3.0
2.7
4.7
4.70 0.054
50 2.6
2.2
6.8
6.80 0.080
45 2.2
1.8
8.2
8.20 0.092
42 2.0
1.6
10.0
9.55 0.11
40 1.9
1.5
15.0
15.3
0.17
30 1.5
1.2
22.0
22.6
0.25
25 1.2
1.0
33.0
32.5
0.35
20 0.99 0.82
47.0
48.1
0.47
15 0.87 0.72
1. When ordering, please specify
termination
and
packaging
codes:
DO1813H-473MLD
Termination: L
= RoHS compliant tin-silver over copper.
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5) or
S
= non-RoHS tin-lead (63/37).
Packaging: D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape, 1000 parts per full reel.
B
= Less than full reel. In tape, but not machine-ready.
To have a leader and trailer added ($25 charge), use
code letter D instead.

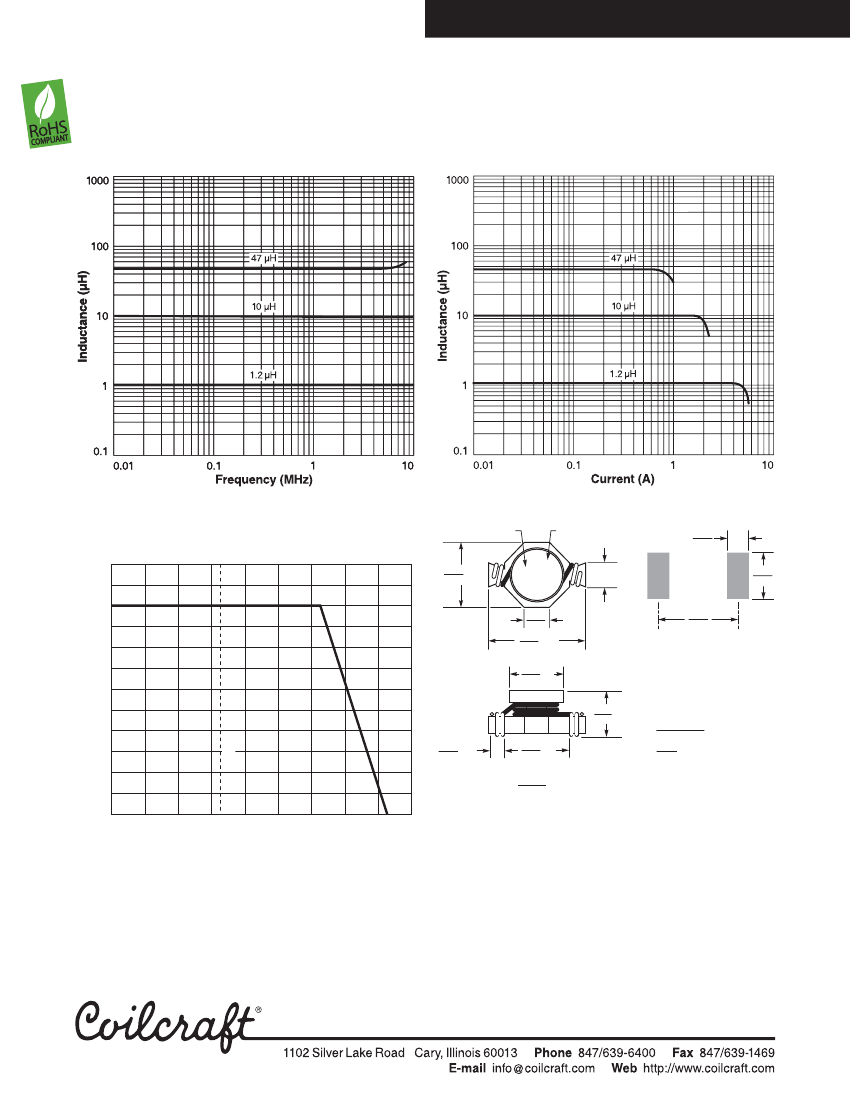

2. Inductance tested at 0.25 Vrms, 100 kHz, 0 Adc.
3. DC current at which the inductance drops 30% (typ) from its value
without current.
4. Current that causes a 40°C temperature rise from 25°C ambient.
5. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Specifications subject to change without notice.
Please check our website for latest information.
Document 207-1
Revised 10/08/08
© Coilcraft, Inc. 2009
