PDML-60-500: DescriptionSplitter And Combiner, 50MHz Min, 1000MHz Max, 2.5dB Insertion Loss-Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size437KB，1 Pages; ManufacturerCrane Co.; Environmental Compliance

Download Datasheet Parametric Compare View All

PDML-60-500 Overview

Splitter And Combiner, 50MHz Min, 1000MHz Max, 2.5dB Insertion Loss-Max,

PDML-60-500 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Crane Co.
Reach Compliance Code	compli
Other features	HIGH RELIABILITY
Characteristic impedance	50 Ω
structure	MODULE
Maximum input power (CW)	33.01 dBm
Maximum insertion loss	2.5 dB
Maximum operating frequency	1000 MHz
Minimum operating frequency	50 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	SPLITTER AND COMBINER
Maximum voltage standing wave ratio	1.5

Preview

Download Datasheet

View All

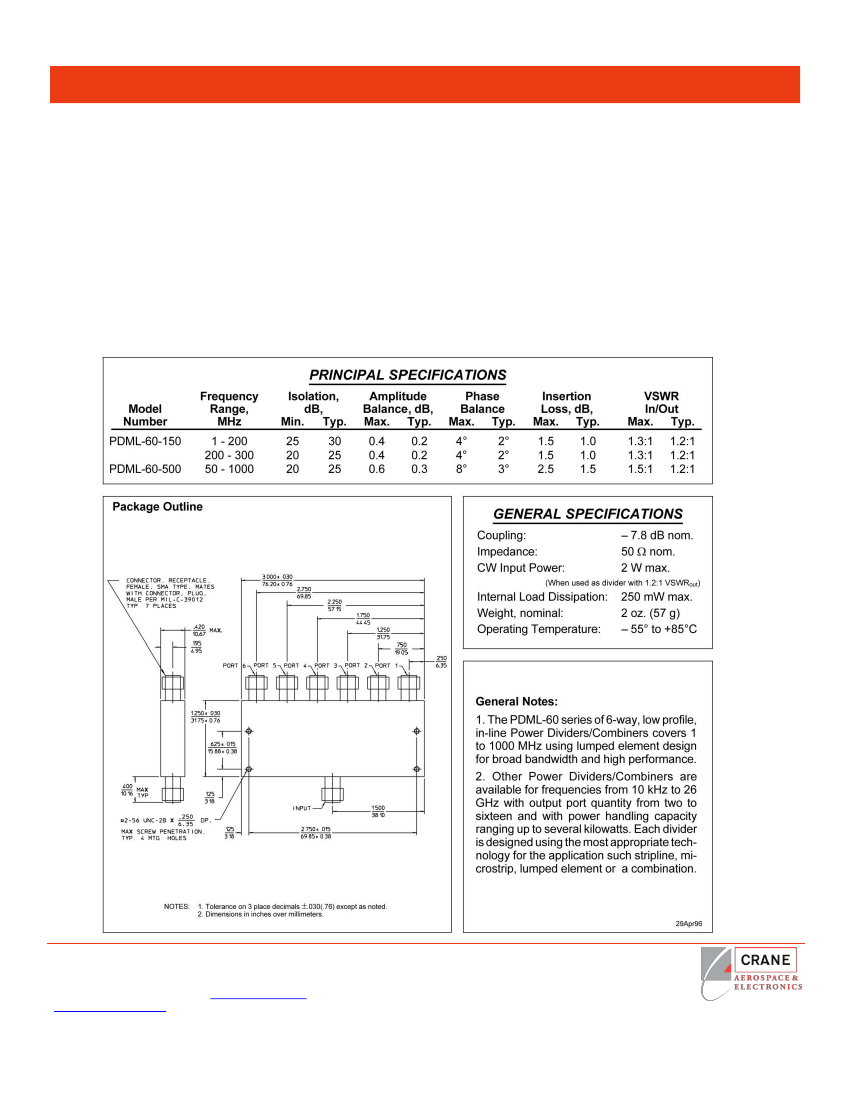

Crane Aerospace & Electronics Microwave Solutions

PDML-60A S

ERIES

– 0° P

OWER

D

IVIDERS

/C

OMBINERS

TECHNICAL FEATURE

FEATURES



1 to1000 MHz

6-way

WideBand

Low Insertion Loss

Lumped Element

Low Profile Package

SMA

Crane Aerospace & Electronics

Microwave Solutions – Merrimac Industries

41 Fairfield Place, West Caldwell, NJ 07006

+ 1.973.575.1300 ext. 1309



mw@crane-eg.com

www.craneae.com/mw

PDML60.doc. This revision supersedes all previous releases. All technical information is believed to be accurate, but no responsibility is assumed for errors.

PDML-60-500 Related Products

	PDML-60-500	PDML-60-150
Description	Splitter And Combiner, 50MHz Min, 1000MHz Max, 2.5dB Insertion Loss-Max,	Splitter And Combiner, 1MHz Min, 300MHz Max, 1.5dB Insertion Loss-Max,
Is it Rohs certified?	conform to	conform to
Maker	Crane Co.	Crane Co.
Reach Compliance Code	compli	compliant
Other features	HIGH RELIABILITY	HIGH RELIABILITY
Characteristic impedance	50 Ω	50 Ω
structure	MODULE	MODULE
Maximum input power (CW)	33.01 dBm	33.01 dBm
Maximum insertion loss	2.5 dB	1.5 dB
Maximum operating frequency	1000 MHz	300 MHz
Minimum operating frequency	50 MHz	1 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	SPLITTER AND COMBINER	SPLITTER AND COMBINER
Maximum voltage standing wave ratio	1.5	1.3
