DBCPHC3603AG1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DBCPHC3603AG1

DBCPHC3603AG1: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,3 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,BLACK; CategoryThe connector The connector; File Size92KB，1 Pages; ManufacturerAlpha 3 Manufacturing; Environmental Compliance

Download Datasheet Parametric Compare View All

DBCPHC3603AG1 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,3 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,BLACK

DBCPHC3603AG1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Alpha 3 Manufacturing
Reach Compliance Code	unknow
ECCN code	EAR99
body width	0.079 inch
body length	0.236 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	C36
Plug contact pitch	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	3

Preview

Download Datasheet

View All

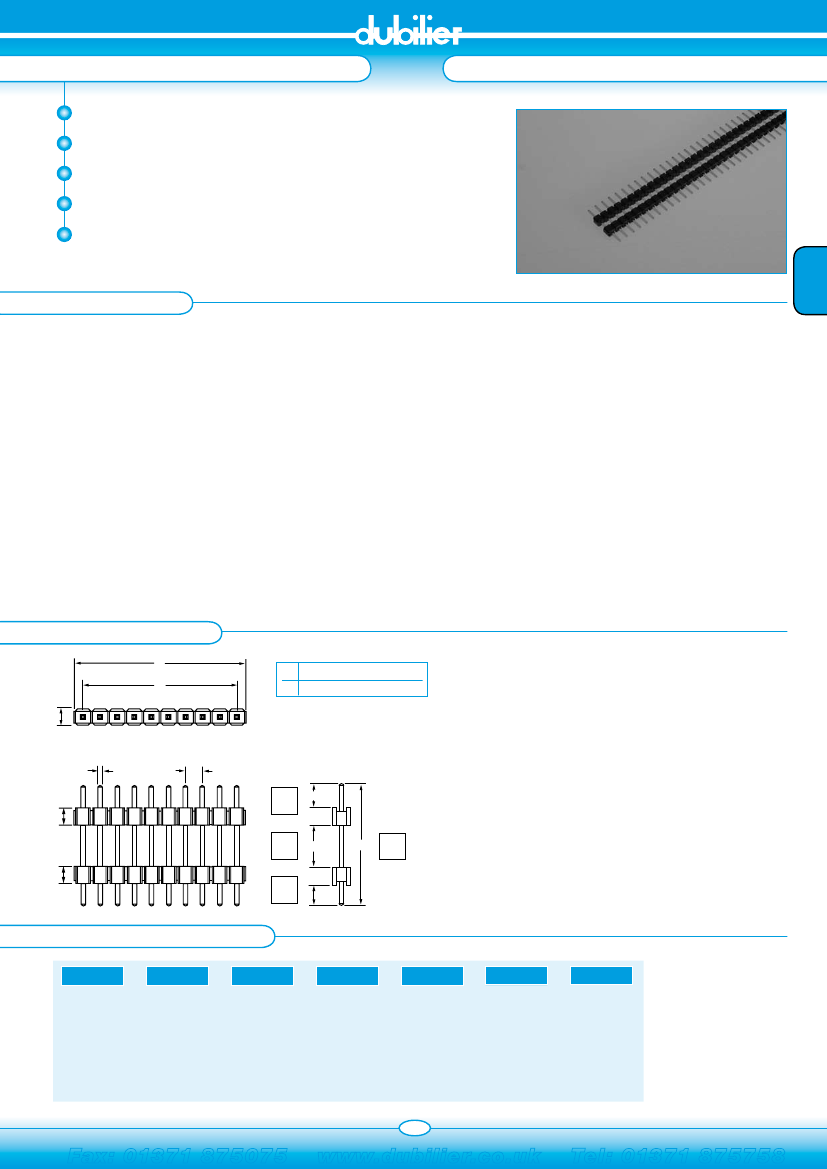

PIN HEADER

Industry compatible

Competitively priced

Gold plated contacts

No. of contacts 02 to 43

2.00mm pitch

DUAL BODY SINGLE ROW - 2.0MM

SECTION 8

SPECIFICATION

Material & Finish

Contact Material:

Insulator Material:

Current Rating:

Brass

PBT & Glass-Fibre Reinforced UL94V-0

1 A DC

30M Ω Max at 6V DC 0.3A

1000M Ω Min at 500V DC

Contact Resistance:

Insulator Resistance:

Dielectric Withstanding

Voltage:

500V AC for One Minute

-40°C to + 105°C

Operating Temperature:

OUTLINE DRAWING

2.00 * Position No.

2.00 * (Position No.-1)

2.0

0.5

2.0

ORDERING INFORMATION

DBC

Dubilier

Connectors

Pin Header

Connector

C36

Series

No. of Contacts

02 = 2way

thro to

43 = 43way

Contact Material

A = Brass

Contact Plating

G = Gold Plating

Colour

1 = Black

185

Fax: 01371 875075

www.dubilier.co.uk

Tel: 01371 875758

DBCPHC3603AG1 Related Products

	DBCPHC3603AG1	DBCPHC3609AG1	DBCPHC3608AG1	DBCPHC3607AG1	DBCPHC3611AG1	DBCPHC3602AG1
Description	HEADER CONNECTOR,PCB MNT,RECEPT,3 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,9 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,8 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,7 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,11 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,2 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,BLACK
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Alpha 3 Manufacturing	Alpha 3 Manufacturing	Alpha 3 Manufacturing	Alpha 3 Manufacturing	Alpha 3 Manufacturing	Alpha 3 Manufacturing
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown
body width	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
body length	0.236 inch	0.709 inch	0.63 inch	0.551 inch	0.866 inch	0.157 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU	AU	AU
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	C36	C36	C36	C36	C36	C36
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	3	9	8	7	11	2
