TCML22K16N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> TCML22K16N

TCML22K16N: DescriptionTantalum Capacitor, Polarized, Tantalum, 16V, 10% +Tol, 10% -Tol, 22uF, 2318,; CategoryPassive components capacitor; File Size525KB，5 Pages; ManufacturerIBS Electronics Inc

Download Datasheet Parametric Compare View All

TCML22K16N Overview

Tantalum Capacitor, Polarized, Tantalum, 16V, 10% +Tol, 10% -Tol, 22uF, 2318,

TCML22K16N Parametric

Parameter Name	Attribute value
Maker	IBS Electronics Inc
package instruction	, 2318
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	22 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
high	3.2 mm
length	5.8 mm
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, 7/13 Inch
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	16 V
series	TCM(16V,KTOL)
size code	2318
width	4.6 mm

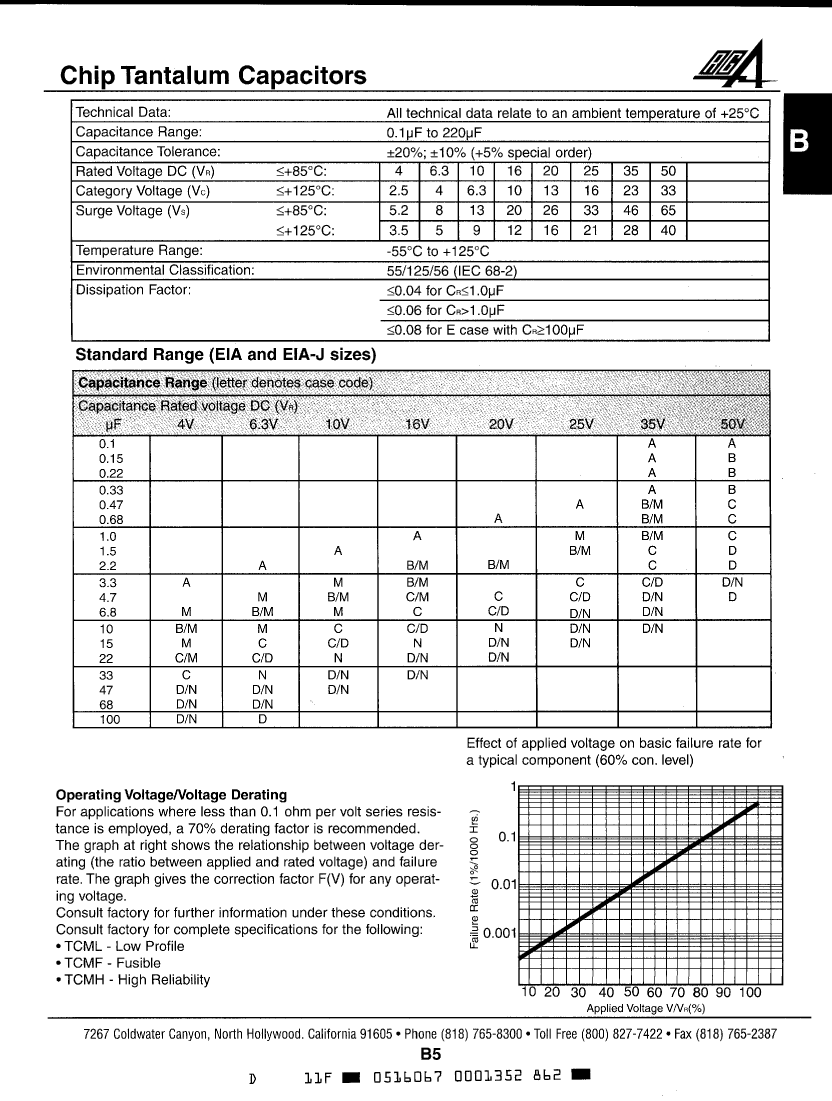

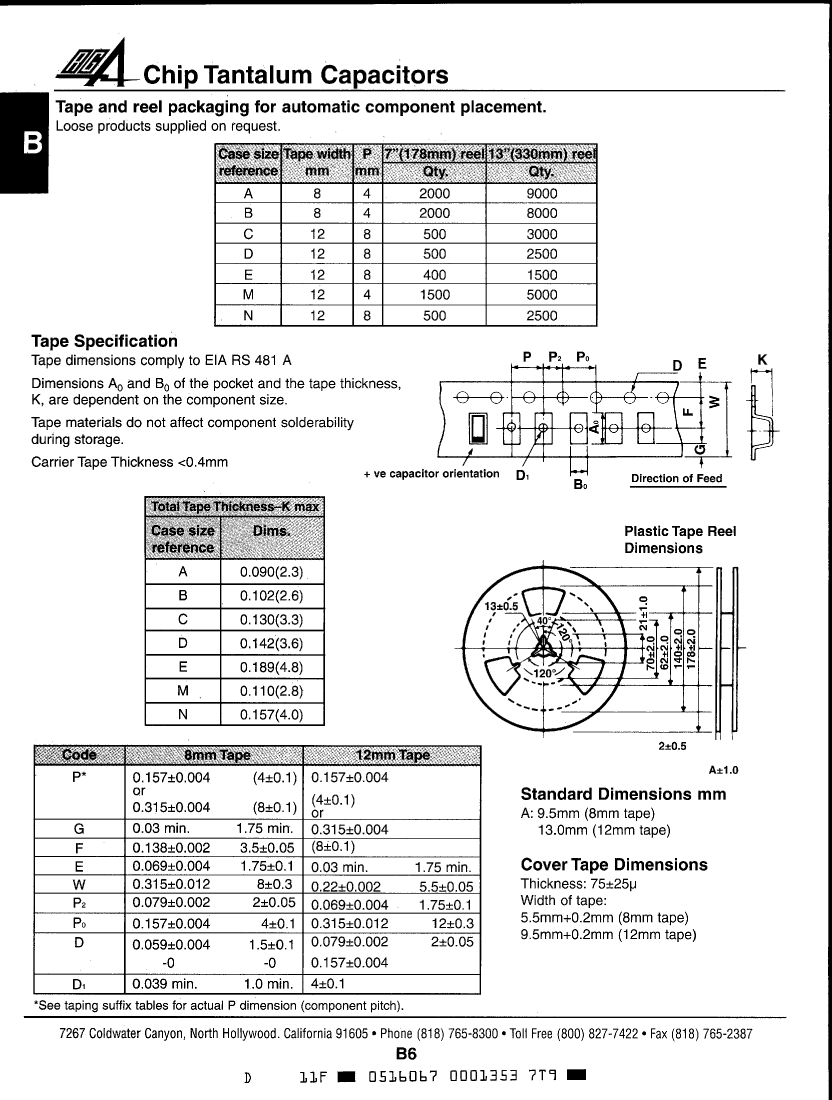

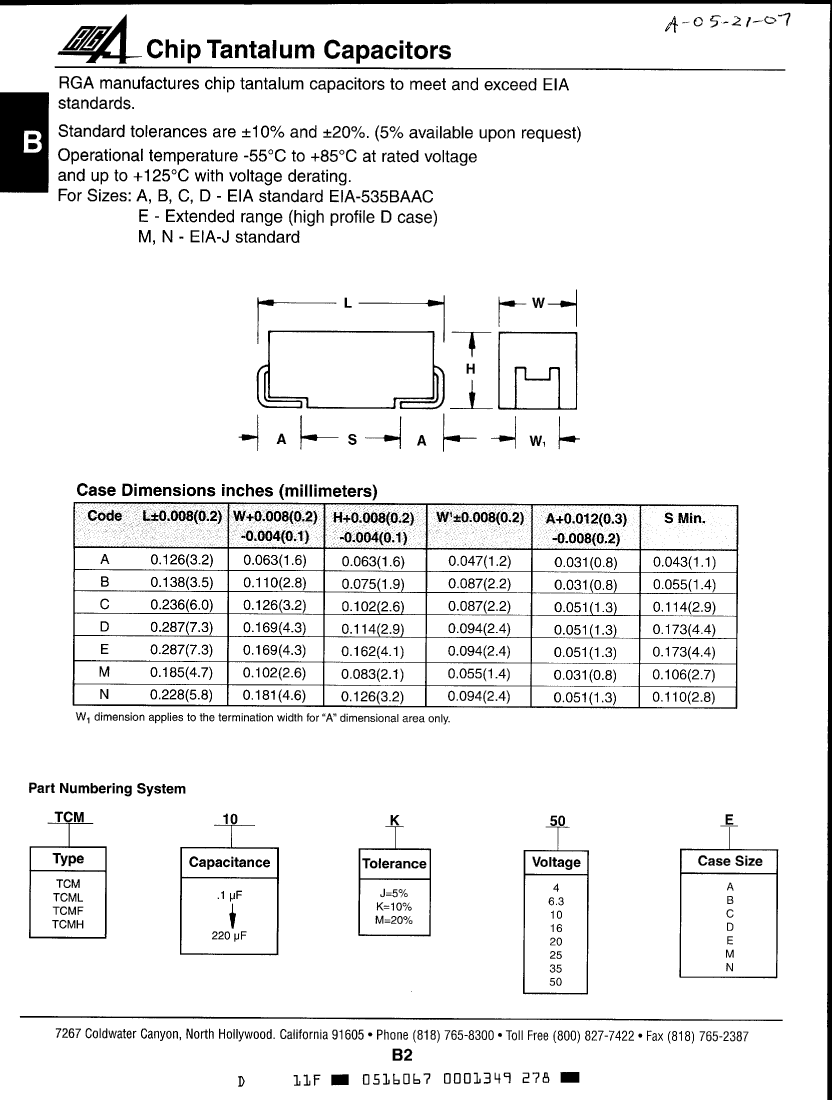

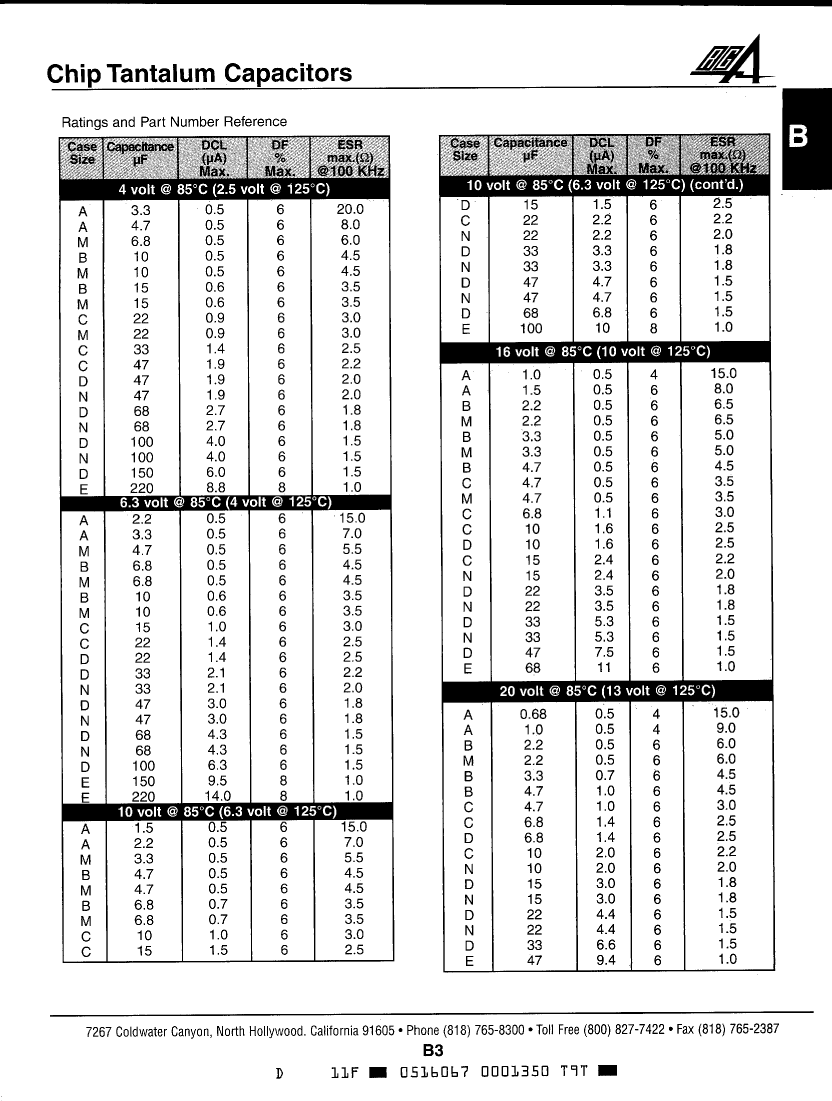

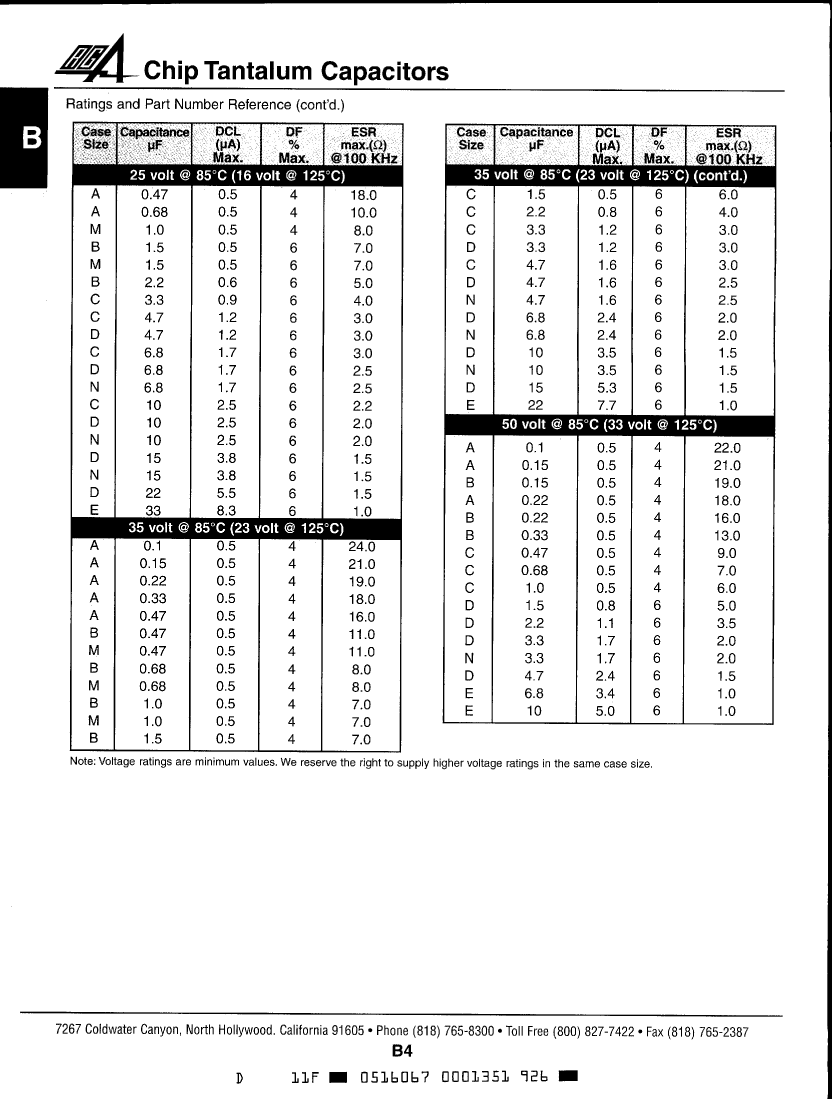

Preview

Download Datasheet

View All

TCML22K16N Related Products

	TCML22K16N	TCM150K4D	TCM3.3K35D	TCMH10K6.3M	TCML15K20D	TCMH220M6.3E	TCML220M6.3E
Description	Tantalum Capacitor, Polarized, Tantalum, 16V, 10% +Tol, 10% -Tol, 22uF, 2318,	Tantalum Capacitor, Polarized, Tantalum, 4V, 10% +Tol, 10% -Tol, 150uF, 2917,	Tantalum Capacitor, Polarized, Tantalum, 35V, 10% +Tol, 10% -Tol, 3.3uF, 2917,	Tantalum Capacitor, Polarized, Tantalum, 6.3V, 10% +Tol, 10% -Tol, 10uF, 1910,	Tantalum Capacitor, Polarized, Tantalum, 20V, 10% +Tol, 10% -Tol, 15uF, 2917,	Tantalum Capacitor, Polarized, Tantalum, 6.3V, 20% +Tol, 20% -Tol, 220uF, 2917,	Tantalum Capacitor, Polarized, Tantalum, 6.3V, 20% +Tol, 20% -Tol, 220uF, 2917,
package instruction	, 2318	, 2917	, 2917	, 1910	, 2917	, 2917	, 2917
Reach Compliance Code	unknow	unknow	unknow	unknow	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	22 µF	150 µF	3.3 µF	10 µF	15 µF	220 µF	220 µF
Capacitor type	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)
high	3.2 mm	2.9 mm	2.9 mm	2.1 mm	2.9 mm	4.1 mm	4.1 mm
length	5.8 mm	7.3 mm	7.3 mm	4.7 mm	7.3 mm	7.3 mm	7.3 mm
negative tolerance	10%	10%	10%	10%	10%	20%	20%
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package form	SMT	SMT	SMT	SMT	SMT	SMT	SMT
method of packing	TR, 7/13 Inch	TR, 7/13 Inch	TR, 7/13 Inch	TR, 7/13 Inch	TR, 7/13 Inch	TR, 7/13 Inch	TR, 7/13 Inch
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	10%	10%	10%	10%	10%	20%	20%
Rated (DC) voltage (URdc)	16 V	4 V	35 V	6.3 V	20 V	6.3 V	6.3 V
series	TCM(16V,KTOL)	TCM(4V,KTOL)	TCM(35V,KTOL)	TCM(6.3V,KTOL)	TCM(20V,KTOL)	TCM(6.3V,MTOL)	TCM(6.3V,MTOL)
size code	2318	2917	2917	1910	2917	2917	2917
width	4.6 mm	4.3 mm	4.3 mm	2.6 mm	4.3 mm	4.3 mm	4.3 mm
Maker	IBS Electronics Inc	IBS Electronics Inc	IBS Electronics Inc	IBS Electronics Inc	IBS Electronics Inc	-	-
