81.F2.P0.63.0K: DescriptionRocker Switch, SPST, Off-on, Maintained, Solder Lug Terminal, Rocker Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size910KB，1 Pages; ManufacturerLamb Industries

Download Datasheet Parametric View All

81.F2.P0.63.0K Overview

Rocker Switch, SPST, Off-on, Maintained, Solder Lug Terminal, Rocker Actuator, Panel Mount

81.F2.P0.63.0K Parametric

Parameter Name	Attribute value
Maker	Lamb Industries
Reach Compliance Code	unknow
ECCN code	EAR99
Actuator color	GREEN
Actuator length	0.354 inch
Actuator material	POLYAMIDE
Actuator type	ROCKER
Other features	IP40 STANDARD PROTECTION
body width	13.9954 mm
Body color	BLACK
body height	19.9898 mm
Body length or diameter	32.512 mm
center contact material	BRASS
Center contact plating	SILVER
Contact (AC) maximum rated power R load	0.75HP@250VAC
Contact (AC) maximum rated R load	16A@250VAC
Maximum contact current (AC)	16 A
Contact function	OFF-ON
Contact resistance	0.005 mΩ
contact time	SNAP ACTION
Maximum contact voltage (AC)	250 V
Dielectric withstand voltage	1250VRMS V
Electrical life	300000 Cycle(s)
End contact material	BRASS
End contact plating	SILVER
Insulation resistance	2000000 Ω
insulator material	POLYAMIDE
Manufacturer's serial number	81
Installation features	PANEL MOUNT
Maximum operating temperature	105 °C
Minimum operating temperature
seal	MOLDED
surface mount	NO
Switch action	MAINTAINED
switch function	SPST
Switch type	ROCKER SWITCH
Terminal length	0.248 inch
Terminal material	BRASS
Termination type	SOLDER LUG

Preview

Download Datasheet

View All

Bi-Color

Actuator

High

Amperage

Illuminated

Water

Protection

High

Temperature

Front

Panel Mount

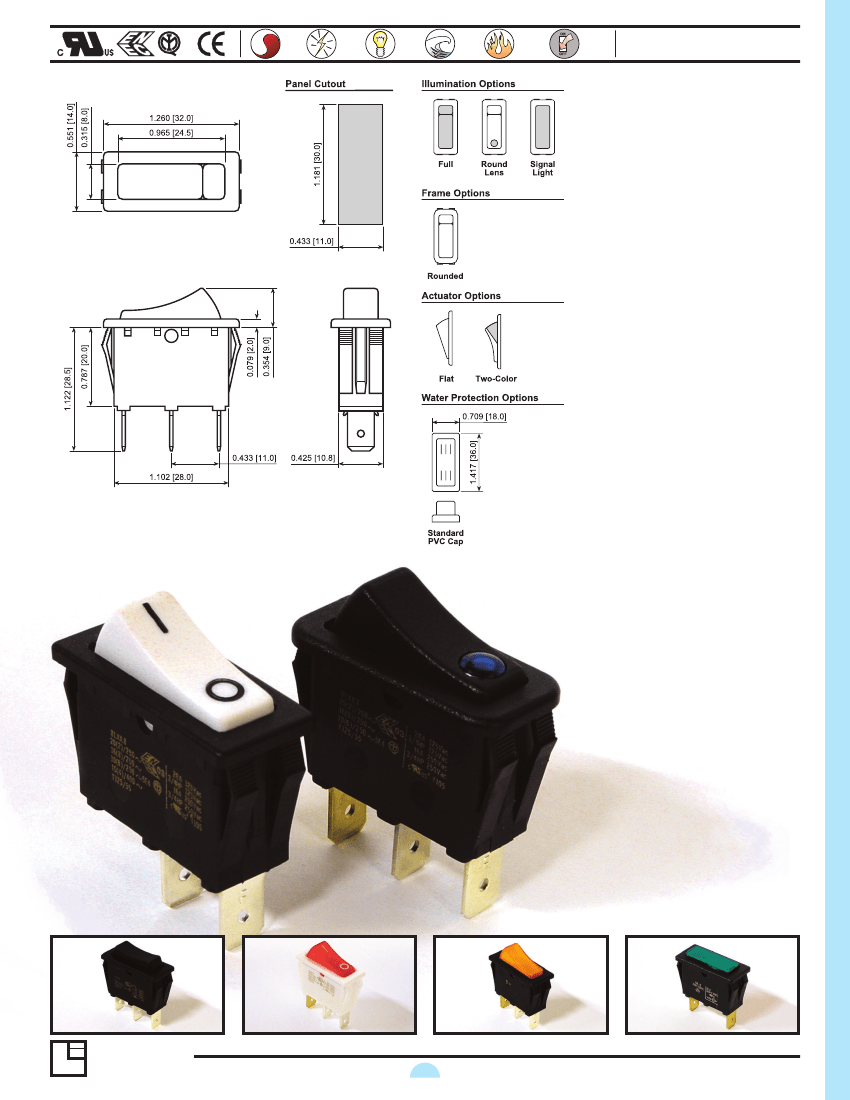

81-Series

The

81-Series

rocker switch has been

designed to be among the highest qual-

ity switches anywhere. The high ratings,

many options, and exquisite craftsman-

ship make this switch ideally suited

for any power hungry device including

motors, heaters, and appliances.

SPECIFICATIONS:

R

OCKER

R

ATING

:

M

AINTAINED

S

WITCHES

:

20A

125VAC [cULus]

16A 250VAC [cULus]

3/4HP 125-250VAC [cULus]

20(2) 250V~ 1E4 T125 [ENEC]

10(6) 250V~ 5E4 T125 [ENEC]

10(4) 400V~ 1E4 T125 [ENEC]

Upon Request:

16(8) 250V~ 1E4 T125 [ENEC]

M

OMENTARY AND

C

ENTER

-O

FF

S

WITCHES

:

16A 125-250VAC [cULus]

3/4HP 125-250VAC [cULus]

16(6) 250V~ 1E4 T125 [ENEC]

10(4) 250V~ 5E4 T125 [ENEC]

10(4) 400V~ 1E4 T125 [ENEC]

T

EMPERATURE

:

0°C to 65°C [cULus]

0°C to 105°C [cULus]

0°C to 125°C [ENEC]

M

ECHANICAL

L

IFE

:

300,000

Cycles

W

ITHSTAND

V

OLTAGE

:

1,250VAC for 1 Minute

I

NSULATION

R

ESISTANCE

:

2MΩ at 500VAC

C

ONTACT

R

ESISTANCE

:

5mΩ at 50VAC

I

NTRUSION

P

ROTECTION

:

IP40 Standard

IP54 with PVC Cap

MATERIALS:

A

B

ODY

:

Polyamide 6/6, UL 94V-2

A

CTUATOR

:

Polyamide 6/6, UL 94V-2

T

RANSPARENT

A

CTUATOR

:

Polycarbonate

C

ONTACTS

:

Silver

T

ERMINALS

:

Brass

Silver Plated Brass

PART NUMBER EXAMPLES:

81.01.82.96.1K:

Photo A

Off-On, 6.3mm tab terminals, black body,

white actuator, black vertical I/O marking.

81.10.82.70.N9:

Photo B

Off-On, 6.3mm tab terminals, black body

with rounded bezel, black actuator with

blue round lens illumination, 125V fluores-

cent bulb, no marking.

81.04.82.95.9K:

Photo C

On-Off-On, 6.3mm tab terminals, black

body and actuator, no marking.

81.10.82.70.U0:

Photo D

Off-On, 6.3mm tab terminals, white body,

fully illuminated red actuator, 125V neon

bulb, white vertical I/O marking.

81.10.T2.W0.G9:

Photo E

Off-On, 6.3mm tab terminals, black body,

fully illuminated amber actuator, 18VDC

incandescent bulb, no marking.

81.F2.P0.63.0K:

Photo F

Signal light, 6.3mm tab terminals, black

body, green lens, 110V fluorescent bulb.

LAMB

INDUSTRIES

C

D

E

F

5

Portland, OR USA
