32H569-CL datasheet, PDF - EEWORLD Datasheet

32H569-CL: DescriptionVoice Coil Motor Controller, BIPolar, PDSO20; CategoryOther integrated circuit (IC) The signal circuit; File Size442KB，16 Pages; ManufacturerSilicon Systems Inc.

Download Datasheet Parametric Compare View All

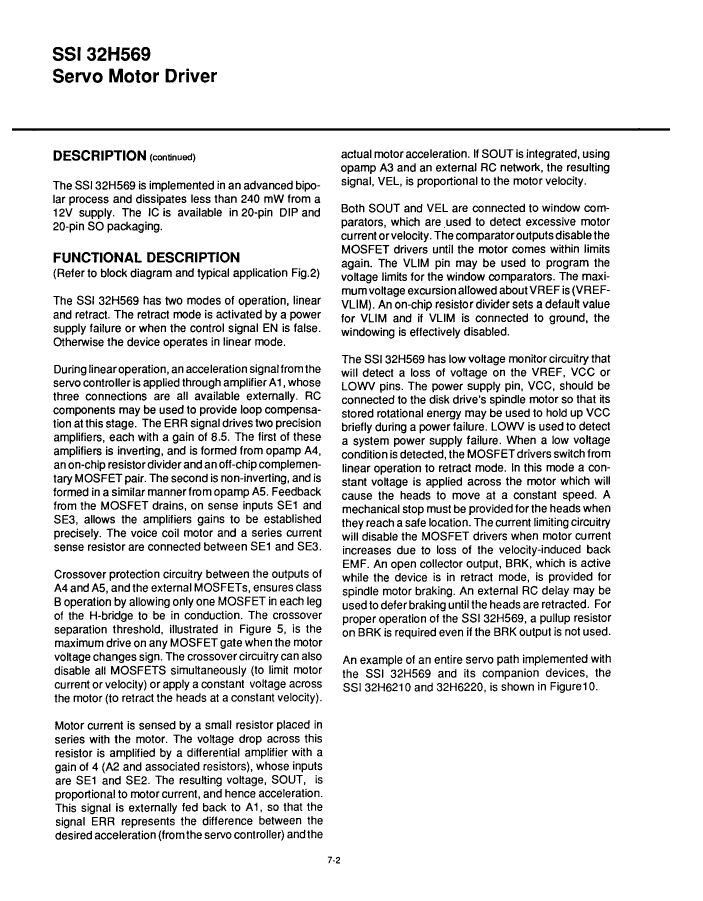

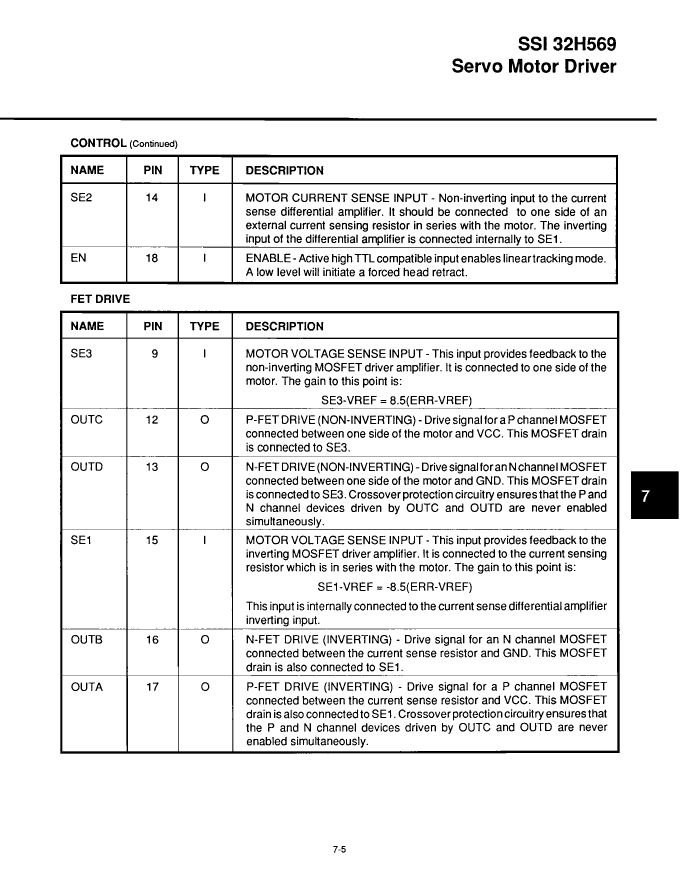

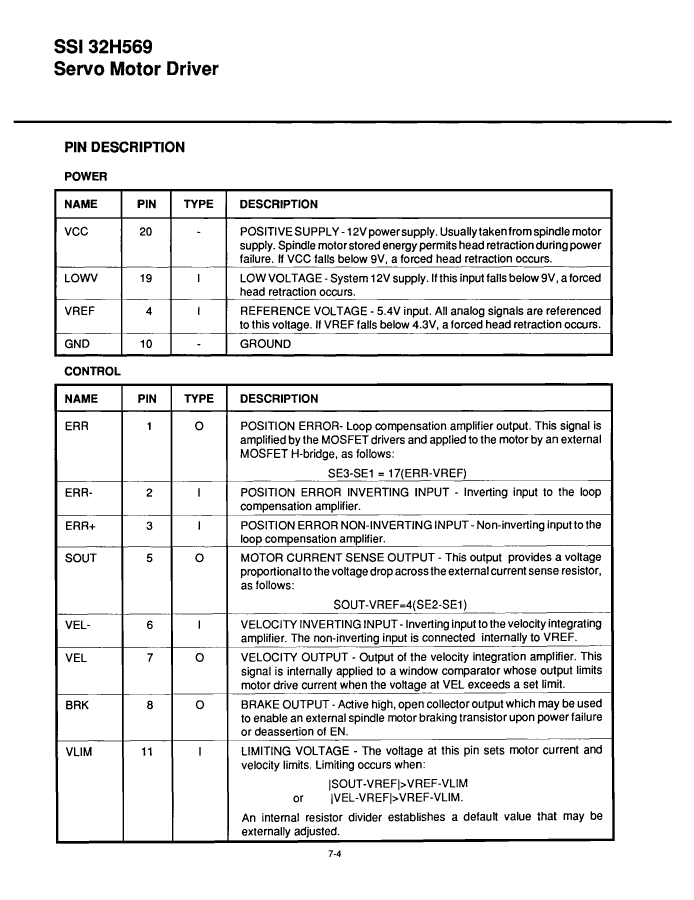

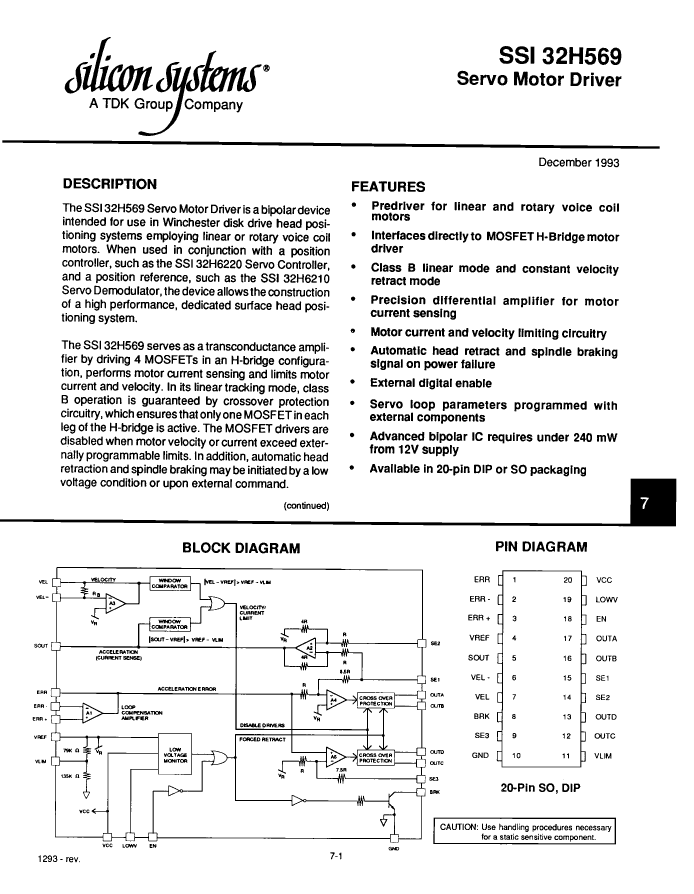

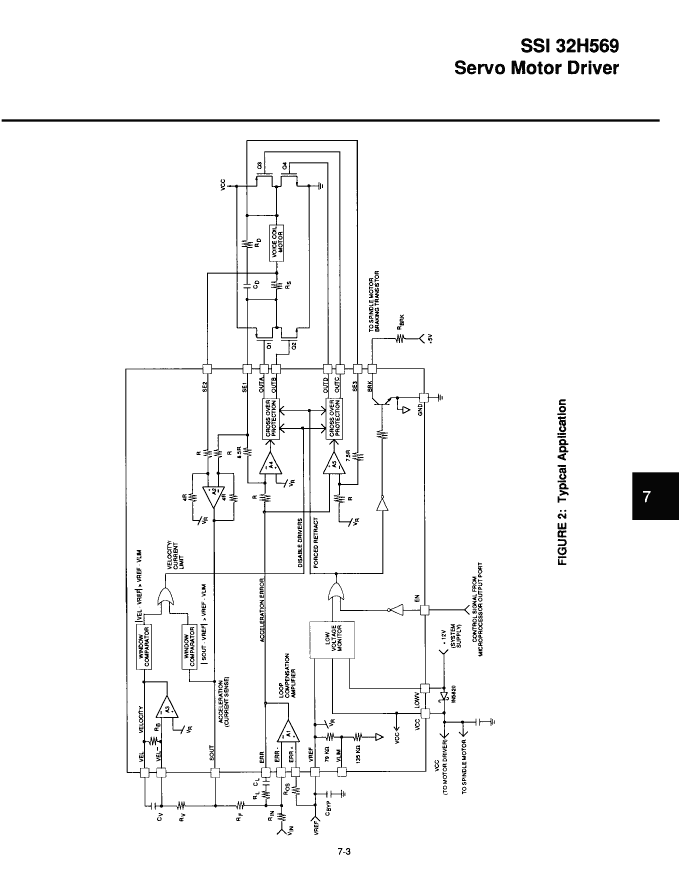

32H569-CL Overview

Voice Coil Motor Controller, BIPolar, PDSO20

Parameter Name	Attribute value
Maker	Silicon Systems Inc.
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	VOICE COIL MOTOR CONTROLLER
JESD-30 code	R-PDSO-G20
Number of functions	1
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum supply current (Isup)	20 mA
Maximum supply voltage (Vsup)	13.2 V
Minimum supply voltage (Vsup)	9 V
Nominal supply voltage (Vsup)	12 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL

	32H569-CL	32H569-CP
Description	Voice Coil Motor Controller, BIPolar, PDSO20	Voice Coil Motor Controller, BIPolar, PDIP20
Maker	Silicon Systems Inc.	Silicon Systems Inc.
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Analog Integrated Circuits - Other Types	VOICE COIL MOTOR CONTROLLER	VOICE COIL MOTOR CONTROLLER
JESD-30 code	R-PDSO-G20	R-PDIP-T20
Number of functions	1	1
Number of terminals	20	20
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Maximum supply current (Isup)	20 mA	20 mA
Maximum supply voltage (Vsup)	13.2 V	13.2 V
Minimum supply voltage (Vsup)	9 V	9 V
Nominal supply voltage (Vsup)	12 V	12 V
surface mount	YES	NO
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL
