L1904C/3/CS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> L1904C/3/CS

L1904C/3/CS: Description3 CONTACT(S), PANEL MOUNT, DIN CONNECTOR, SOCKET; CategoryThe connector The connector; File Size108KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric Compare View All

L1904C/3/CS Overview

3 CONTACT(S), PANEL MOUNT, DIN CONNECTOR, SOCKET

L1904C/3/CS Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	DIALIGHT
Reach Compliance Code	unknow
Other features	STANDARDS: DIN 41524; DIN 45322; 45329; IEC 130-9; IEC/44
Body/casing type	SOCKET
Connector type	CIRCULAR DIN CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	BRASS
DIN compliance	YES
DIN standard	45326
Electromagnetic interference shielding	YES
IEC compliance	YES
MIL compliance	NO
Manufacturer's serial number	L1904C
Installation method	STRAIGHT
Installation type	PANEL
Termination type	SOLDER LUG
Total number of contacts	3

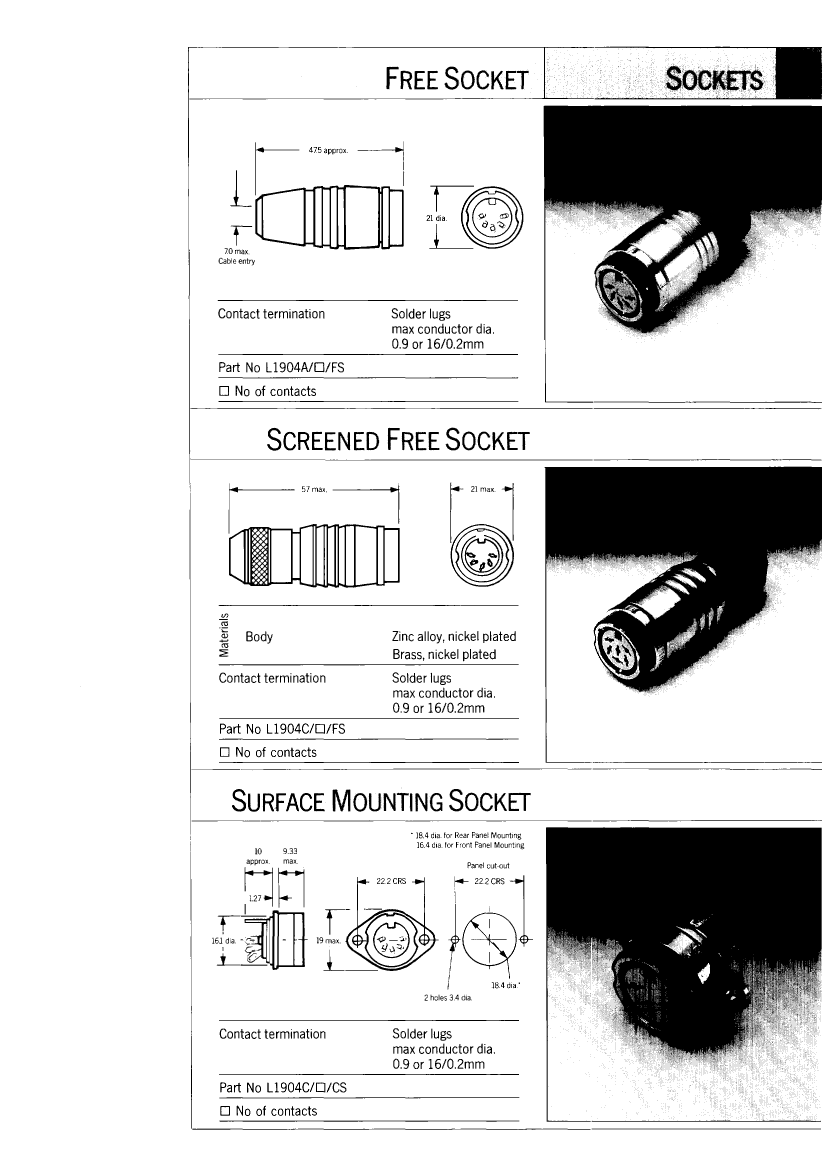

Preview

Download Datasheet

View All

L1904C/3/CS Related Products

	L1904C/3/CS	L1904C/6/FS	L1904C/7/FS	L1904C/8/FS	6027522	6033951	L1904C/4/FS	L1904C/5/FS	L1904C/5A/CS	L1904A/5A/FS
Description	3 CONTACT(S), PANEL MOUNT, DIN CONNECTOR, SOCKET	6 CONTACT(S), CABLE MOUNT, DIN CONNECTOR, SOCKET	7 CONTACT(S), CABLE MOUNT, DIN CONNECTOR, SOCKET	8 CONTACT(S), CABLE MOUNT, DIN CONNECTOR, SOCKET	INDUCTIVE PROXIMITY SENSORS	FIBER-OPTIC SENSORS AND FIBERS	4 CONTACT(S), CABLE MOUNT, DIN CONNECTOR, SOCKET	5 CONTACT(S), CABLE MOUNT, DIN CONNECTOR, SOCKET	5 CONTACT(S), PANEL MOUNT, DIN CONNECTOR, SOCKET	5 CONTACT(S), CABLE MOUNT, DIN CONNECTOR, SOCKET
Reach Compliance Code	unknow	unknown	unknown	unknown	-	-	unknown	unknown	unknown	unknown
Other features	STANDARDS: DIN 41524; DIN 45322; 45329; IEC 130-9; IEC/44	STANDARDS: DIN 41524; DIN 45322; 45329; IEC 130-9; IEC/44	STANDARDS: DIN 41524; DIN 45322; 45329; IEC 130-9; IEC/44	STANDARDS: DIN 41524; DIN 45322; 45329; IEC 130-9; IEC/44	-	-	STANDARDS: DIN 41524; DIN 45322; 45329; IEC 130-9; IEC/44	STANDARDS: DIN 41524; DIN 45322; 45329; IEC 130-9; IEC/44	STANDARDS: DIN 41524; DIN 45322; 45329; IEC 130-9; IEC/44	STANDARDS: DIN 41524; DIN 45322; 45329; IEC 130-9; IEC/44
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	-	-	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	-	-	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	-	-	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	YES	YES	YES	YES	-	-	YES	YES	YES	YES
DIN standard	45326	45326	45326	45326	-	-	45326	45326	45326	45326
Electromagnetic interference shielding	YES	YES	YES	YES	-	-	YES	YES	YES	YES
IEC compliance	YES	YES	YES	YES	-	-	YES	YES	YES	YES
MIL compliance	NO	NO	NO	NO	-	-	NO	NO	NO	NO
Manufacturer's serial number	L1904C	L1904C	L1904C	L1904C	-	-	L1904C	L1904C	L1904C	L1904A
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	PANEL	CABLE	CABLE	CABLE	-	-	CABLE	CABLE	PANEL	CABLE
Termination type	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	-	-	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Total number of contacts	3	6	7	8	-	-	4	5	5	5
