371-1-024-T-KR0

Description
Board Connector, 24 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Locking
CategoryThe connector    The connector
File Size302KB,1 Pages
ManufacturerMPE-Garry GmbH
Download Datasheet Parametric View All

371-1-024-T-KR0 Overview

Board Connector, 24 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Locking

371-1-024-T-KR0 Parametric

Parameter NameAttribute value
MakerMPE-Garry GmbH
Reach Compliance Codecompli
ECCN codeEAR99
Board mount optionsLOCATING POSTS
body width0.197 inch
subject depth0.201 inch
body length1.333 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTIN
Contact materialPHOSPHOR BRONZE
contact modeSTAGGERED
Contact styleIDC
Dielectric withstand voltage1400VAC V
insulator materialTHERMOPLASTIC
Manufacturer's serial number371
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternSTAGGERED
PCB contact row spacing2.54 mm
polarization keyPOLARIZED HOUSING
Rated current (signal)1.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.122 inch
Terminal pitch2.54 mm
Termination typeSOLDER KINKED LEADS
Total number of contacts24

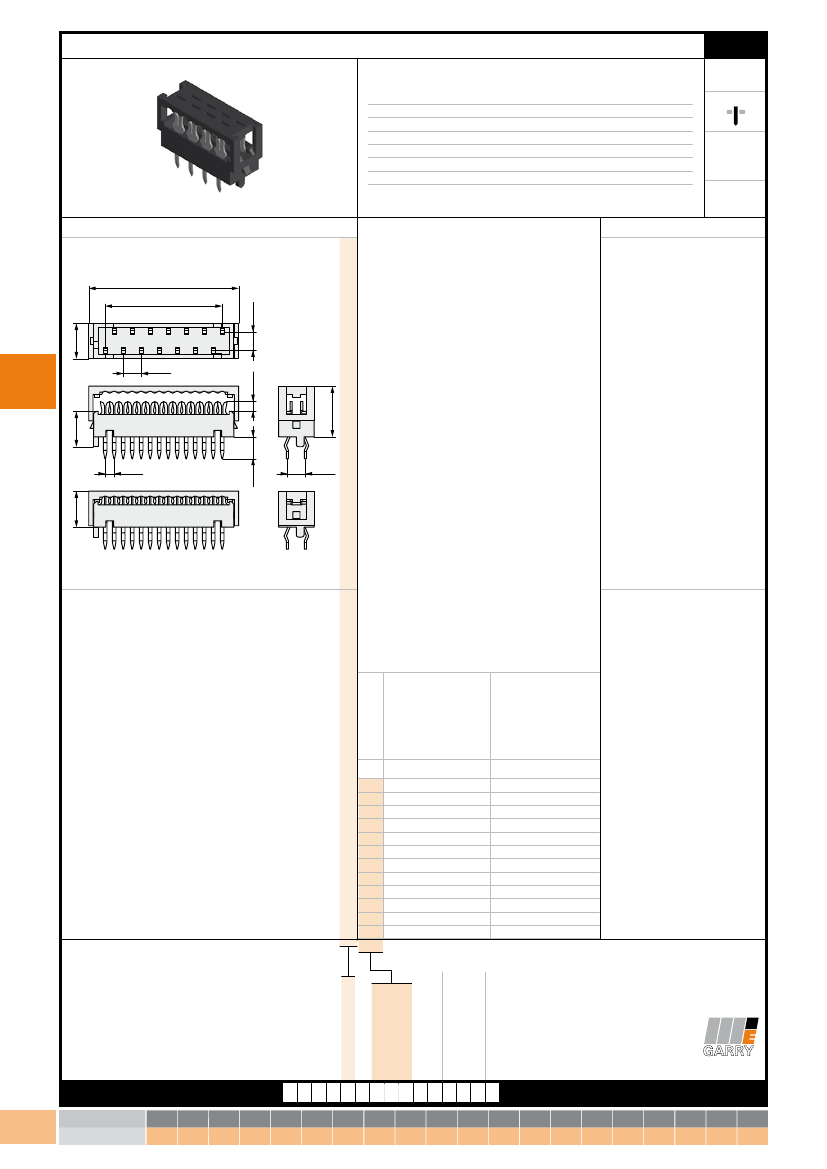

Micro Match Connector 1,27 mm, Flat Ribbon Cable to PCB
Rated current
1,5 A
Rated voltage
230 V
RMS
/ V
DC
Withstand voltage
1000 V
RMS
for 1 minute
Material contact
Phosphor bronze
Material insulator
Thermoplast UL94V-0
Operating temperature -40°C to +105°C
Max. processing temper. 230°C for 5 seconds
All dimensions in mm.
Series
371
pitch
termination
1,27
max.
pincount
Variation
026
Compatible with industries standard.
A
2,54
B
Recommended cable: AWG 28 flat
ribbon cable with 1,27 mm centerline.
5,00
5,10
3,10
1,27
2,54
7,15
6
1,38
Product
group
2,54
1
n
004
006
008
010
012
014
016
018
020
022
024
026
Plating:
T = Sn
Packaging:
R = Reel
T = Tube
A
8,45
10,99
13,53
16,07
18,61
21,15
23,69
26,23
28,77
31,31
33,85
36,39
B
3,81
6,35
8,89
11,43
13,97
16,51
19,05
21,59
24,13
26,67
29,21
31,75
www.mpe-connector.de
Order code:
371-1-???-T-K?0
6-4
MPE-Garry GmbH • Schäfflerstraße 13 • 87629 Füssen • Germany • Phone: +49 (0) 83 62 / 91 56-0 • Fax: +49 (0) 83 62 / 91 56-500 • Email: vk@mpe-connector.de • www.mpe-connector.de
5,00
no. of contacts
see figure left
CS130212_V2
Packaging (R,T)
No. of contacts
Plating contact
Variation
see figure left
