TRUE 75 OHM COAXIAL 1.6/5.6 DIN CONNECTORS
CENTRAL OFFICE product solutions - all true 75 ohm
.939
±.015
CRIMP
SLEEVE
.488
.300
INSULATOR
WASHERS
.573
1.003
±.010
BODY
ASSY
.579
.500
.500
PIN
CONTACT
.380
LOCK NUT
SUPPORT
RING
M9 X 0.50
SOCKET
CONTACT
CRIMP
SLEEVE

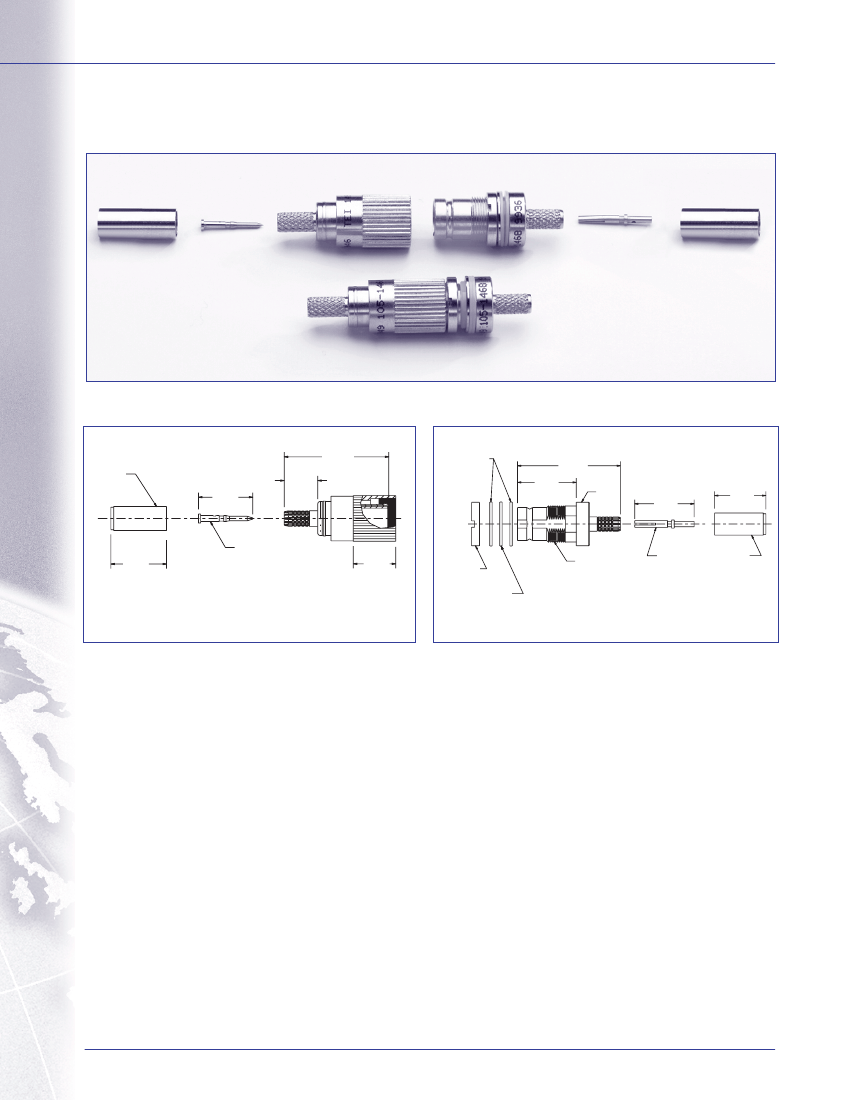

RF COAXIAL 75 OHM DIN THREADED FULL CRIMP CABLE PLUG
RF COAXIAL CONNECTOR, 75 OHM, DIN JACK
THREADED CONNECTOR. MEETS REQUIREMENTS
OF IEC 169-13.
UPL110-XXX*
UBJ110-XXX*
Time is money and so is space when you’re talking about
working area in a central office, CLEC or Co-location
space. These applications are looking for more equipment
in a small compact working space. Being able to provide
more throughputs in a given panel or bay is becoming
more important to OEM designers of telco hardware.
Trompeter’s 110 series connectors are made to the DIN
1.6/5.6 interface specification. This connector style is used
in the European and South American Telecom Central
Offices for DSX cross connects and beginning to be used
and requested in the North American market.
Trompeter’s 110 series connectors are 30% smaller than
the standard BNC currently used for the Coax Central
Office termination. With this space savings 72 intercon-
nects can be placed in the same 1 rack unit panels as 52
BNCs.
The 110 series of connectors is available as a cable plug,
cable jack, a U-Link for connecting two jacks, a right angle
circuit board jack, and BNC to DIN adapters.
Trompeter’s 110 series works with all the cables currently
in use in the central office environment and, just as all
Trompeter connectors, can be manufactured to accommo-
date any coax cable changes.
The 110 series 1.6/5.6 DIN connectors have the same supe-
rior quality performance are 220 series of telco standard
BNCs. Tooling for the Trompeter DIN series is the same as
used for the Trompeter 220 series - see installer tooling sec-
tion of this catalog.
Note: *
= For specific cable manufacturer and model number
cable group information please see the cable group table in this
catalog.
XXX - Refer to pages 6-7 for Cable Groups.
14
TROMPETER ELECTRONICS
(800) 982-2629 • (818) 707-2020 • FAX (818) 706-1040
TRUE 75 OHM COAXIAL 1.6/5.6 DIN CONNECTORS
CENTRAL OFFICE product solutions - all true 75 ohm
Ø,410
.590
±.010
.580
.634
1.084
.450
.375
.990

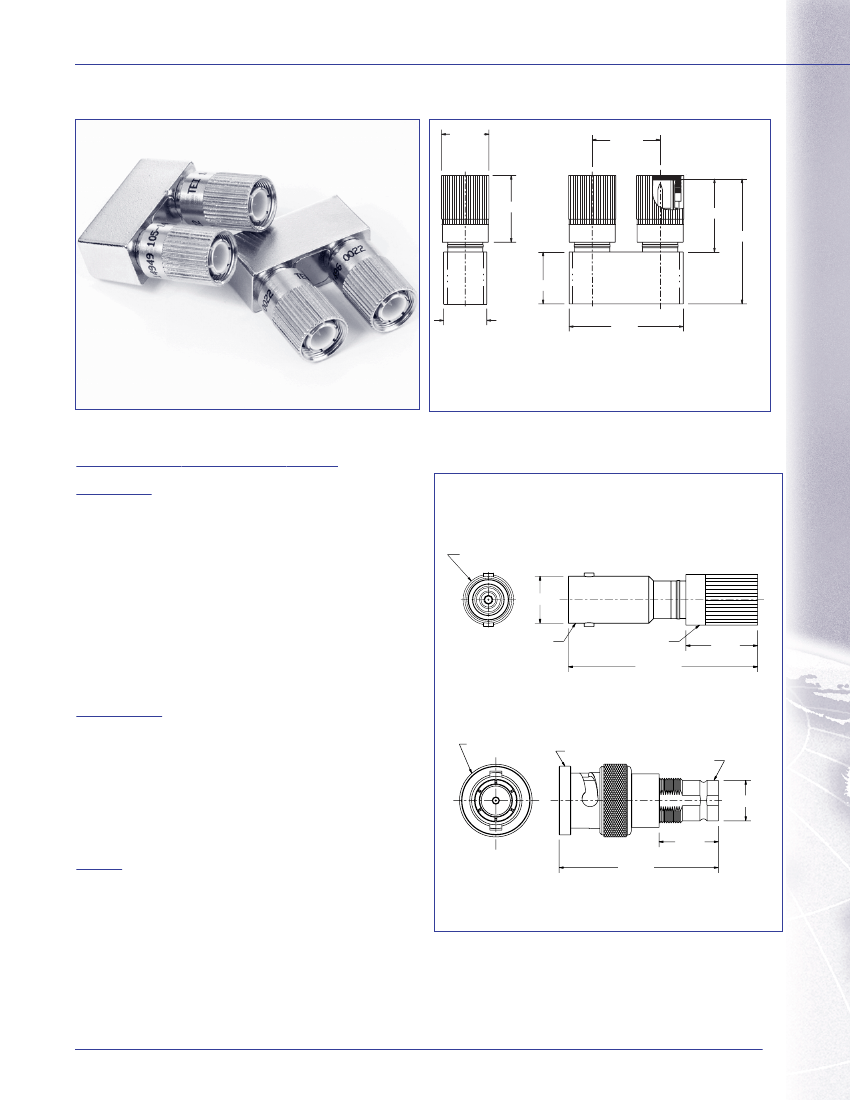

DUAL COAXIAL DIN CONNECTOR
"U-LINK" 75 OHM WITH TWO PLUGS
BASED ON THE 169-13
SPECIFICATION
U-Link : 105-1496
U-Link : 105-1496
DIN CONNECTOR SPECIFICATIONS:
Electrical Data:
Characteristic Impedance
Frequency Range
VSWR
Working Voltage
Temperature Range
Insulation Resistance
Contact Resistance
Mechanical Data:
Spring Finger Engagement Force
Spring Finger Withdrawal Force
Crimp Strength
75-ohm
0-3Ghz
1.22
1,500 VRMS at sea
Level 300VRMS at 65,000 feet
-40C to +85C
BNC JACK
DIN PLUG
.580
Ø.410
BNC TO 1.6/5.6 DIN BETWEEN
SERIES ADAPTERS
Ø.380
10,000 MegaOhm Min
(1.530)
4.0 milliohms
1.5 lbs min, 5 lbs max
12 oz min
50 pounds minimum average for
735 type cable and 70 pounds
minimum average for 734 type
cable.
500 mating
UADF20M110
Adapter 75 ohm BNC Jack to 75 ohm Din Plug
Ø.593 MAX
BNC PLUG
DIN JACK
Ø.322
Durability
Material:
Jack Body
Male Body
Crimp Sleeve
Socket Contact and Spring Fingers
Pin Contact
Dielectric
.471
1.263
Brass per ASTM-B16
Brass per ASTM-B16
Brass per ASTM-B16
BeCu per ASTM-B196,197
Brass per ASTM-B16
PTFE
UADM20F110
Adapter 75 ohm BNC Plug to 75 ohm Din Jack
TROMPETER ELECTRONICS
(800) 982-2629 • (818) 707-2020 • FAX (818) 706-1040
15
