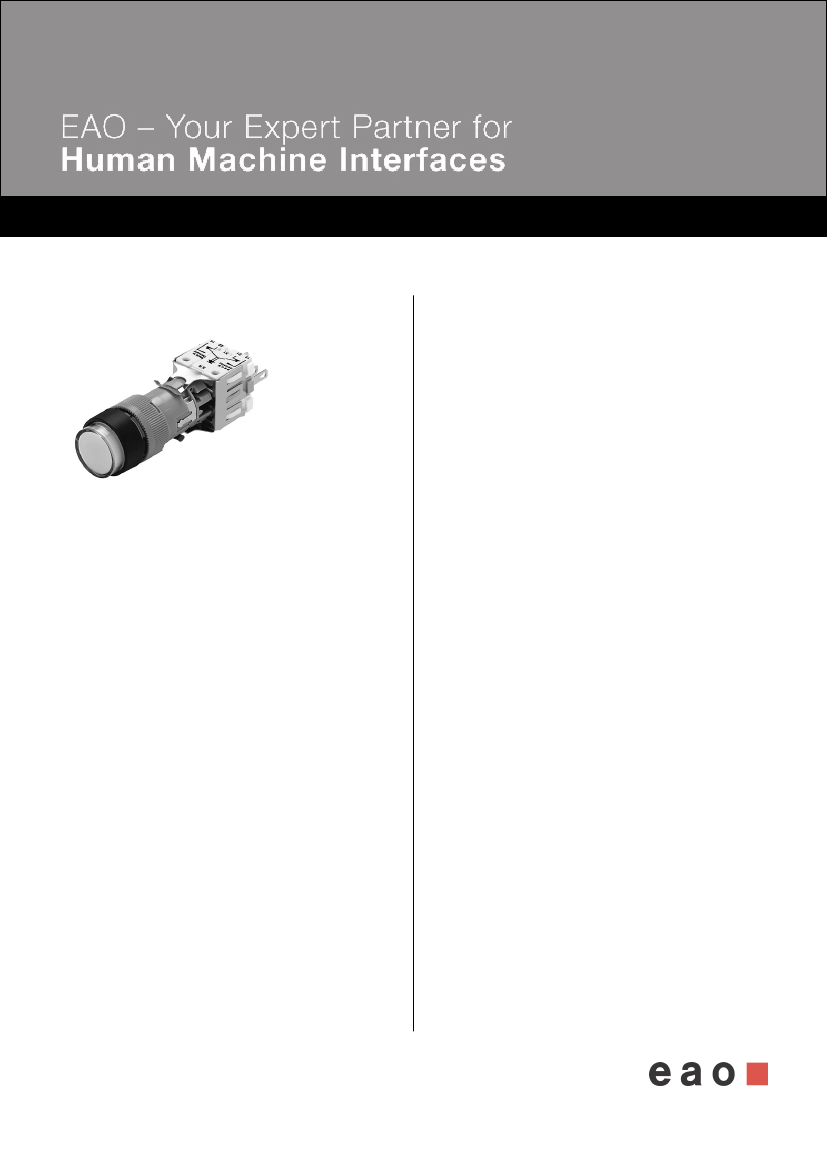

801-.000-0P - Illuminated pushbutton actuator, Maintain round, Var.2
801-.000-0P - Illuminated pushbutton actuator,
Maintain round, Var.2
Mounting
Behind panel depth
Mounting cut-out
Design
67 mm
Ø 16 mm
raised
Front
Front dimension
Front shape
Ø 18 mm
round
Other Attributes
Weight
0,015 kg
Operating-/Indication part
Lens illumination
Attention: The preview is based on a sample product. This can
differ from your current configuration.
illuminative
IP-Rating
Front protection
IP40
Connection Method
Terminal
PCB
Actuator
Switching action
Housing colour
Housing material
grey
Plastic
Switching element
Switching system
Contacts
Switching current
Contact material
Switching voltage
Snap-action switching element
1 NC + 1 NO
5A
250 V AC
Function
Illuminated pushbutton
Stand: 14.09.2020
801-.000-0P - Illuminated pushbutton actuator, Maintain round, Var.2

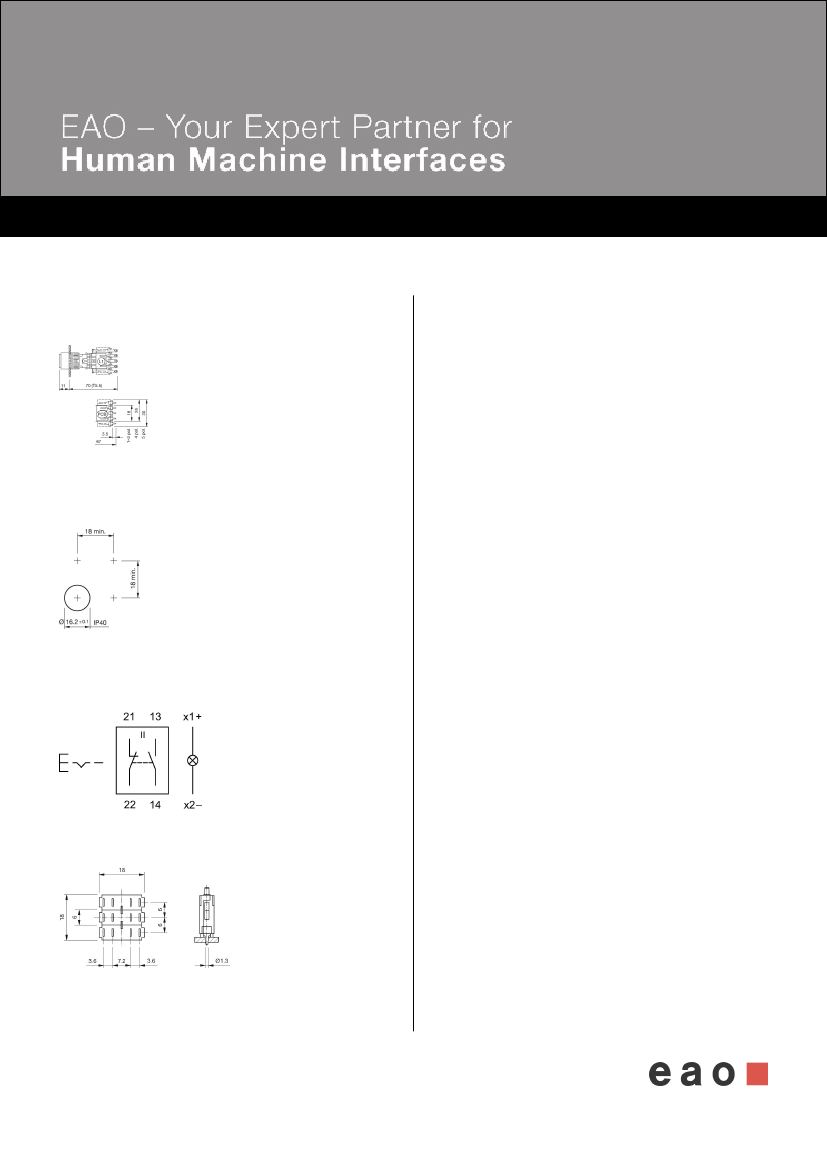

Dimensions
Additional information
Protection degree IP 40/IP 65 is determined by front bezel and lens
Maintain to momentary action is switchable, reversible
Legend
Contacts: NC = Normally closed, NO = Normally open
Switching action: B = Momentary, C = Maintained
Mounting cut-outs
Wiring diagram
Component layout
