EB51W4E20N-FREQ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EB51W4E20N-FREQ

EB51W4E20N-FREQ: DescriptionTCXO, CLOCK, 1.2 MHz - 27 MHz, HCMOS/TTL OUTPUT; CategoryPassive components oscillator; File Size259KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com

Download Datasheet Parametric Compare View All

EB51W4E20N-FREQ Overview

TCXO, CLOCK, 1.2 MHz - 27 MHz, HCMOS/TTL OUTPUT

EB51W4E20N-FREQ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ECLIPTEK
Reach Compliance Code	unknow
Ageing	1 PPM/YEAR
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	5%
JESD-609 code	e0
Manufacturer's serial number	EB51W4
Installation features	SURFACE MOUNT
Maximum operating frequency	27 MHz
Minimum operating frequency	1.2 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS/TTL
Output load	10 TTL, 15 pF
physical size	18.3mm x 11.7mm x 4.5mm
longest rise time	10 ns
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	60/40 %
Terminal surface	Tin/Lead (Sn/Pb)

Preview

Download Datasheet

View All

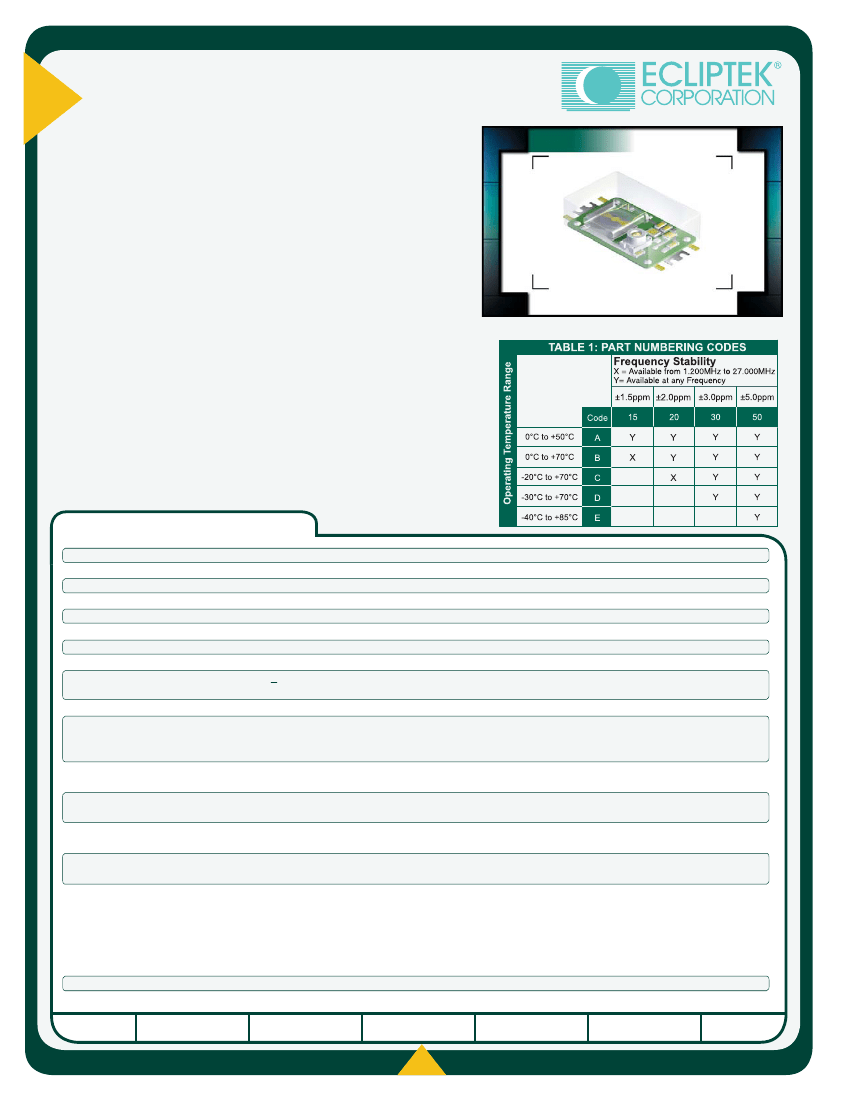

EB51W4

Series

• Temperature Compensated

Crystal Oscillator (TCXO)

• HCMOS/TTL Output

• 5.0V Supply Voltage

• SMD package

• Stability to 1.5ppm

• External voltage control option available

• Internal

Mechanical

Trim (Top of Can)

NOTES

_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________

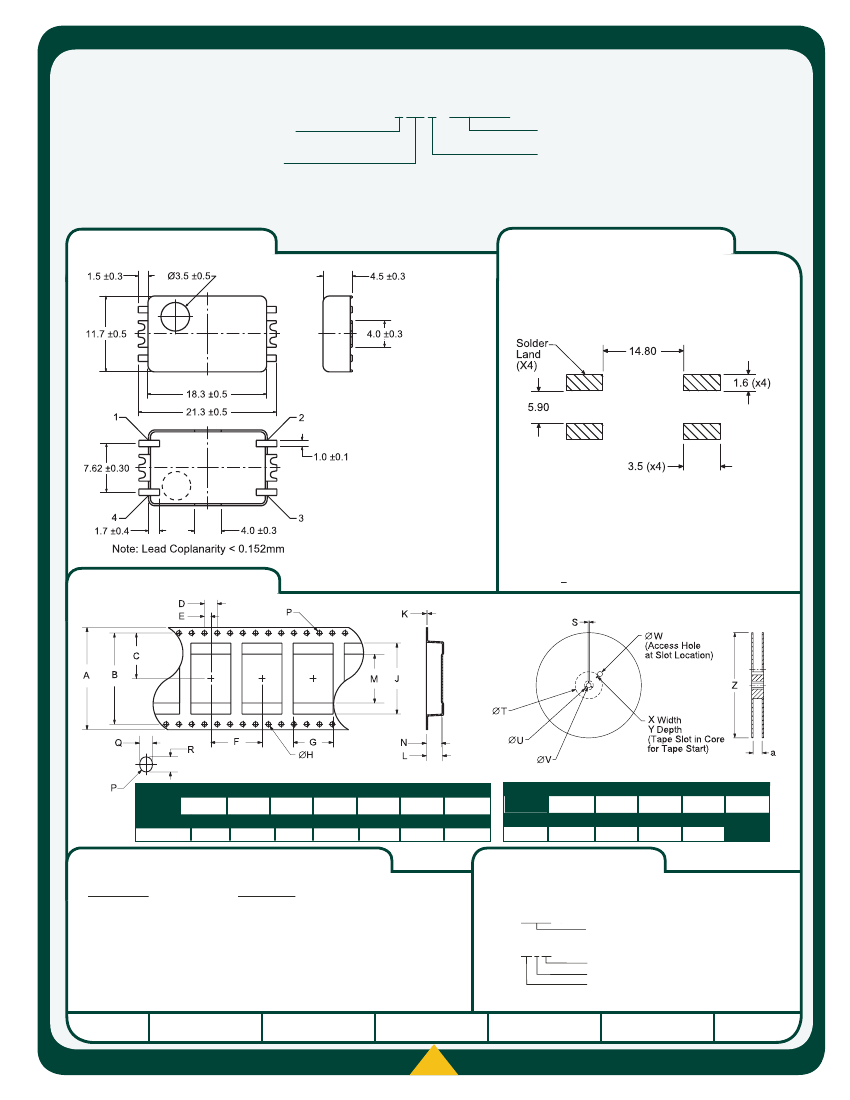

EB51W4

H 4.5

L 18.3

W 11.7

OSCILLATOR

ELECTRICAL SPECIFICATIONS

Frequency Range

Operating Temperature Range

Storage Temperature Range

Supply Voltage (V

)

Load Drive Capability

Internal Trim (Top of Can)

Control Voltage (External)

Frequency Deviation

Input Current

Aging (at 25°C)

Frequency Stability

1.200MHz to 40.000MHz

See Table 1

-40°C to 85°C

5.0V

±5%

10TTL Load or 15pF HCMOS Load Maximum

±3ppm Minimum

2.5V

±2.0V

, Positive Transfer Characteristic

±7ppm Minimum, ±20ppm Maximum

20mA Maximum

35mA Maximum

±1ppm / year Maximum

See Table 1

±0.3ppm Maximum

±0.2ppm Maximum

2.4V

Minimum

-0.5V

Minimum

0.4V

Maximum

0.5V

Maximum

10 nSeconds Maximum

50 ±10(%)

at V

= 2.5V

±2.0V

, V

= 5.0V

< 27.000MHz

> 27.000MHz

vs. Operating Temperature Range

vs. Input Voltage (±5%)

vs. Load (±2pF)

w/TTL Load

w/HCMOS Load

w/TTL Load

w/HCMOS Load

0.4V

to 2.4V

w/TTL Load;

20% to 80% of Waveform w/HCMOS Load

at 1.4V

w/TTL Load; at 50% of

Waveform w/HCMOS Load

Fo = 19.200MHz, at 25°C, at Nominal V

and V

at 10Hz Offset

at 100Hz Offset

at 1kHz Offset

at 10kHz Offset

at 100kHz Offset

at -3dB with V

= 2.5V

SERIES

PACKAGE

Output Voltage Logic High (V

)

Output Voltage Logic Low (V

)

Rise Time / Fall Time

Duty Cycle

Typical Phase Noise

Modulation Bandwidth

Input Impedance

MANUFACTURER

EB51W4E20N-FREQ Related Products

	EB51W4E20N-FREQ	EB51W4D20N-FREQ	EB51W4E15N-FREQ	EB51W4D15N-FREQ
Description	TCXO, CLOCK, 1.2 MHz - 27 MHz, HCMOS/TTL OUTPUT	TCXO, CLOCK, 1.2 MHz - 27 MHz, HCMOS/TTL OUTPUT	TCXO, CLOCK, 1.2 MHz - 27 MHz, HCMOS/TTL OUTPUT	TCXO, CLOCK, 1.2 MHz - 27 MHz, HCMOS/TTL OUTPUT
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknow	unknown	unknown	unknow
Ageing	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR
maximum descent time	10 ns	10 ns	10 ns	10 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO
frequency stability	5%	3%	5%	3%
JESD-609 code	e0	e0	e0	e0
Manufacturer's serial number	EB51W4	EB51W4	EB51W4	EB51W4
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	27 MHz	27 MHz	27 MHz	27 MHz
Minimum operating frequency	1.2 MHz	1.2 MHz	1.2 MHz	1.2 MHz
Maximum operating temperature	85 °C	70 °C	85 °C	70 °C
Minimum operating temperature	-40 °C	-30 °C	-40 °C	-30 °C
Oscillator type	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL
Output load	10 TTL, 15 pF	10 TTL, 15 pF	10 TTL, 15 pF	10 TTL, 15 pF
physical size	18.3mm x 11.7mm x 4.5mm	18.3mm x 11.7mm x 4.5mm	18.3mm x 11.7mm x 4.5mm	18.3mm x 11.7mm x 4.5mm
longest rise time	10 ns	10 ns	10 ns	10 ns
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
maximum symmetry	60/40 %	60/40 %	60/40 %	60/40 %
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maker	ECLIPTEK	-	ECLIPTEK	ECLIPTEK
