EC2600ETTS-125.010M TR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EC2600ETTS-125.010M TR

EC2600ETTS-125.010M TR: DescriptionCMOS, Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 3.3Vdc 4 Pad 5.0mm x 7.0mm Ceramic Surface Mount (SMD) Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 3.3Vdc 4 Pad 5.0mm x 7.0mm Ceramic Surface Mount (SMD); CategoryPassive components oscillator; File Size138KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EC2600ETTS-125.010M TR Overview

CMOS, Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 3.3Vdc 4 Pad 5.0mm x 7.0mm Ceramic Surface Mount (SMD) Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 3.3Vdc 4 Pad 5.0mm x 7.0mm Ceramic Surface Mount (SMD)

EC2600ETTS-125.010M TR Parametric

Parameter Name	Attribute value
Brand Name	Ecliptek
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	SMD 5.0mm x 7.0mm
Contacts	4
Manufacturer packaging code	SMD 5.0mm x 7.0mm
Reach Compliance Code	163

Preview

Download Datasheet

View All

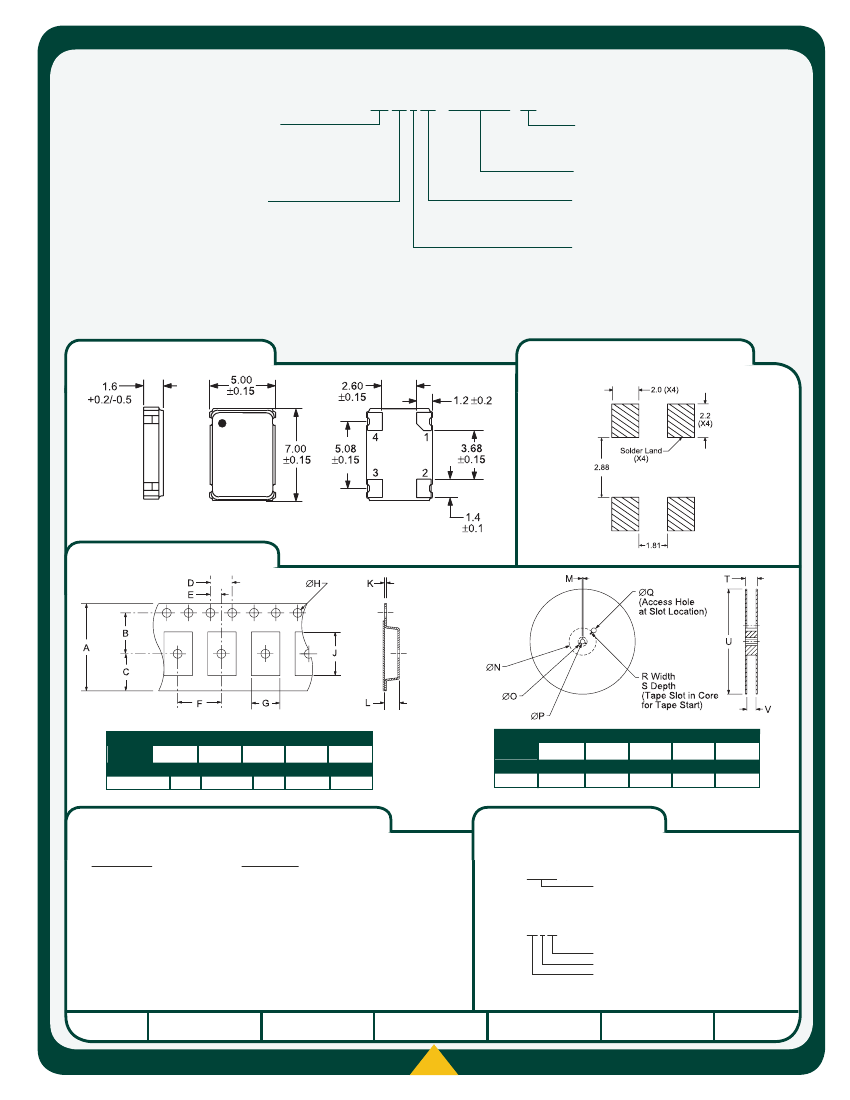

EC26

Series

• Pb-free ceramic SMD package

• 3.3V supply voltage

• LVHCMOS/TTL output

• Stability to 20ppm

• Standby Function

• Available in tube or tape and reel

ELECTRICAL SPECIFICATIONS

EC26

H 1.6

L 7.0

W 5.0

OSCILLATOR

1.544MHz to 125.000MHz and 125.009MHz, 125.009375MHz, 125.010MHz, 127MHz, 130MHz, 133MHz, 133.333MHz,

142.850MHz, 150MHz, 155.520MHz and 156.250MHz

Operating Temperature Range

±100ppm, ±50ppm, ±25ppm or 20ppm

-10°C to 70°C

-40°C to 85°C

±100ppm, ±50ppm, or ±25ppm

-40°C to 85°C

±20ppm <125.000MHz

Storage Temperature Range

-55°C to 125°C

Supply Voltage (V

)

3.3V

±10%

Input Current

10mA Maximum

1.544MHz to 32.000MHz

18mA Maximum

32.001MHz to 50.000MHz

20mA Maximum

50.001MHz to 70.000MHz

40mA Maximum

70.001MHz to 125.000MHz

60mA Maximum

125.009MHz to 156.250MHz

Frequency Tolerance / Stability

Inclusive of all conditions: Calibration Tolerance at 25°C,

±100ppm, ±50ppm, ±25ppm or

±20ppm Max.

Frequency Stability over the Operating Temperature Range,

Supply Voltage Change, Output Load Change, First Year Aging

at 25°C, Shock, and Vibration

Output Voltage Logic High (V

)

w/HCMOS or TTL Load

90% of V

Min. I

= -8mA

Output Voltage Logic Low (V

)

w/HCMOS or TTL Load

10% of V

Max. I

= +8mA

Rise / Fall Time

5 nSeconds Maximum

10% to 90% of Waveform w/15pF HCMOS Load or 0.4V

to 2.4V

w/10LSTTL Load < 35.000MHz

7 nSeconds Maximum

10% to 90% of Waveform w/30pF HCMOS Load or 0.4V

to 2.4V

w/10TTL Load < 35.000MHz

10% to 90% of Waveform w/HCMOS Load or 0.4V

to 2.4V

w/TTL Load 35.001MHz to 125.000MHz 5 nSeconds Maximum

3 nSeconds Maximum

10% to 90% of Waveform w/HCMOS Load > 125.000MHz

Duty Cycle

50 ±10(%) (Standard)

at 50% of Waveform w/HCMOS Load or 1.4V

w/TTL Load < 70.000MHz

50 ±10(%) (Standard)

at 50% of Waveform w/HCMOS Load > 70.000MHz

50 ±5(%) (Optional)

at 50% of waveform w/HCMOS Load or w/TTL Load < 125.000MHz

50 ±5(%) (Optional)

at 50% of waveform w/HCMOS Load, at 25°C, at 3.3Vdc > 125.000MHz

Load Drive Capability

10TTL or 30pF HCMOS Load Maximum

<35.000MHz

10TTL or 15pF HCMOS Load Maximum

35.001MHz to 70.000MHz

15pF HCMOS Load Maximum

>70.000MHz

Tri-State Input Voltage

Enables Output

No Connection

Enables Output

:≥70% of V

Disables Output: High Impedance

:≤30% of V

Standby Current

10µA Maximum

Disabled Output: High Impedance

Start Up Time

10 mSeconds Maximum

Period Jitter: Absolute

±100pSeconds Maximum

Period Jitter: One Sigma

±25pSeconds Maximum
