ES51C5G25N-14.31818M datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ES51C5G25N-14.31818M

ES51C5G25N-14.31818M: DescriptionTCXO, CLIPPED SINE OUTPUT, 14.31818 MHz; CategoryPassive components oscillator; File Size205KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

ES51C5G25N-14.31818M Overview

TCXO, CLIPPED SINE OUTPUT, 14.31818 MHz

ES51C5G25N-14.31818M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ECLIPTEK
Reach Compliance Code	compli
Other features	BULK
Ageing	1 PPM/YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	2.5%
JESD-609 code	e4
Manufacturer's serial number	ES51C5
Installation features	SURFACE MOUNT
Nominal operating frequency	14.31818 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CLIPPED SINE
physical size	5mm x 3.2mm x 1.2mm
Nominal supply voltage	5 V
surface mount	YES
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

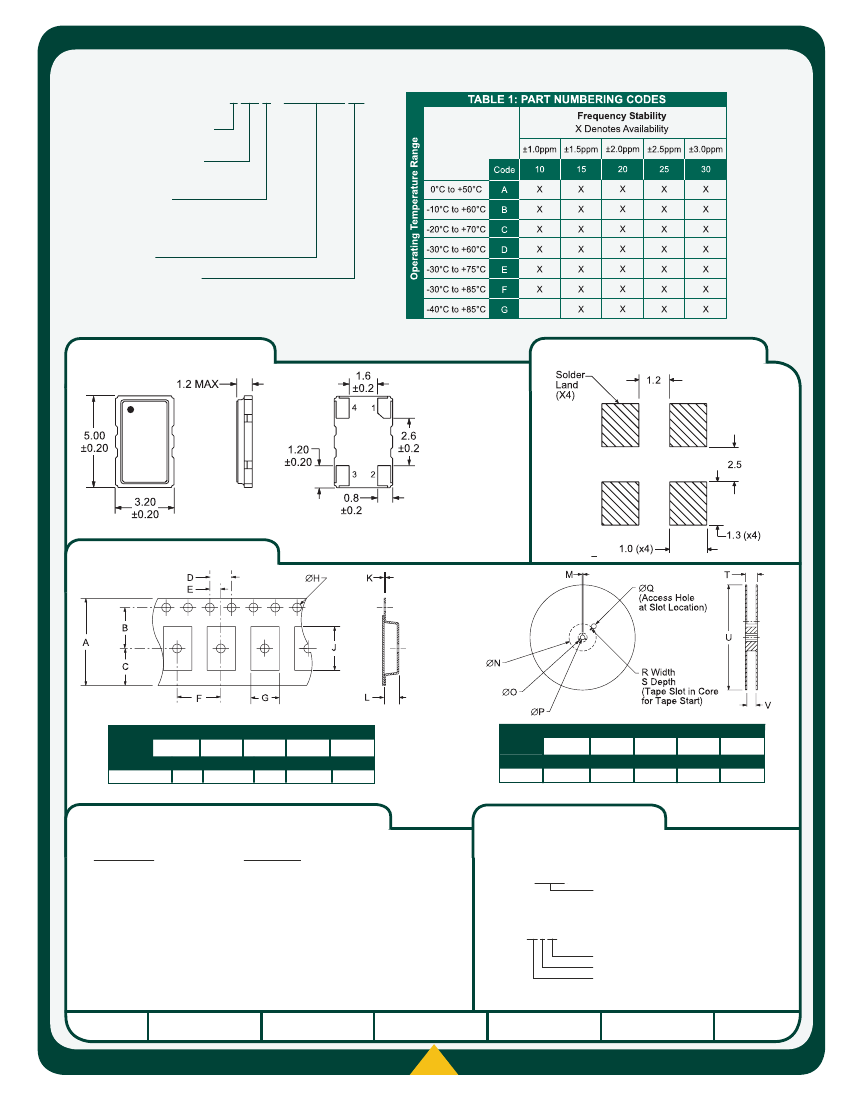

ES51C5

Series

• RoHS Compliant (Pb-Free)

• Temperature Compensated Crystal

Oscillator (TCXO)

• Clipped Sinewave Output

• 5.0V Supply Voltage

• Ceramic SMD package

• Stability to 1.0ppm

• External voltage control option available

NOTES

ES51C5

H 1.2

L 5.0

W 3.2

OSCILLATOR

__________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________

ELECTRICAL SPECIFICATIONS

Nominal Frequency

12.504MHz, 12.8MHz, 13MHz, 14MHz, 14.31818MHz, 14.4844MHz, 14.7456MHz, 15MHz,

16MHz, 16.325291MHz, 16.367667MHz, 16.368MHz, 16.8MHz, 18.414MHz, 19.2MHz,

19.44MHz, 19.68MHz, 19.8MHz, 20MHz, 24MHz, and 24.5535MHz

Frequency Stability

vs. Operating Temperature Range (V

=5.0V

, Vc=1.5V

)

vs. Input Voltage (±5%)

vs. Load (±1kΩ//±1pF)

Aging (at 25ºC)

Operating Temperature Range

Supply Voltage (V

)

Input Current

Output Voltage

Load Drive Capability

External Trim (Voltage Control Option)

Storage Temperature Range

Start Up Time

Phase Noise (at 12.800MHz)

At offset of 10Hz

At offset of 100Hz

At offset of 1kHz

At offset of 10kHz

1.5V

±1.0V

; Positive Transfer Characteristic

External DC-Cut Capacitor Required, 1000pF Recommended

See Table 1

±0.3ppm Maximum

±0.2ppm Maximum

±1ppm / Year Maximum

See Table 1

5.0V

±5%

2.0mA Maximum

1.0Vp-p Clipped Sinewave Minimum

10kOhms // 10pF

±8ppm Minimum

-30°C to 85°C

5mSec Maximum

-80dBc/Hz Typical

-115dBc/Hz Typical

-135dBc/Hz Typical

-148dBc/Hz Typical

vs. Frequency Tolerance (25°C ±2°C, V

=5.0V

, Vc=1.5V

) ±1.0ppm Maximum

MANUFACTURER
